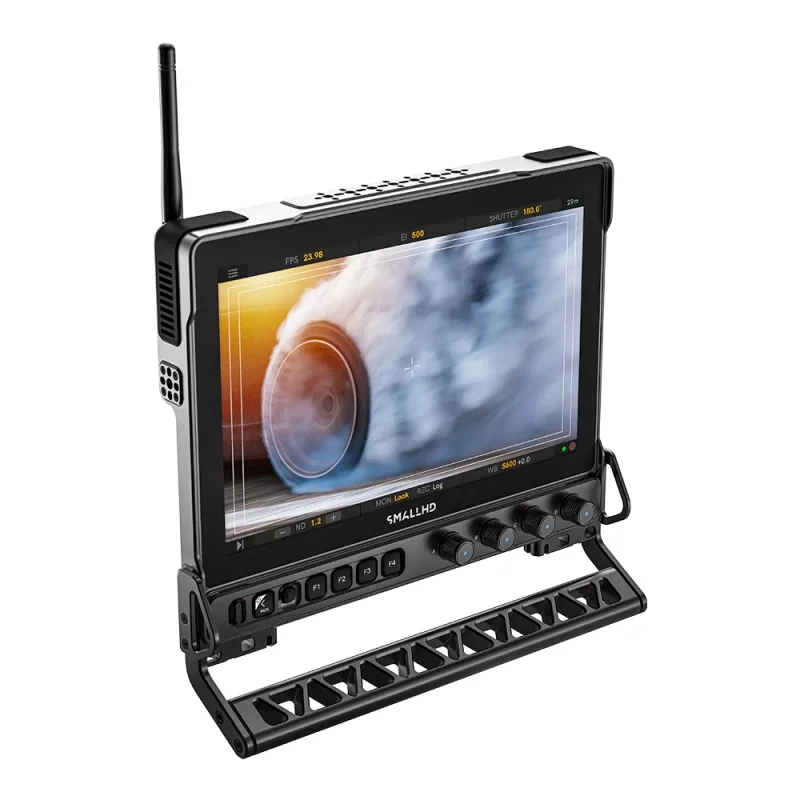

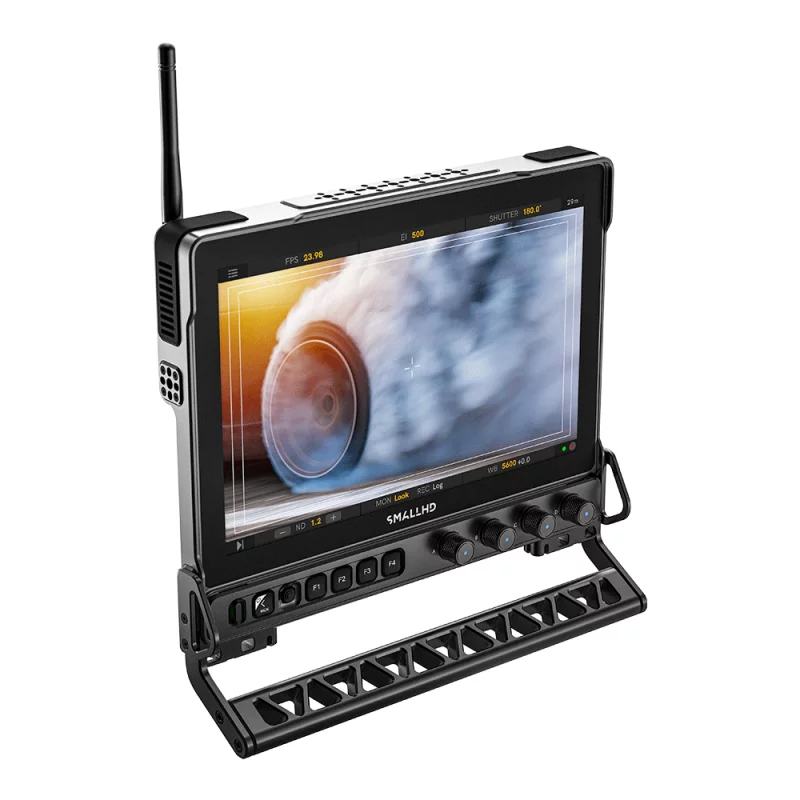

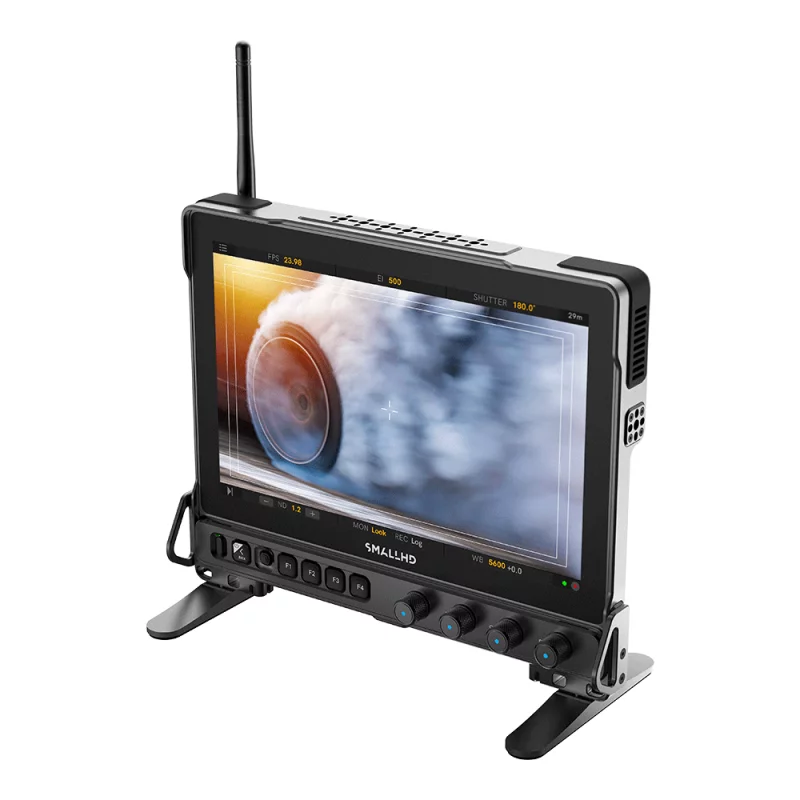

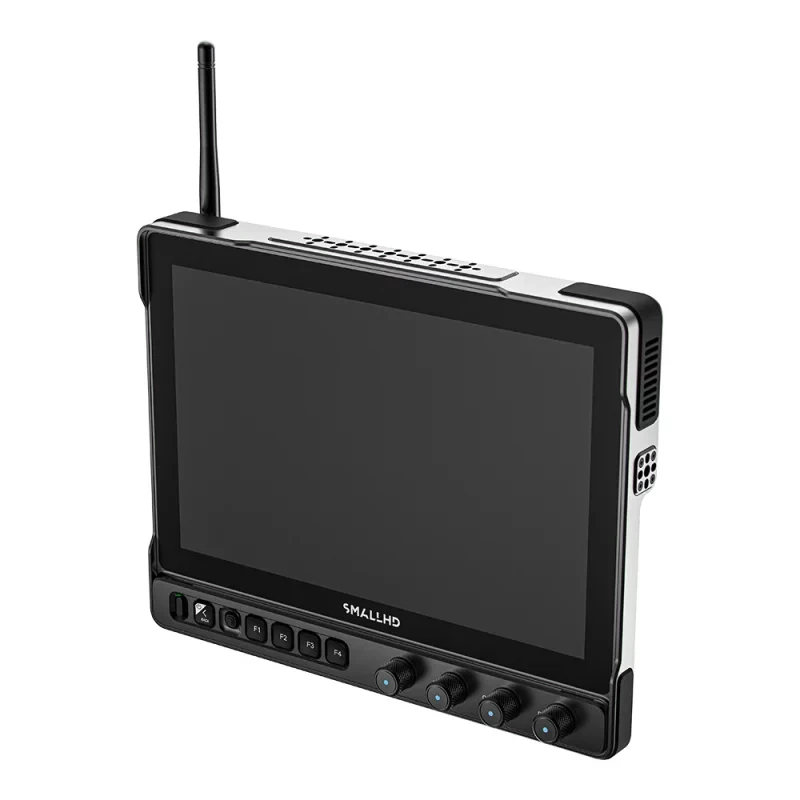

The Ultra 10 can be customized with PageOS tools and functions and supports 4K signals at up to 60 fps via 6G-SDI. In addition to an Ethernet port for ARRI and Sony Venice cameras, it features a 5-pin USB port for RED Camera Control (Camera Control license and cable sold separately). With an optional Gold or V-Mount micro battery plate, the Ultra 10 is suitable for use in all situations and under any conditions. This impact-resistant monitor operates in temperatures ranging from sub-zero to extreme heat up to 40°C.
With Multi-View tools via PageOS, it’s possible to display two camera feeds and multiple tool pages simultaneously, side by side on the screen.

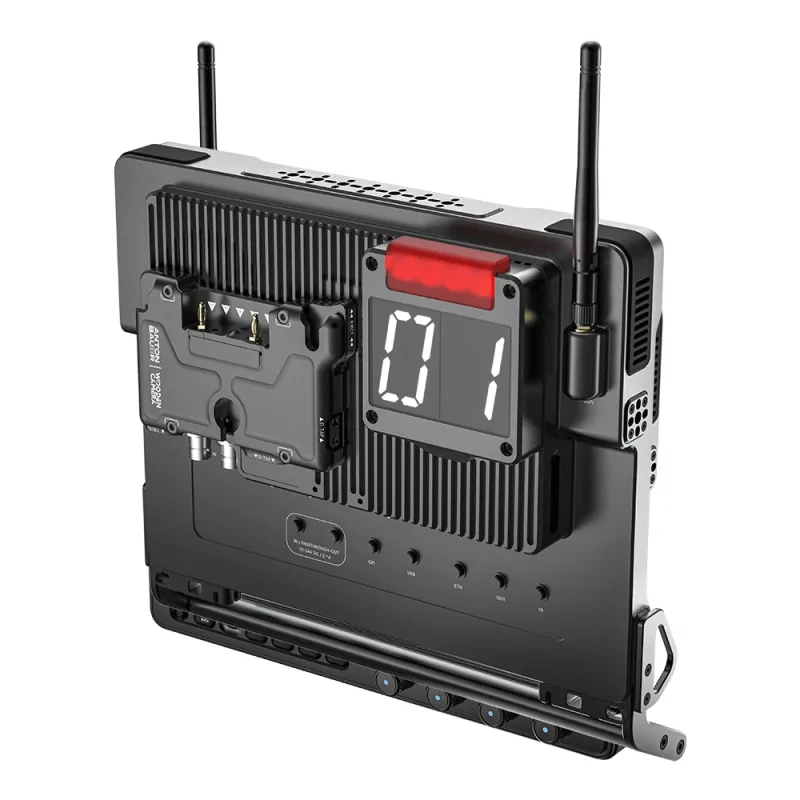

Also, the monitor is optionally available with a built-in Teradek Bolt 6 wireless video transmission system, fully integrated into the housing. The built-in Bolt 6 units utilize the clear RF signals of the newly opened 6 GHz spectrum. The RX models are compatible with all Teradek Bolt 6 units and backward compatible with any Bolt 4K system in 5 GHz mode.
Features:
- 10-inch camera control monitor with a resolution of 1920 x 1200 pixels
- Touchscreen with 2000 nits brightness
- 6G-SDI for modern 4K end-to-end workflows
- QD-LED Edge-Lit LCD panel technology
- Built-in WiFi receiver
- Impact-resistant, dustproof, and waterproof with IP54 rating
- Configurable function buttons and multifunctional controls for high-end use
- Camera control compatible with all current SmallHD licenses
- Ports for ARRI, RED, and Sony Venice (licenses and cables sold separately)
- Locking power connector
- SD card slot
- Lemo USB port
- Option on wireless video transmission with Teradek Bolt 6 (separate product version)
Specifications:

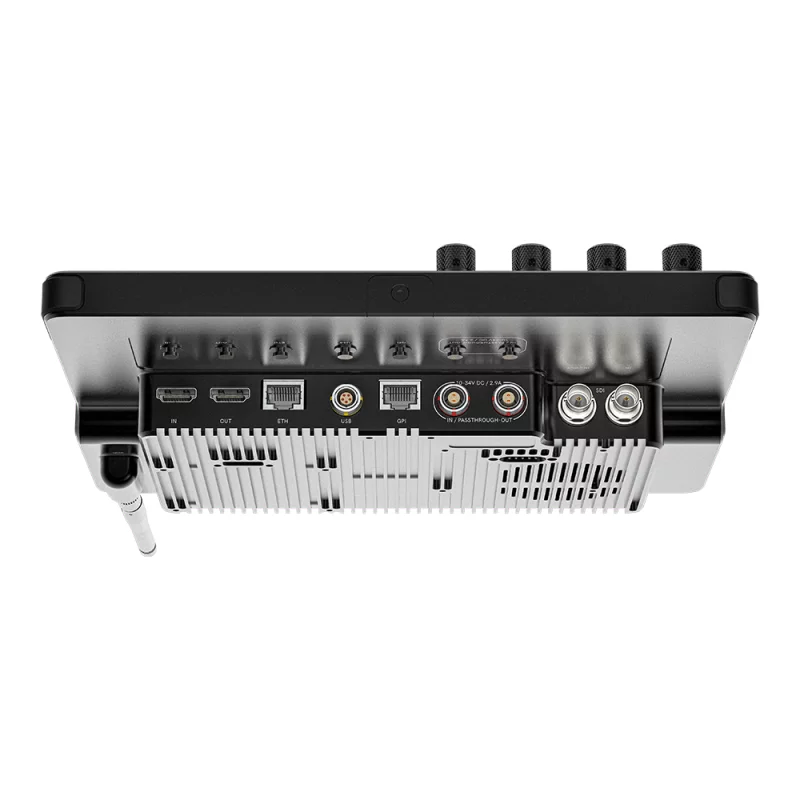

- 1x BNC 6G input (4Kp30)
- 1x BNC 6G input/output (4Kp30)
- 1x HDMI input (4Kp60)
- 1x HDMI output (4Kp60)
- Full-size HDMI Type-A ports
- Ethernet port for ARRI camera control and Sony Venice; 5-pin USB port for RED® camera control (camera control license and cable sold separately)
- Lemo USB port
- Power input (2-pin) (10-34V, 2.9A)
- Pass-Thru power (2-pin) (10-34V, 2.9A)
- Optional Gold or V-Mount micro battery plates
- 3.5mm headphone jack
- Battery connections: 6.0 V to 16.8 V
- Weight: approx. 1497 g
Included in the box:
- 1x Ultra 10
- 1x 8GB SD card
- 1x D-Tap to 2pin Power Cable 36in
- 1x Ultra Screen Protector for Ultra 10
- Set of Ultra 10 Dust Covers
- 1x SmallHD 4K Monitor Feet (Set)
- 1x SmallHD Cleaning Cloth
- 1x Ultra 10 Dial Protector D-Ring
- 1x Ultra 10 Dial Guard
