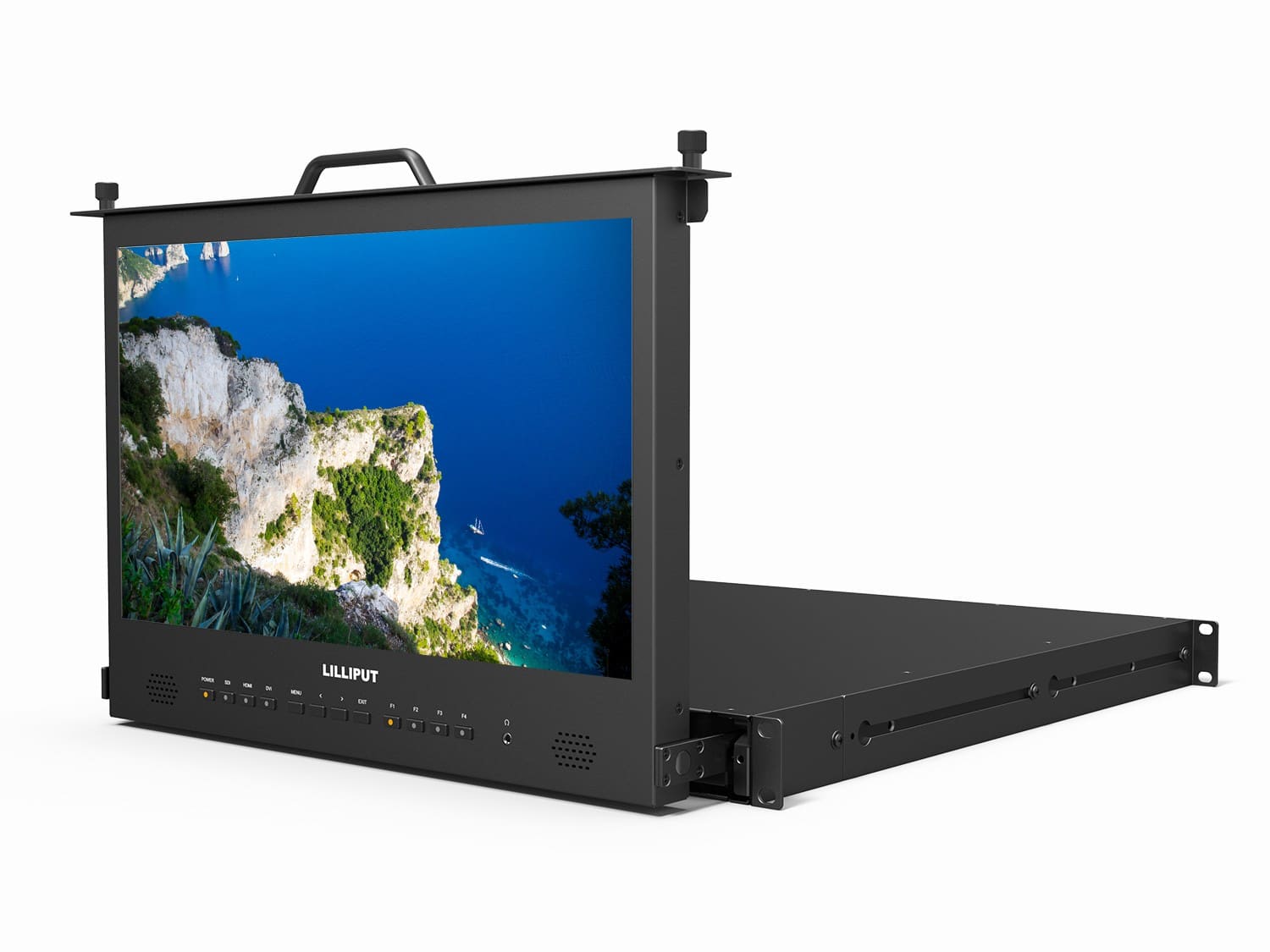

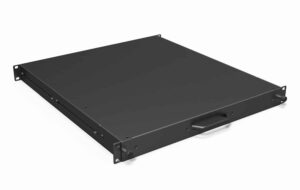

17.3″ LILLIPUT RM-1730S full-HD pull-out rack monitor

1RU pull-out Monitor
1920×1080, FullHD resolution,
300cd/m² high brightness,
700:1 high contrast,

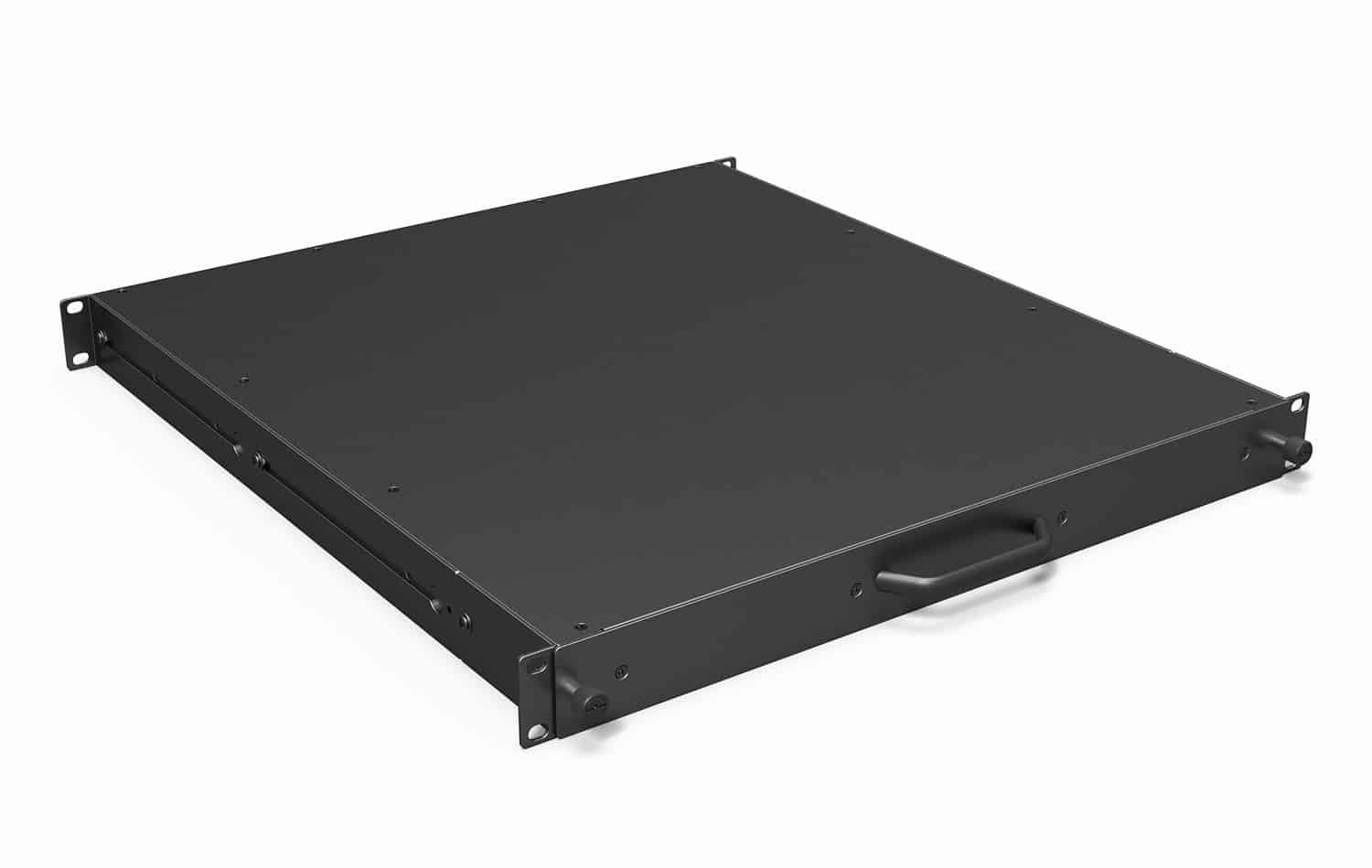

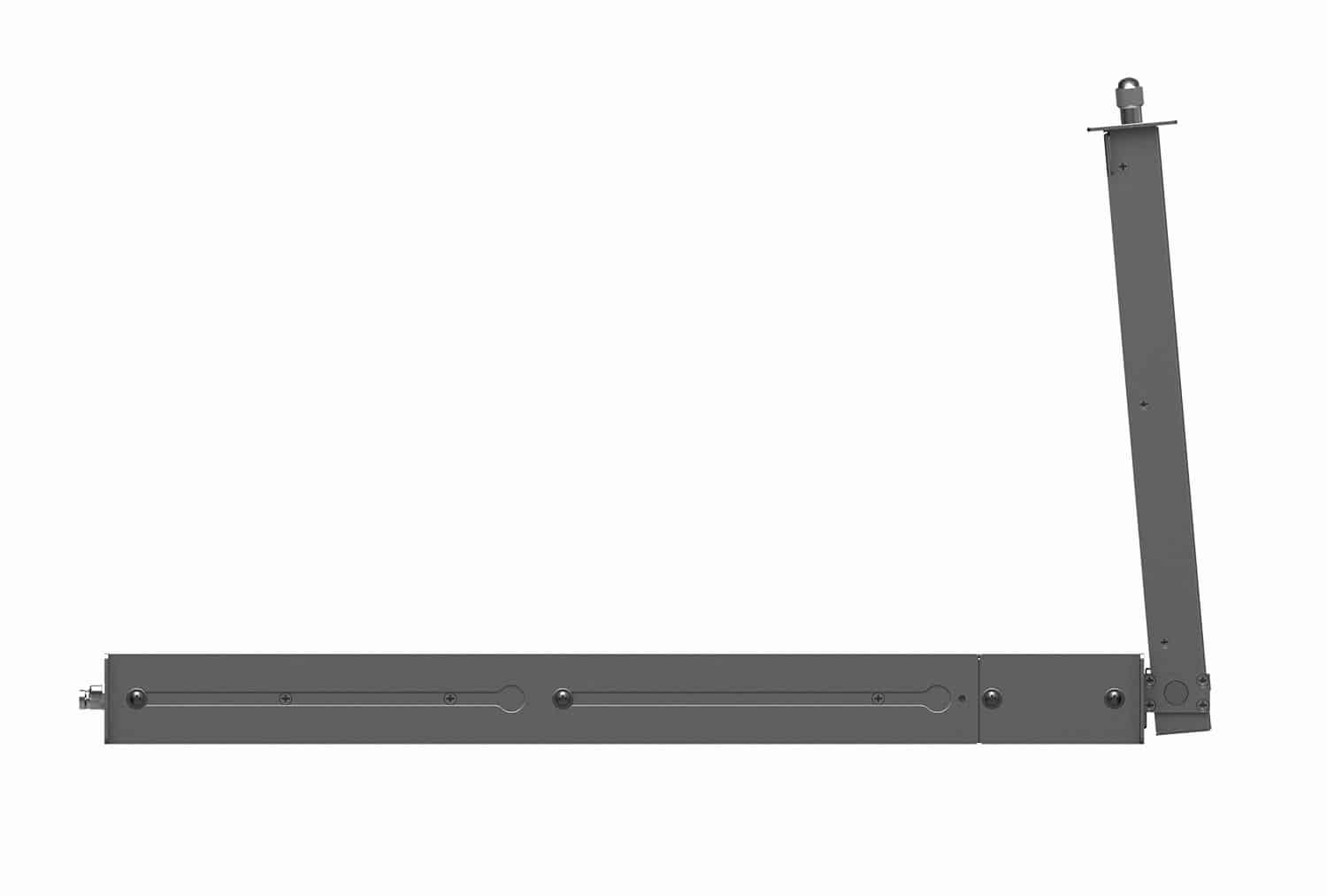

1RU pull-out drawer type,

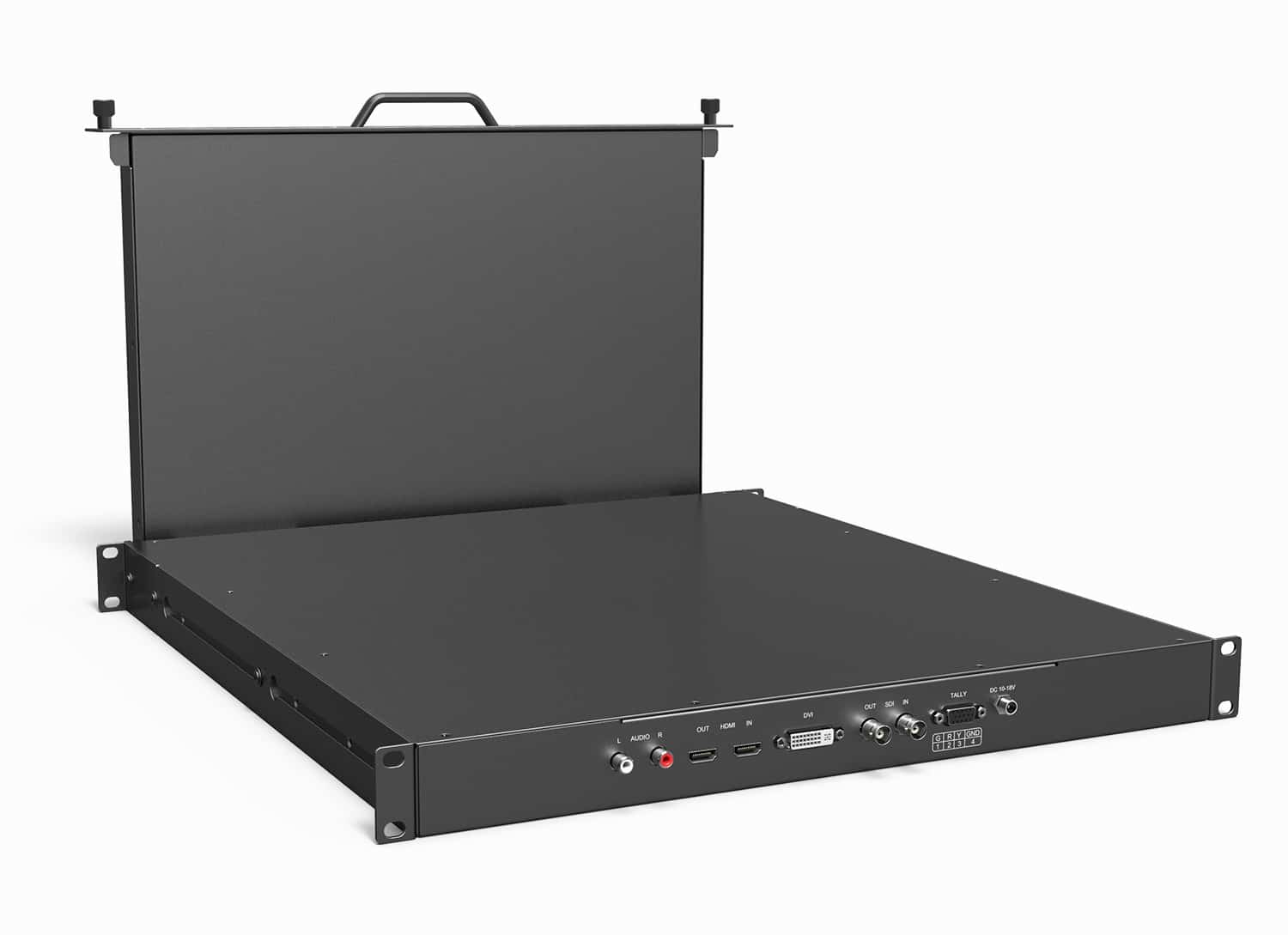

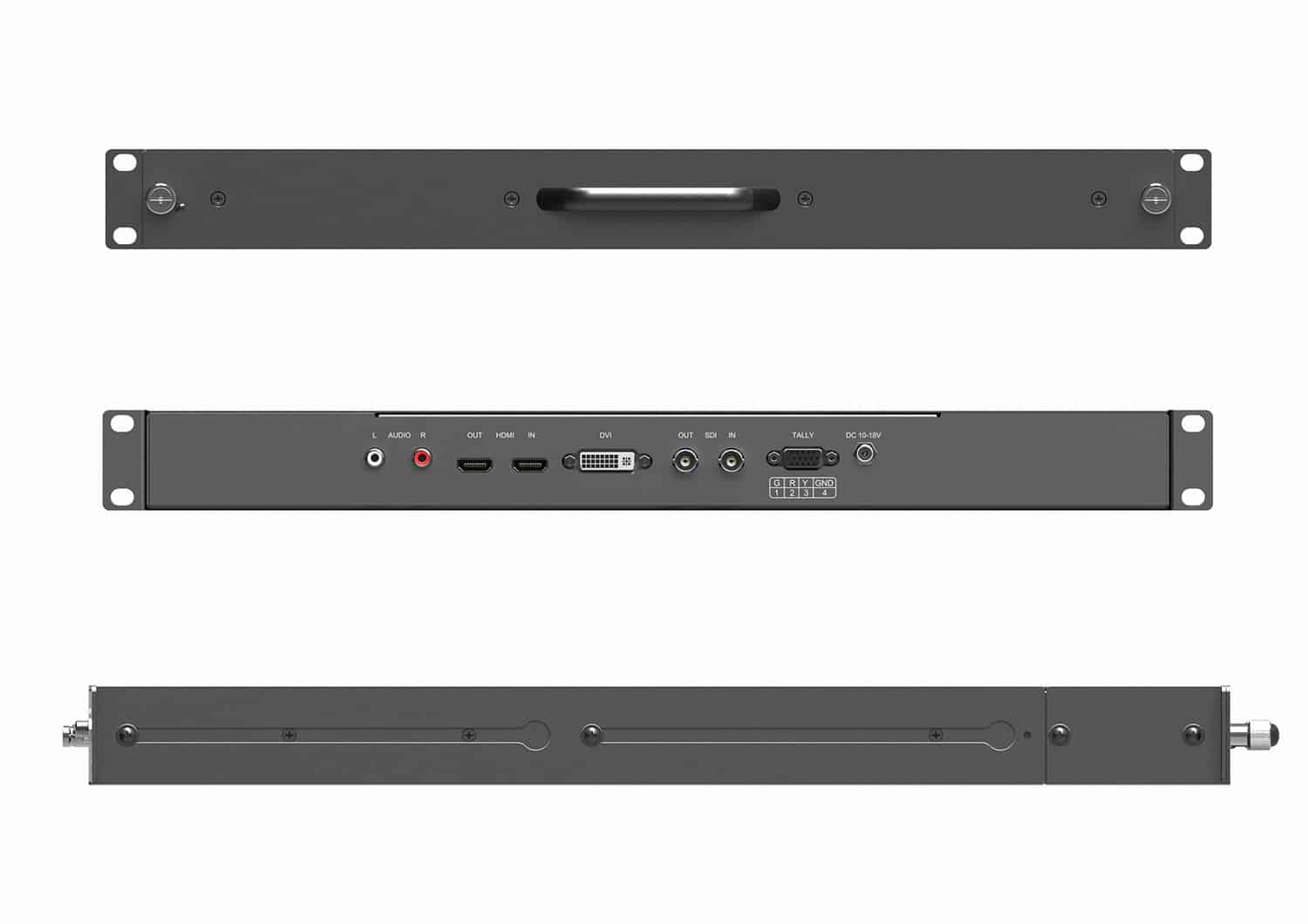

3G-SDI, HDMI, DVI, Audio & Tally inputs,
SDI and HDMI cross conversion,

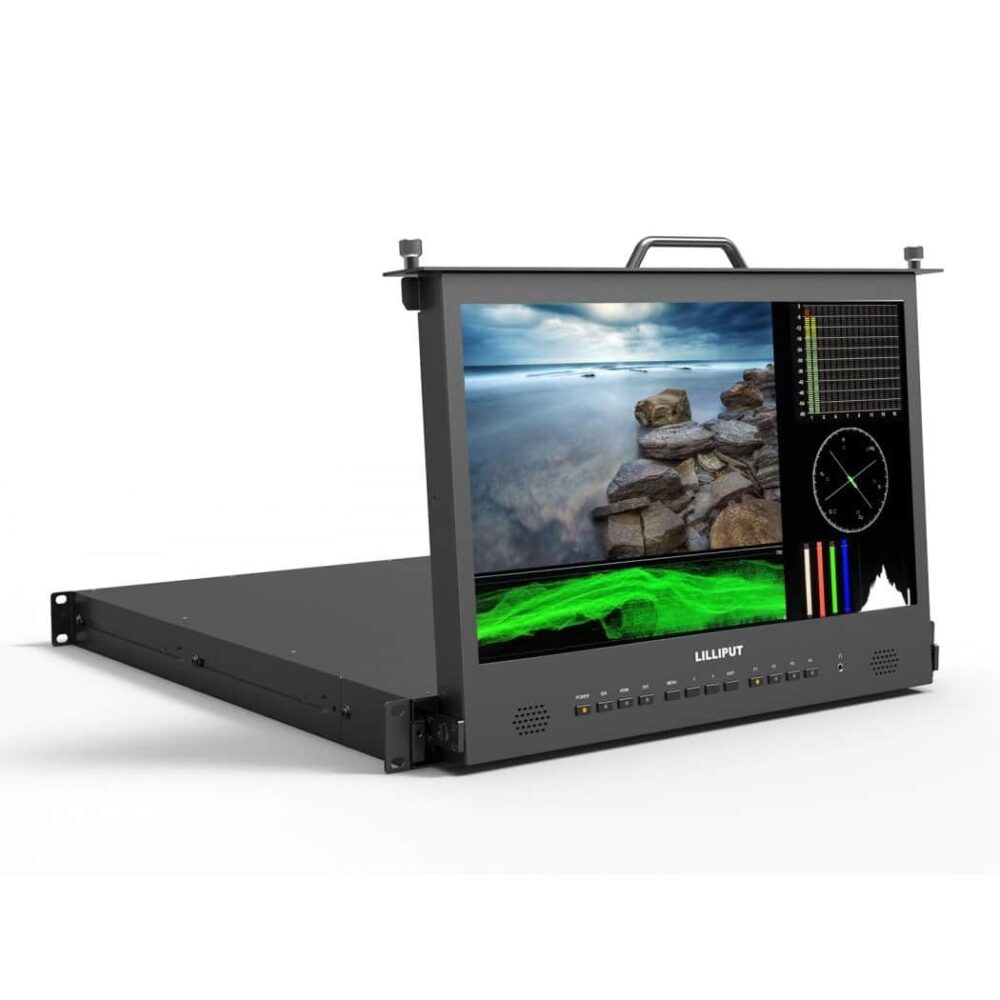

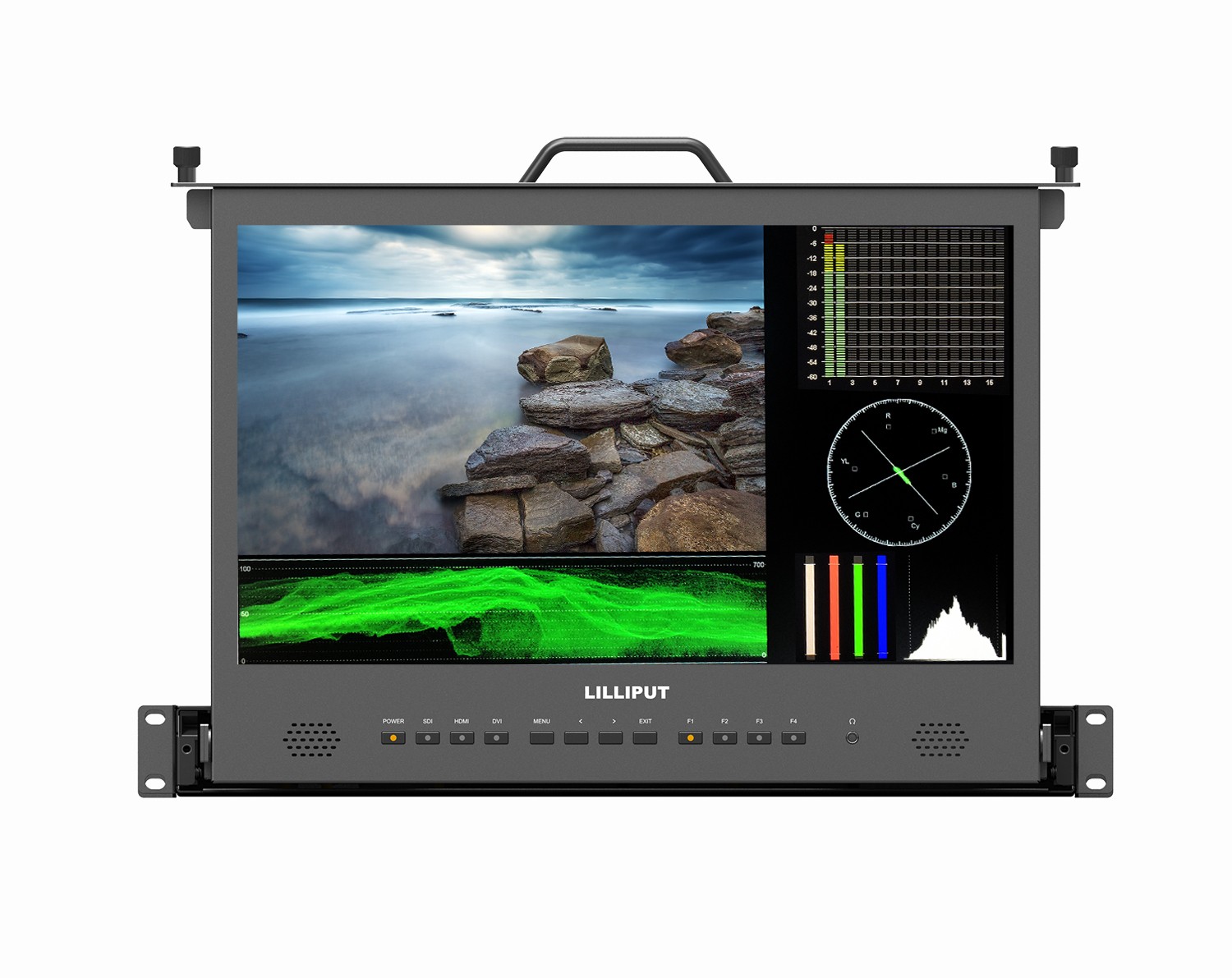

Waveform PIP mode, vectorscope,
Column (YRGB peak), time code.

DISPLAY

Display Screen
17.3″ IPS

Physical Resolution
1920×1080

Aspect Ratio
16:9

Brightness
300cd/m2

Contrast
700:1

Viewing Angle
178°/178°(H/V)

INPUT

3G-SDI
1

HDMI
1

DVI
1

AUDIO
2 (L/R)

TALLY
1

OUTPUT

3G-SDI
1

HDMI
1

AUDIO

Speaker
2

Ear Phone Slot
1

SDI FORMAT

SMPTE-125M
480i(59.94)
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-292M
1080p(30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-296M
720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-372M
720p(60/59.94/50)
1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)

SMPTE-425M-AB
-Level A & Level B
1080p(60/59.94/50)
1080i(60/59.94/50)
720p(60/59.94/50/30/29.97/25/24/23.98)

ITU-R BT.656
576i(50)

HDMI FORMAT

Full HD ~ HD
1080p, 1080i, 720p, 576p, 576i, 480p, 486i

POWER

Current
2.8A

Input Voltage
DC 10-18V

Power Consumption
≤32W

ENVIRONMENT

Operating Temperature
-20℃～60℃

Storage Temperature
-30℃～70℃

DIMENSION

Dimension(LWD)
482.5×44×507.5mm

Weight
8.6Kg
