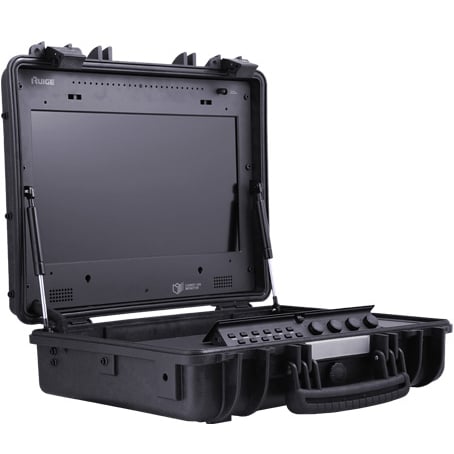

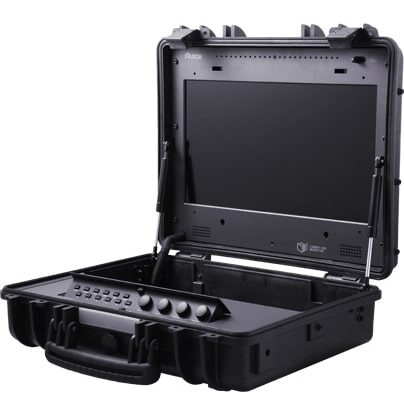

17.3″ RUIGE TL1730HDA-CO kohvermonitor

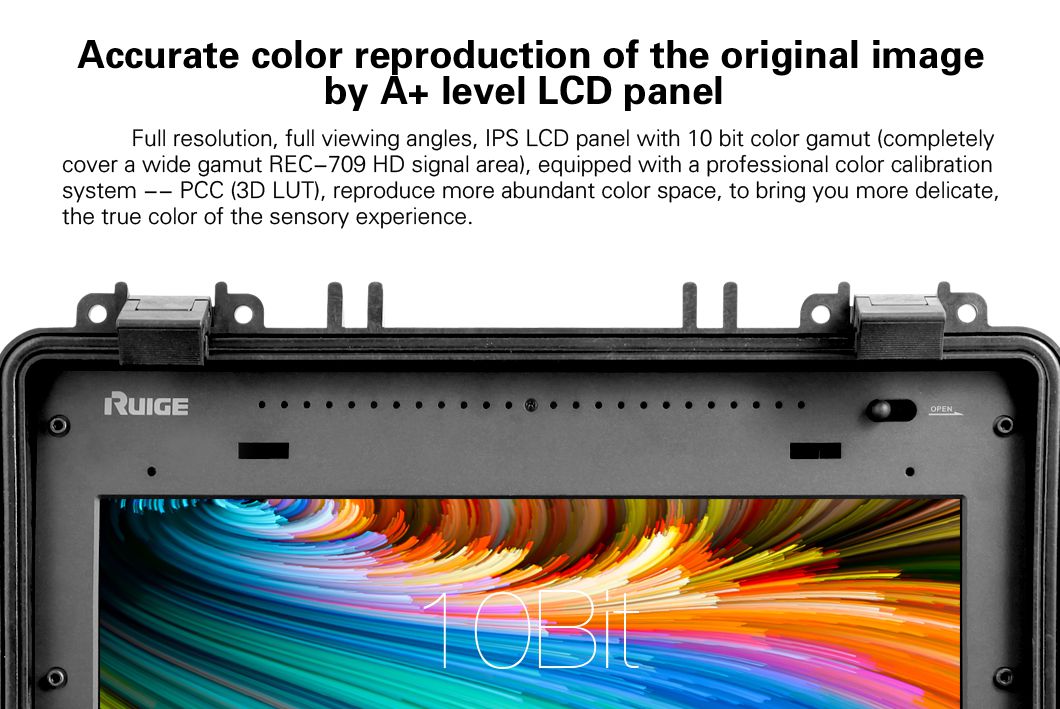

Full HD, wide viewing angle, wide color gamut, 10bit IPS LCD panel, totally covers REC-709 color gamut. equipped with PCC professional color calibration system (3D LUT), richer color reproduction, brings you more delicate, real color sensing experience.
3G-SDI
10-bit
1920X1080 (IPS)

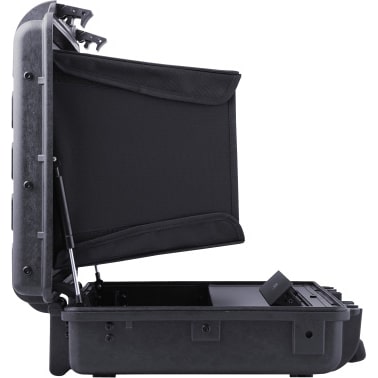

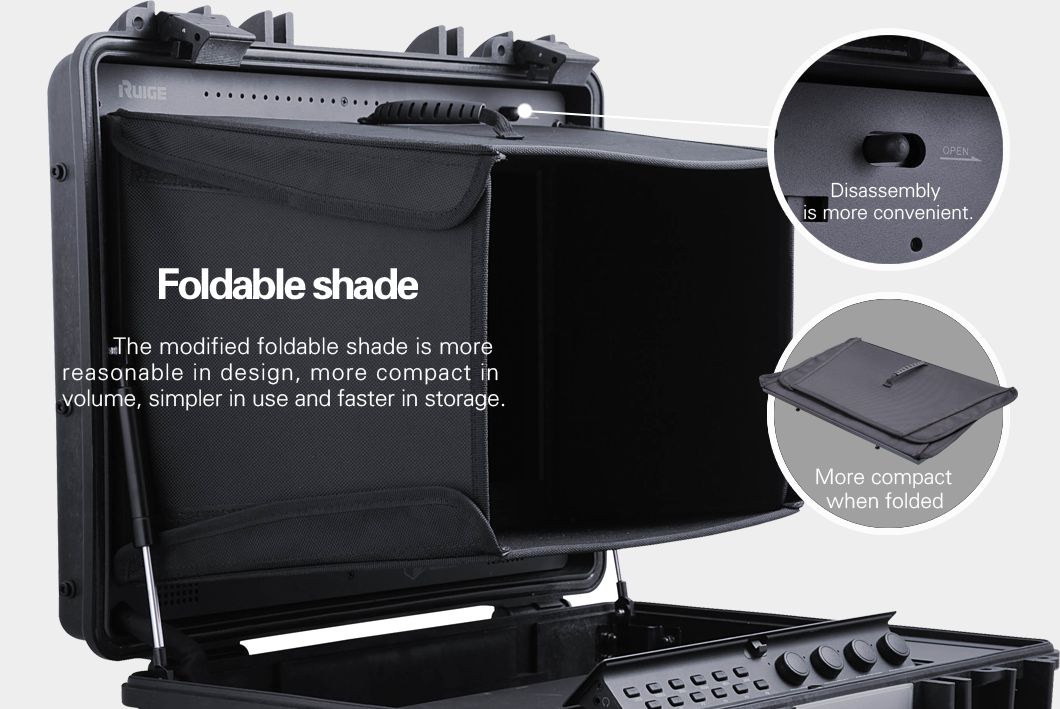

Foldable sunhood
Perfect focus assistant function
Built-in 3D LUT (support REC709, SMPTE-C, EBU)

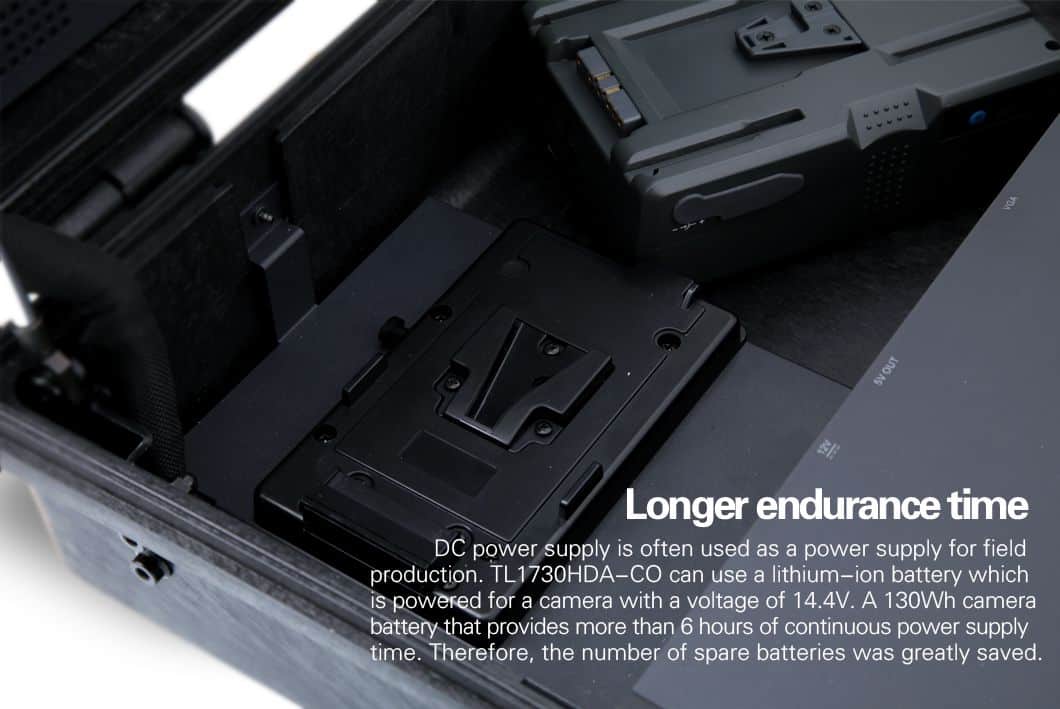

Up to 6 hours Battery life (with volume display function)

FEATURES:
16:9 FULL HD 1920*1080 ,HIGH CONTRAST PANEL
THREE WAVEFORM DISPLAY（BRIGHTNESS/VECTSCOPE/RGB）
SDI, DVI SIGNAL WAVEFORM MONITORING
FOCUS ASSISTANT (RED/GREEN/BLUE/YELLOW)
FALSE COLOR
TIME CODE（VITC/VTC）
SAFETY MARKS/TALLY/UMD
B&W, BLUE ONLY
HDCP 1.1
H/V-DELAY
16 CHANNEL AUDIO METERS

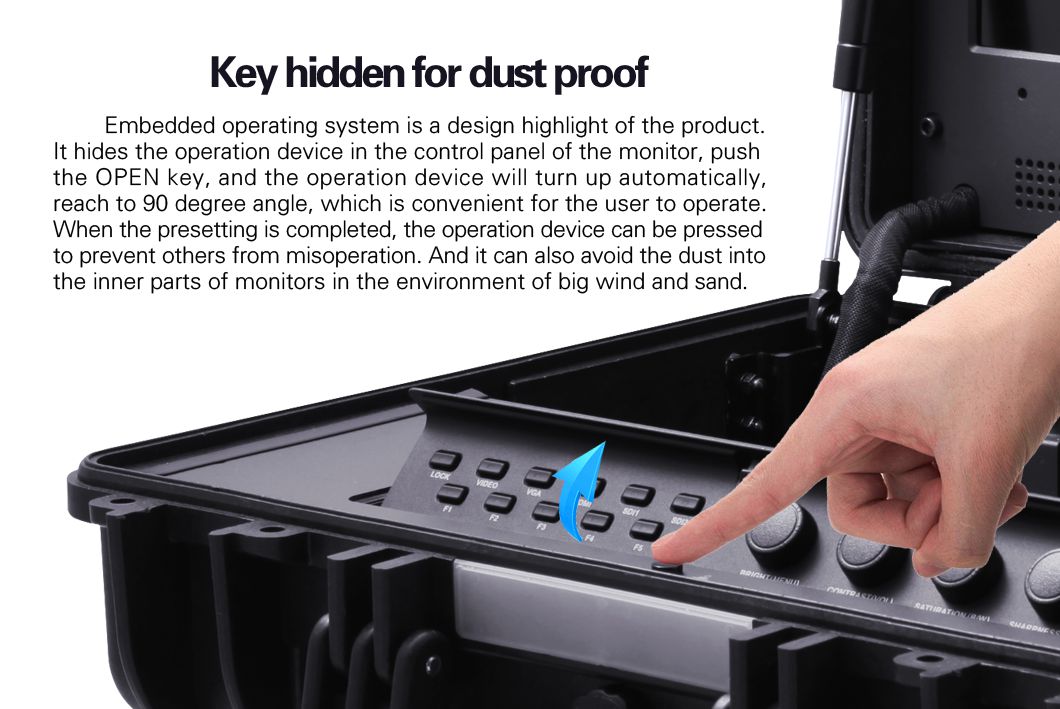

LOCK FEATURE
BATTERY CHECKING
EMBEDDED 3D-LUT（Rec709, SMPTE-C AND EBU）
F KEY USER-DEFINED
FREEZE FRAME
LOG MODE CONVERSION FUNCTION

SPECIFICATION:

PANEL
SIZE
17.3”

RESOLUTION
1920×RGB×1080

DOT PITCH
0.199（H）×0.199（V）mm

ASPECT RATIO
16:9 / 4:3 Switchable

BACK LIGHT
RGB LED

BRIGHTNESS（MAX）
300cd/m2

CONTRAST（MAX）
800:1

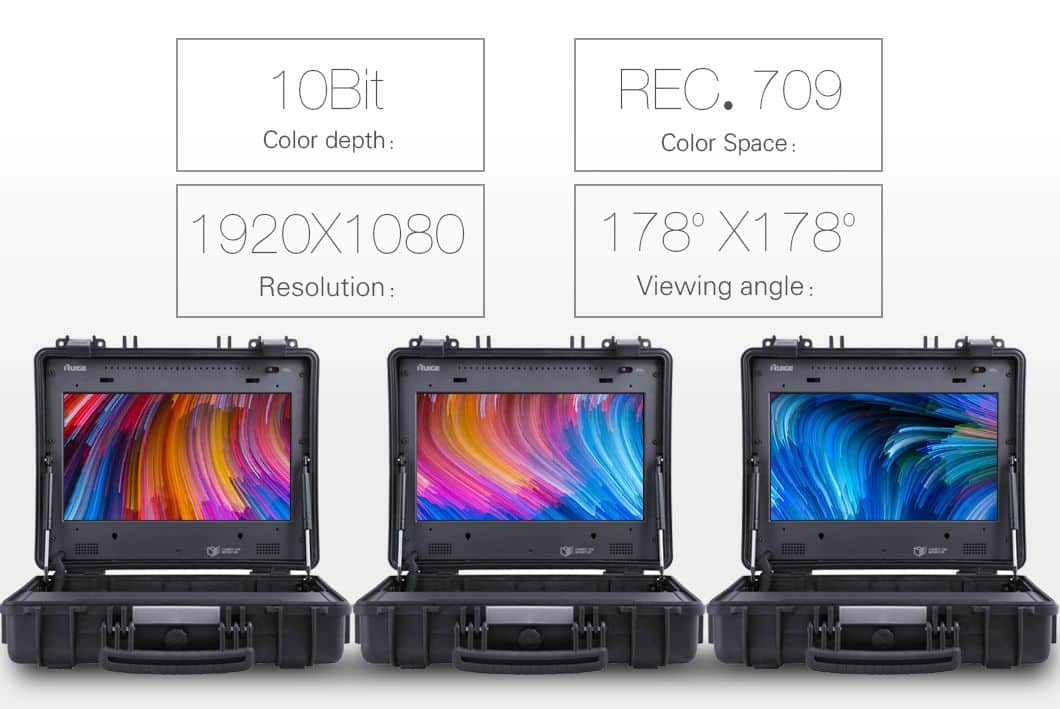

Color depth
10Bit

IMAGE PROCESSING
10Bit

RESPONSE TIME
10ms

VIEWING ANGLE
H178° / V178°

VIDEO IN
3G/HD/SD-SDI
2 x BNC

COMPOSITE(CVBS)
1 x BNC

HDMI
1 x HDMI-A

VGA
1 x DSUB15

VIDEO OUT
3G/HD/SD-SDI
1 x BNC

COMPOSITE
1 x BNC

AUDIO
audio demultiplexing
Yes

audio meters
16 channels

Speakers
2×8Ω/2W

headset
yes

Operation requirement
Input voltage
DC 12V

Power consumption
30W

Working temperature
0-40℃

Store temperature
-20-60℃

Store humidity
0%-90% no condensation

Structure

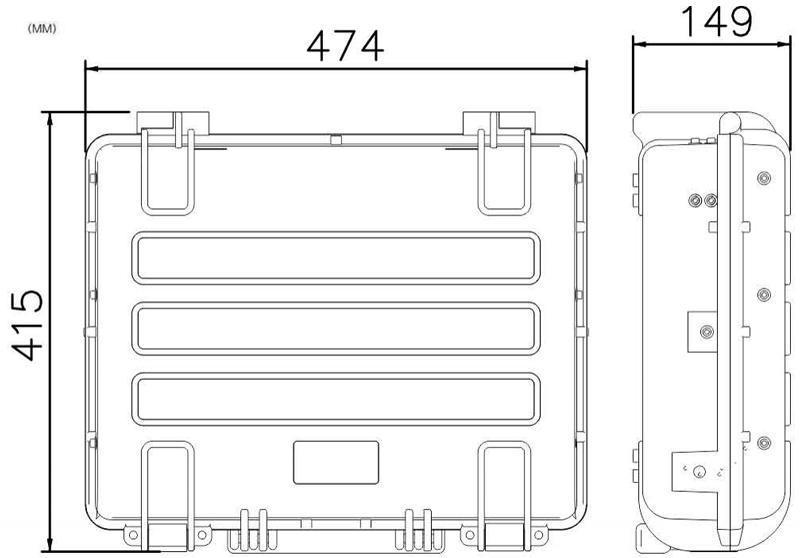

Dimensions (mm)
474x415x149mm

Weight
Around 9kg
