24” RUIGE AT-2400HR 4K 12G-SDI/HDMI broadcast monitor with armor case

AT-2400HR+ARMOR
 5 225.00
 6 479.00 (koos km)

New generation AT-2400HR professional 4K HDR LCD monitor;
Ruige lastest product, the AT-2400HR professional 4K HDR LCD monitor, is capable of transmitting 12G-SDI by using one cable. It is a perfect match for all current 12G-SDI cine cameras.;
Support 3840*2160 4K UHD resolution;
Supports display of HDR, which provides a broader spectrum of colors and contrasts, and allows the showing of more details . Allowing the monitor to be the ultimate choice for both on-set capture and post-production of movie, TV shows, and commercials.
Cover DCI-P3 and Support ITU-R BT.2020

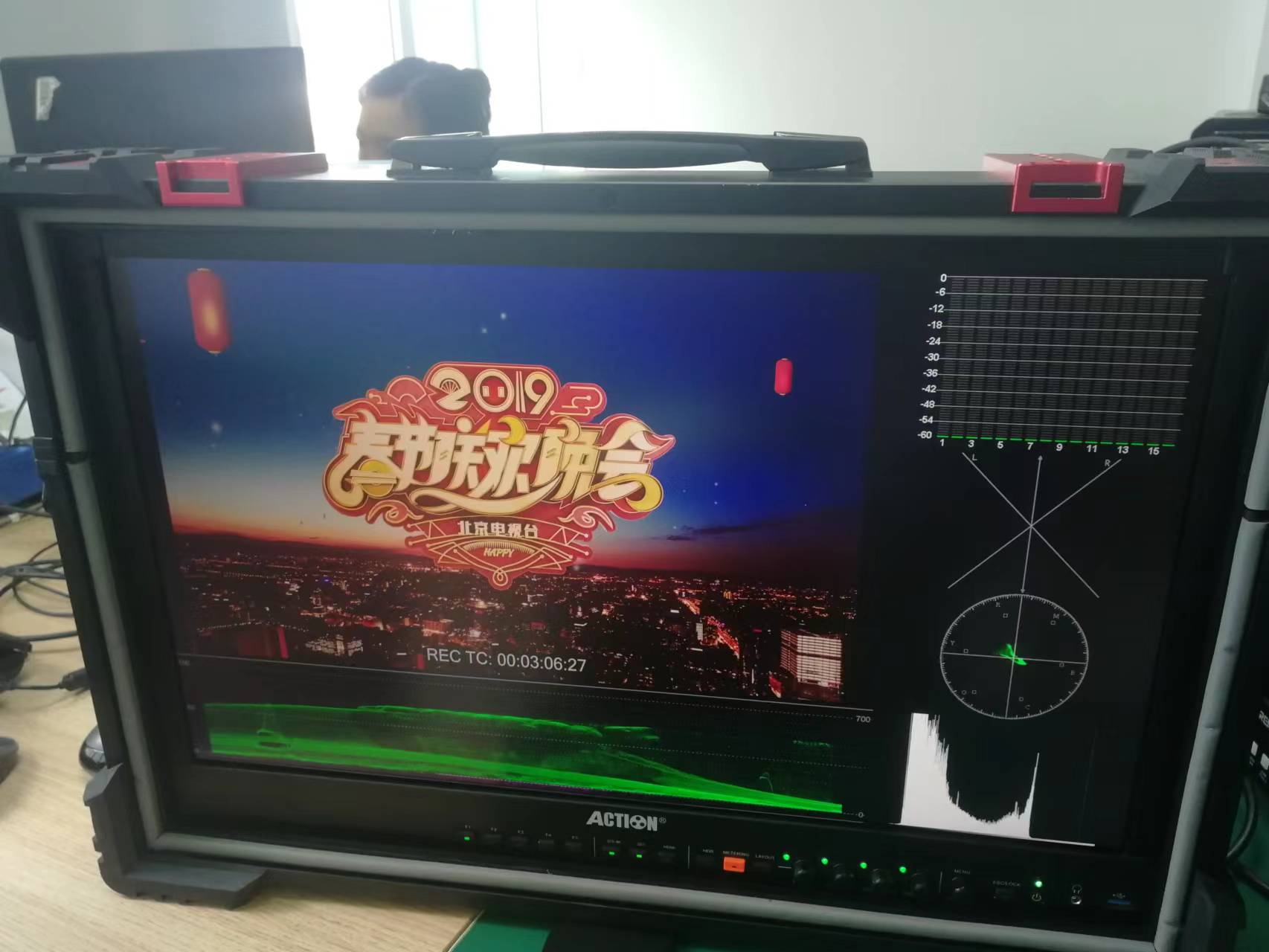

Support quad view, dual view, and single full view. AT-2400HR can receive up to four input signals, and simultaneously display all sources on one screen in real time.
We added Ruige exclusive technology “closed detecting” into AT-2400HR.Easily realizingone-key metering.
AT-2400HR allows users to load customized 3D LUT cude into the monitor by using a flash drive.

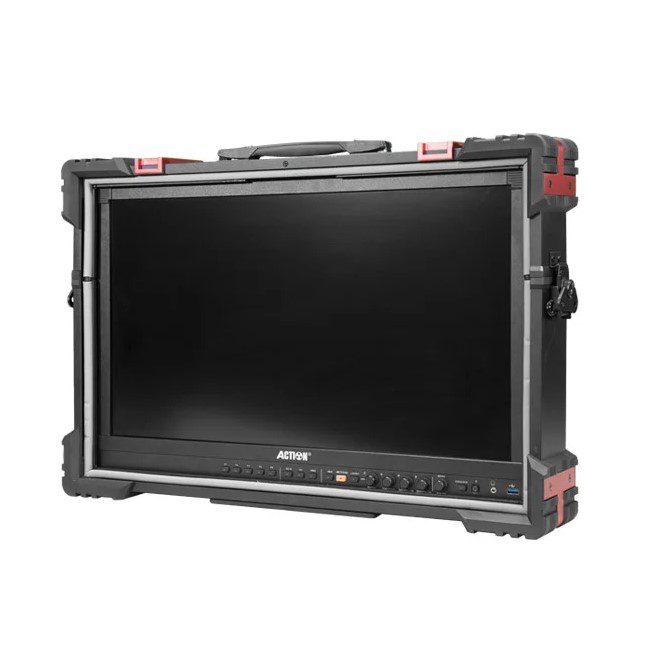

Inspired by our highly appraised Armor No. 1 protective case, the Armor No. 2 makes AT-2200HR the rugged and reliable choice for camera crews live on the scene.

Loe edasi

Saadavus: Saadavus: VÕTA ÜHENDUST Tarneajaks on tavaliselt 1–2 nädalat, aga täpsema teabe saamiseks võtke meiega ühendust.

VÕTA ÜHENDUST

Meie poolt heaks kiidetud

Tasemel kvaliteet

Telli koju või astu läbi

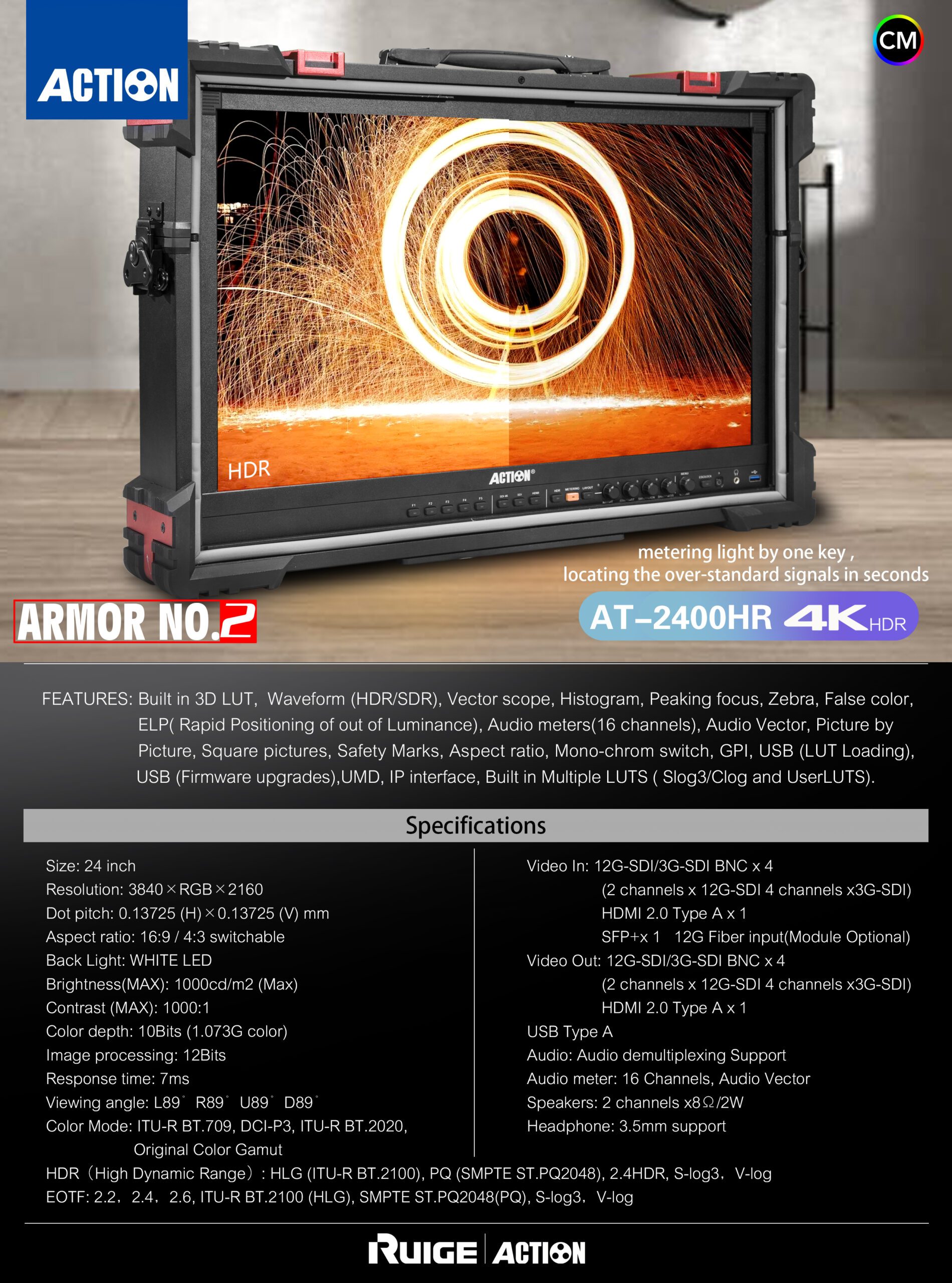

PANEL

SIZE
24 inch

RESOLUTION
3840×RGB×2160

DOT PITCH
0.13725(H)×0.13725(V)mm

ASPECT RATIO
16:9 / 4:3 switchable

BRIGHTNESS
1000cd/㎡(MAX)

CONTRAST(MAX)
1000:1

COLOR DEPTH
10Bit (1.073G Color)

IMAGE PROCESSING
12Bit

RESPONSE TIME
7ms

VIEWING ANGLE
L、R 178° / U、D 178°

COLOR MODE
SMPTE-C、ITU-R BT.709、EBU、DCI-P3、ITU-R BT.2020、Original Color Gamut

HDR(High Dynamic Range)
HLG(ITU-R BT.2100)、PQ(SMPTE ST.PQ2048) 2.4HDR、S-log3、V-log

EOTF
2.2、2.35、2.4、2.6、 ITU-R BT.2100(HLG) SMPTE ST.PQ2048(PQ)、S-log3 V-log

VIDEO IN

HDMI
HDMI 2.0 Type A x 1

USB
USB 2.0 Type A x 1

12G-SDI/3G-SDI
BNC x 4 (2 channles 12G-SDI 4 channels 3G-SDI)

SFP+
SFP+ x 1 12G Fiber Input (Mudule Optional)

VIDEO OUT

HDMI
HDMI 2.0 Type A x 1

12G-SDI/3G-SDI
BNC x 4 (2 channles 12G-SDI 4 channels 3G-SDI)

AUDIO

Audio demultiplexing
Support

Audio meters
16 channels, Audio Vector

Speakers
2 channels × 8Ω/2W

Headphone
3.5mm Support
