Display
Size
28”
Resolution
3840×2160
Brightness
300cd/m²
Aspect ratio
16:9
Contrast
1000:1
Viewing Angle
170°/160°(H/V)

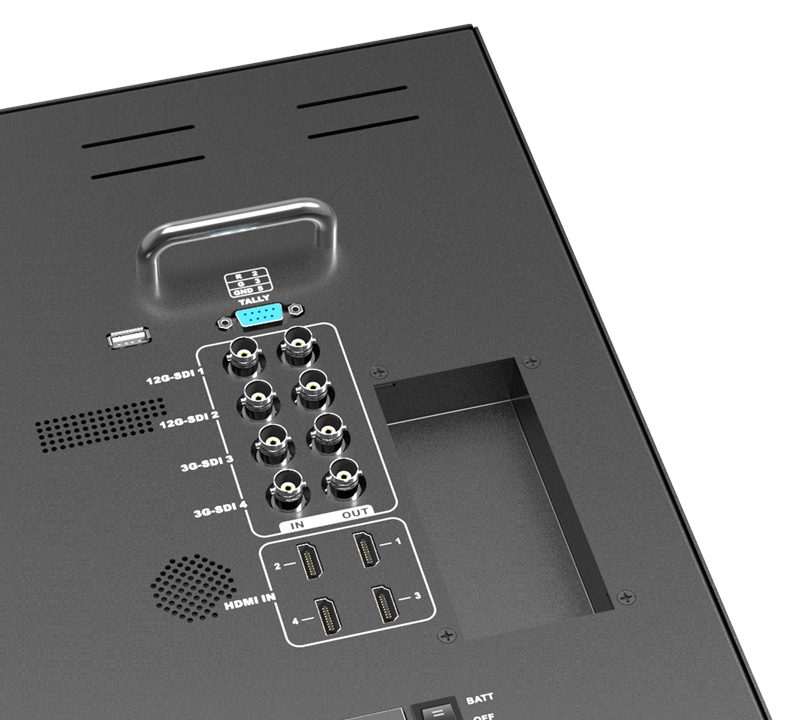

Video Input
SDI
2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI
1×HDMI 2.0, 3xHDMI 1.4
Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
SDI
2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
Supported In / Out Formats
SDI
720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
HDMI
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
SDI
12ch 48kHz 24-bit
HDMI
2ch 24-bit
Ear Jack
3.5mm
Built-in Speakers
2
Power
Operating power
≤61.5W
DC In
DC 12-24V

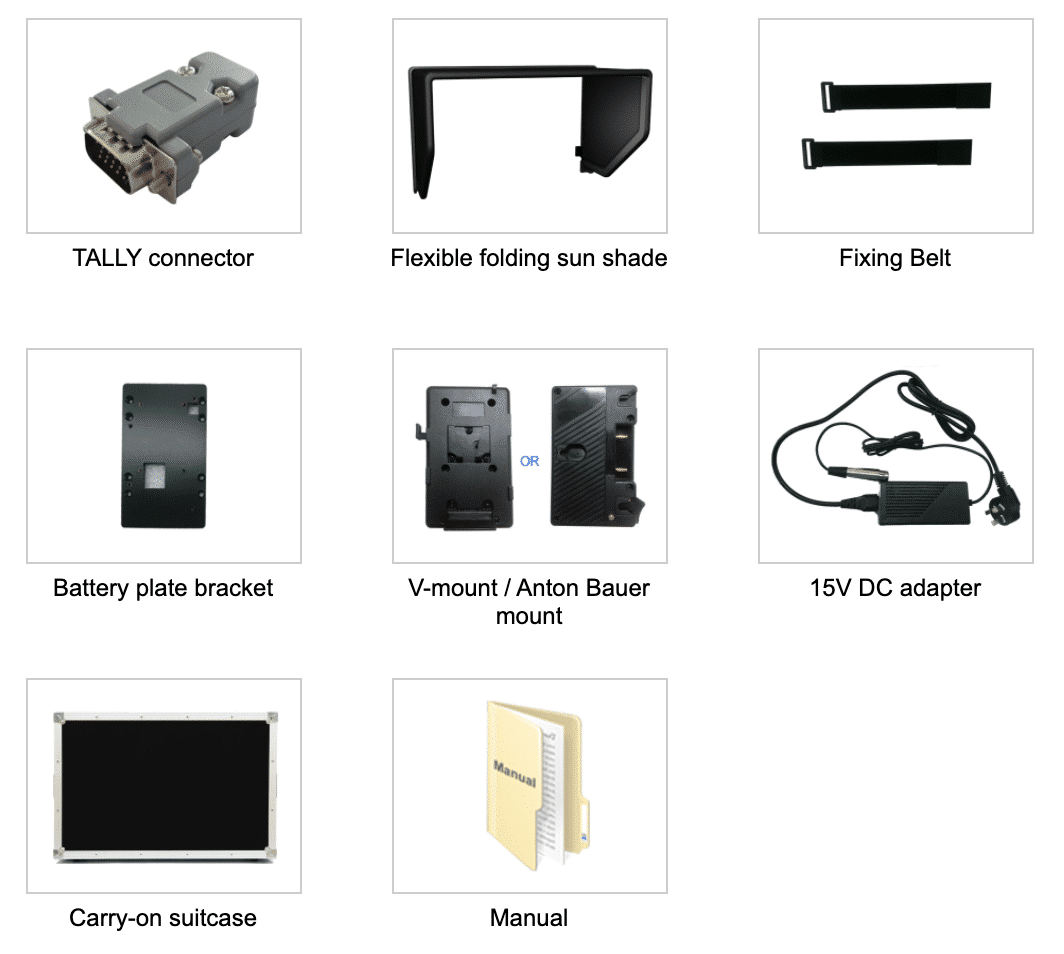

Compatible batteries
V-Lock or Anton Bauer Mount
Input voltage (battery)
14.4V nominal
Environment
Operating Temperature
0℃~50℃
Storage Temperature
-20℃~60℃
Other
Dimension(LWD)
670×425×45mm / 761×474×173mm (with case)
Weight
9.4kg / 21kg (with case)
