28″ LILLIPUT BM280-4KS monitor, 4K HDMI, 3G-SDI, 10bit

4K (3840*2160) Ultra-HD native resolution ,

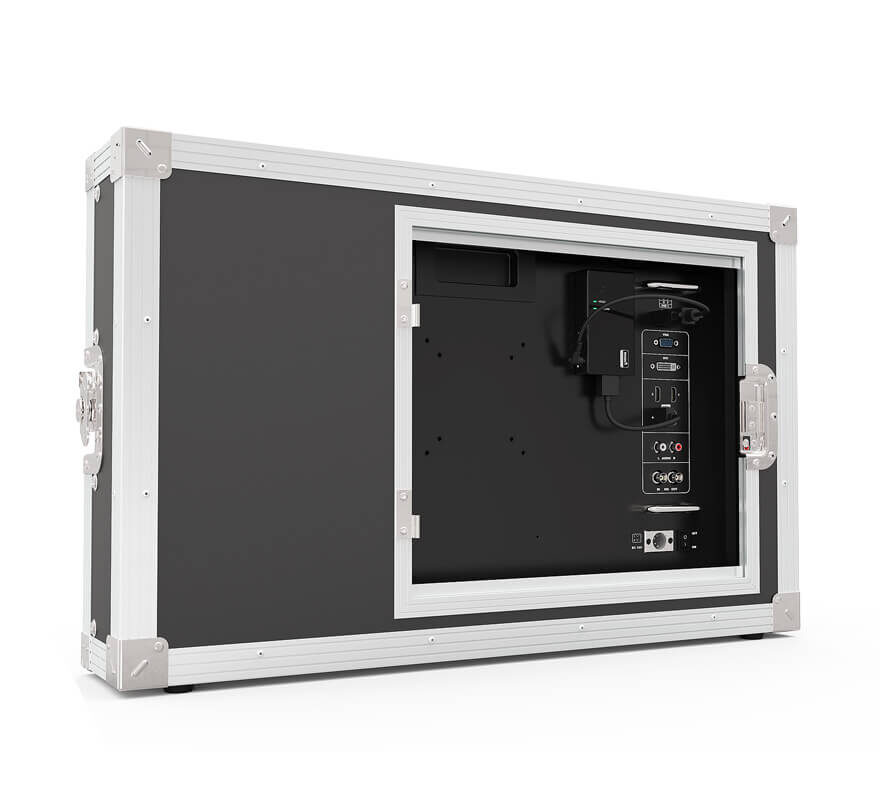

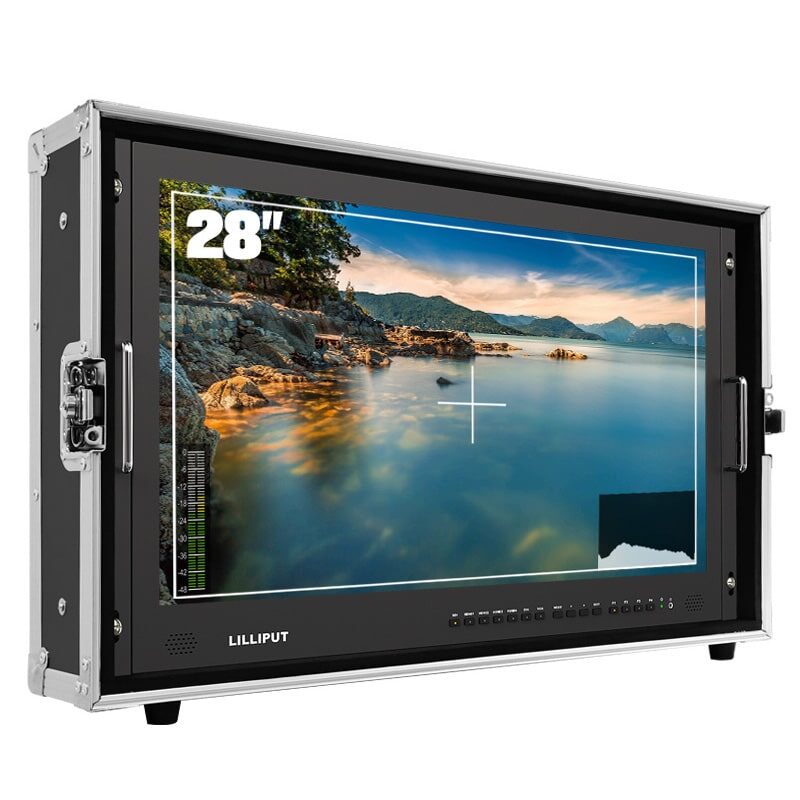

28″ perfect size for both suitcase & rackmount,
HDR, 3D-LUT & Color space,
Peaking, False color & Time code,
High contrast: 1000:1,
170° Ultra high viewing angle,

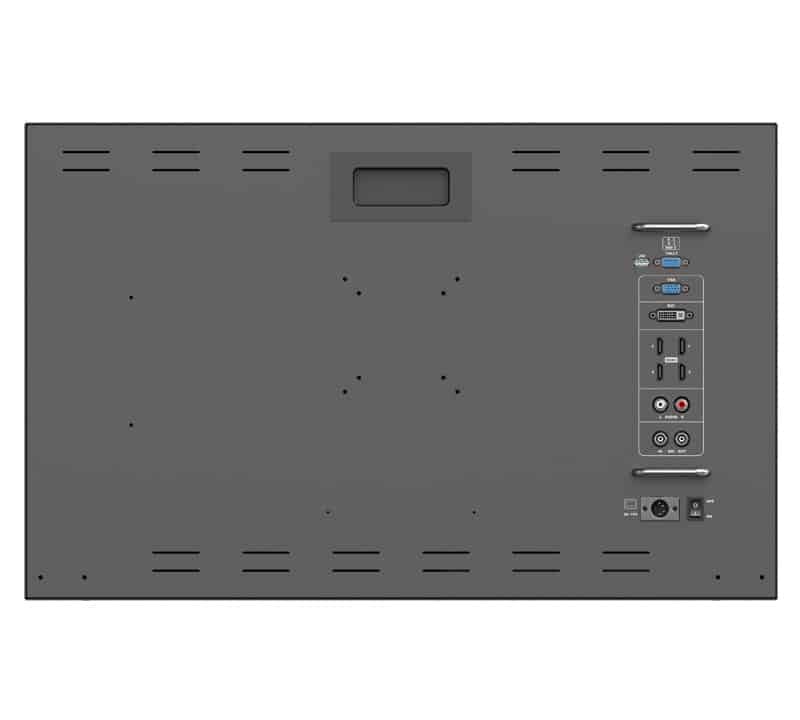

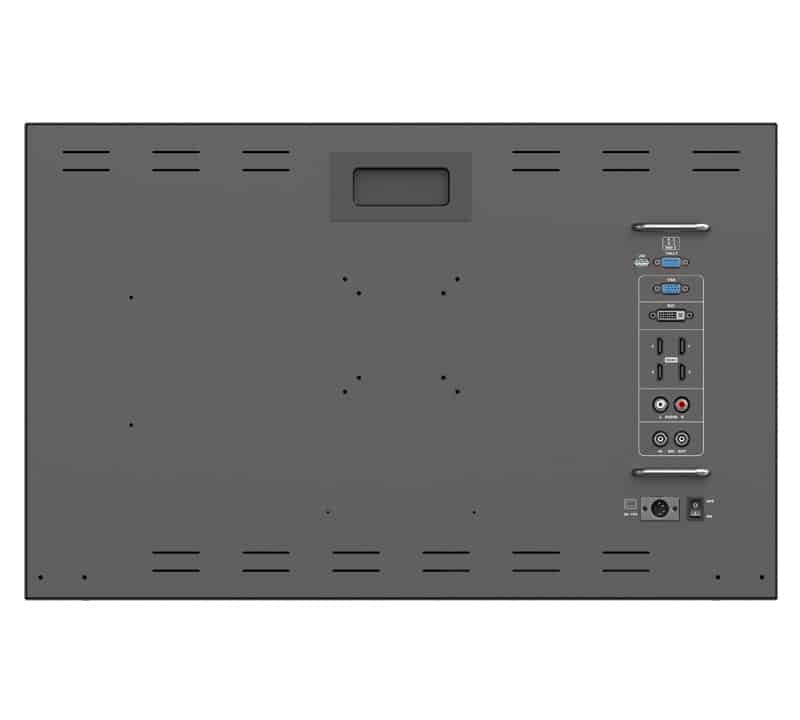

Rich interfaces: 3G-SDI, HDMI 2.0, DVI, VGA, AV input,
Wide voltage: DC12-24V.

DISPLAY
Display Screen
28” 10bit

Physical Resolution
3840×2160, 4K

Aspect Ratio
16:9

Brightness
300cd/m²

Contrast
1000:1

Viewing Angle
170°/160°(H/V)

INPUT
3G-SDI
1

Wireless HDMI
1 (optional)

HDMI
HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)

DVI
1

VGA
1

USB
1 (3D-LUT)

Audio
2 (L/R)

TALLY
1

OUTPUT
3G-SDI
1

AUDIO
Speaker
2

Ear Phone Slot
1

POWER
Current
3.4A (15V)

Input Voltage
DC 12-24V (XLR)

Battery Plate
V-mount / Anton Bauer mount

Power Consumption
≤51W

DIMENSION
Dimension(LWD)
670×425×45mm / 761×474×173mm (with case)

Weight
9.4kg / 21kg (with case)

SDI Format
SMPTE-125M
480i(59.94)

SMPTE-274M
1080i(60/59.94/50)

1080p(30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-292M
1080p(30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-296M
720p(60/59.94/50/30/29/25/24/23.98)

720p(60/59.94/50)

SMPTE-372M
1080i(29.97/25/24/23.98)

1080p(60/59.94/50/30/29.97/25/24/23.98)

SMPTE-425M
1080p(60/59.94/50)

ITU-R BT.656
576i(50)

HDMI Format
4K
4096×2160 / 3840×2160

Other
1080p, 1080i, 720p, 720i, 480p …
