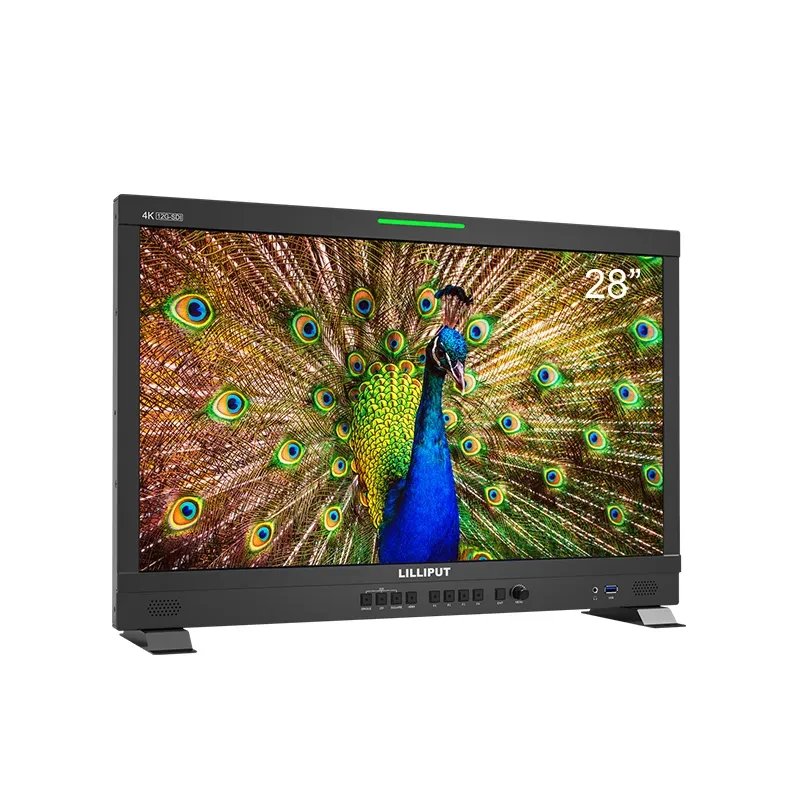

DISPLAY
Panel
28″
Physical Resolution
3840*2160
Aspect Ratio
16:9
Brightness
300 cd/m²
Contrast
1000：1
Viewing Angle
178°/178°（H/V)
HDR
ST2084 300/1000/10000/HLG
Supported Log Formats
SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support
3D LUT (.cube format)
Technology
Calibration to Rec.709 with optional calibration unit

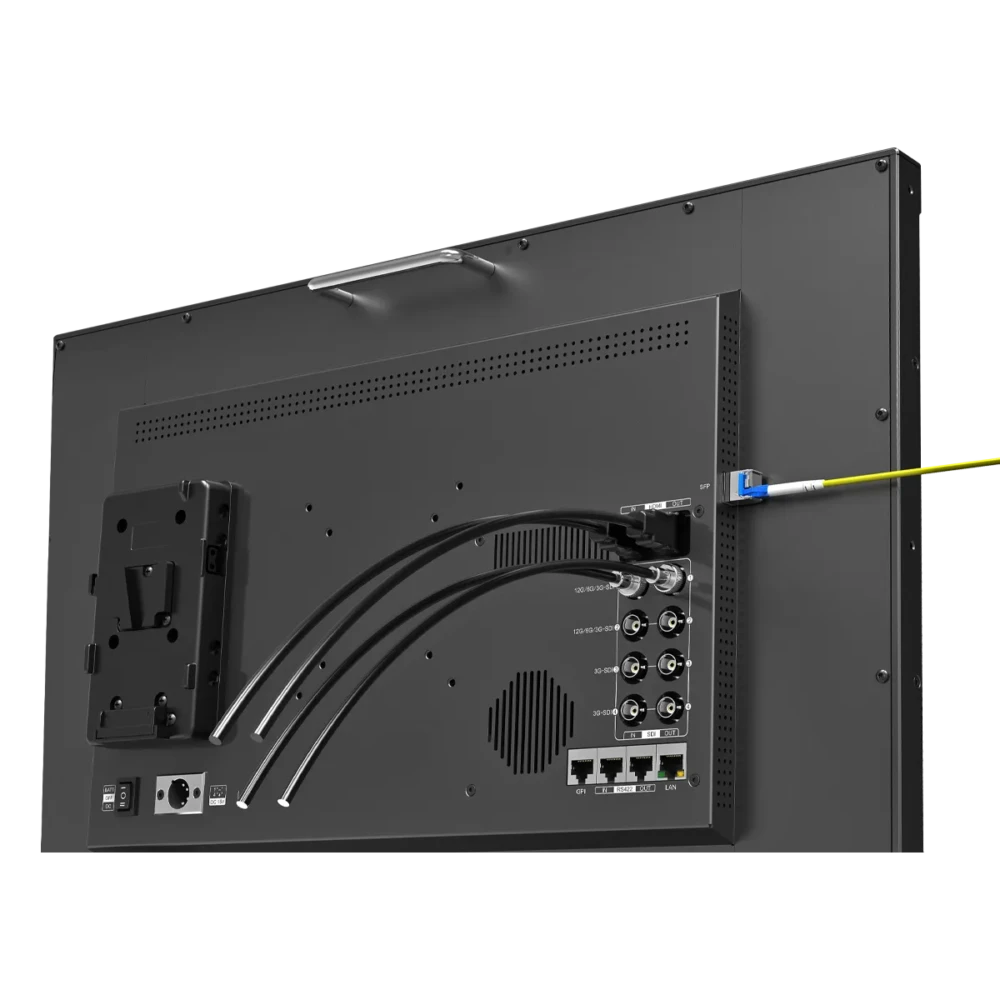

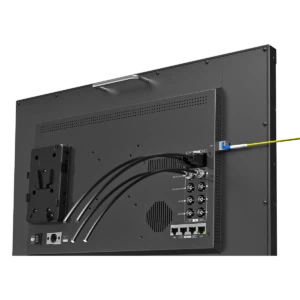

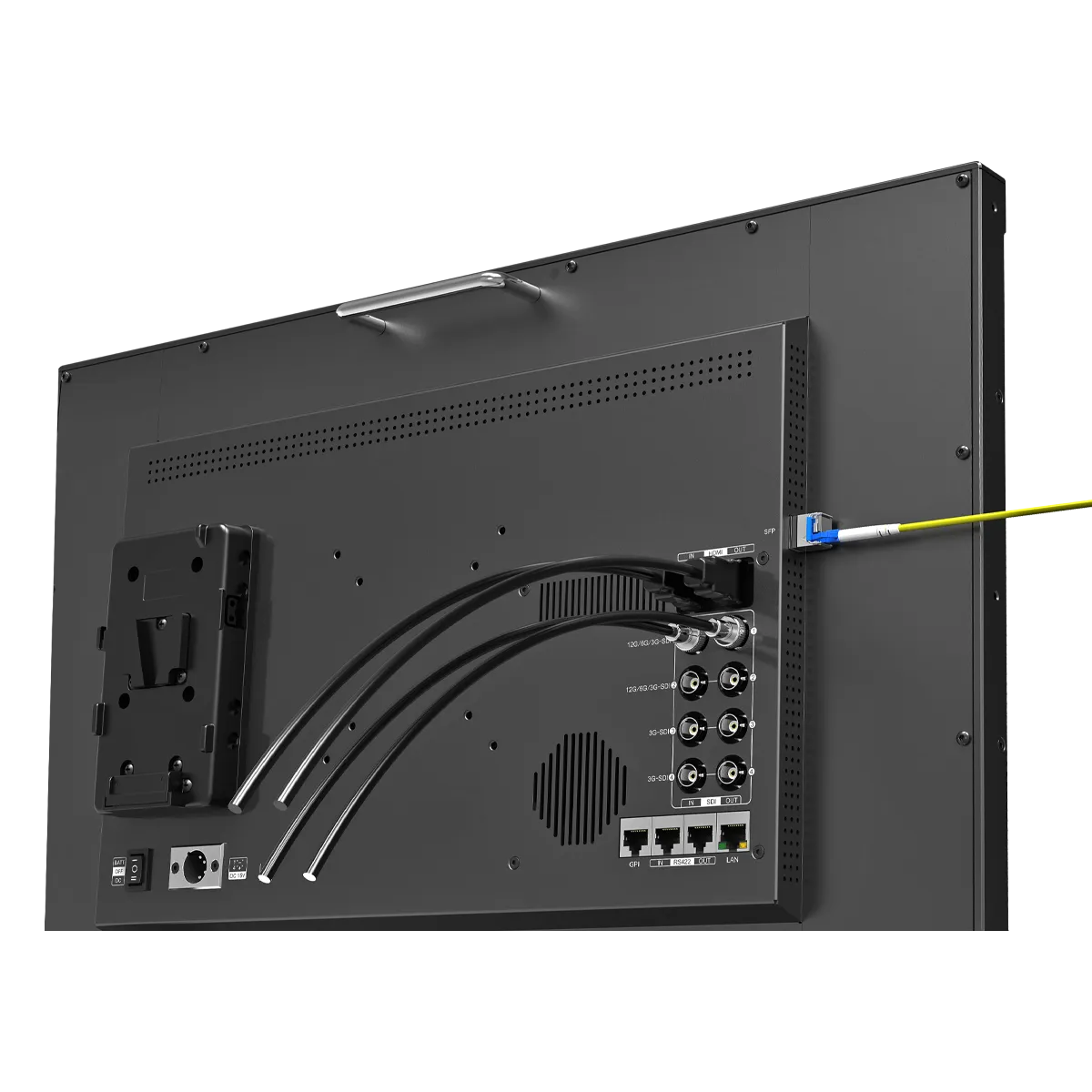

VIDEO INPUT
SDI
2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
SFP
1×12G SFP+(Fiber module for optional)
HDMI
1×HDMI 2.0
VIDEO LOOP OUTPUT
SDI
2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI
1×HDMI 2.0
SUPPORTED FORMATS
SDI
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT
(48kHz PCM AUDIO)
SDI
16ch 48kHz 24-bit
HDMI
8ch 24-bit
Ear Jack
3.5mm
Built-in Speakers
2
REMOTE CONTROL
RS422
In/out
GPI
1
LAN
1
POWER
Input Voltage
DC 12-24V
Power Consumption
≤60W (15V)
Compatible Batteries
V-Lock or Anton Bauer Mount
Input Voltage(battery)
14.8V nominal
ENVIRONMENT
Operating Temperature
0℃~40℃
Storage Temperature
-20℃~60℃
OTHER

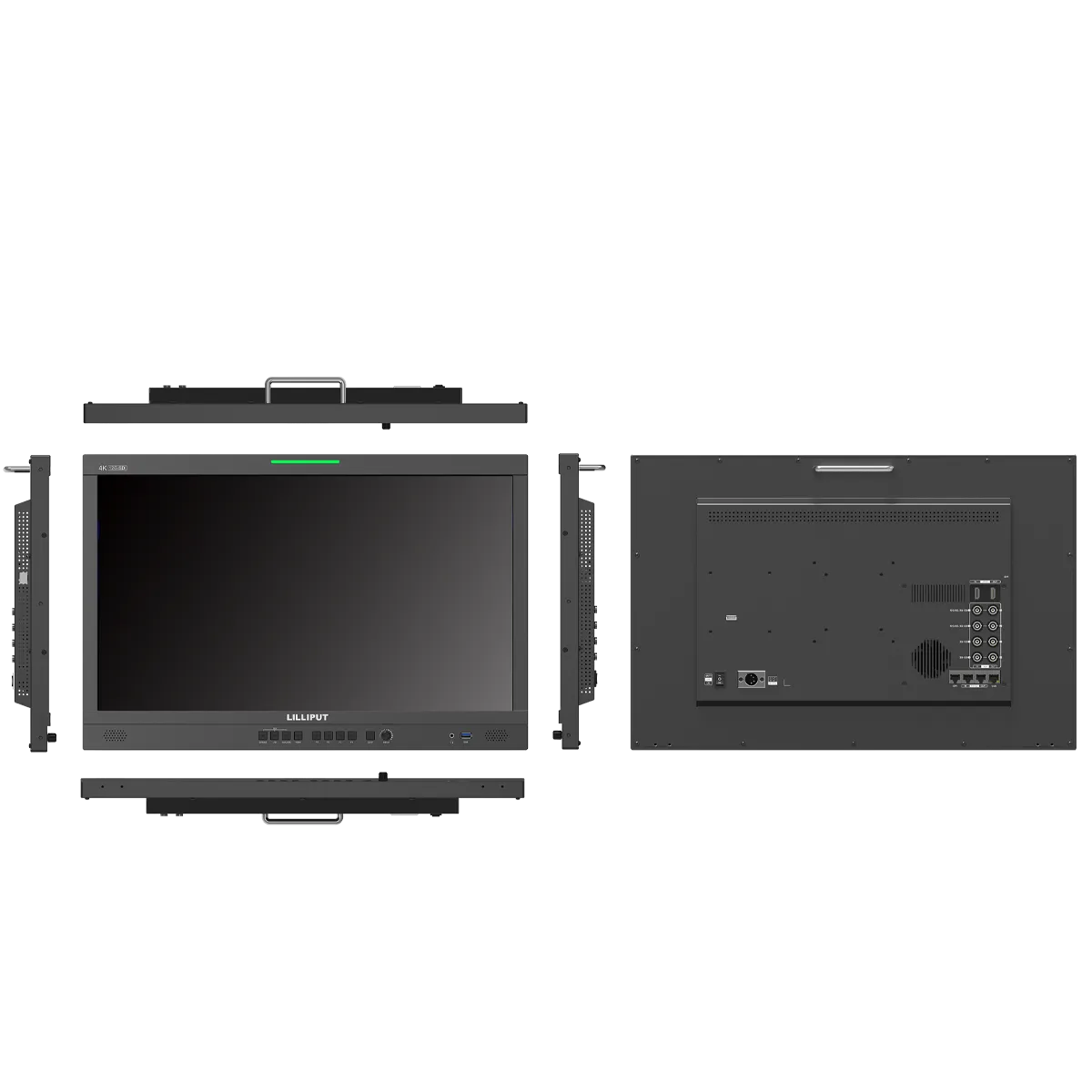

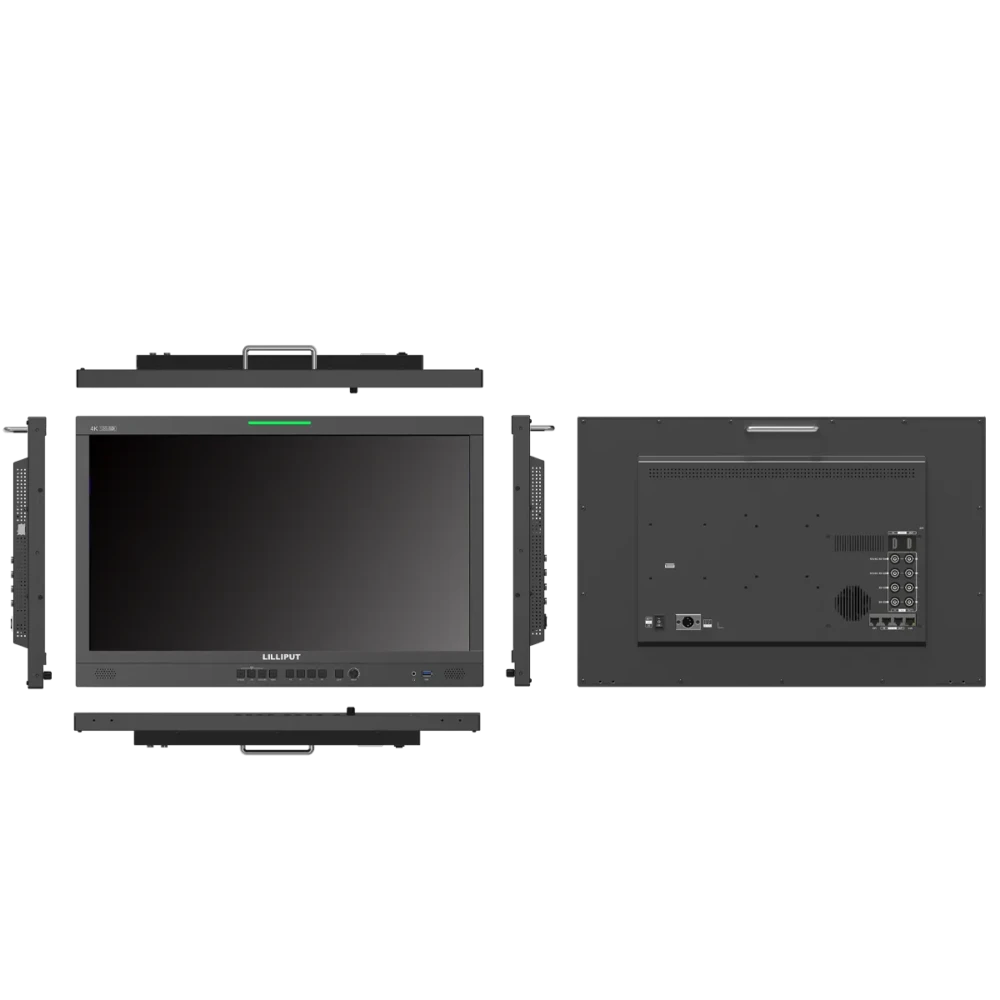

Dimension(LWD)
638mm × 414.3mm × 54.4mm
Weight
8.6kg
