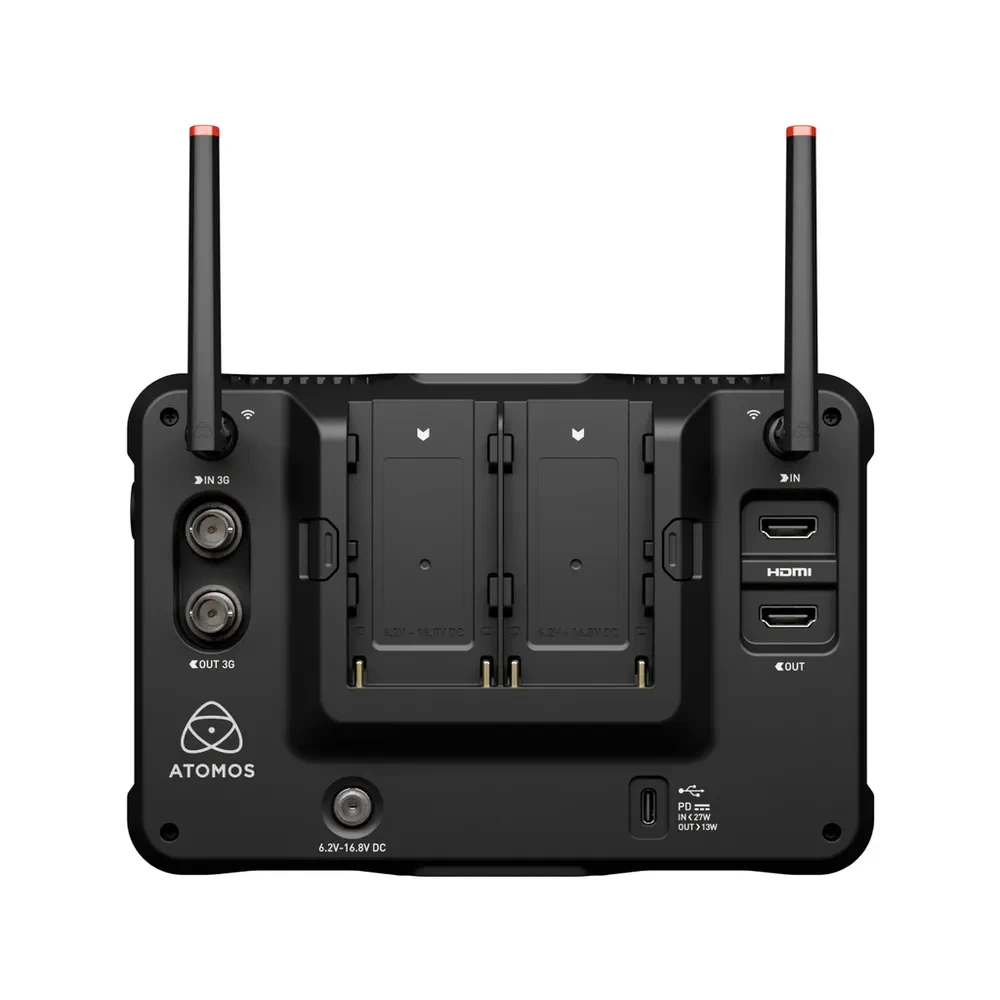

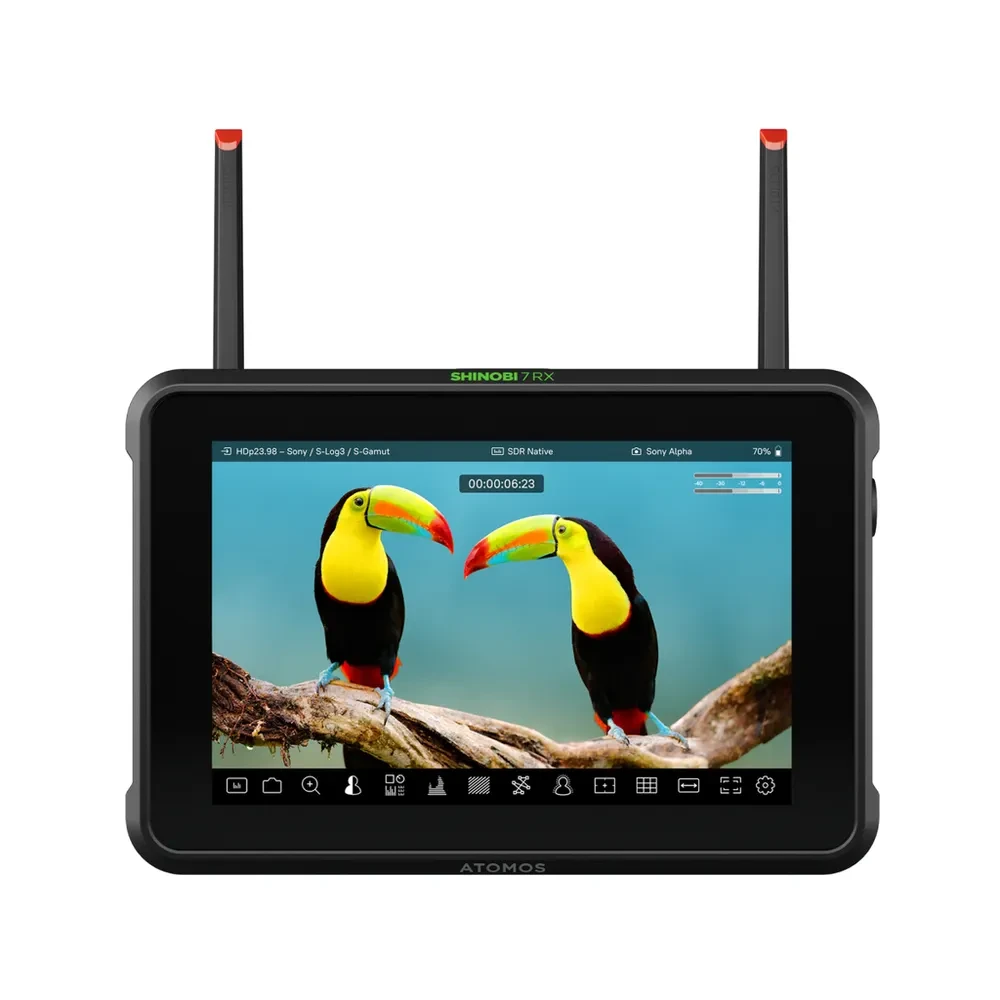

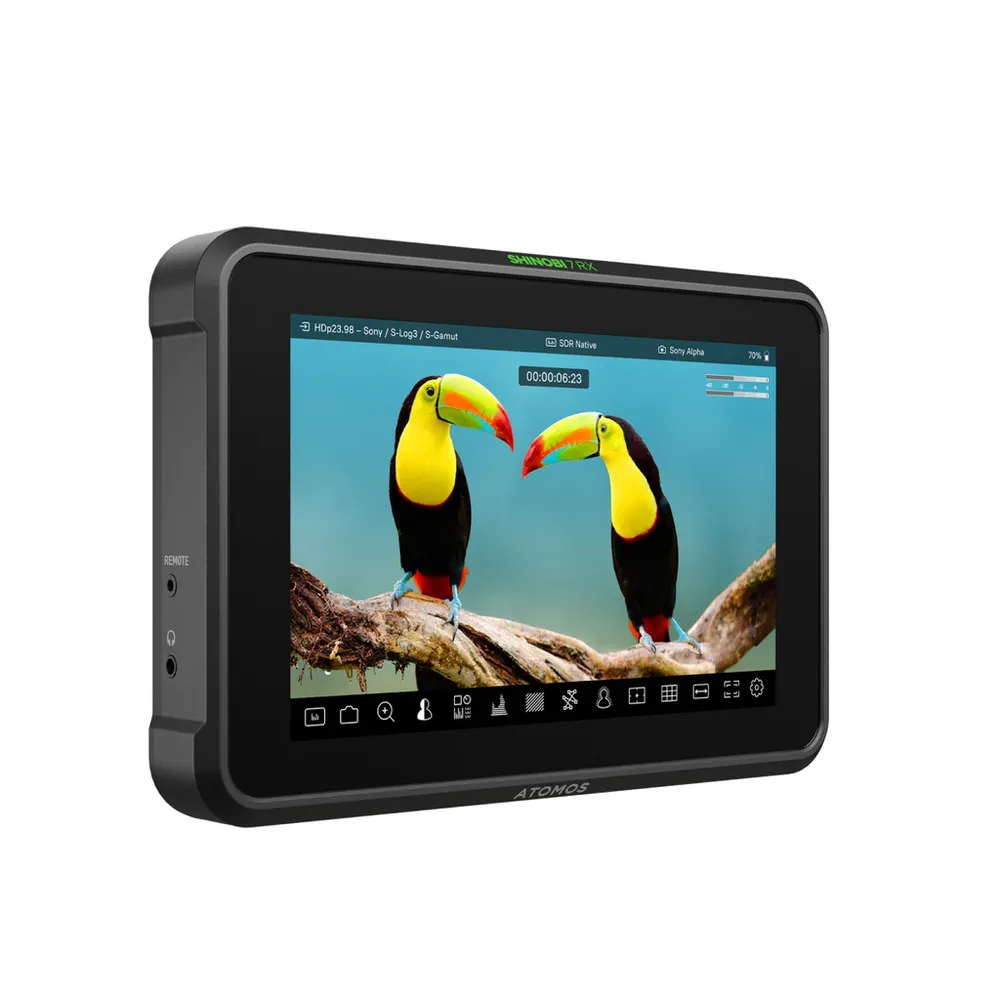

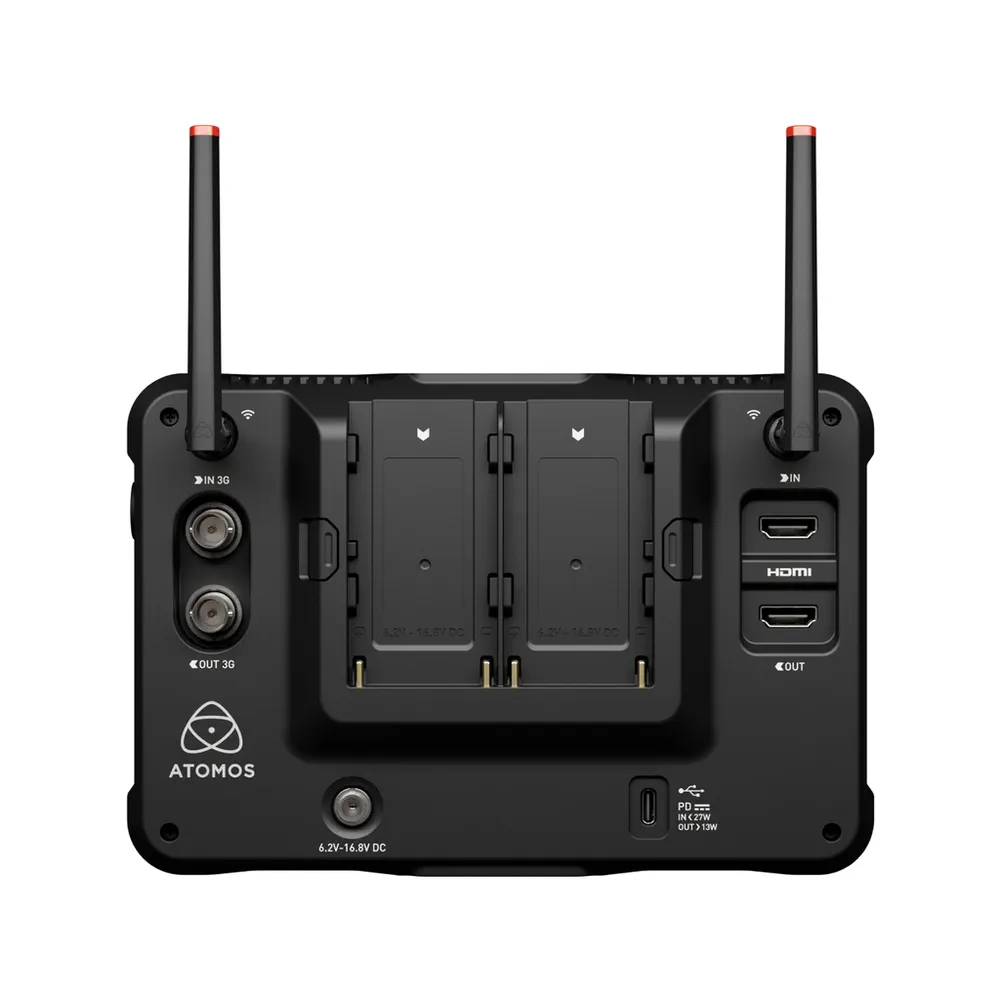

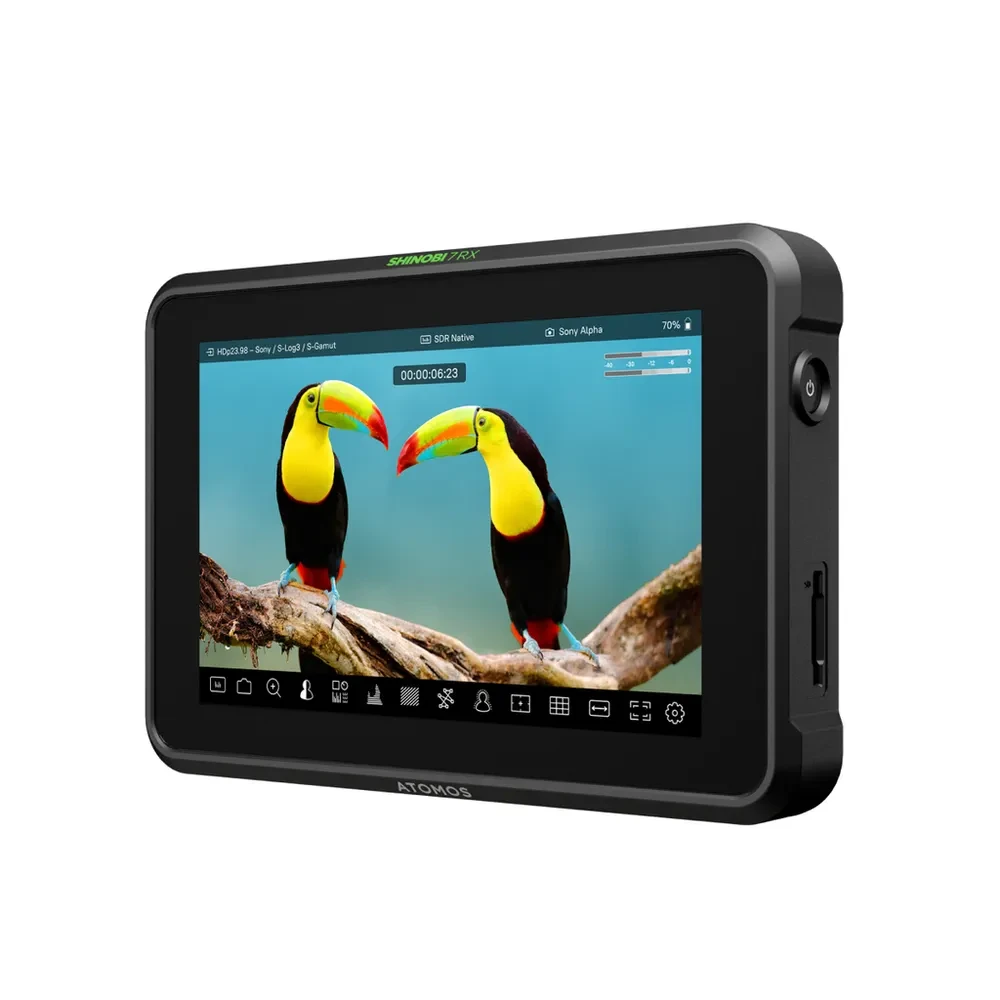

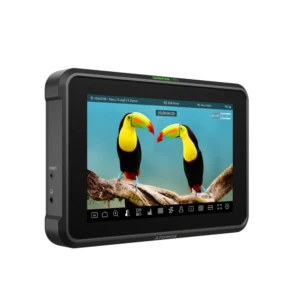

The Shinobi 7RX combines a large 7″ HDR display with 2200 nits peak brightness and the lightweight monitor-only functions of the Shinobi line. Designed for use in the brightest environments, it supports video signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI.
With USB-C, it provides camera control for Canon, Fujifilm, Nikon, Panasonic, and Sony cameras, plus Z CAM via optional USB-C to serial cable.
Built-in Wi-Fi connectivity links the monitor to the Atomos TX-RX wireless video system or streams via RTSP H.264, making it an ideal director’s monitor, focus puller’s monitor, or program/preview display.
Features:
- 7″ HDR display with 2200 nits peak brightness – daylight viewable
- Supports 4Kp60 via HDMI and HDp60 via 3G-SDI
- Camera control via USB-C for Canon, Fujifilm, Nikon, Panasonic, Sony + Z CAM (optional)
- Wi-Fi 6E for Atomos TX-RX wireless system or RTSP H.264 streaming
- Comprehensive monitoring tools: Waveform, Vectorscope, Histogram, RGB Parade
- 3D LUT support (.cube, 17/33 points) + HDR modes (HLG/PQ)
- Anamorphic desqueeze & frame guides (Cinema + Social Media presets)
- Compact design (198 × 133 × 39 mm, 580 g) with passive cooling
- Flexible power options: NP-F battery, USB-C PD, DC-In (optional)
Included in the box:
- Shinobi 7 RX monitor
- Wi-Fi antenna
- 5x antenna tips (black, white, yellow, green, red)
- 2 x antenna caps
- USB-C 2.0 cable (1m)
- Quick Start Guide
