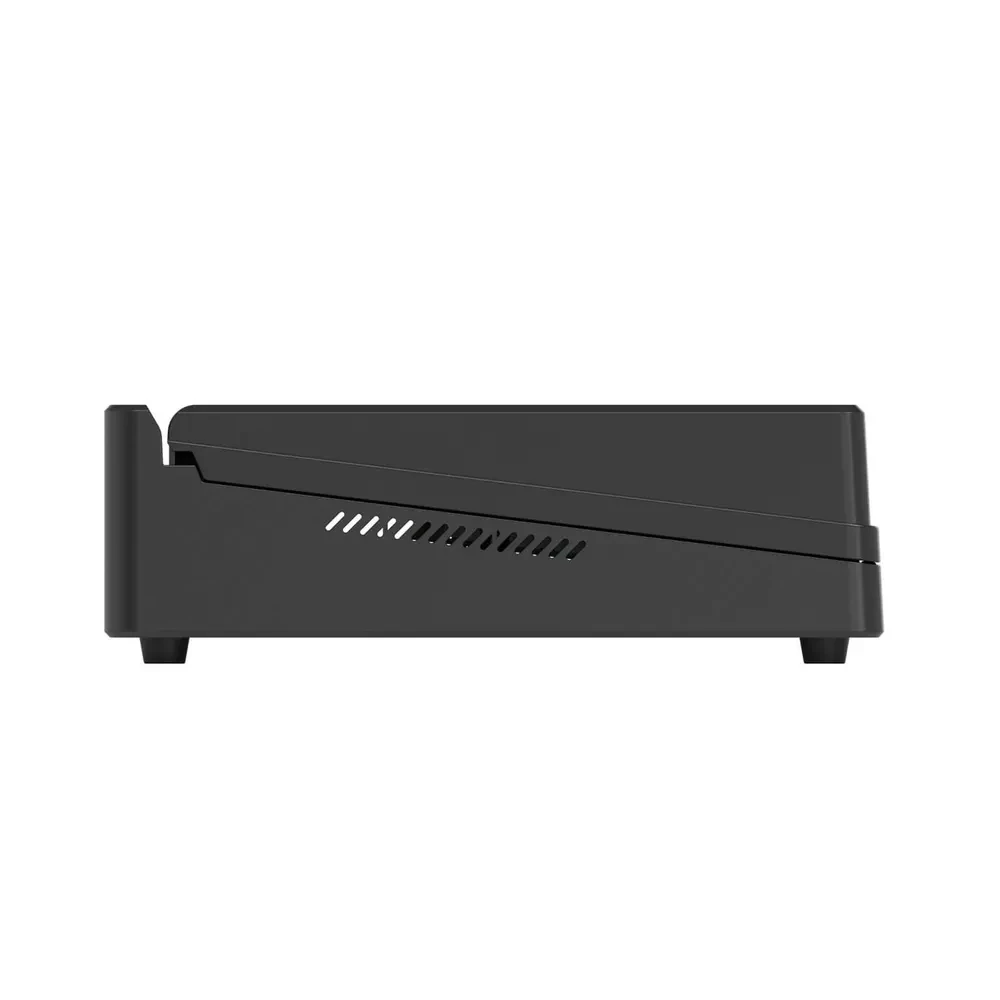

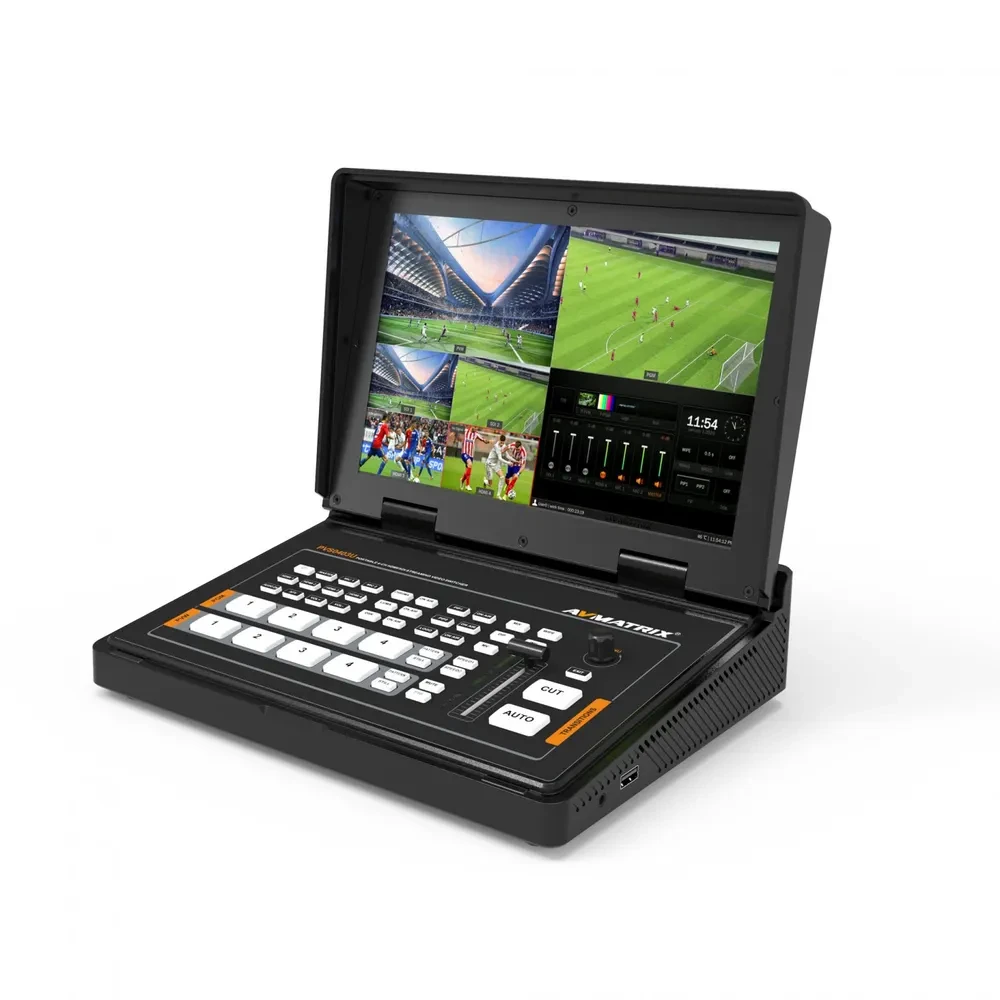

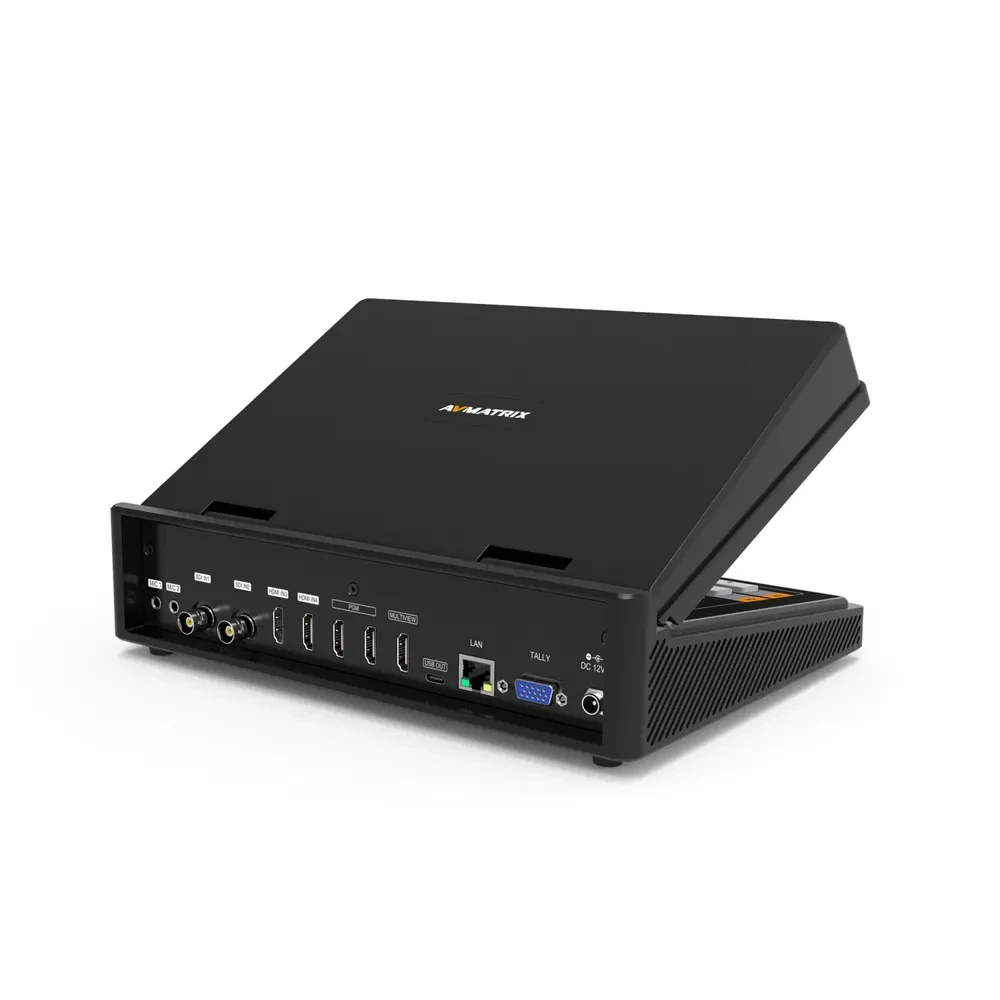

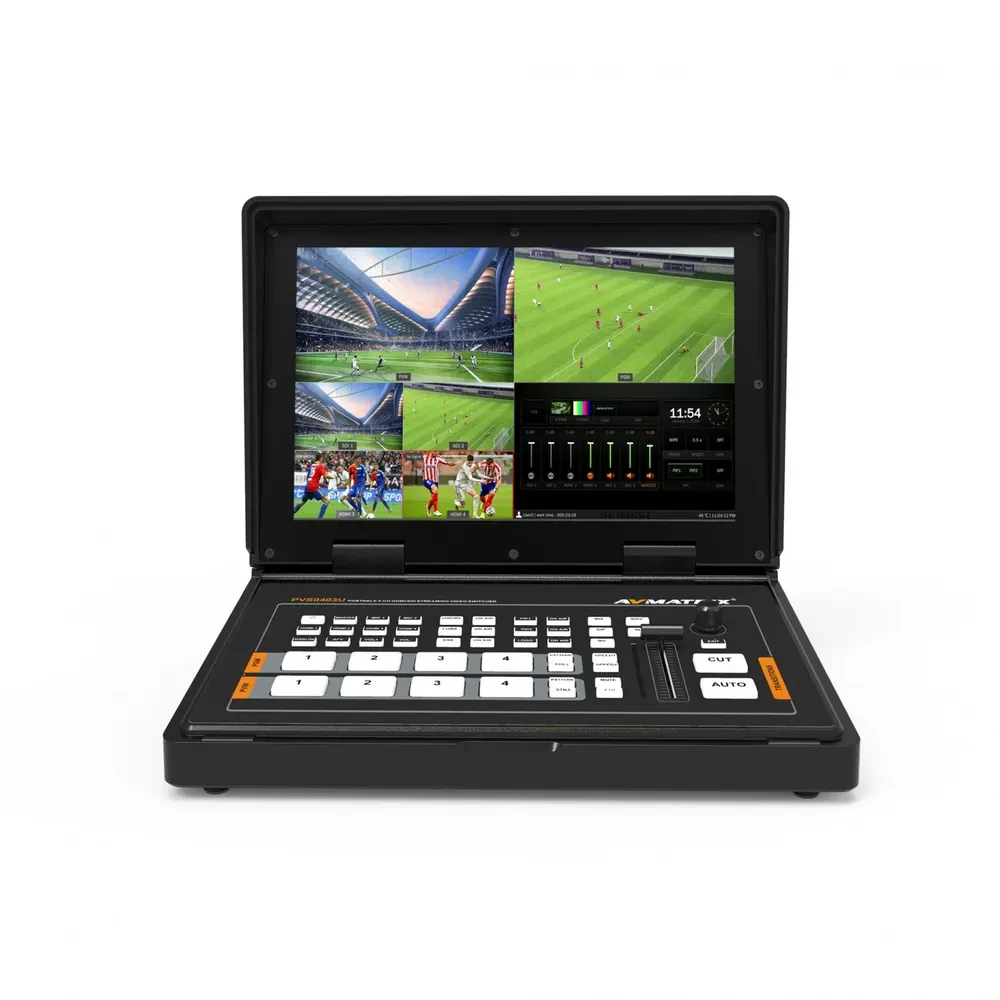

AVMATRIX PVS0403U Portable 4-ch HDMI SDI Multi-format Streaming Video Switcher

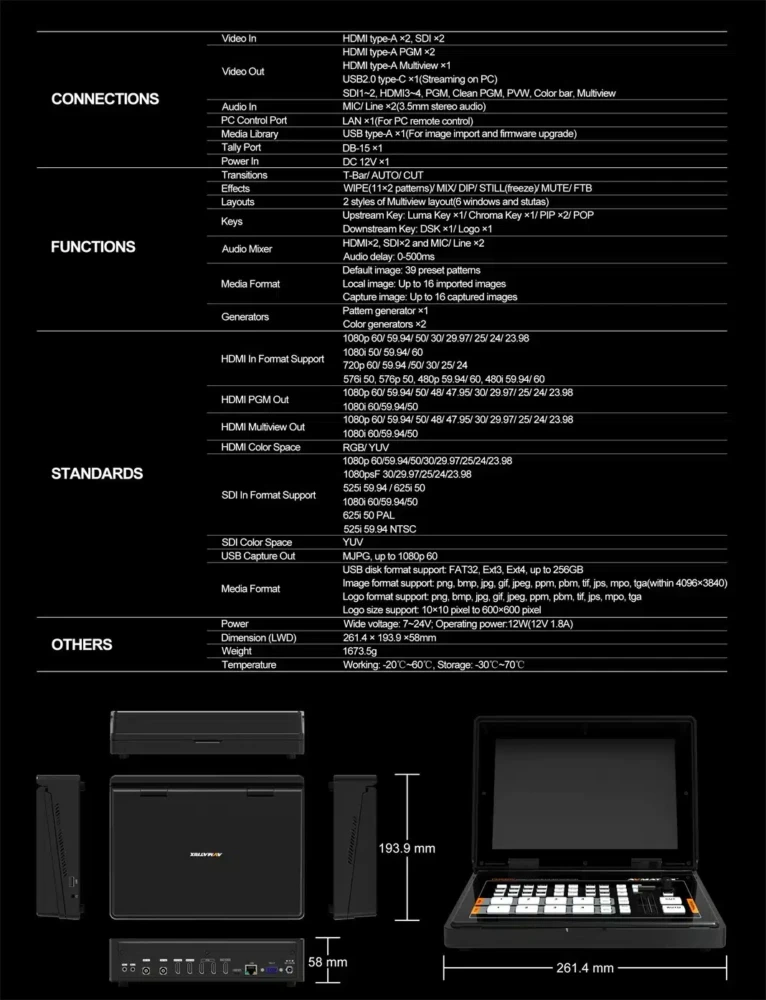

Features:

10.1 inch FHD IPS LCD monitor

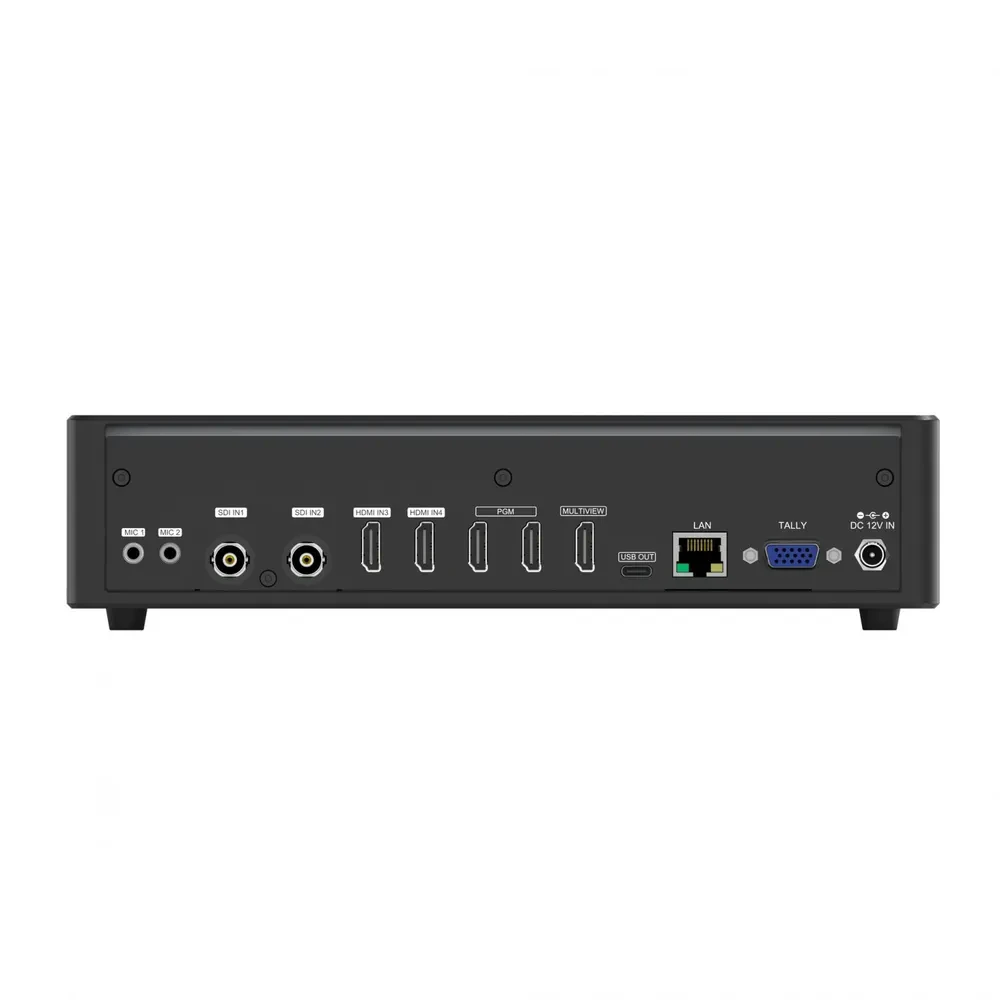

2×HDMI & 2×3G-SDI inputs, support auto-detected
2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
All outputs are configurable and assignable
USB for capturing and streaming on PC
Upstream key: Luma key, Chroma key, PIP×2/ POP
Downstream key and LOGO overlay
T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/line In; audio delay available
Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
LAN port for PC software remote control
FTB/ MUTE/ STILL/ GPIO for tally
