BELDEN BE43906 DMX512 kaabel

BE43906
 3.15
 3.91 (koos km)

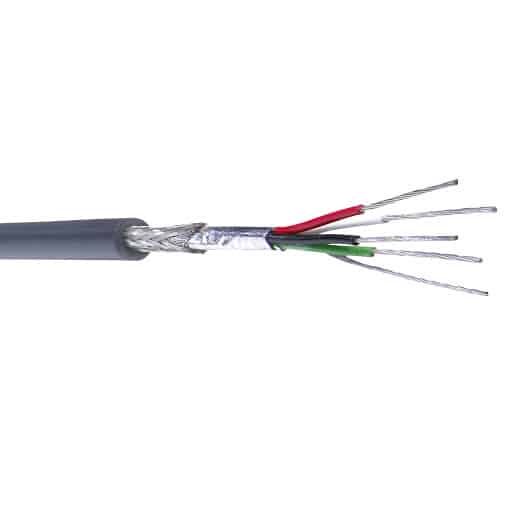

Overall screened two pair flexible cable specifically for DMX512 lighting control applications, designed to meet RS485 data cable specification.

Technical Specification:
Conductors: 7/0.25mm (7/30AWG) (0.34mm sq.) (22AWG) plain copper
Insulation: Polyolefin, red and white for pair 1, green and black for pair 2
Construction: Laid up as two pairs, with 7/0.2mm tinned copper drain wire
Screen: Tinned copper braid, 80% optical coverage
Jacket: PVC, 6.80mm OD, matt black (blue available to special order)
Impedance: 110 ohms
Capacitance: 64pF/m core to core, 112pF/m core to opposite quad core
Weight: 6.1kg/100m
Reel lengths: 250m, 500m, 1000m

Loe edasi

Saadavus: Saadavus: Laos See toode on meie kohalikus laos ja koheselt saadaval.
