Highlights:
Widest Angle of View: 90º diagonal! It doesn’t matter the room size, MAX will capture everything. Closing the gap between webcams and PTZs: Versatility as its best. MAX effortlessly transitions between roles, functioning as both a high-quality webcam and a powerful production camera. Thanks to its HDMI and NDI outputs, you can integrate MAX into any workflow. Sustainably: Designed with the planet in mind.
MAX is built using ocean-bound plastics (OBP) and operates with remarkably low power consumption. By choosing MAX, you’re also making an eco-conscious choice that helps protect our planet. Elegant Design That Fits Any Space: MAX isn’t just a powerhouse of performance, it’s also a work of art. MAX enhances the aesthetic of any space, blending in perfectly with your room’s architecture without drawing unnecessary attention. It’s a camera that looks as good as it performs. Affordable Excellence: One of MAX’s most impressive qualities is its price-to-performance ratio. MAX makes premium video production accessible to all. You don’t have to choose between a basic webcam or a costly production camera. MAX gives you both!

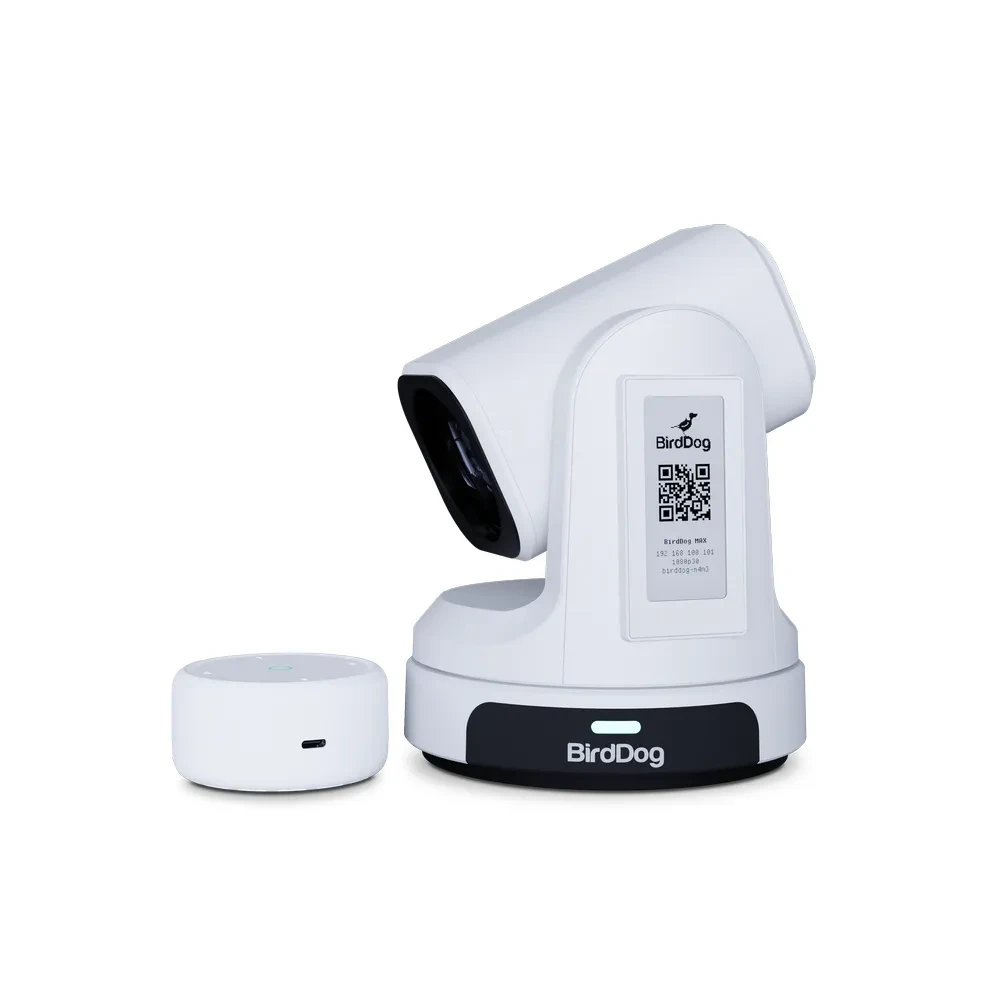

MAX working with Pod: Simplifying multi-source conferencing. Pod lets you easily select MAX cameras or other NDI-connected devices with a simple click, then outputs via USB-C to seamlessly switch sources directly into Teams, Zoom, and more.
Tech Specs:
IMAGING Image Sensor: Sony 1/2.8” CMOS – ULTRA HD
Lens: f=3.42-40.02mm
Optical Zoom: 12x
Video Format: HDMI 2160p30 1080p60/59.94/50/30/29.97/25 720p60/50/59.94/30
NDI： 2160p30/29.97/25 1080p30/29.97/25/23.98
Horizontal angle of view: 80.56(W)-7.89°(T)
Vertical angle of view: 49.61°(W)-4.46°(T)
Diagonal angle of view: 89.51°(W)-9.04°(T)
Aperture: F1.88-3.77
Focus: Auto, Manual
Exposure: Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation: Yes
Digital Noise Reduction: 2D and 3D Noise Reduction SNR: ≥50dB
Effective Pixels: 8.29 MP
MECHANICAL Pan/Tilt Rotation: ±175°, -90° ~ +90°
Pan Control Speed: 0.1 -80°/sec Tilt Control Speed: 0.1 -60°/sec
Preset Number: 255 presets

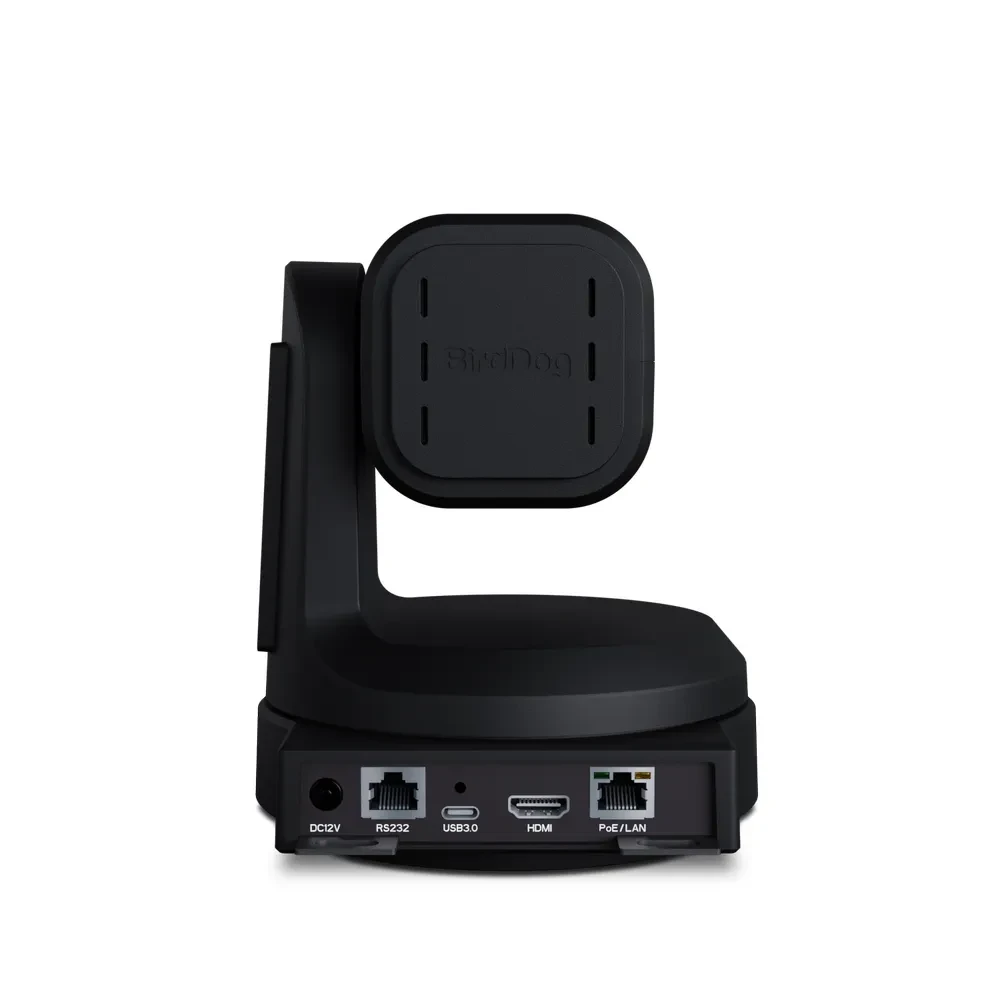

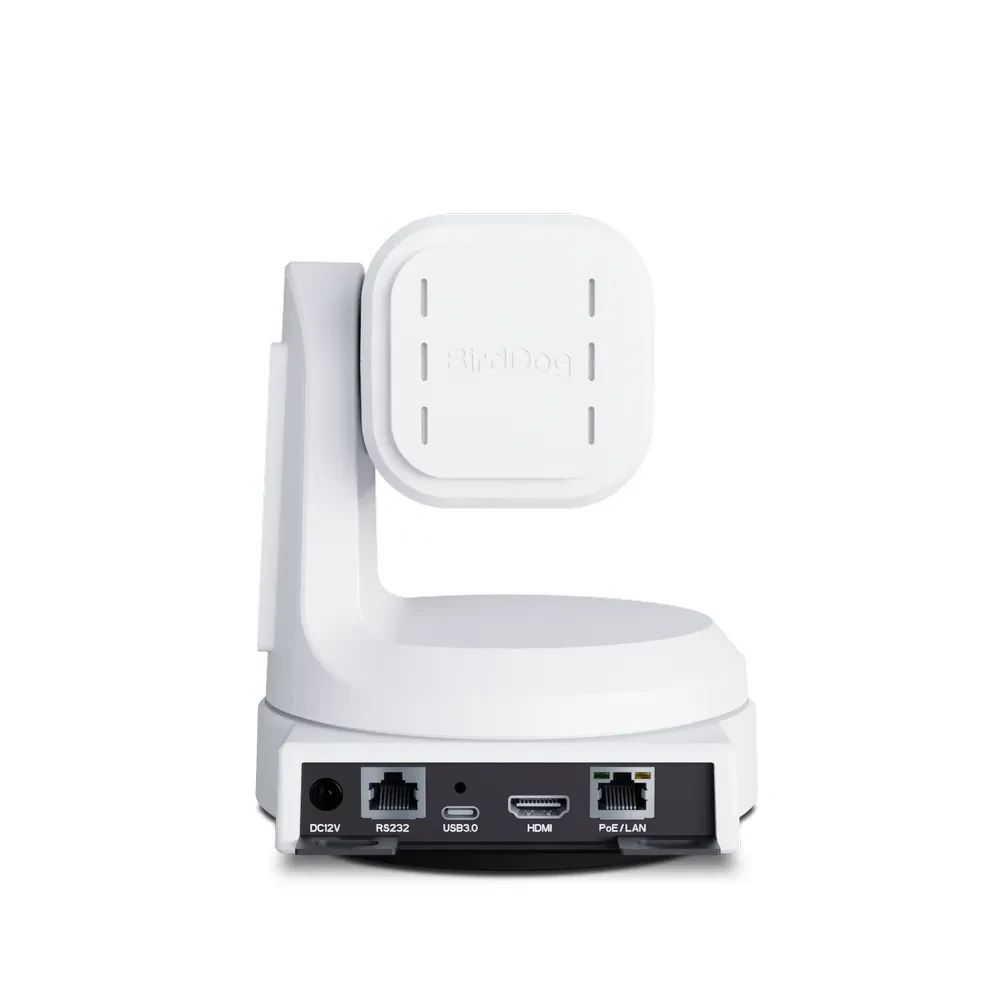

I/O INTERFACE Video Output Interfaces: HDMI, USB-C UVC 1.1, Network
Video Compression Formats: H.264, H.265
Network Interfaces: 100M adaptive Ethernet port; POE IEEE 802.3af
Encoder Network Protocols: NDI|HX2, NDI|HX3, RTSP, RTMP
Control Interfaces: 10M/100M Ethernet, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI GENERAL
Input Voltage: DC 12V, POE IEEE 802.3af
Input Current: 2.0A (Max)
Power Consumption: 13W (Max)
Working Temperature: 0ºC ~ +40ºC
Working Humidity: 20% ~ 80%
Dimension (W*H*D): 171.6*192.6*171.6 mm / 260*217*197 mm (before/after packing)
Net and Gross Weight: 1.43 kg/2.096 kg (Net/Gross weight)
What’s in the box:
1x BirdDog MAX
1x PTZ Camera Remote Controller
1x DC 12V PSU
1x Silicon number for camera rear
1x USB cable
