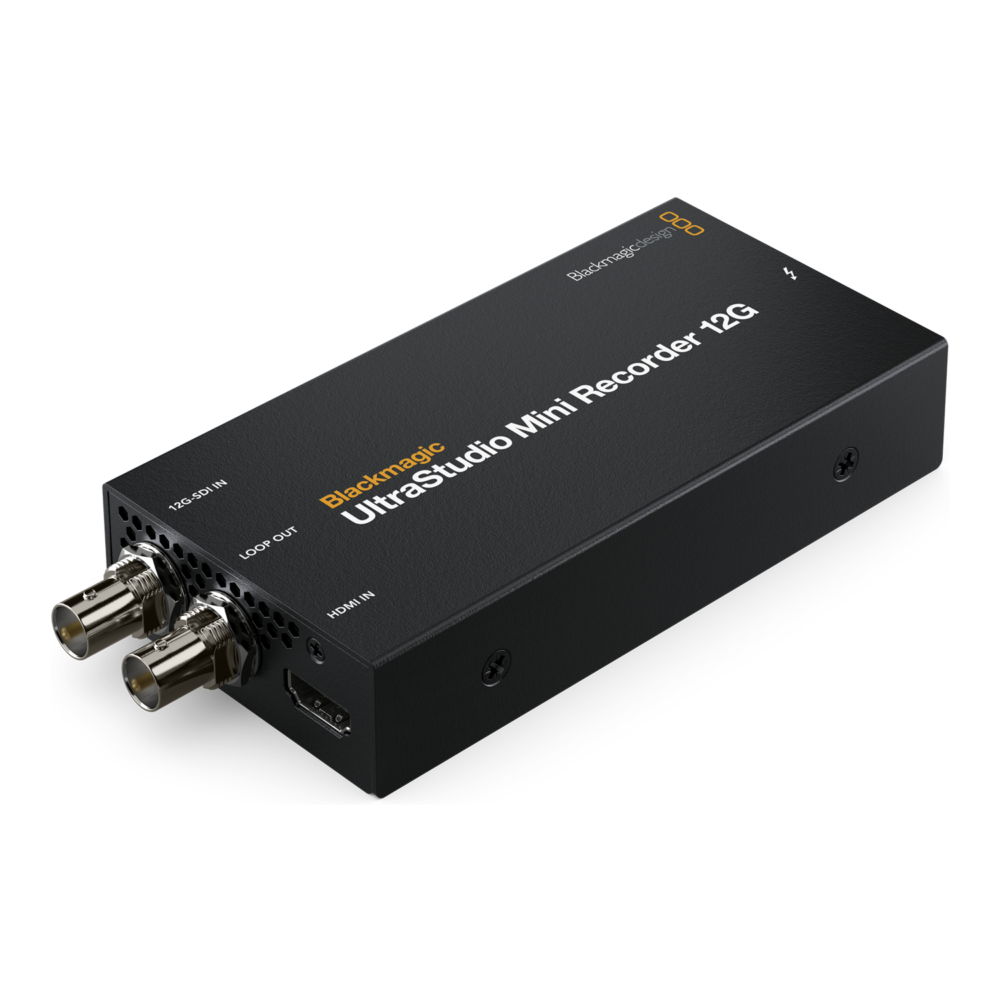

Blackmagic Design UltraStudio Mini Recorder 12G is a compact Thunderbolt 4 interface for professional capture from HDMI 2.0 or 12G-SDI to a computer. It supports SD, HD and Ultra HD up to 2160p60 for live streaming, archive capture and post-production.
.usm{font-family:Arial,sans-serif;color:#17191d;line-height:1.56;max-width:1180px;margin:0 auto} .usm *{box-sizing:border-box} .usm-hero{display:grid;grid-template-columns:minmax(0,1.28fr) minmax(300px,.72fr);gap:26px;align-items:center;padding:38px;border-radius:20px;background:linear-gradient(135deg,#f4f7fb,#e8edf6);overflow:hidden} .usm h2{font-size:clamp(24px,2.9vw,30px);line-height:1.15;margin:0 0 16px;color:#3154c7} .usm h3{font-size:clamp(21px,2.7vw,24px);line-height:1.2;margin:0 0 12px;color:#3154c7} .usm p{margin:0 0 14px} .usm img{display:block;width:100%;height:auto;border-radius:14px}.usm-hero>img{mix-blend-mode:multiply;border-radius:0} .usm-chips{display:flex;flex-wrap:nowrap;gap:8px;margin:20px 0 0} .usm-chip{flex:0 0 auto;white-space:nowrap;padding:7px 11px;border-radius:999px;background:#fff;color:#203265;font-size:13px;font-weight:700;box-shadow:0 2px 10px rgba(35,52,91,.09)} .usm-row{display:grid;grid-template-columns:1fr 1fr;gap:36px;align-items:center;padding:42px 18px} .usm-row.alt .usm-copy{order:2}.usm-row.alt .usm-image{order:1} .usm-cardgrid{display:grid;grid-template-columns:repeat(3,1fr);gap:14px;padding:4px 18px 38px} .usm-card{padding:20px;border:1px solid #dce2ec;border-radius:14px;background:#fff} .usm-card strong{display:block;margin-bottom:6px;color:#203265} .usm-note{margin:0 18px 38px;padding:20px 22px;border-left:4px solid #3154c7;background:#f4f7ff;border-radius:0 12px 12px 0} .usm-list{display:grid;grid-template-columns:1fr 1fr;column-gap:34px;row-gap:9px;margin:0;padding:20px 26px 20px 46px} .usm-list li{padding-left:3px} hr.break{border:0;border-top:1px solid #d9dee8;margin:34px 0} @media(max-width:760px){.usm-hero,.usm-row{grid-template-columns:1fr;padding:24px 18px}.usm-hero{gap:20px}.usm-row.alt .usm-copy,.usm-row.alt .usm-image{order:initial}.usm-cardgrid{grid-template-columns:1fr}.usm-chips{flex-wrap:wrap}.usm-list{grid-template-columns:1fr;padding-left:38px}}
Professional capture over HDMI and 12G-SDI

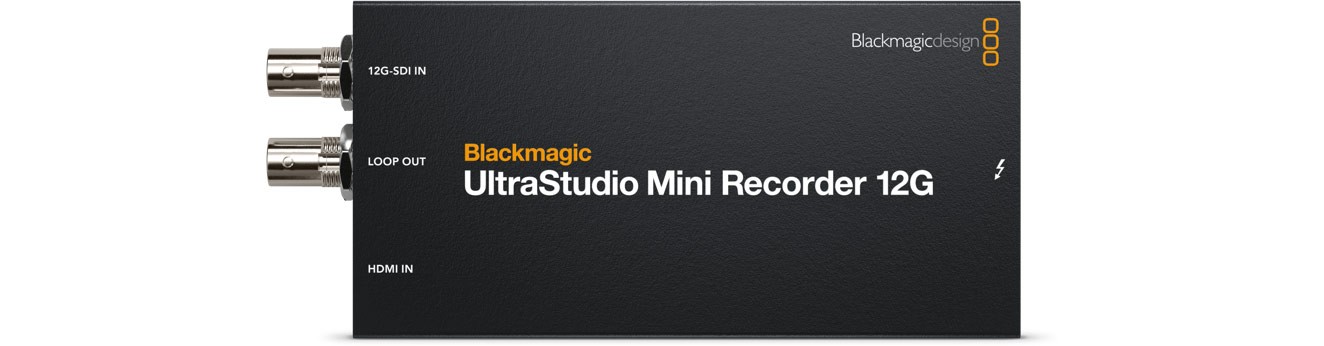

Mini Recorder 12G brings video from cameras, switchers, decks and game consoles into an editing or streaming computer. It includes HDMI 2.0, a 12G-SDI input and an SDI loop output.
Capture for streaming and post-production
The interface works with applications supported by Blackmagic Desktop Video, including Media Express and professional editing or streaming tools. HDMI also accepts common consumer sources.
12G-SDI with loop output
The professional SDI input handles data rates from SD through 12G. Its loop output sends the same signal onward to another device or monitor.
Built for current computers
Connection requires a Thunderbolt 4 USB‑C port; the interface is powered directly by the computer.
- UltraStudio Mini Recorder 12G
- Welcome wallet with QR code for software download

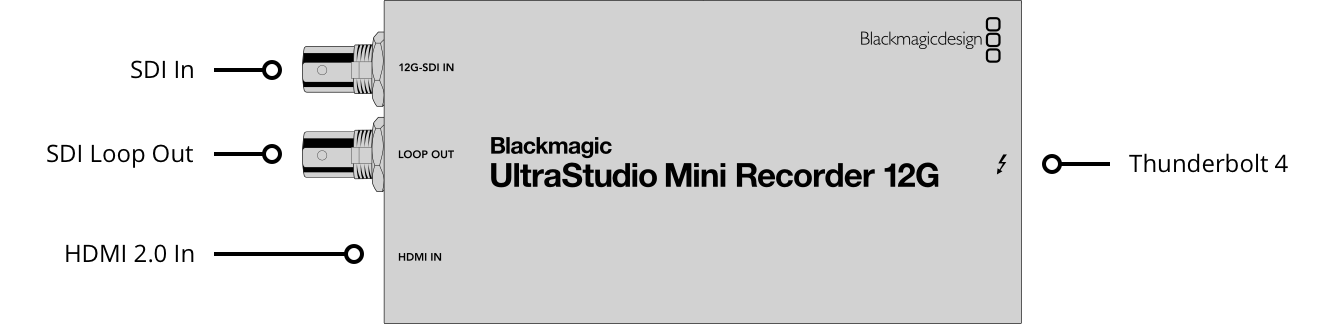

- Computer interface: Thunderbolt 4 (USB‑C)
- SDI video: 1× 12G‑SDI input + 1× 12G‑SDI loop output
- HDMI video: 1× HDMI 2.0 input
- Supported SDI rates: 270 Mb/s, 1.5G, 3G, 6G and 12G
- Maximum format: Ultra HD 2160p60
- Audio: 16 channels embedded SDI; 8 channels embedded HDMI
- Power: Thunderbolt bus powered, 15 W
- Compatibility: Apple Silicon Mac; Windows 10/11 and Linux computers with Thunderbolt 4/5
- Weight: 0.28 kg
- Manufacturer warranty: 1 year
