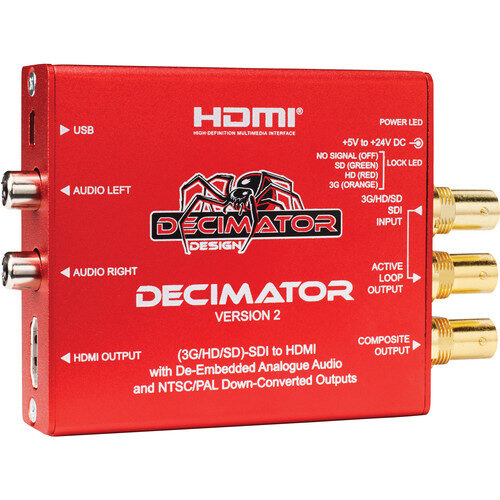

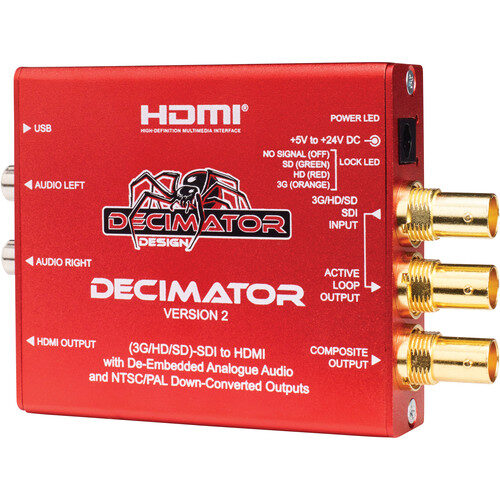

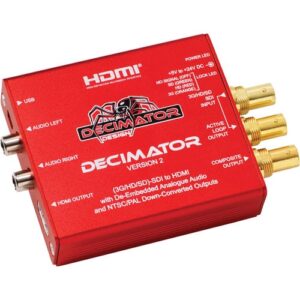

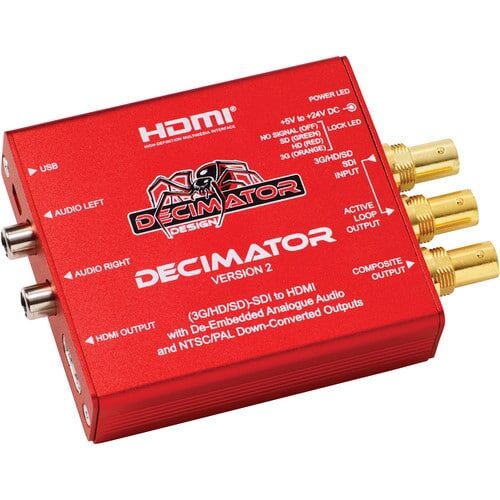

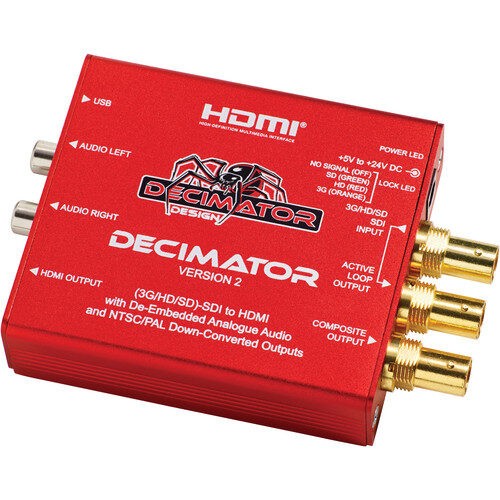

DECIMATOR 2 SDI to HDMI with de-embedded analogue audio

Miniatuurne (3G / HD / SD) -SDI nii HDMI kui ka NTSC / PAL samaaegse skaleerimisega mõlemal väljundil ja
manustamata (De-embedded) analoogheli.
Miniature (3G/HD/SD)-SDI to both HDMI and NTSC/PAL with simultaneous scaling on both outputs and De-embedded Analogue Audio
Features:

Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
HDMI output with optional full scaling and aspect ratio conversion.
Down-converted Composite output with: NTSC or PAL is selectable for 3G/HD inputs, SD will be passed unchanged
Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
16:9 to 16:9 Anamorphic
16:9 to 4:3 Letterbox
16:9 to 4:3 Centre Cut (Crop to 4:3)
Full 10-bit data path and multipoint interpolation
16 times over-sampling for Composite Output
Passes EIA-708/608 Closed Captions to the Composite Output
Full 16-Channel Audio metering displayed on the HDMI output with: Any of the 4 audio groups individually selectable, Vertical or Horizontal Bars, AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales, Bar & Float, Bar only or Float only, Transparency adjustment, Separate Bar and Float Ballistics control, Adjustable Reference level, Red, Yellow and Green Range adjustment, Bar thickness adjustment, Margin adjustment
Adjustable Graticules Generator displayed on the HDMI output with: Separate enables for Safe Action, Safe Title and Centre Cross; Adjustable position for either Safe Action or Safe Title; Adjustable colours for Safe Action, Safe Title and Centre Cross
Text Overlays displayed on the HDMI output with: Adjustable Foreground and Background colours; Adjustable 16 character text; Current input format status
De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS
3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration
USB port for control and firmware updates
Locking DC Power Socket

Also included with the unit:

Power Supply
HDMI Cable
USB Cable

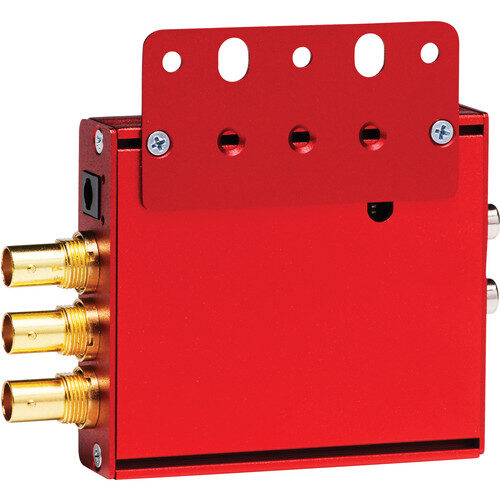

Mounting Bracket

Full specification sheet
