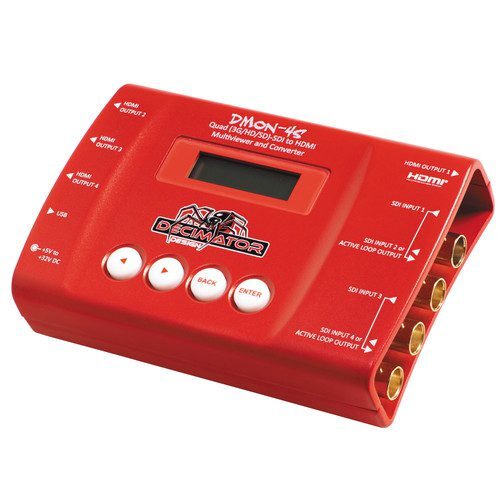

DECIMATOR DMON-4S quad-SDI to HDMI multivaatur-konverter

4 x (3G / HD / SD) -SDI-HDMI-muundurid 1–4 mitmevaatelise, kohandatud paigutuse ja 8-kanalise helimõõturiga
4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters
Features:

Multi-View mode now includes 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Support for both 3G level A and B on the inputs.
Horizontal and/or Vertical image flipping per window
Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them. For example you could use the unit to have:- 4 independent SDI to HDMI converters- 3 independent SDI to HDMI converters with a quad-split output- 2 independent SDI to 2 x HDMI converters with loop through- A single SDI or Multi-View to 4 x HDMI outputs
Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.
Multi-View mode offers:- Custom Layouts with various standard layouts- Load and restore Custom Layouts- Fast switching between inputs using Full-Screen scaling- Selection of audio from any input- 16 Character UMD overlay per window with individual enables, custom positioning and size- Low latency buffering for each input allowing non-synchronous inputs- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously- Variable aspect ratios per window
The DMON-4S is a truly portable converter, that incorporates our new easy to use LCD and button control system.

This unit also includes:

USB port for control and firmware updates
Heavy-duty metal box
Metal Thread Locking DC Power Socket
Power Supply, HDMI Cable and USB Cable

Full specification sheet
