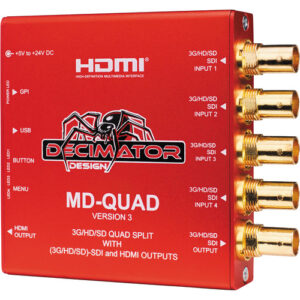

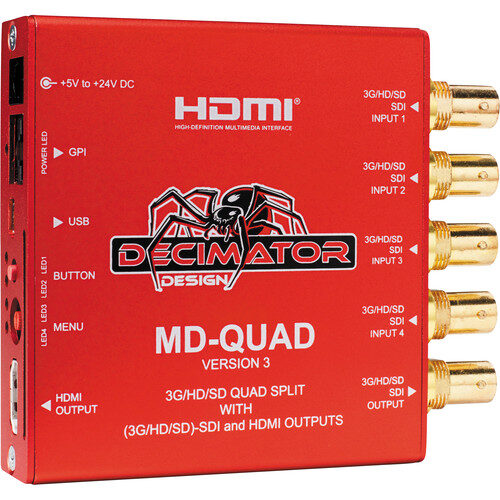

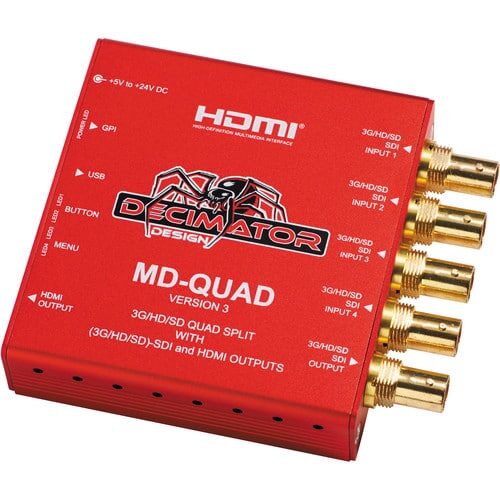

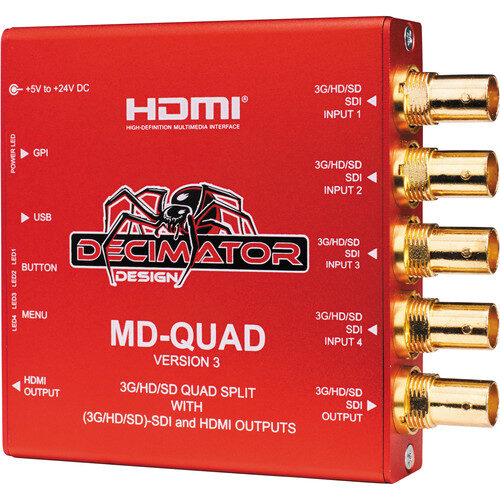

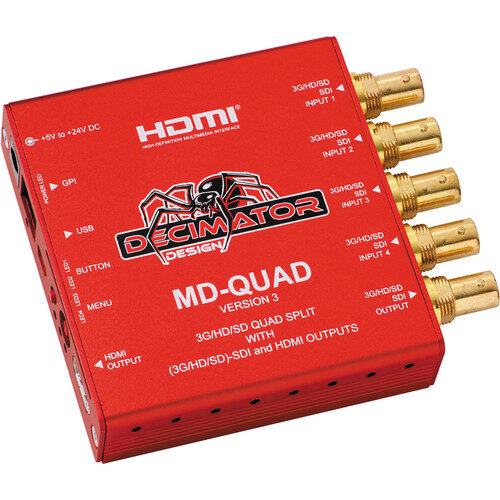

DECIMATOR MD-QUAD v3 4-kanaliline multivaatur

MD-QUAD-V3
 1 470.00
 1 822.80 (koos km)

1- kuni 4-kanaliline multi-vaataja / neljaosaline koos SDI ja HDMI väljunditega 3G / HD / SD jaoks ja kohandatud paigutused
1 to 4 Channel Multi-Viewer / Quad-Split with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts
Features:

Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
Professional 3G/HD/SD Test Pattern Generator featuring:
– 26 Selectable Output Formats
– 54 Test Patterns including Luma and Chroma Zone-plates
Audio Tone Generator
Horizontal and/or Vertical image flipping per window
Low-cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Tallies can be applied to either Tally Boxes (Default) or Border
Tally boxes allow for up to 4 Tallies per window (Green, Red, Blue and Yellow)
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen and Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
Linked (3G/HD/SD)-SDI and HDMI outputs
4 x (3G/HD/SD)-SDI inputs with auto-detection (26 Formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
An extensive selection of user-controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push-button can then be used for status and control
USB port for control and updates
Locking DC Power Socket
5 GPI on standard RJ-45 connector for Tallies and Remote Switching
RS422/485 is also included on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol

The following is included with the unit:

Power Supply, HDMI Cable, USB Cable and Mounting Bracket

Full specification sheet
