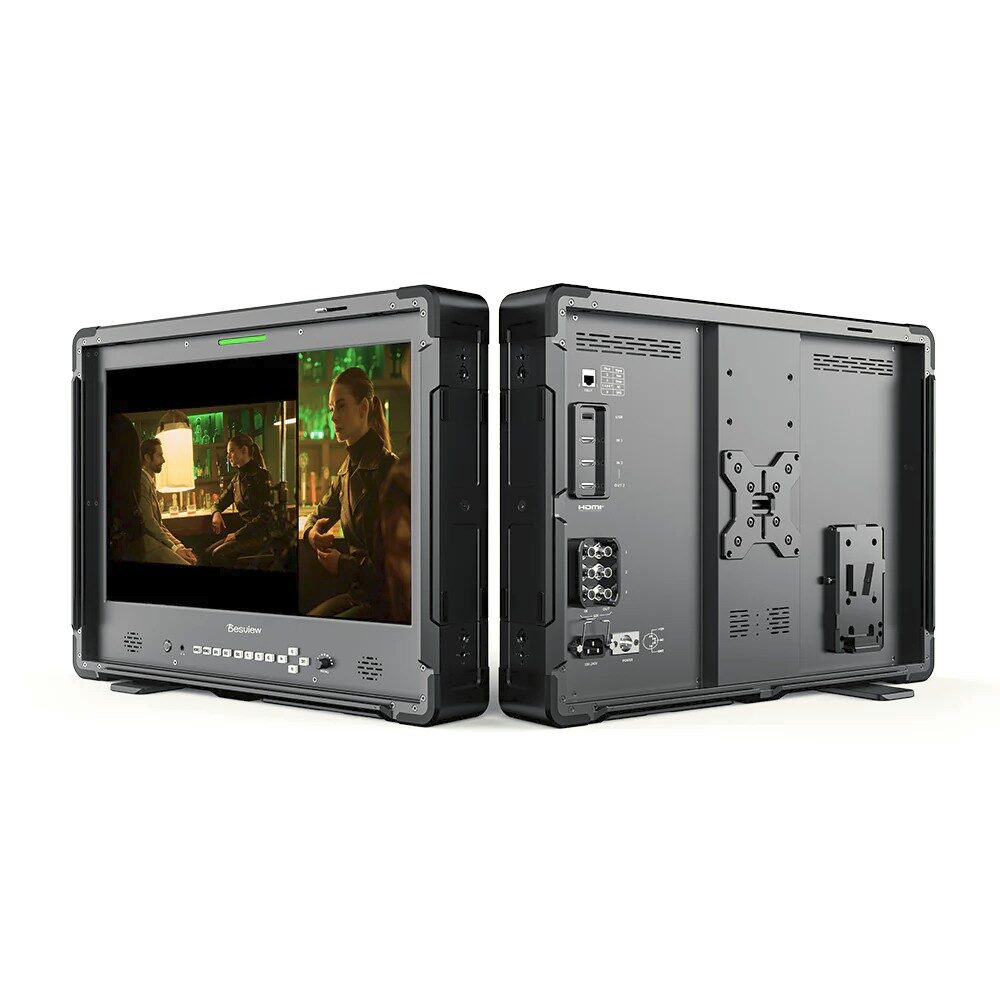

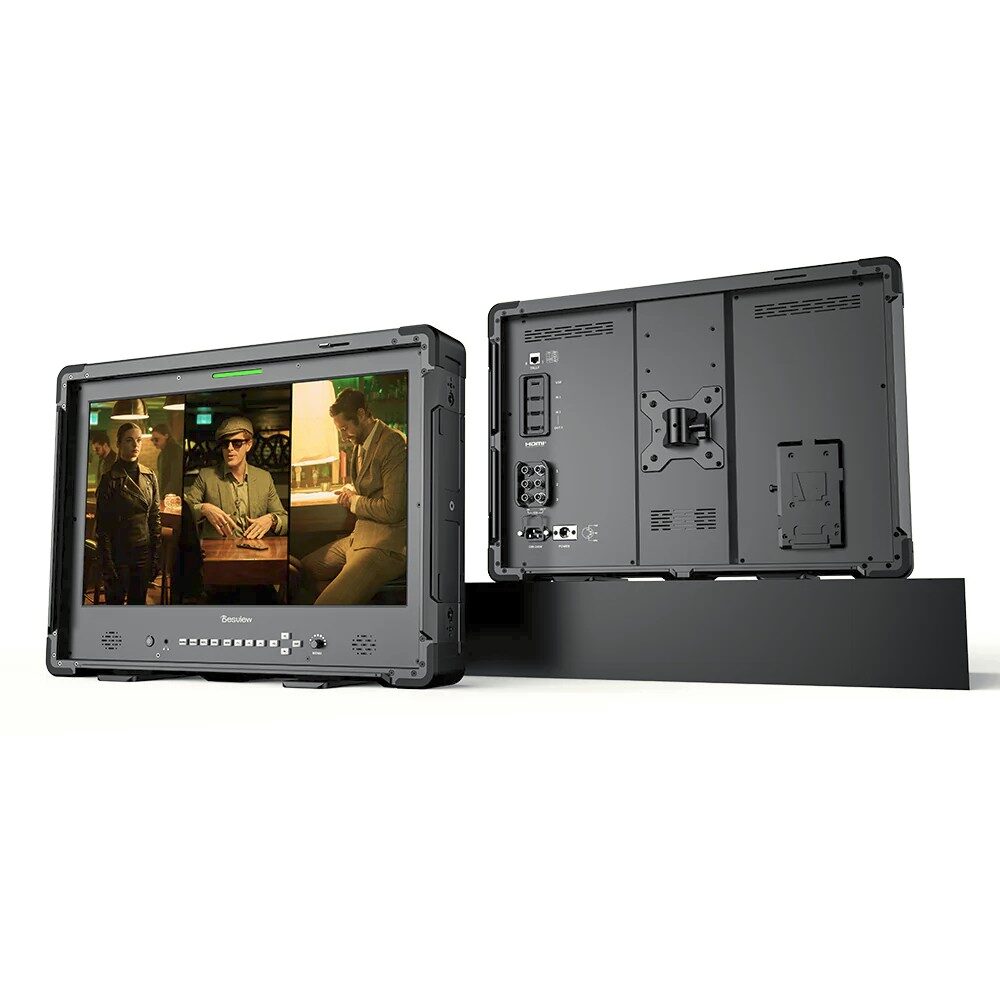

The Desview D21 Pro is a professional 21.5″ vertical display broadcast monitor designed for modern vertical and horizontal production workflows. Featuring multi-view monitoring, ultra-bright 1000 nits output, SDI and HDMI dual coverage, advanced waveform tools, HDR and 3D-LUT support, and a rugged pressure-resistant housing, the D21 Pro delivers precise, reliable monitoring for film sets, live broadcasts, and multi-camera productions in any environment.
The Desview D21 Pro Vertical Display Broadcast Monitor represents a new generation of professional monitoring solutions, purpose-built for today’s vertical content era while maintaining full compatibility with traditional horizontal workflows. Equipped with a 21.5-inch IPS 10-bit display, the D21 Pro delivers accurate color reproduction with 99.5% DCI-P3 coverage, a 1000:1 contrast ratio, and an ultra-bright 1000 nits output, ensuring excellent visibility both indoors and outdoors.
Designed for efficiency on set, the D21 Pro features an innovative 3-second quick-release sliding cover, allowing rapid deployment straight out of the case. Its multi-view monitoring modes support dual, triple, and quad views with picture-in-picture, while single-window independent control enables precise adjustment of brightness, contrast, color temperature, saturation, sharpness, flip, and distortion for each window individually. This flexibility makes it ideal for multi-camera productions and complex monitoring setups.
The monitor supports full waveform monitoring for both SDI and HDMI signals, providing frame-level exposure and color analysis for confident image control. Professional connectivity includes three 3G-SDI inputs with loop outputs and two HDMI 2.0 inputs with one output, supporting up to 4K 60p signals. Advanced cinematic tools such as anamorphic de-squeeze (1.33x, 1.6x, 2.0x, 2.35x), horizontal and vertical cropping, and 9:16 composition markers make the D21 Pro especially powerful for film, advertising, and social media production.
Built for demanding environments, the D21 Pro features a pressure-resistant composite housing capable of withstanding up to 80 kg load, reinforced with military-grade anti-collision corner guards tested for 1.5-meter drops. Multiple 1/4″-20 and 3/8″ mounting points and VESA mount compatibility allow seamless integration with light stands, carts, and studio rigs. Power flexibility is ensured through AC power, XLR DC input, or V-mount battery support, making it adaptable to studio, outdoor, or mobile shooting scenarios. A front-facing tri-color tally light (red/green/blue) further enhances its suitability for live production and broadcast environments.
Key Features:
- 21.5″ IPS 10-bit professional display
- Ultra-bright 1000 nits brightness for indoor/outdoor use

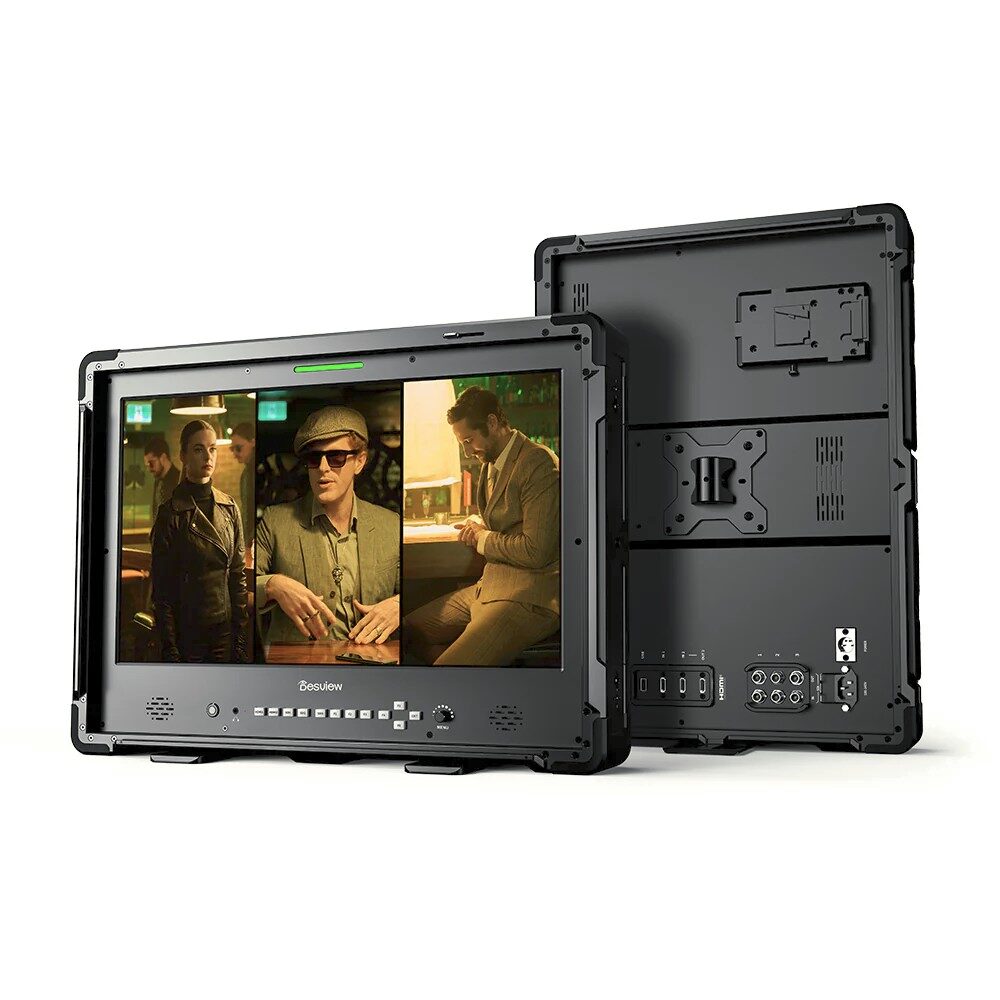

- Vertical and horizontal monitoring with hardware rotation

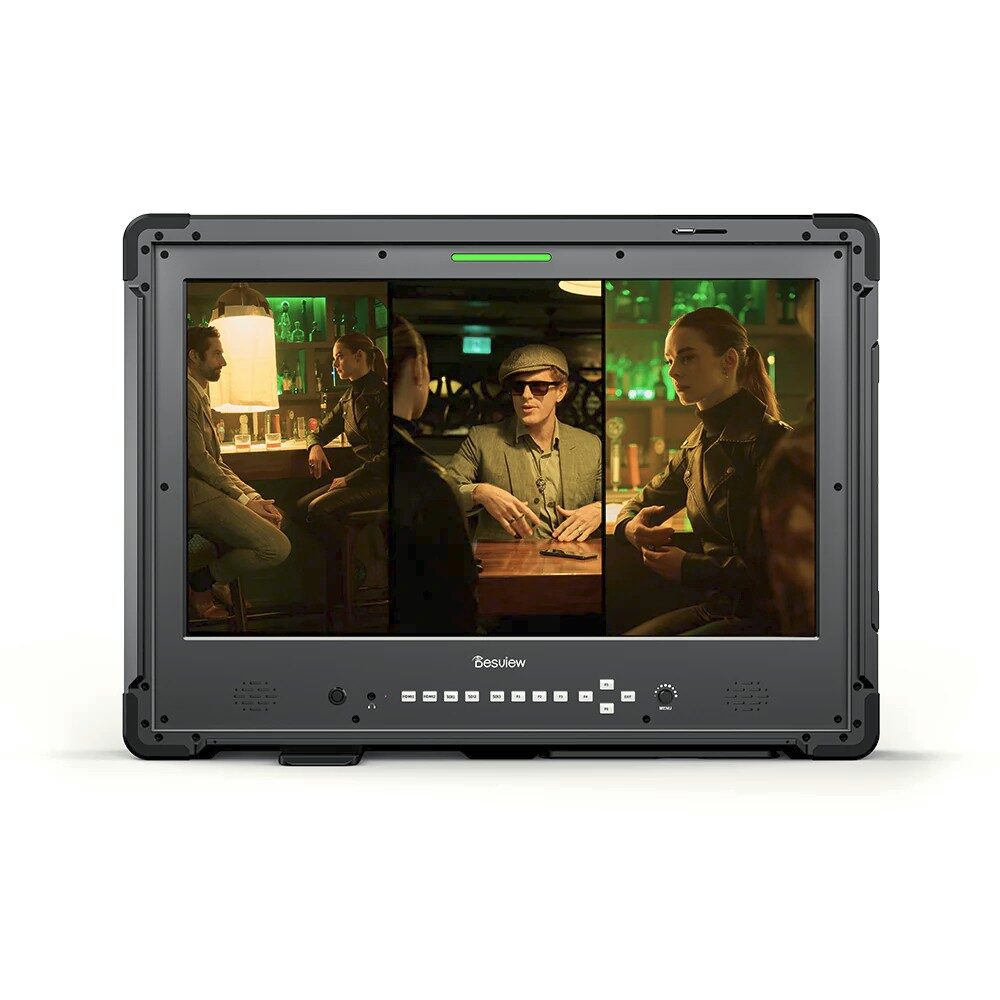

- Multi-view modes: dual, triple, quad, and PIP
- Full waveform monitoring for HDMI and SDI
- 3G-SDI ×3 input/loop output, HDMI 2.0 ×2 input / ×1 output
- Custom 3D-LUT support (33×33×33) and HDR monitoring
- Anamorphic de-squeeze support (1.33x, 1.6x, 2.0x, 2.35x)
- Independent control for each monitoring window
- Pressure-resistant aluminum alloy + composite housing
- Military-grade corner protection

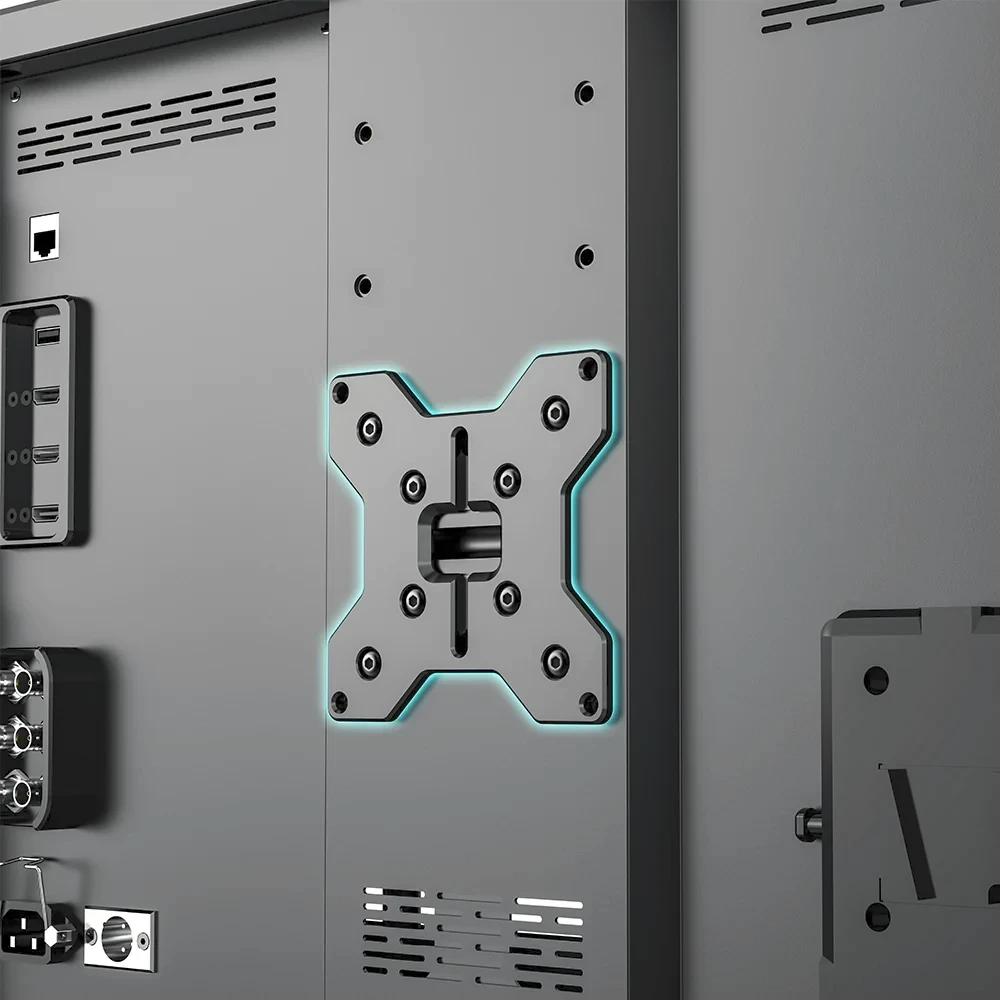

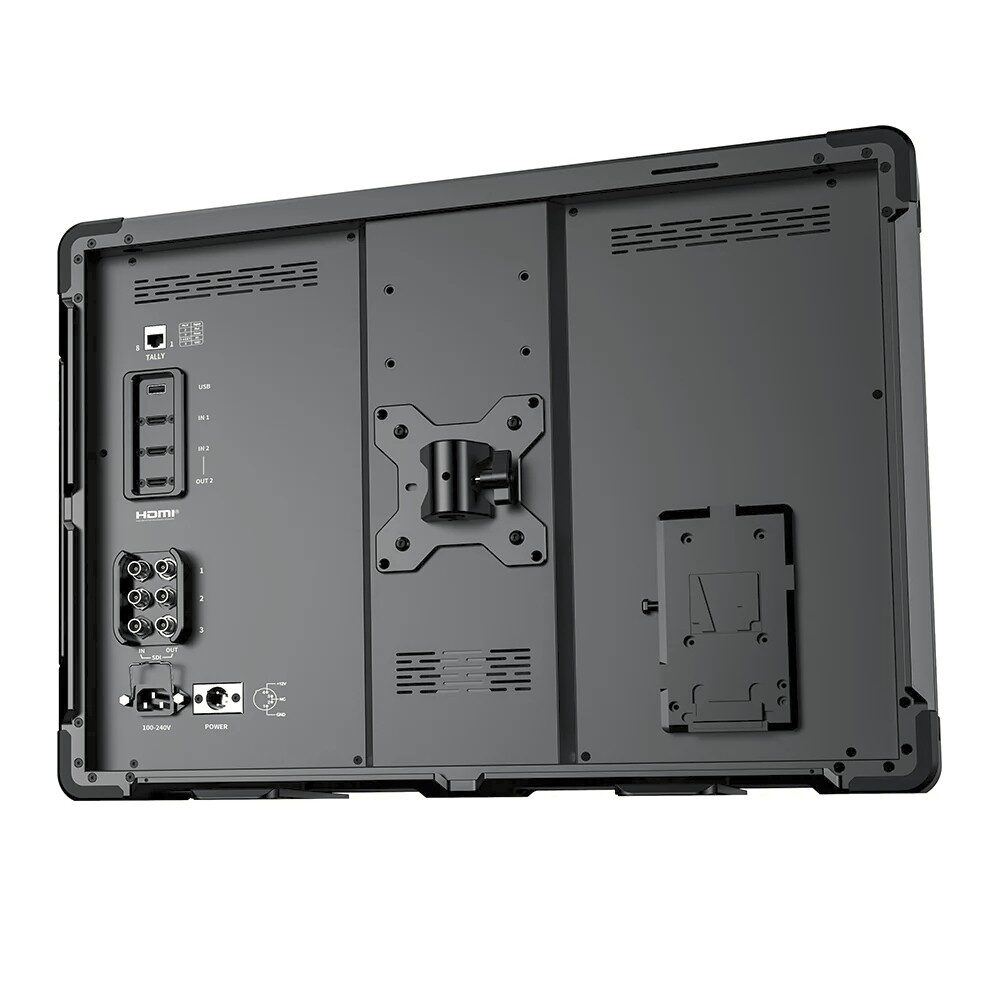

- VESA mount and multiple accessory mounting points

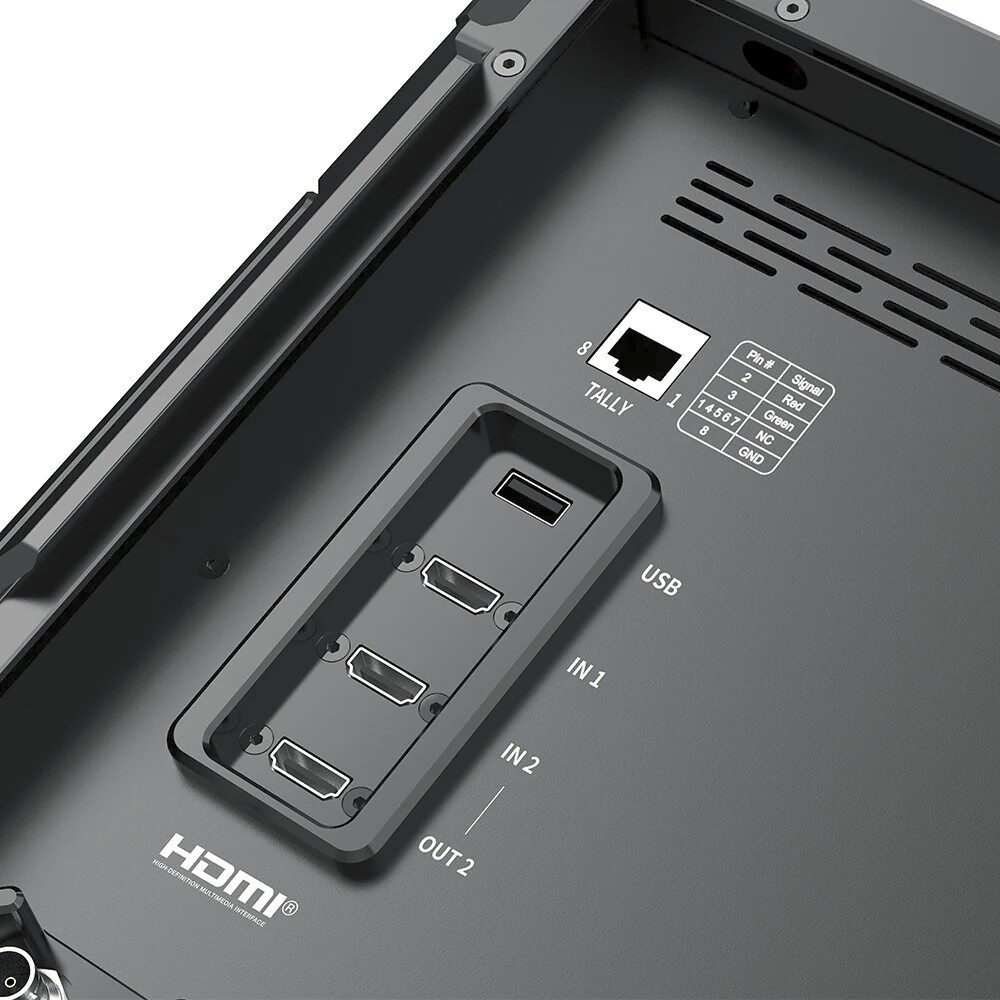

- Front tally indicator light (RJ45)
- Multiple power options: AC, XLR DC, V-mount battery
- Desview D21 Pro Monitor ×1
- USB Drive ×1
- Airline Power Cable ×1
- HDMI Cable ×1
- Cleaning Cloth ×1
- User Manual & Warranty Card ×1
- Display: 21.5″ 1920×1080, 1000 nits, 1000:1 contrast, 99.5% DCI-P3, 10-bit, 178° H/V

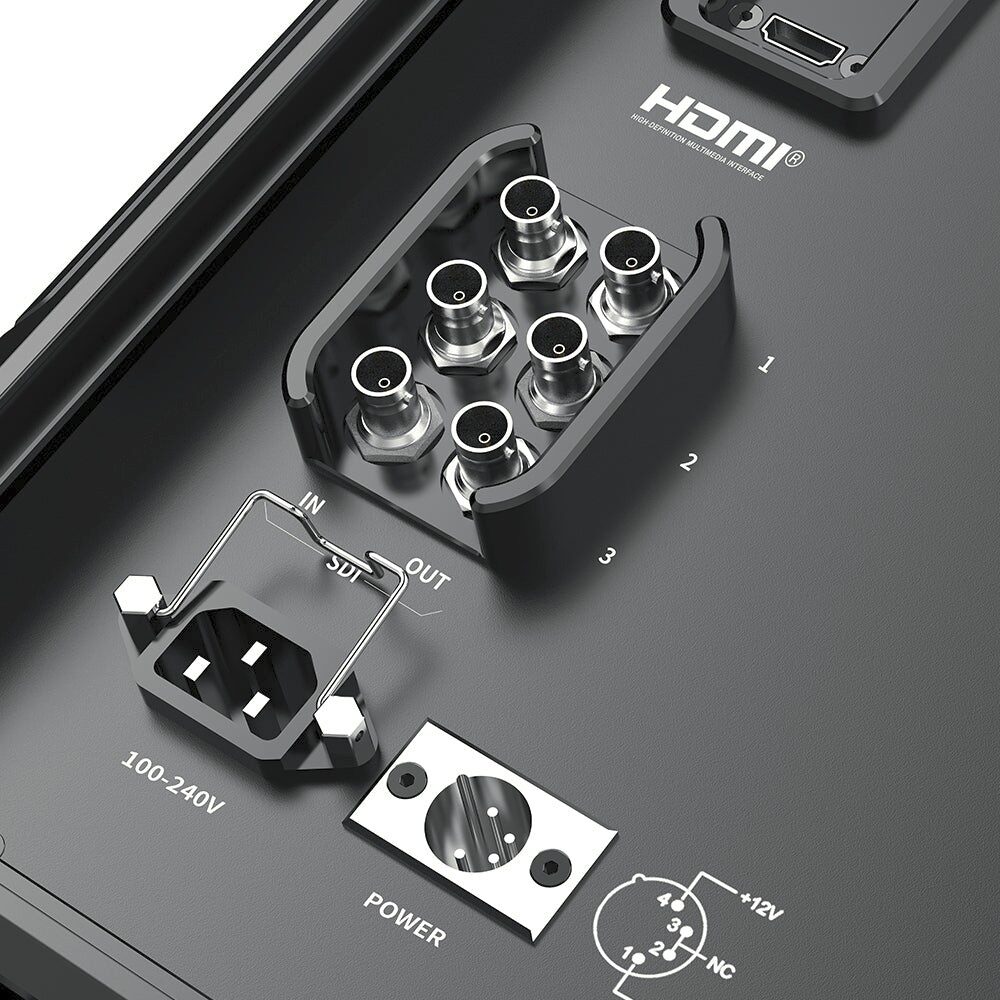

- Inputs/Outputs: 2× HDMI 2.0 in, 3× 3G-SDI in, 1× HDMI 2.0 out, 3× 3G-SDI out
- Audio: 3.5 mm stereo out, dual 3W speakers
- Power: AC 100–240V, DC 12–24V/XLR, V-mount battery
- Build: Aluminum + composite, 584×426×177 mm, 11.2 kg
- Operating Temp: 0–50 °C
