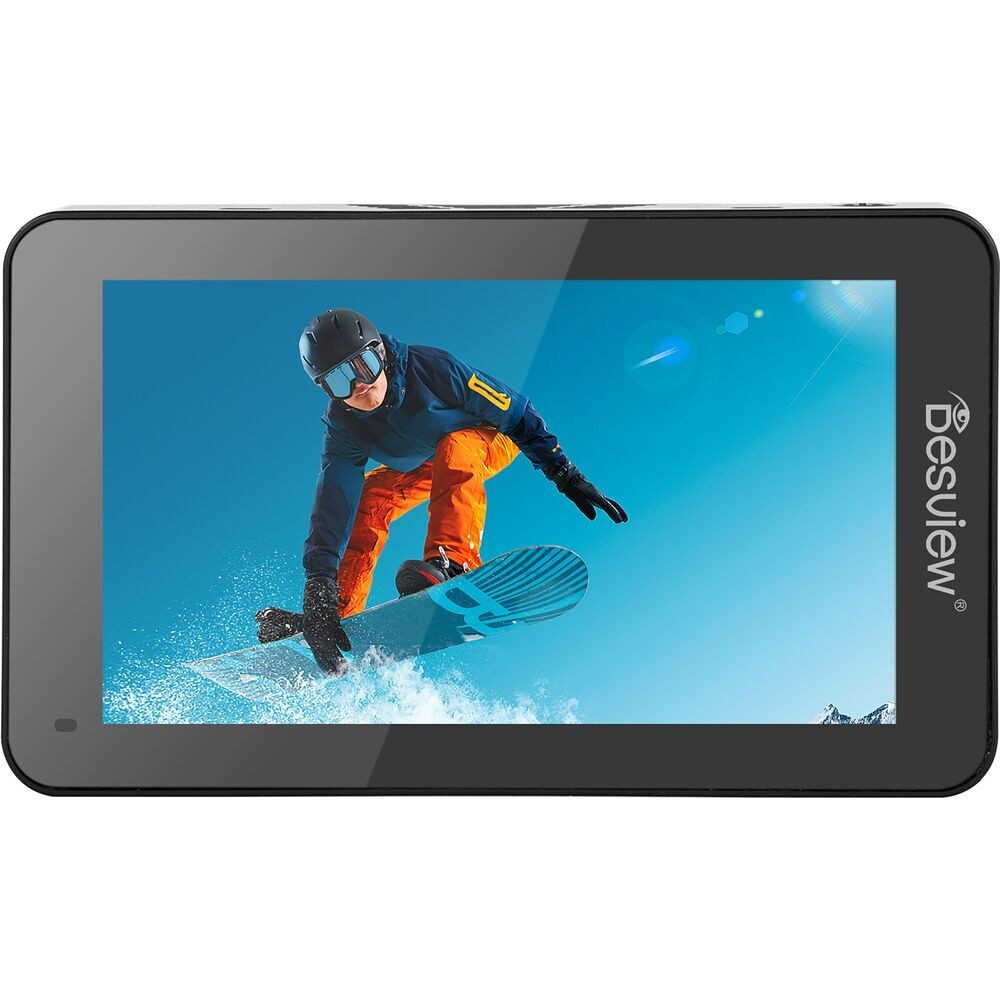

The Desview R6II is a compact 5.5″ ultra-high brightness on-camera touchscreen monitor designed for professional filmmakers and content creators who need reliable monitoring in any lighting condition. Featuring a Full HD display with an impressive 2800 cd/m² brightness, 4K60 HDMI input and loop output, and advanced monitoring tools, the R6II delivers accurate color, precise exposure control, and smooth on-set workflow in a lightweight, travel-friendly design.
The Desview R6II 5.5″ Ultra-High Bright Touchscreen Monitor is engineered for demanding video production environments where clarity, portability, and performance matter most. Its 1920 × 1080 IPS touchscreen panel delivers sharp images with wide 178° viewing angles and an outstanding 2800 cd/m² brightness, making it clearly visible even in direct sunlight without the need for a sun hood. With a 1000:1 contrast ratio and DCI-P3 color gamut support, the R6II ensures accurate color reproduction and dependable visual monitoring.

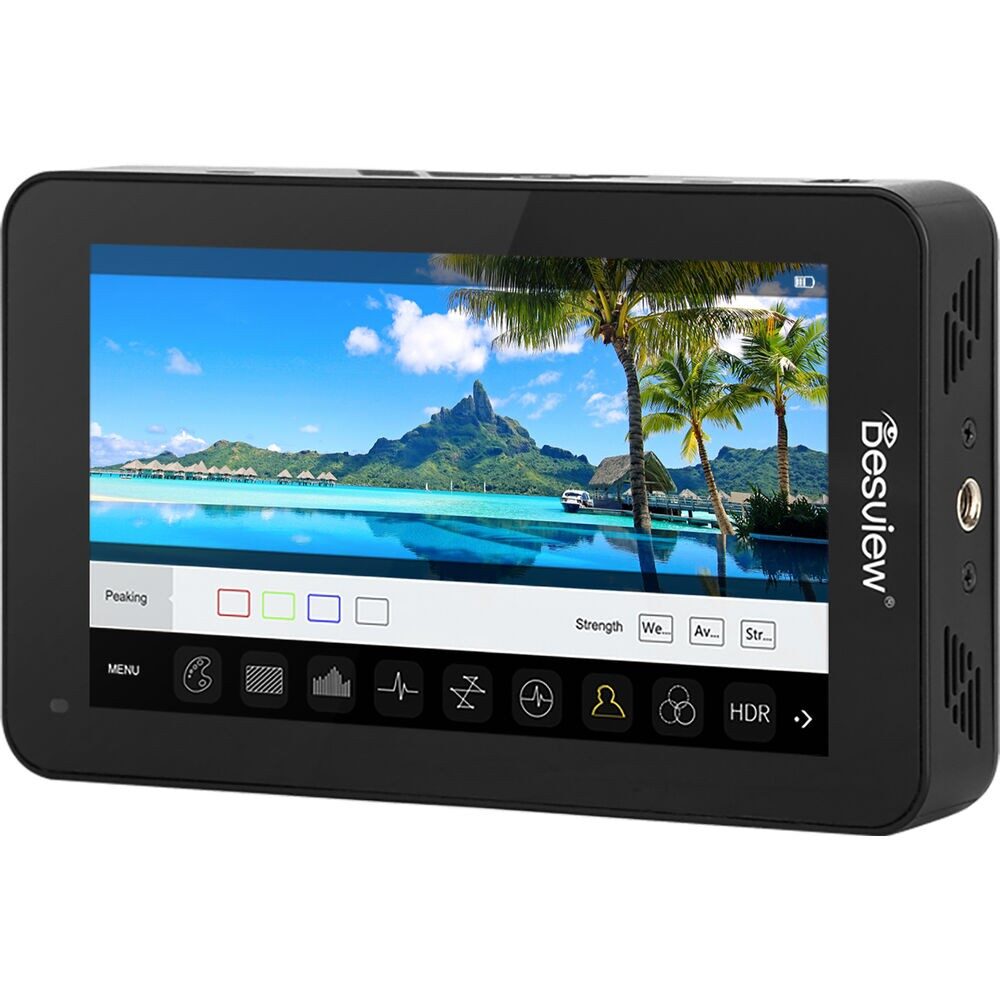

Supporting DCI and UHD 4K up to 60fps via HDMI 2.0, the monitor accepts high-resolution camera signals and provides a loop-through HDMI output to send an unmodified feed to additional monitors or wireless transmitters. Touchscreen operation allows fast access to menus and tools such as waveform, histogram, false color, zebra, focus peaking, pixel-to-pixel zoom, and anamorphic de-squeeze options, enabling precise exposure and focus control on set.
The R6II also supports 3D LUTs, including the ability to upload custom LUTs via USB-A, and offers SDR and HDR monitoring (HLG and PQ). Power flexibility is another key advantage, with a combination Sony L-series / Canon LP-E6 battery plate, a 7–24 VDC input, and an 8 VDC output to power your camera using a dummy battery cable. A built-in adjustable cooling fan ensures stable performance during long shoots, while multiple 1/4″-20 mounting points allow easy rig integration. Lightweight and durable, the R6II is ideal for run-and-gun shooters, vloggers, and professional filmmakers alike.
Key Features:
- 5.5″ Full HD (1920 × 1080) IPS touchscreen display
- Ultra-high 2800 cd/m² brightness for outdoor shooting

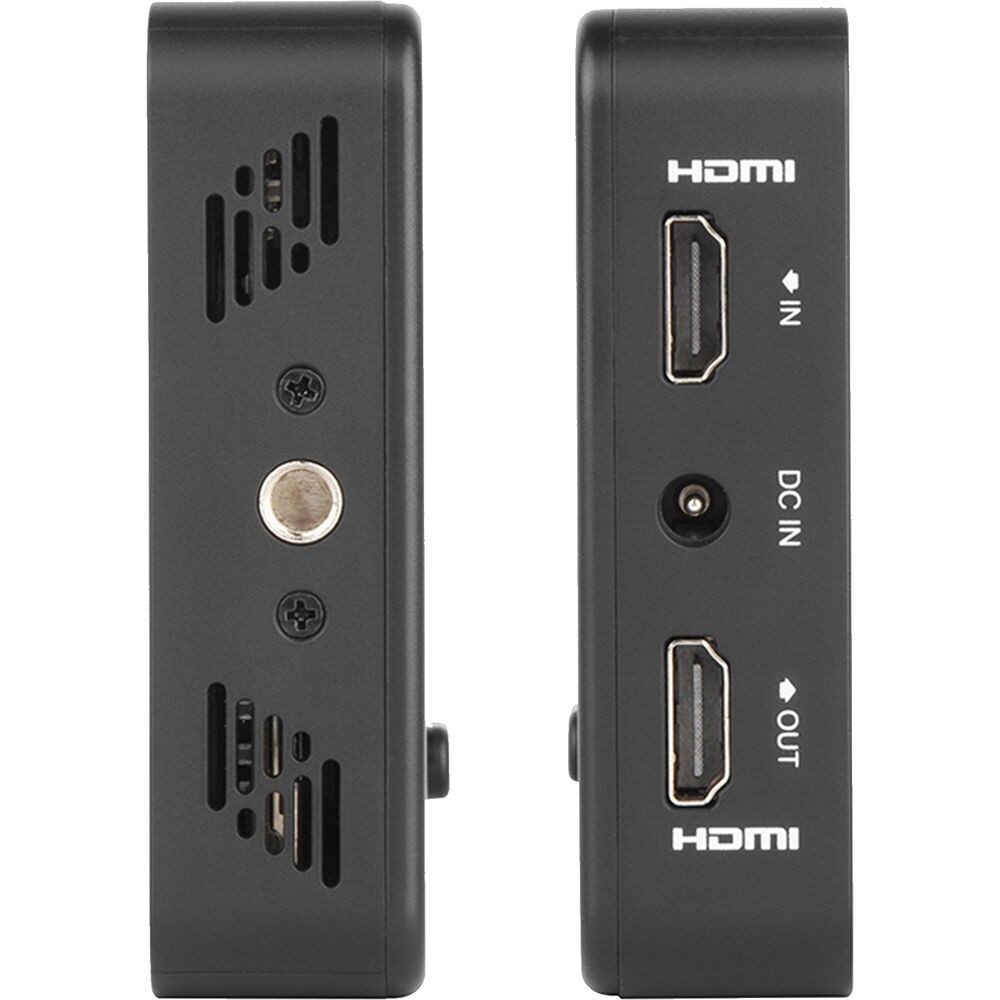

- HDMI 2.0 input and loop output supporting DCI/UHD 4K60
- Advanced monitoring tools: waveform, histogram, false color, zebra, peaking
- 3D LUT support with USB upload
- SDR and HDR (HLG/PQ) monitoring

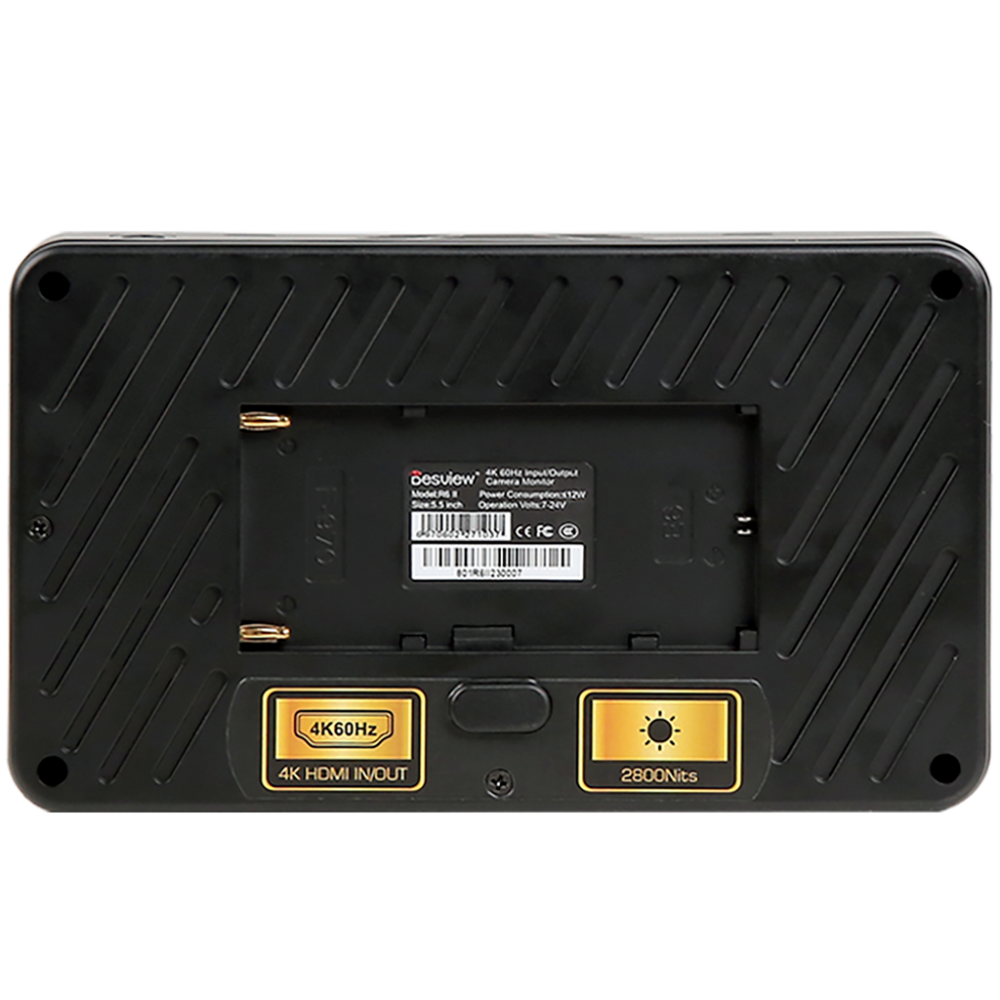

- Combo Sony L-Series / Canon LP-E6 battery plate
- DC input (7–24 V) and 8 V DC output to power camera
- Lightweight design with built-in cooling fan

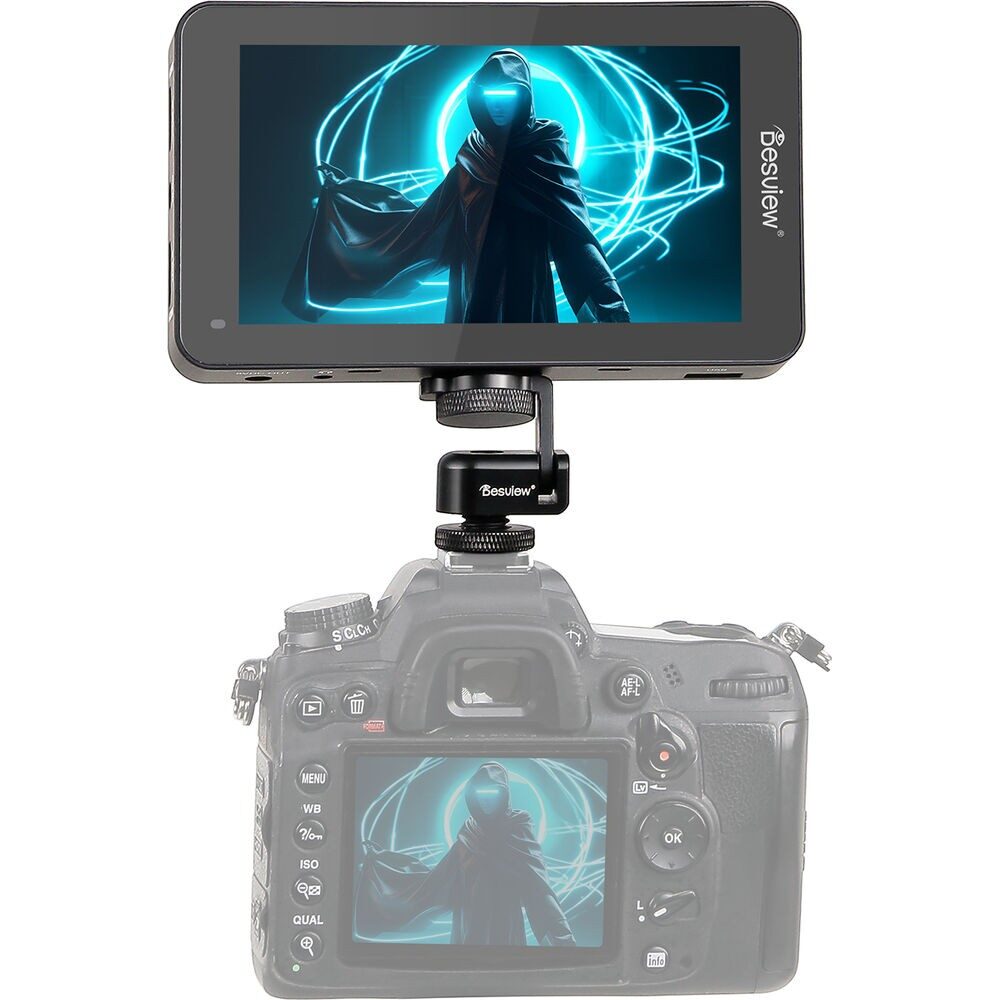

- Includes tilting monitor mount

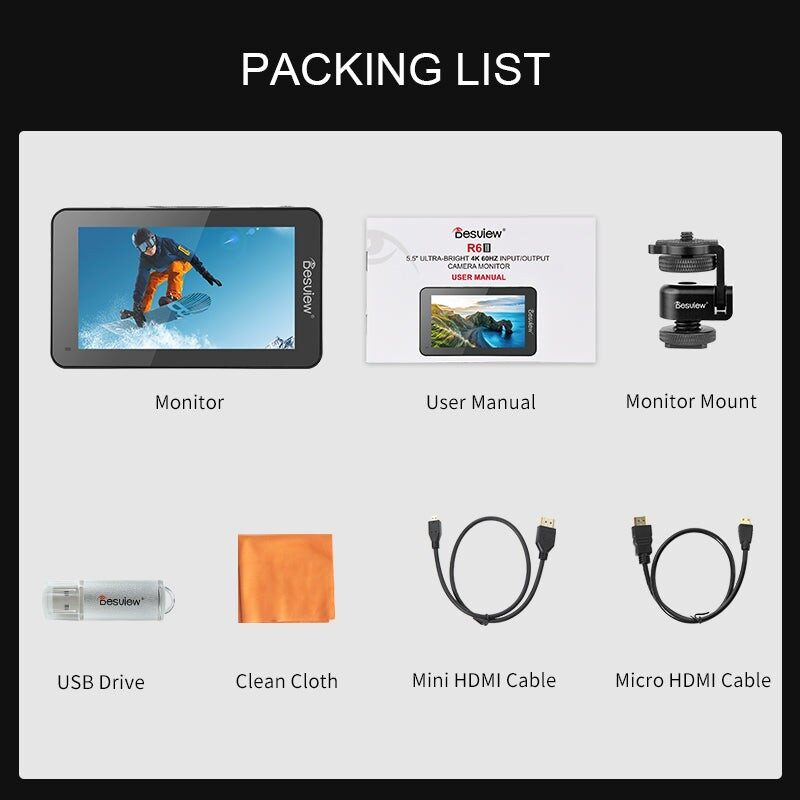

- Desview R6II 5.5″ Touchscreen Monitor
- Tilting Monitor Mount
- User Documentation
- Screen Size: 5.5″
- Resolution: 1920 × 1080
- Brightness: 2800 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 178° (H/V)

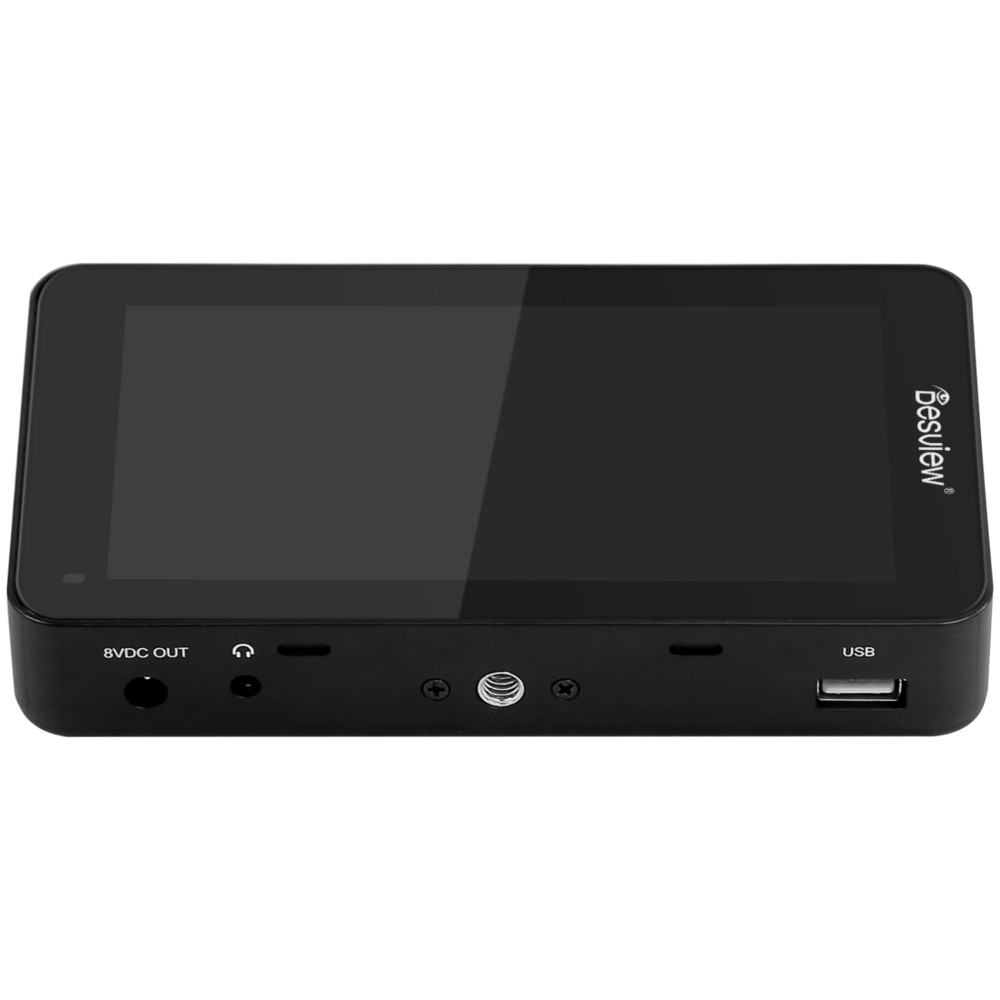

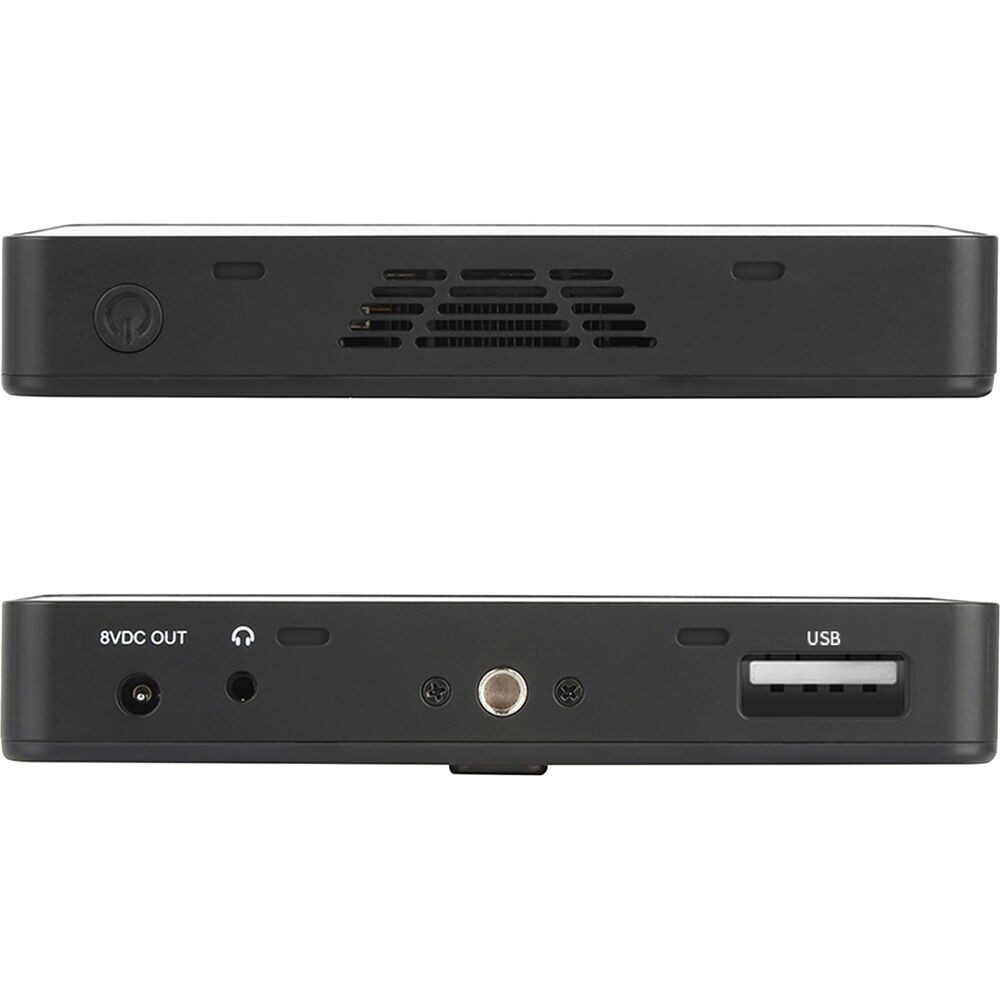

- Inputs/Outputs: HDMI 2.0 In/Out, USB-A (LUT/Firmware), 3.5mm headphone jack
- Power: L-Series / LP-E6 battery, DC input, DC output
- Mounting: 1/4″-20 threads (bottom and side)
- Weight: Approx. 240 g
