DSPPA D5816 nelja kanaliga UHF raadiomikrofonide vastuvõtja

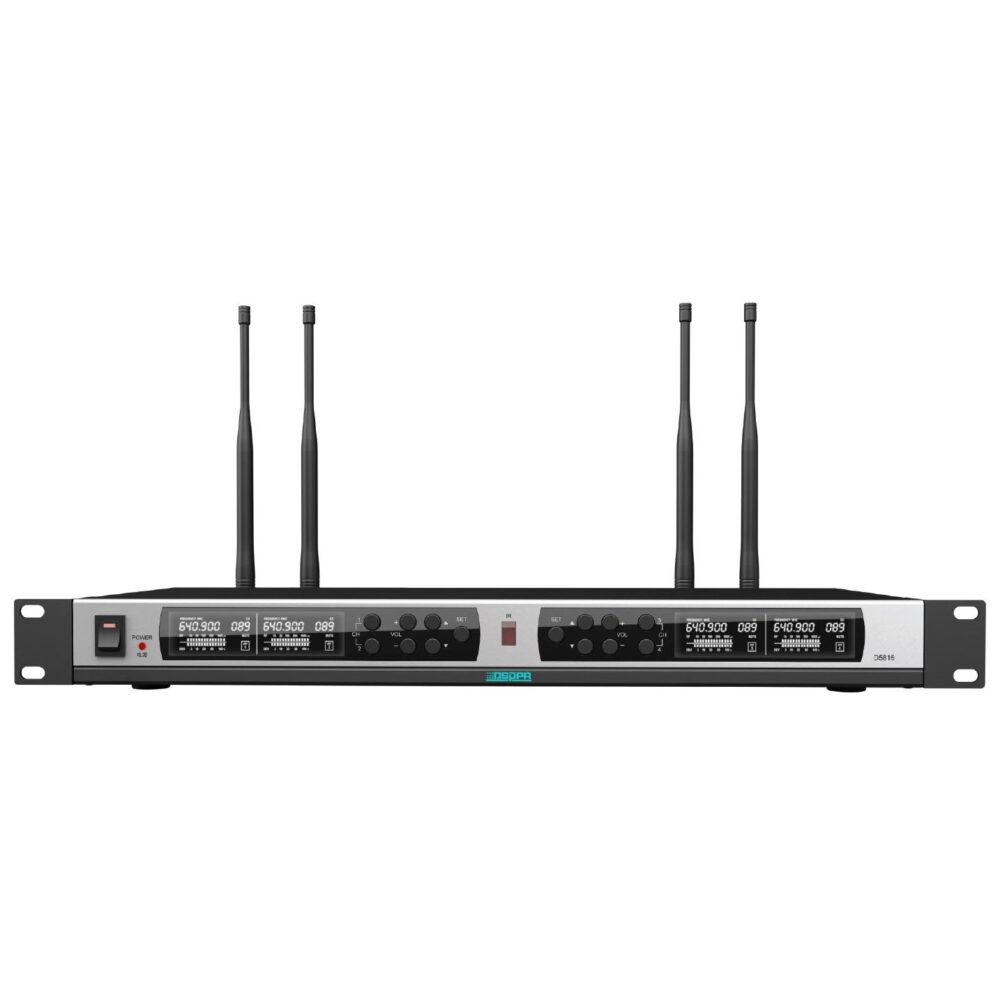

D5816 is a professional wireless microphone receiver, which can be combined with several kinds of transmitters to form a wireless microphone system.
Features:

4-channel PLL design.
UHF200 channel PLL digital lock automatic communication function.
Adopt IR frequency pairing.
With display screen (to display frequency, channel, squelch, level, etc.).
With volume control for each channel.
AF output (using “XLR” sockets for separate output and mixed output).

Specifications:
Frequency Range: 632-695.25MHz
Modulation Mode: Broadband FM
Adjustable Range: 60MHz
Number of Channels: 200
Channel Interval: 250KHz
Frequency Stability: Within ±0.005%
Dynamic Range: 88dB
Maximum Frequency Deviation: ±45KHz
Audio Frequency Response: 120Hz-16KHz (±3dB)
SNR: >73dB
Distortion: ≤1%
Working Temperature: -10℃－+40℃
Effective Range: 150-200m (in open environment)
