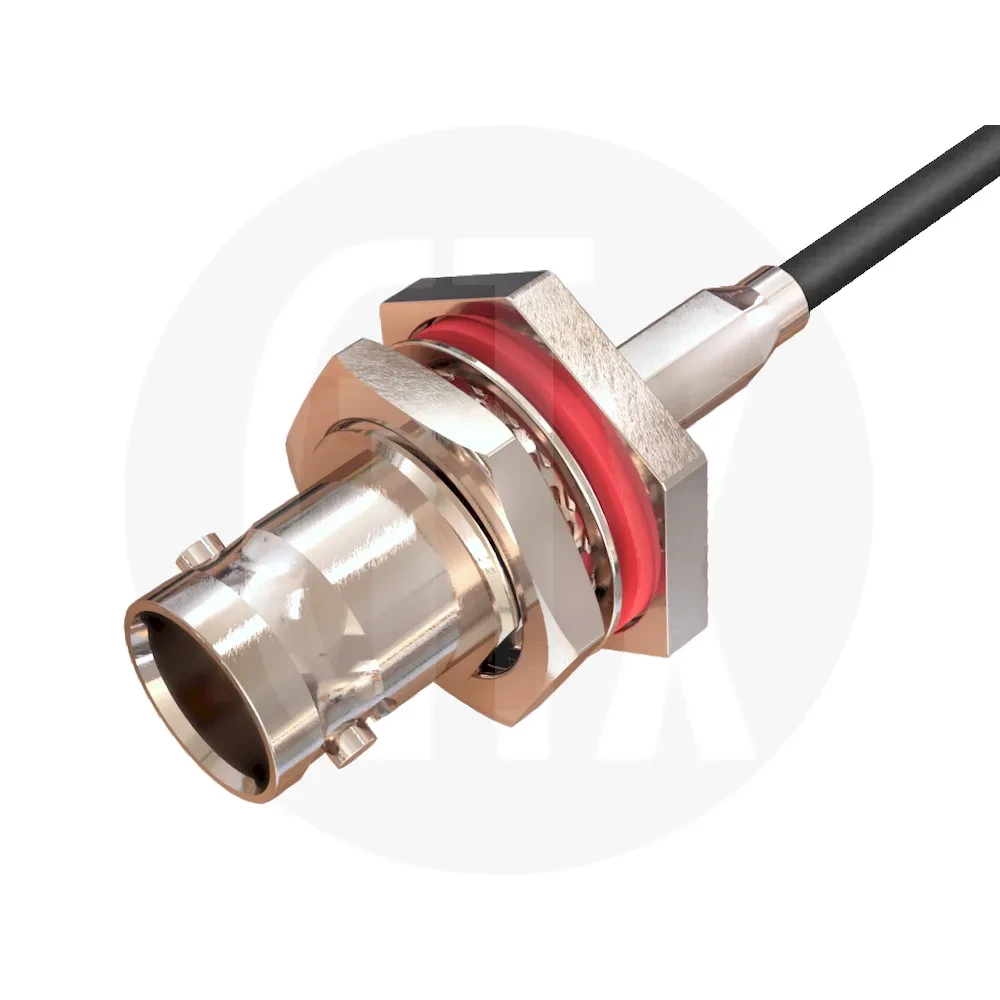

Gigatronix BNC HDTV 12G SDI pistik paneelile, RG179, RG179DT

Specifications

Electrical
Working Voltage: 500 Volts RMS Maximum
Max. Frequency: 12 GHz
Dielectric Withstanding: 1500 Volts RMS Maximum
Impedance: 75 ohms

Environmental
Temperature Range: -55 to +85 degrees C
RoHS Compliant: Yes

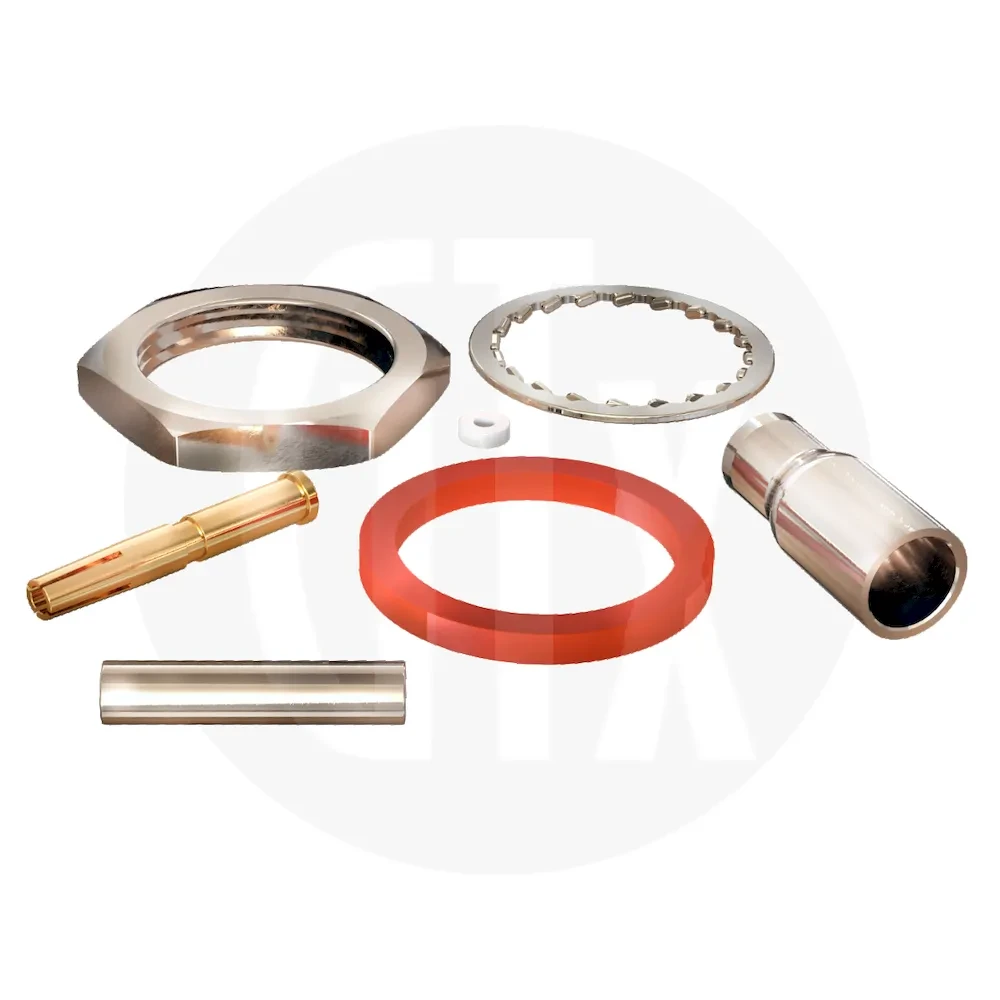

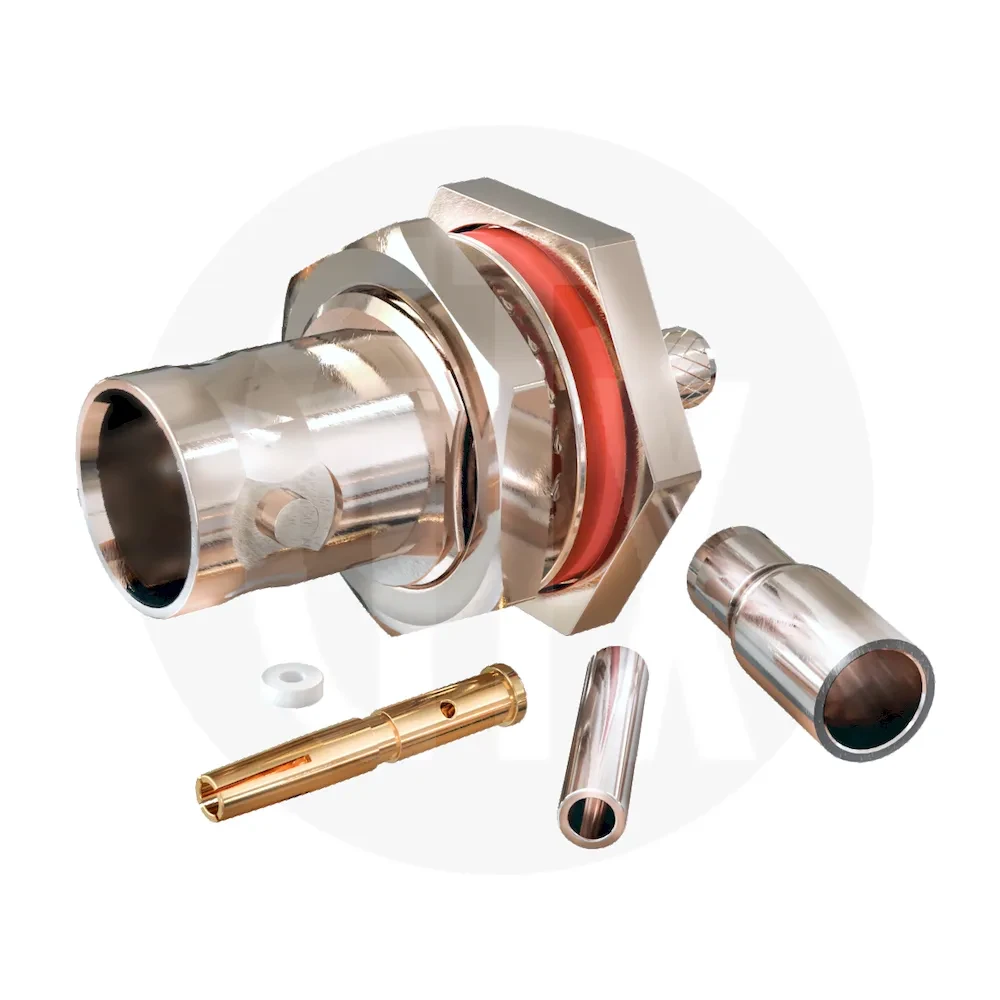

Material
Body: Brass, Nickel Plated
Dielectric: Delrin
Ferrule: Brass, Nickel Plated
Gasket: Rubber
Insulator: PTFE
Locknut: Brass, Nickel Plated
Tube: Brass, Nickel Plated
Washer: SS41, Nickel Plated
Contact: Brass, Gold Plated

Mechanical
Fixing Method: Crimp
Cable Retention: Equal to breaking strain of cable
Durability: 500 mating cycles
Maximum Panel Thickness: 4.00mm

Tooling
Crimp Hex. Sizes: 4.52mm Hex., 1.69mm Hex.

Cable Preparation

A = 6.6mm
B = 4.6mm
C = 4.8mm

Panel Fixing Information
