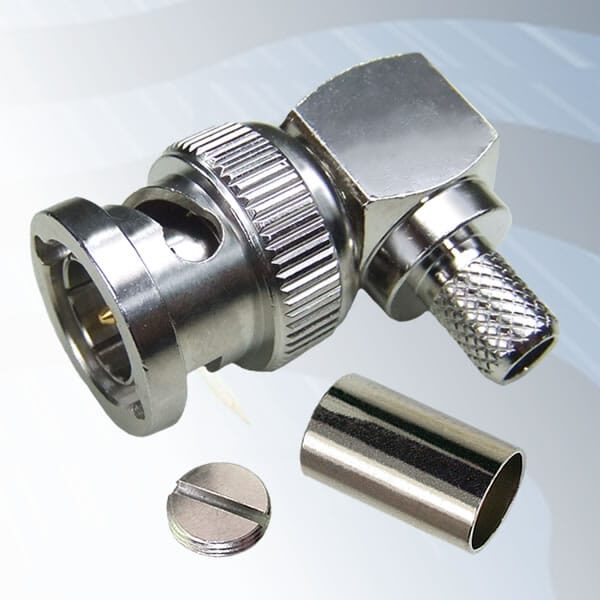

Gigatronix BNC HDTV 12G SDI pistik nurgaga

Specifications

Electrical
Dielectric Withstanding: 1500 Volts RMS Maximum
Impedance: 75 ohms
Max. Frequency: 12 GHz
Working Voltage: 500 Volts RMS Maximum

Environmental
RoHS Compliant: Yes
Temperature Range: -65 to +165 degrees C

Material
Body: Brass, Nickel Plated
Coupling Nut: Brass, Nickel Plated
Dielectric: PTFE
End Cap: Brass, Nickel Plated
Ferrule: Brass, Nickel Plated
Pin: Brass, Gold Plated

Mechanical
Cable Retention: Equal to breaking strain of cable
Durability: 500 mating cycles
Fixing Method: Crimp

Tooling
Crimp Hex. Sizes: 6.48mm Hex., Solder centre core

Cable Preparation

A = 8.0mm
B = 8.0mm
C = 3.0mm
