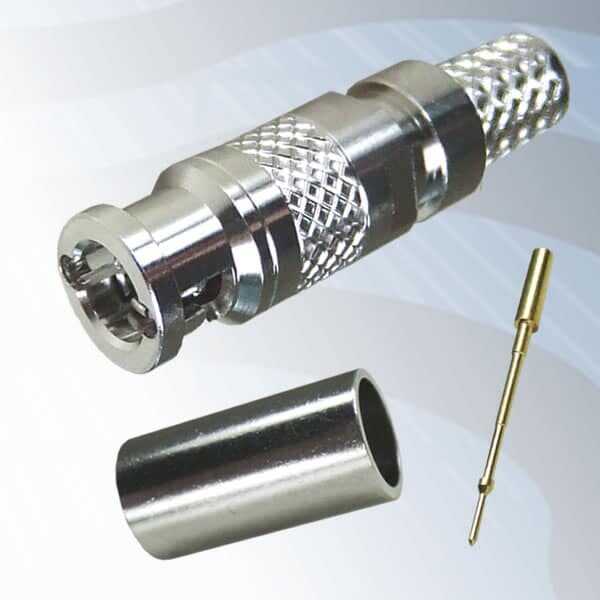

Gigatronix HD mini BNC HDTV 12G SDI crimp plug

For Belden 1505A, 4505R, 1505F, 1505ANH

Specifications

Electrical
Dielectric Withstanding: 500 Volts RMS Maximum
Impedance: 75 ohms
Max. Frequency: 12 GHz
Working Voltage: 500 Volts RMS Maximum

Environmental
RoHS Compliant: Yes
Temperature Range: -65 to +165 degrees C

Material
Body: Brass, Nickel Plated
Coupling Nut: Brass, Nickel Plated
Dielectric: PTFE
Ferrule: Brass, Nickel Plated
Pin: Beryllium Copper, Gold Plated

Mechanical
Cable Retention: Equal to breaking strain of cable
Durability: 500 mating cycles
Fixing Method: Crimp

Tooling
Crimp Hex. Sizes: 6.48mm Hex., 1.07mm Square

Cable Preparation

A = 8.9mm
B = 2.1mm
C = 4.0mm
