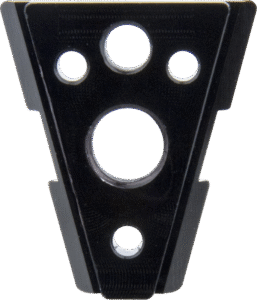

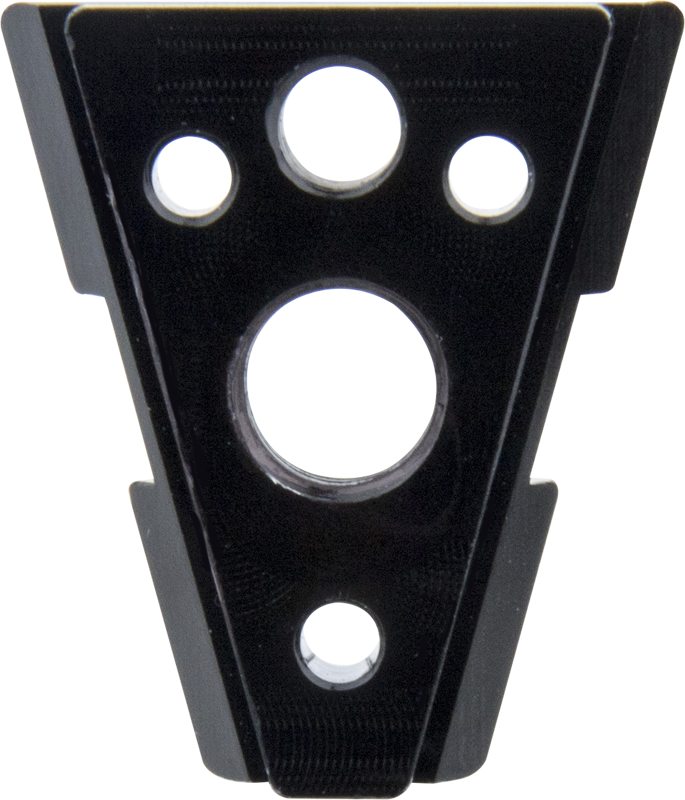

KS-270 / V-LOCK WEDGE
Kupo V-lock Wedge is precisely machined from black anodized aluminum with tight tolerances and minimized wiggles. It comes with three M3 hole and screws which are designed to firmly fix the wedge on any standard V-mount battery. It allows you to easily attach the battery on any mounting equipment which comes with Kupo V-lock base (KS-271). Also features a 3/8”-16 central tapped hole that can be mounted on any equipment comes with 3/8”-16 female threaded with the supplied 3/8”-16 screw. The 1/4”-20 tapped hole on the wedge and the 1/4”-20 screw are also supplied to prevent it from twisting while the wedge is fastened with screw on the 3/8”-16 tapped hole.

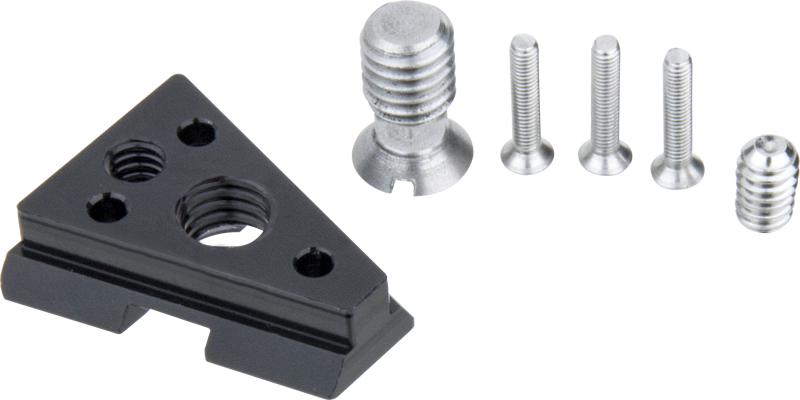

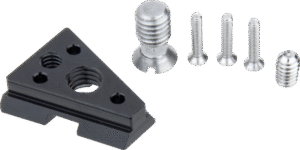

(1) 6061 aluminum wedge x 1pc
(2) M3 x 15 Phillps flat head screw x 3 pcs
(3) 3/8”-16 slotted countersunk head x 1pc
(4) 1/4”-20 set screw x 1pc
Weight: 25g
