This Japan made high-quality viewfinder with a 1920 x 1080 Full HD TFT LCD panel enables users to clearly view footage detail with a high brightness & contrast ratio, achieving vivid and excellent color gradation.
170 degree wide view angle offers clear images without a color and contrast shift at any angle.

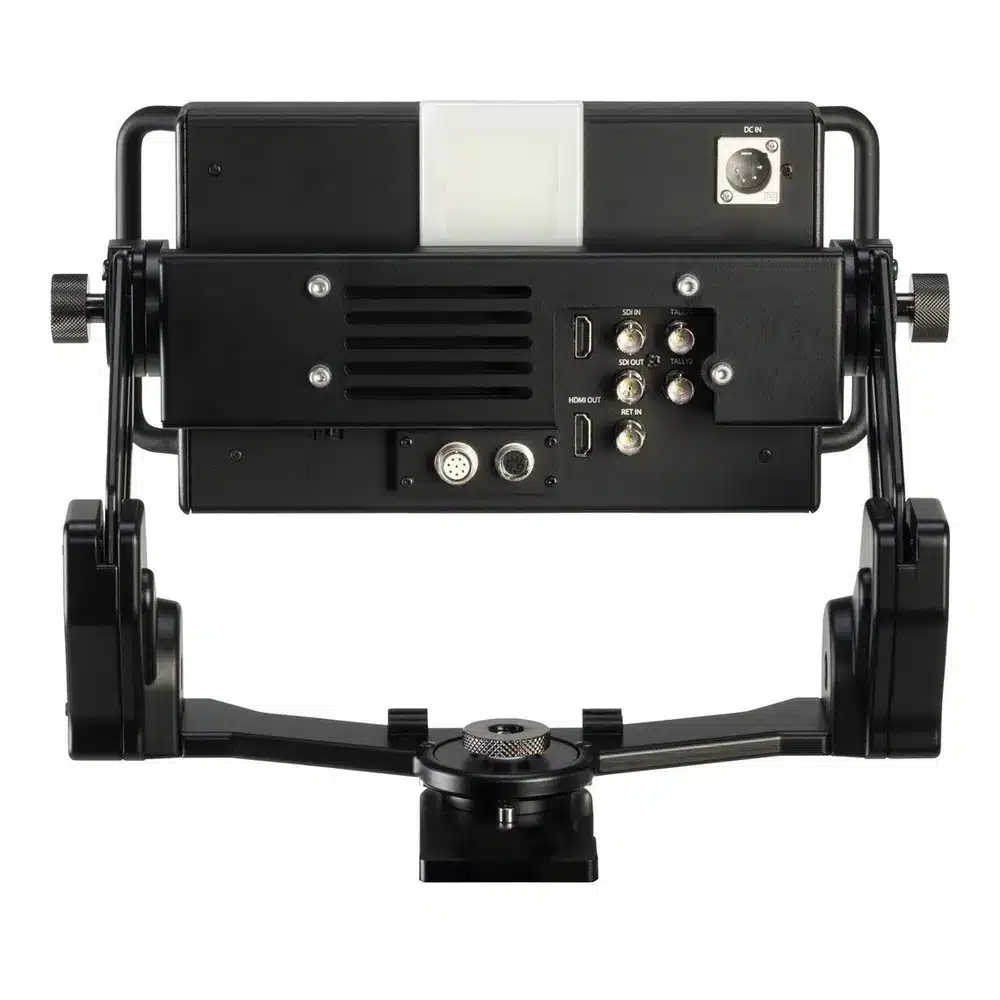

Libec Viewfinder provides multi-connectivity with 3G-SDI, HDMI, Analog HD component and a lot more terminals. In addition, it allows return input and through output.・Compatible with Different Types of Video Input SignalsCompatible with various frame rates and interlace/progressive input signals. Input signals are automatically recognized without adjusting settings.
A waveform monitor, vector scope and other scopes can be easily displayed to monitor footage. The professional scopes allow to precisely adjust overexposure/underexposure,white balance and more on site.
The center marker, the aspect marker, the safety zone marker and flexible area markers are all available. The markers help users frame the perfect video shot.
The large left and right grip handles make positioning the viewfinder and adjusting its anglea piece of cake, even while cameras are on air.

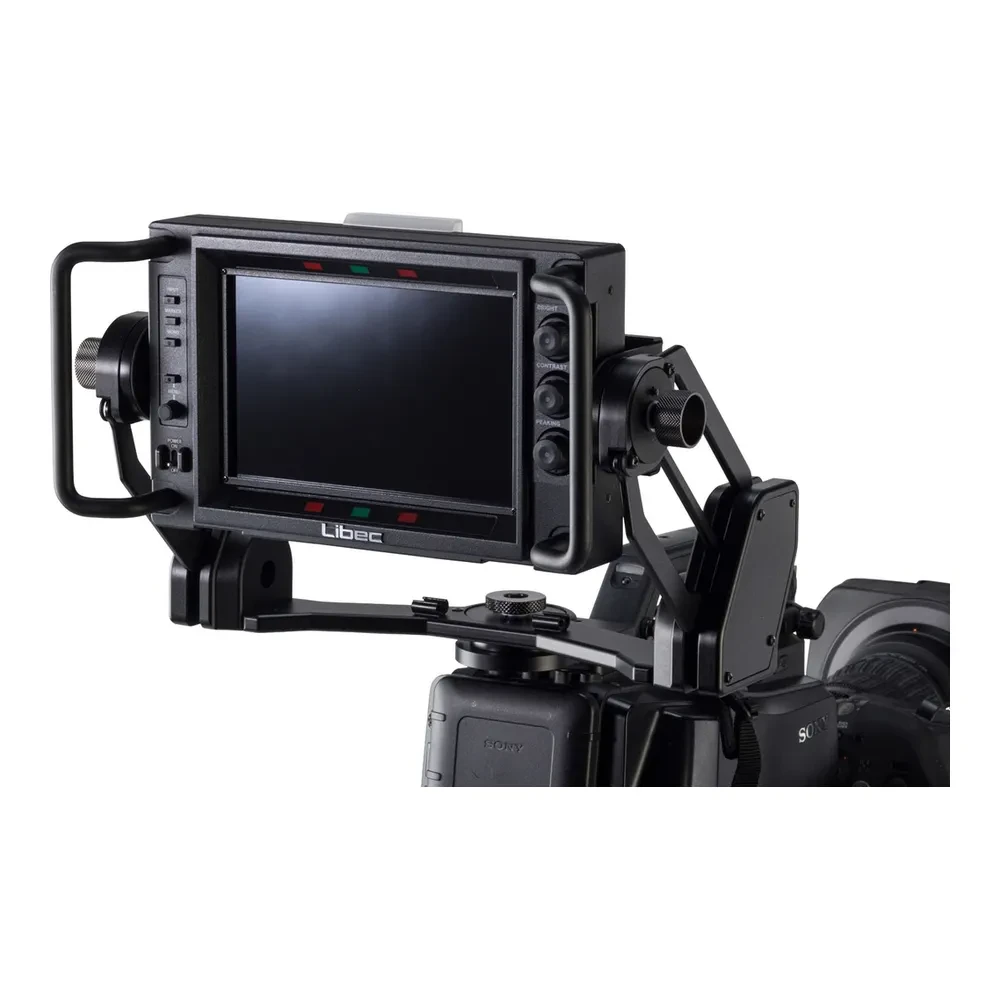

The shoe attachments, which securely set on the camera, are available as optional accessories to attach Sony, Ikegami and Hitachi cameras.
The Viewfinder comes with three tally indicators, two sets for the Front Tally (Green and Red), and one for the Rear Tally (Red). The brightness is adjustable for better viewing. In order to achieve the enhanced lightweight and robust texture, magnesium alloy is adopted to the main body.
- Picture resolution 1920 x 1080
- Brightness 350cd/㎡
- Viewing angle 170°(H) / 170°(V)
- Color reproduction 16.7M colors
- Display area 151(H) x 85(V)mm / 5.94(H) x 3.35(V)”
- SDI input BNC x 1SDI outputBNC x 1
- SDI return input BNC x 1
- HDMI input HDMI x 1
- HDMI output HDMI x 1
- CAMERA input 20-pin x 1, Analog HD component (Y / PB / PR or G / B / R)
- TALLY1: BNC x 1, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V)
- TALLY2: BNC x 1, Red (ON / Short to GND) / OFF (Open)
- Front tally x 2 sets, Green / Red Brightness adjustable in MENURear tally x 1, Red Brightness adjustable in MENU
- Weight 1.2kg / 2.65lb (without accessories)
- Size 232 x 146 x 47mm / 9.13 x 5.75 x 1.85″ (excluding protrusions)
- Power consumption 12W
- Operating temperature 0°C to +40°C / +32°F to +104°F
- Operating humidity 30% to 85%
- Storage temperature -10°C to +45°C / +14°F to +113°F
- Storage humidity 0% to 90%
- Video input signal 1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98)1080i (59.94 / 50)1080PsF (29.97 / 25 / 24 / 23.98)720p (59.94 / 50)
