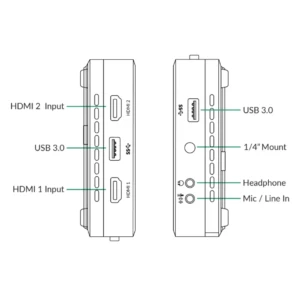

Inputs:

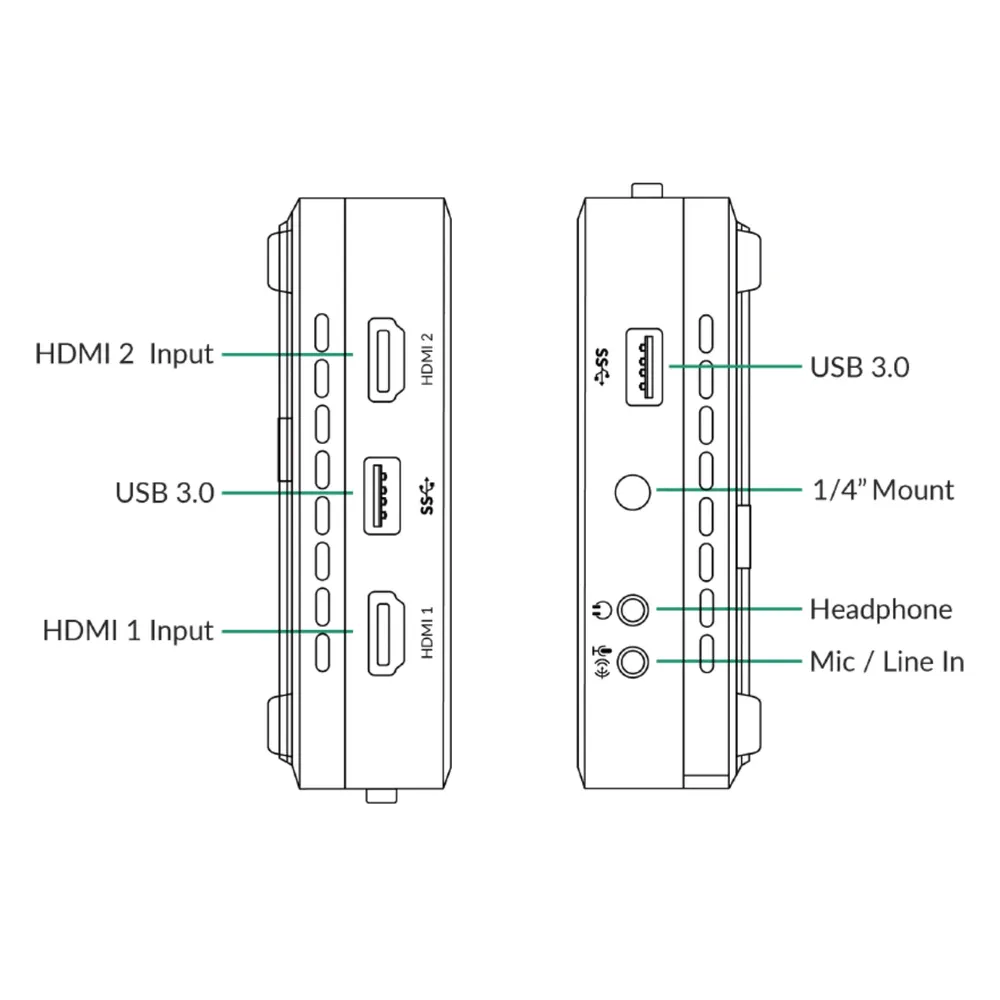

- Two HDMI inputs
- Two USB AV inputs
- Three simultaneous live IP sources (SRT, RTMP, RTSP, NDI® High Bandwidth, NDI® HX2, NDI® HX3)
- Mobile camera (via Director Utility App)
- Media files (video, image, music, etc.)
- Webpage Inputs
Features:
- Shows can be created in landscape (16:9) or portrait (9:16) mode
- A show can consist of multiple scenes
- Supports multi-view composition in one scene, providing prebuilt layouts for easy creation
- Powerful production tools including chroma keying, graphics, telestration and more
- Display multiple GFXs, including titles, lower thirds, a scoreboard, timer, stopwatch, etc.
Streaming:
- Natively support streaming to YouTube, Twitch and Facebook Live
- Stream via SRT, RTMP and NDI® HX3
- Supports customizing encoding parameters and selecting the encoding source for ISO streaming
- Supports streaming to two destinations simultaneously
Recording and screenshot:
- Split recording files by time or size
- Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source

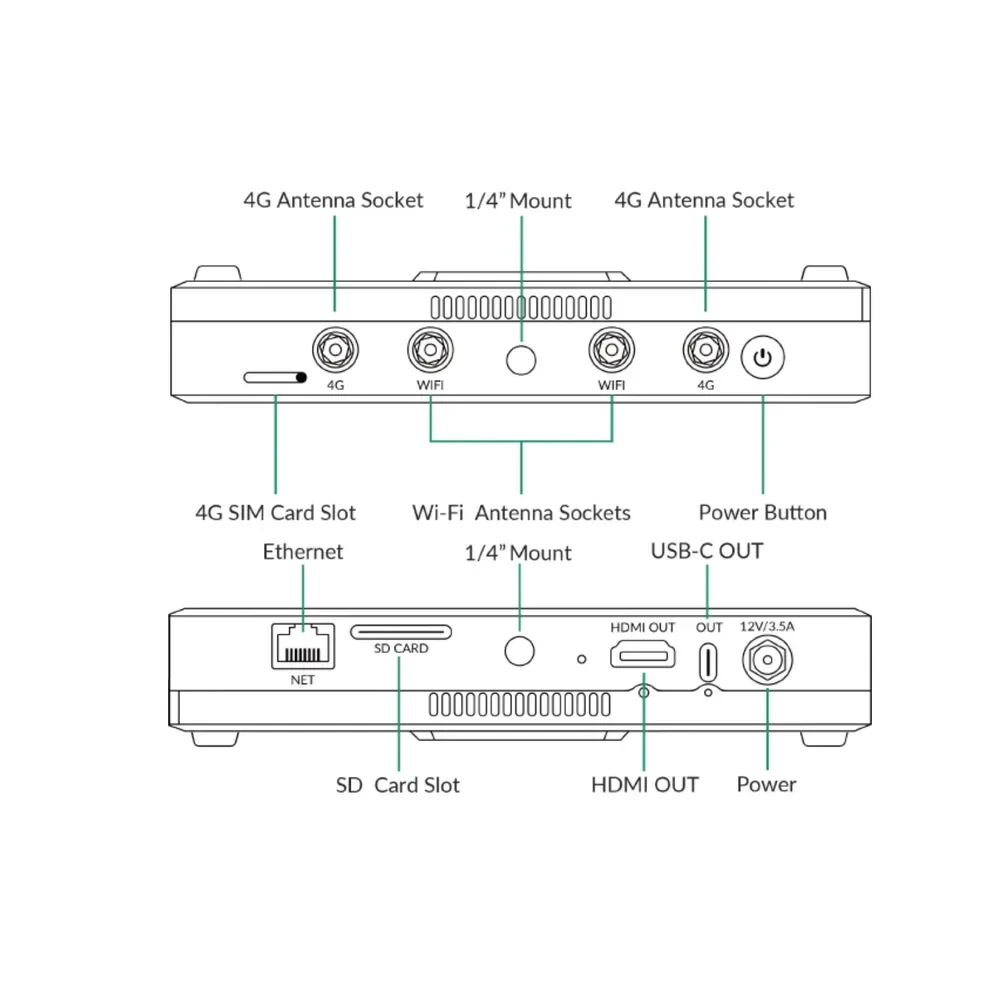

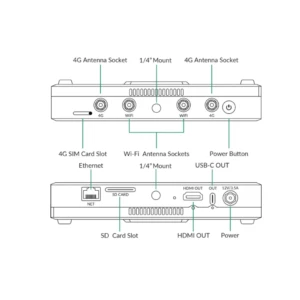

Network:
- Supports network bonding
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and AP modes are both supported
- Cellular: 1* 4G SIM card slot & USB modem supported
Others:

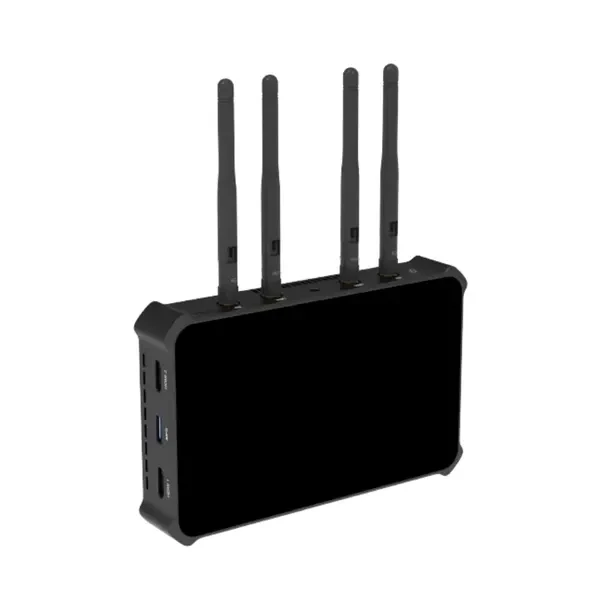

- 7″ AMOLED capacitive touchscreen
- Screen brightness 800nit, contrast ratio 100000:1
- Warranty: 2 years for the whole device, 1 year for the screen
- Form factor: 185.2mm (L) x 117.2mm (W) x 32.8mm (H)
