Output features:
- Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.): 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
- Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.): 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
- UAC: 2-channel, 16-bit, 48KHz
Decoding features:
- Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
- Decoding H.264 / H.265
- Supports NDI 6
Configuration management:
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
- Provide HTTP APIs
- Support USB NET
PTZ Control:
- Control PTZ cameras using protocols of NDI and Visca over UDP
Host interface:

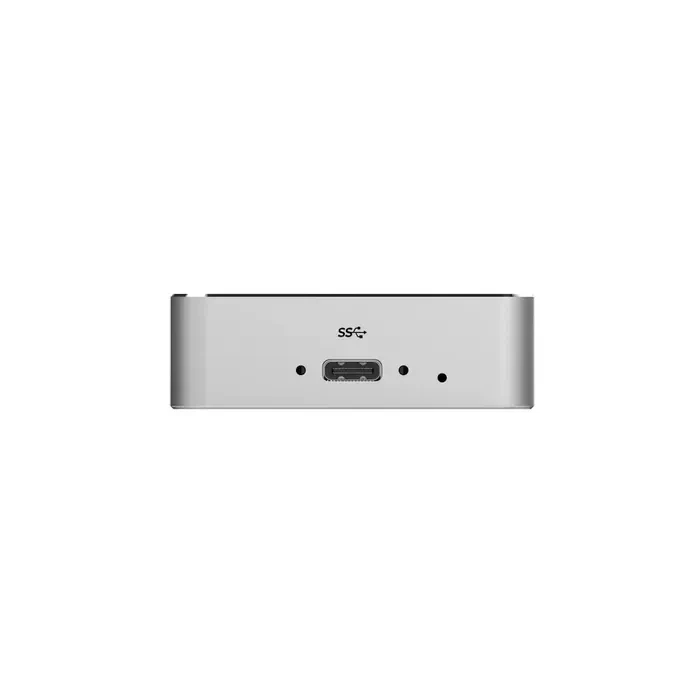

- USB 3.0 (5 Gbps) Type-C
- 5V/1A power supply
- USB NCM
Network connections:

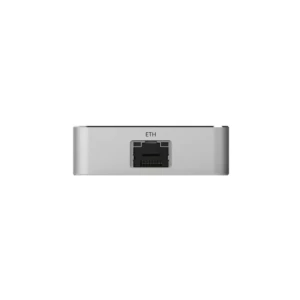

- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
Recommended OS:
- Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9 and above
- macOS 10.12 and above
Supported products:
- Zoom Rooms
- Microsoft Teams
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- vMix
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
LED Indicators:
- Status LED indicates:
- Power supply: on/off
Form factor:
- 3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm)
Power consumption:
- 5V max current: ~ 1A
- Max power consumption: ~ 3.8W
Working environment:
- Operating temperature: 0 to 50 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
