MAGEWELL USB Capture HDMI Plus – 32040

USB 3.0 DONGLE, 1-channel HDMI with loop-through out, plus extra audio mic in / out. Plug and Play. Windows/Linux/Mac. 3-year warranty.

Capture HDMI + embedded audio
Loop-through HDMI signal
Audio input via mic
Extract HDMI embedded audio output via headphones
Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

Specifications and Features

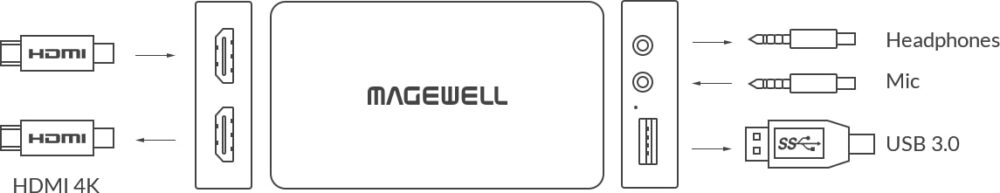

Interface

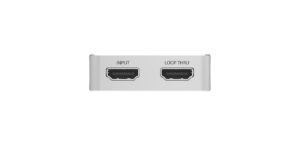

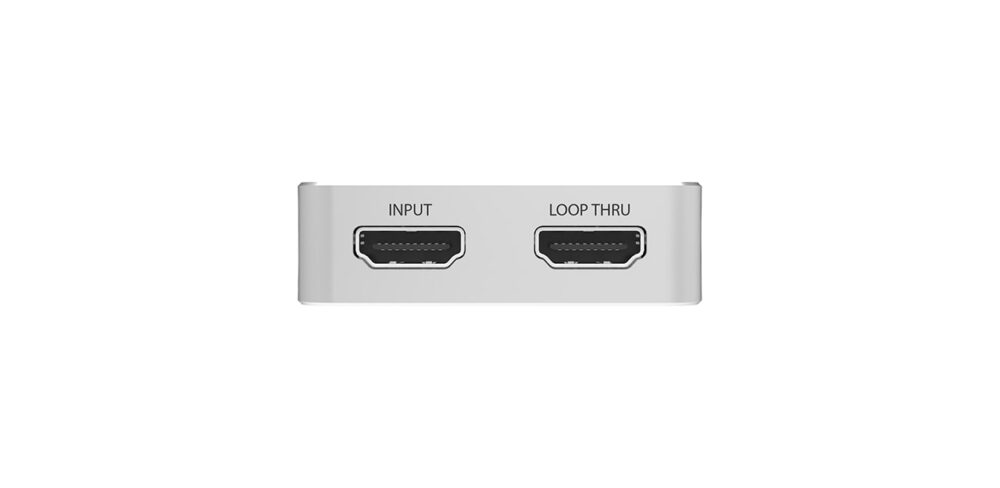

Input Interface

HDMI x1
Support input resolution up to 4096×2160 pixels

Loop-through Interface

HDMI x1
Support loop-through resolution up to 4096×2160 pixels

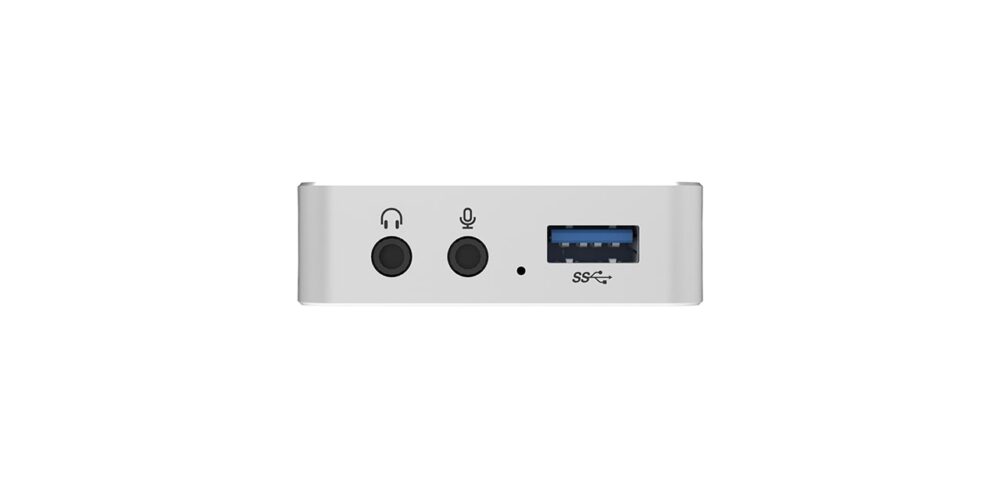

Audio Input Interface

3.5 mm audio jack for microphone

Audio Output Interface

3.5 mm audio jack for headphones

Host Interface

USB 3.0

Video Engine

8-bit video processing
Deinterlace
Cropping
Color Adjustment
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
Mirror and Flip


Signal Detection & Support

Auto Detection of Input Signal Format
3D HDMI


Software Environment

OS

Windows, Linux, Mac, Chrome OS

Driver and Firmware

Driver Free, Updatable Firmware

Included Software

USB Capture Utility, Capture Express

Compatible Software

50+

Others

Multiple Devices on One Host

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Windows&Linux SDK

3-year Warranty
