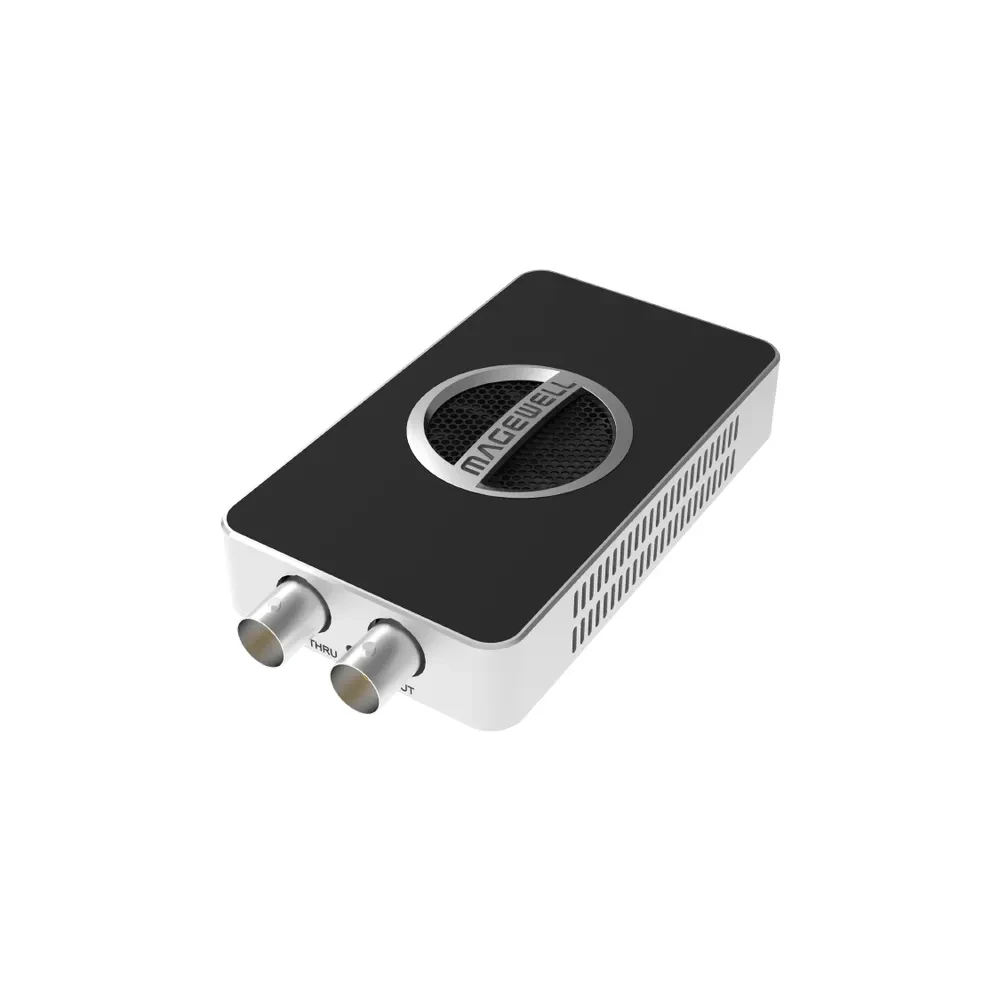

Discover the power of the Magewell USB Capture SDI 4K Pro – a premium, one-channel 4Kp60 capture device designed to handle high-quality SDI video signals with embedded audio. Ideal for professional streaming, broadcasting, and production, this device supports SDI video sources such as cameras, production equipment, and more, delivering stunning 4K resolution with seamless audio capture.

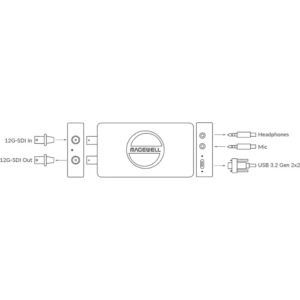

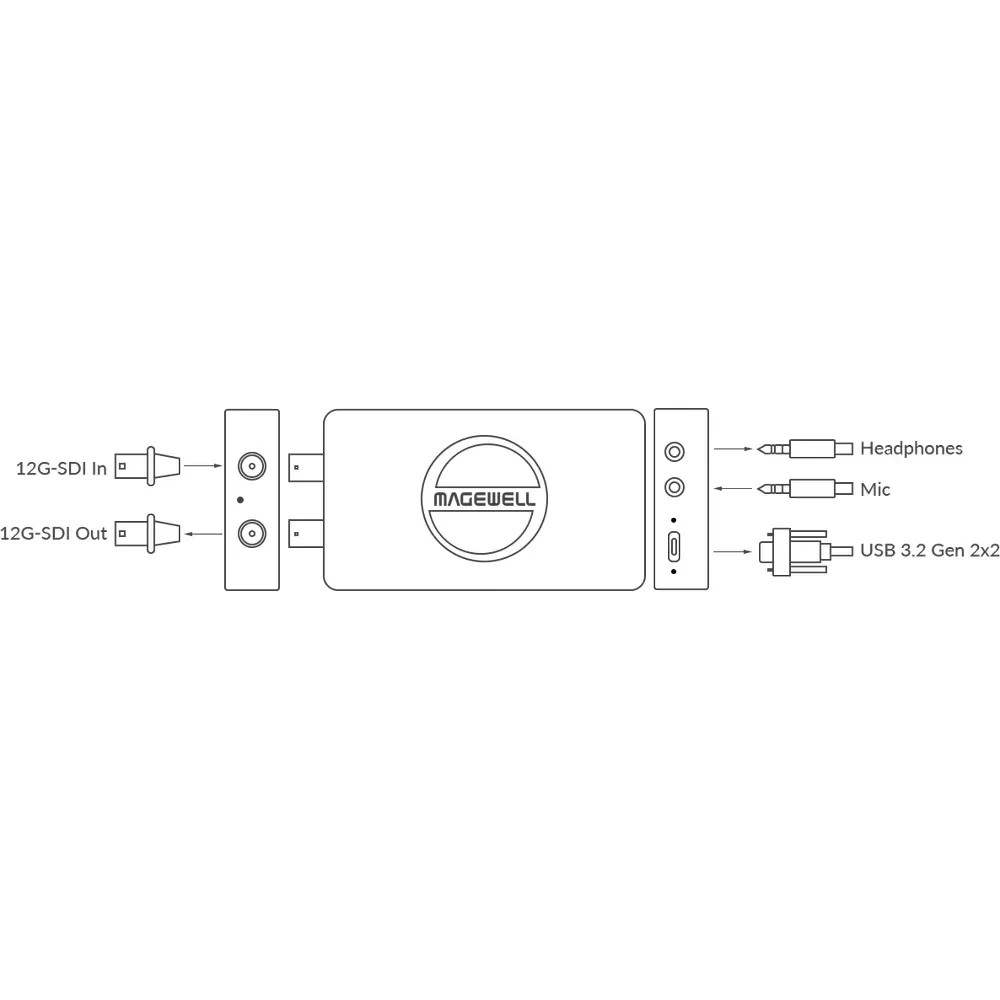

With support for SDI inputs and loop-through, the USB Capture SDI 4K Pro offers resolutions up to 4096×2160 at 60fps in 4:2:2, ensuring ultra-high-definition video quality. The device allows for real-time monitoring with its SDI loop-through output, making it easy to preview your video while it’s being processed. It also provides flexible audio capture options, including the ability to extract embedded SDI audio and output it via the 3.5mm Line Out jack, or capture analog audio through the 3.5mm Line In interface.
Connecting via USB 3.2 Gen 2×2, the USB Capture SDI 4K Pro provides a reliable, high-speed throughput of up to 20Gbps, ensuring smooth, high-bandwidth video and audio transmission. It’s compatible with Windows, Linux, Mac, and Chrome operating systems and supports frame rates up to 240fps, depending on the host system’s capabilities. Designed for 24/7 continuous operation, it’s the perfect solution for demanding professional environments.
With its compact form factor, automatic signal detection, and SDK support for various platforms, the USB Capture SDI 4K Pro is a robust and flexible tool for capturing high-quality video and audio.
