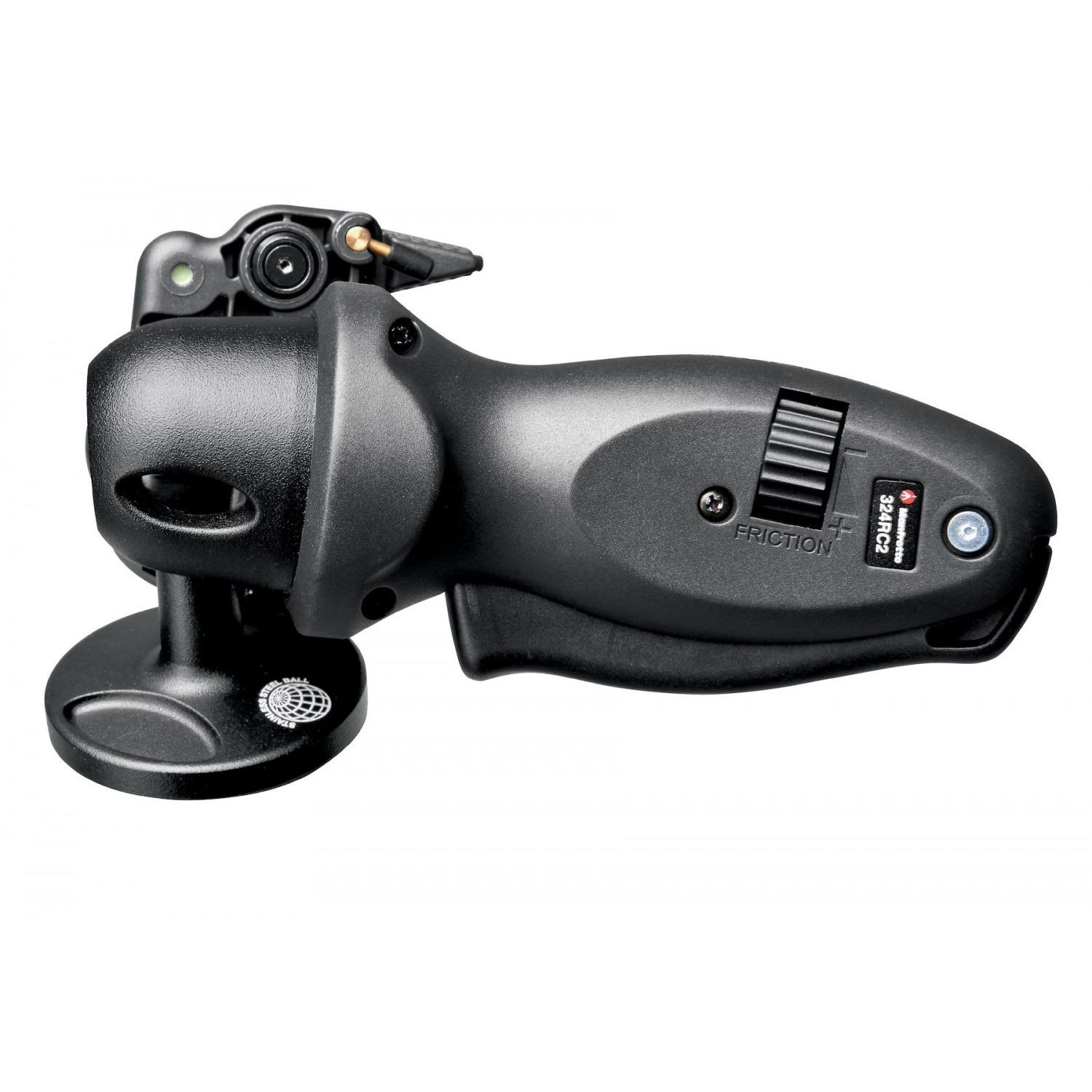

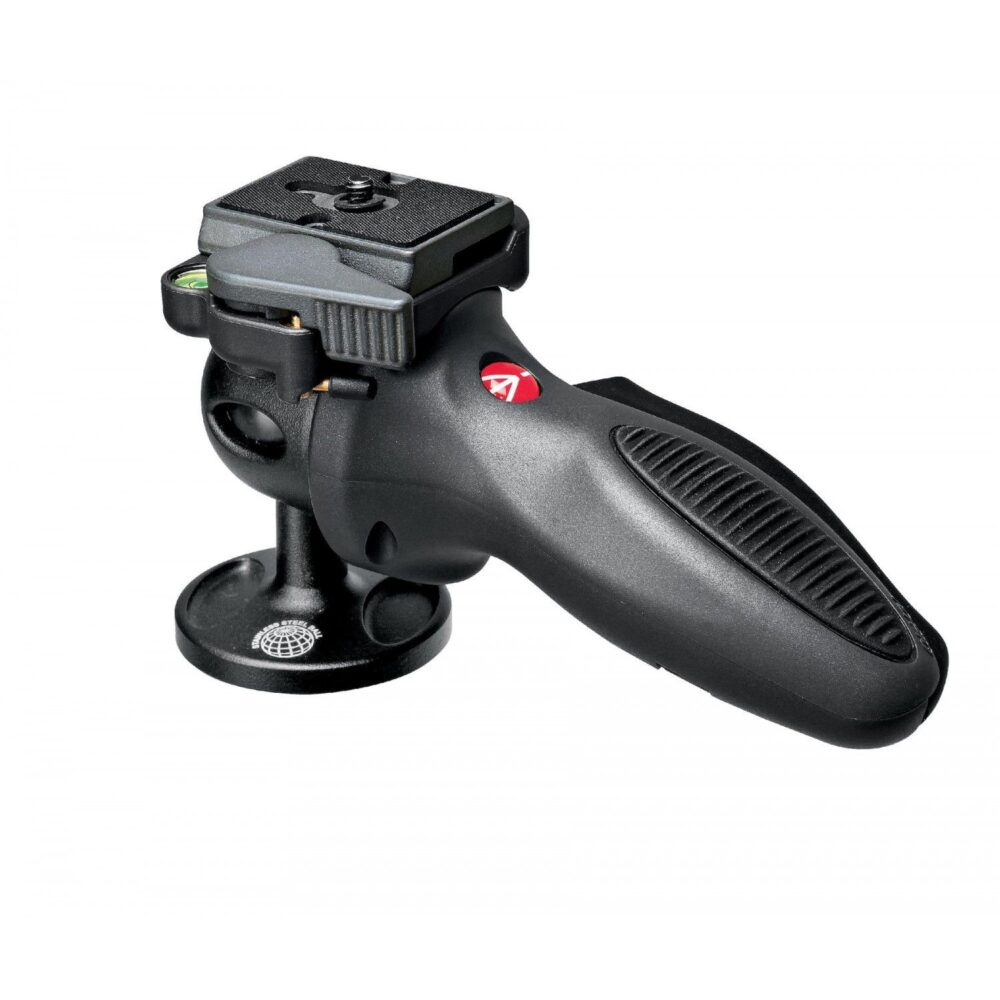

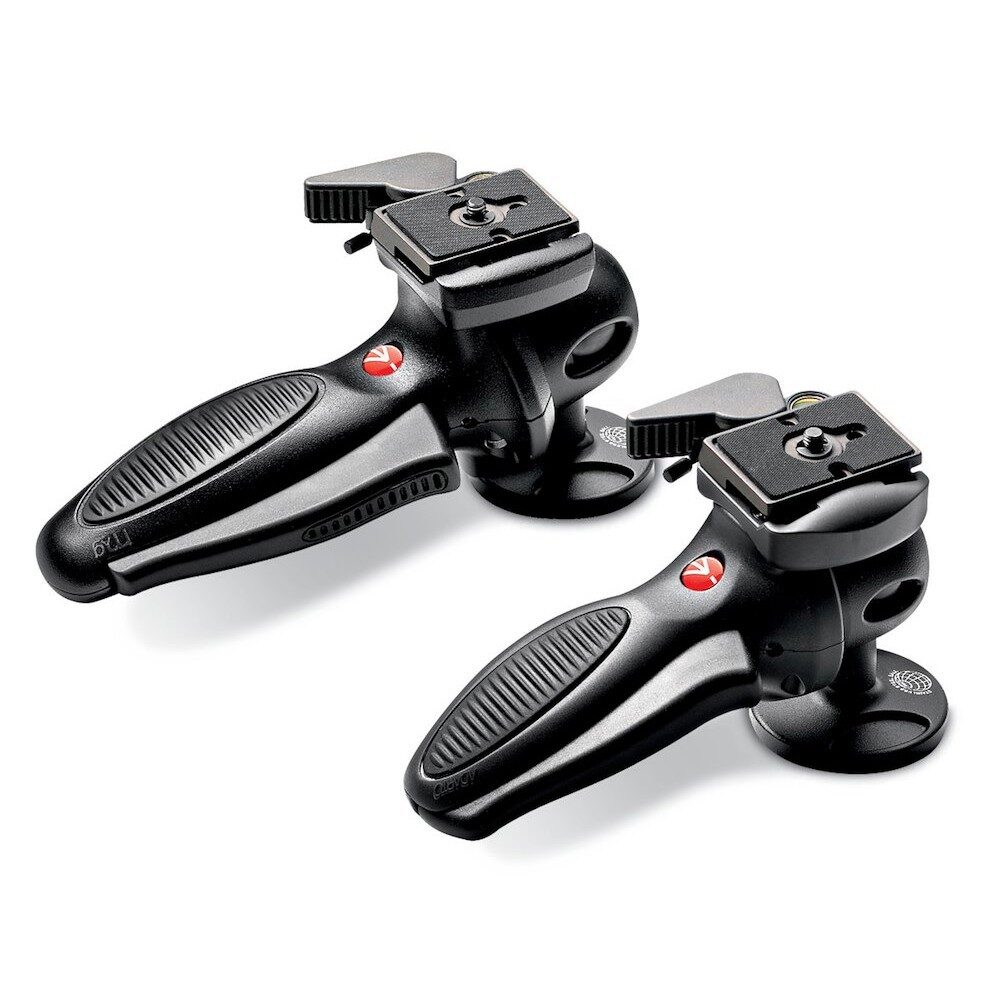

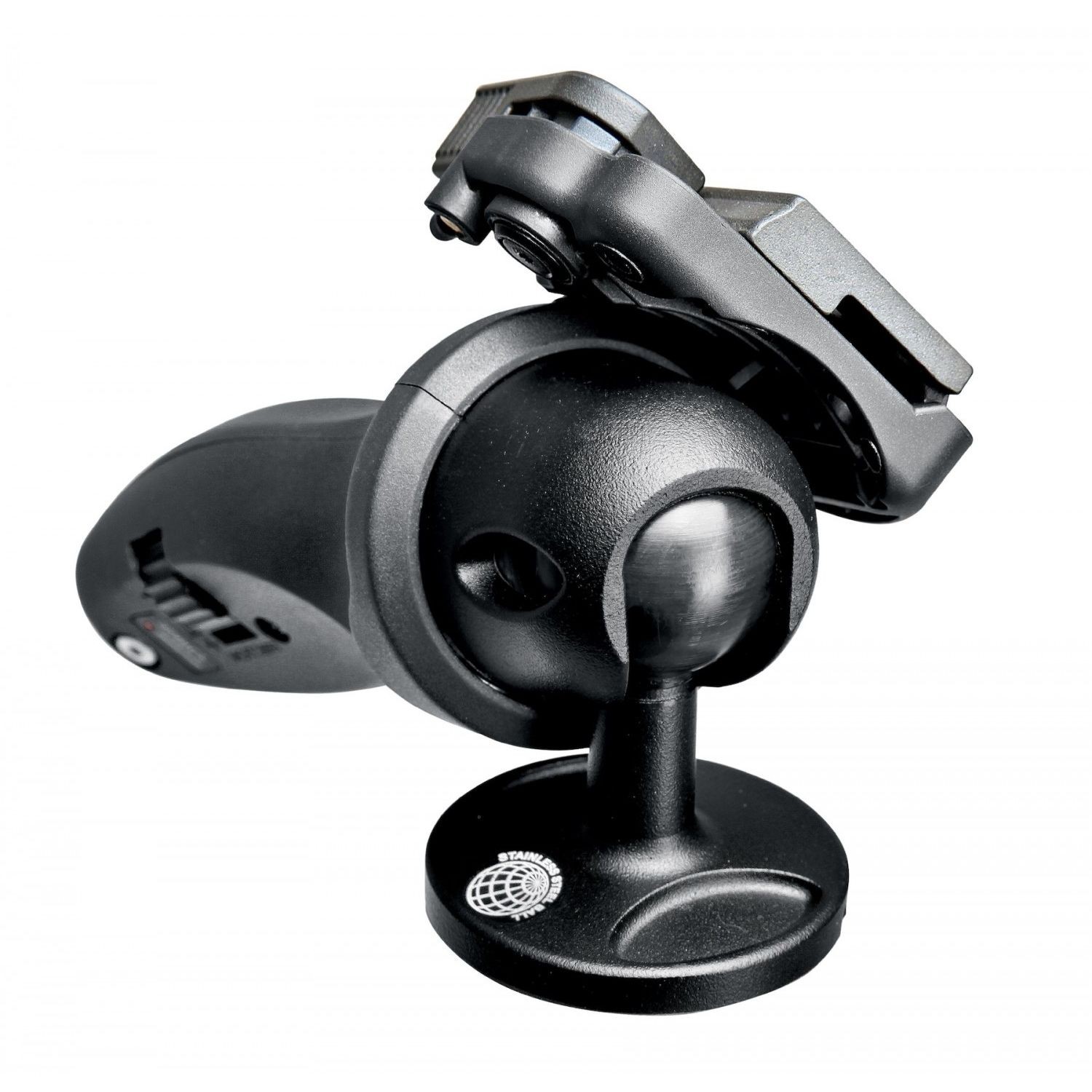

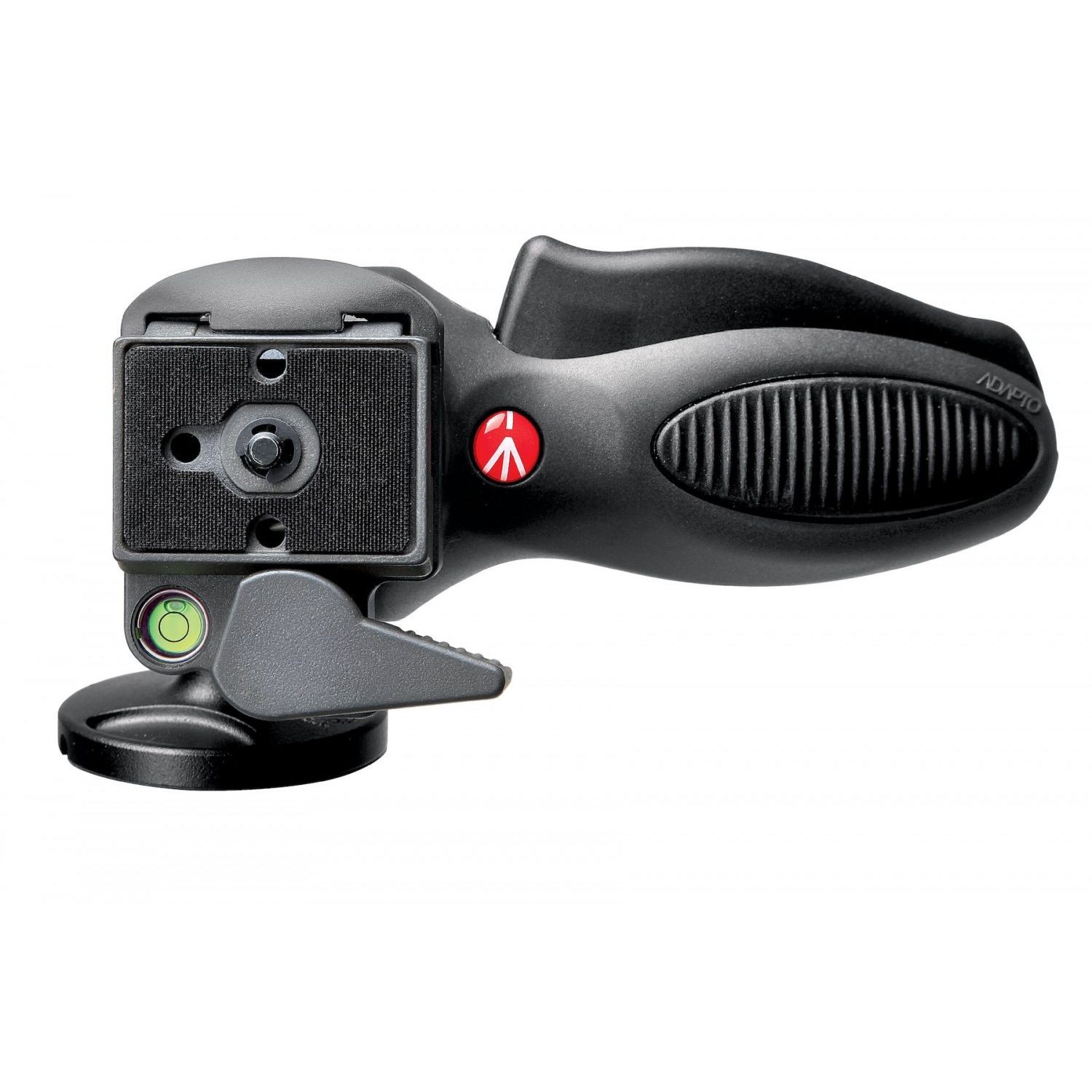

The Manfrotto 324RC2 is a lightweight, compact joystick ball head for fast one-handed camera positioning. It combines friction control, a built-in bubble level, 200PL-14 quick-release plate, 4 kg certified safety payload and a 3/8″ female tripod attachment.
.mf14979{font-family:Arial,Helvetica,sans-serif;color:#20242a;line-height:1.65;max-width:1180px;margin:0 auto} .mf14979 *{box-sizing:border-box}.mf14979 h2,.mf14979 h3{color:#3154c7;text-transform:uppercase;line-height:1.15;margin:0 0 16px;font-weight:800} .mf14979 h2{font-size:36px}.mf14979 h3{font-size:28px}.mf14979 p{margin:0 0 18px}.mf14979 img{display:block;width:100%;height:auto;border-radius:16px;background:#f5f6f8} .mf14979-hero{display:grid;grid-template-columns:1.05fr .95fr;gap:38px;align-items:center;padding:34px;background:linear-gradient(135deg,#f7f8fb,#e9edf5);border-radius:22px;margin:12px 0 28px} .mf14979-badge{display:inline-block;margin-bottom:14px;padding:6px 11px;border-radius:999px;background:#edf1ff;color:#3154c7;font-weight:700} .mf14979-facts{display:grid;grid-template-columns:repeat(3,1fr);gap:15px;margin:0 0 34px}.mf14979-fact{padding:20px;border:1px solid #dfe4f3;border-radius:14px;background:#f8faff}.mf14979-fact strong{display:block;color:#3154c7;font-size:24px} .mf14979-row{display:grid;grid-template-columns:1fr 1fr;gap:34px;align-items:center;padding:30px 0}.mf14979-row ul{margin:0;padding-left:22px}.mf14979-row li{margin:7px 0} .mf14979-pkg,.mf14979-spec{padding:28px 0}.mf14979-spec table{width:100%;border-collapse:collapse}.mf14979-spec th,.mf14979-spec td{padding:12px 10px;border-bottom:1px solid #dfe4f3;text-align:left}.mf14979-spec th{width:40%;color:#3154c7} @media(max-width:700px){.mf14979 h2{font-size:28px}.mf14979 h3{font-size:23px}.mf14979-hero,.mf14979-row{grid-template-columns:1fr;gap:20px;padding:20px 0}.mf14979-hero{padding:20px}.mf14979-facts{grid-template-columns:1fr}.mf14979-spec th{width:46%}}
MANFROTTO 324RC2
Quick One-Handed Adjustment
The joystick ball head allows you to release the movement by pressing the trigger, adjust the composition, and lock the position again simply by releasing the handle. The compact design is ideal for candid photography and easy portability.
Friction Control and Precise Alignment
Friction adjustment allows you to customize the resistance to the camera’s weight. The built-in bubble level helps with precise leveling, and the quick-release system’s secondary lock protects the plate from accidental release.
- ball head with joystick-controlled locking
- 360° panoramic rotation
- Front tilt: −90° to +90°
Compact head for camera tripods
The base has a diameter of 60 mm, and the head attaches to the tripod via a 3/8″ bottom thread. The camera plate uses a 1/4″ screw. The model is designed and manufactured in Italy.
Package Contents
- 1× Manfrotto 324RC2 joystick ball head
- 1× 200PL-14 quick-release plate with a 1/4″ screw
Technical Specifications
| Type | joystick ball head |
|---|---|
| Safe load | 4 kg according to UNI/PdR 105:2021 |
| Weight | 0.49 kg |
| Base diameter | 60 mm |
| Height | 10.1 cm |
| Tripod mount | 3/8″ bottom thread |
| Plate / screw | 200PL-14 / 1/4″ |
| Front tilt | −90° to +90° |
| Side tilt | −19° to +90° |
| Panoramic rotation | 360° |
| Material / Color | aluminum / black |
| Spirit level | 1× |
