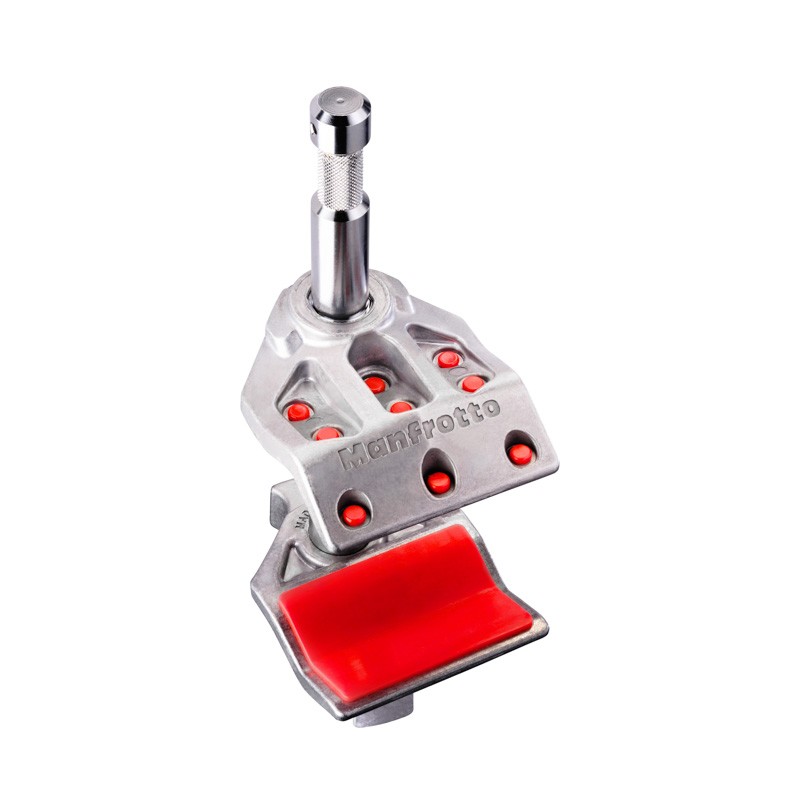

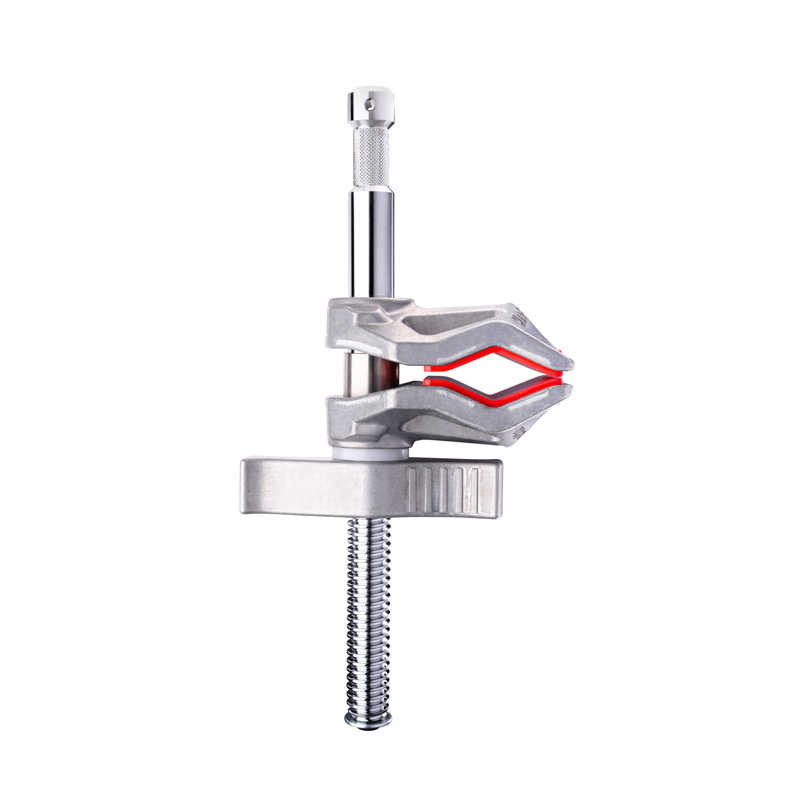

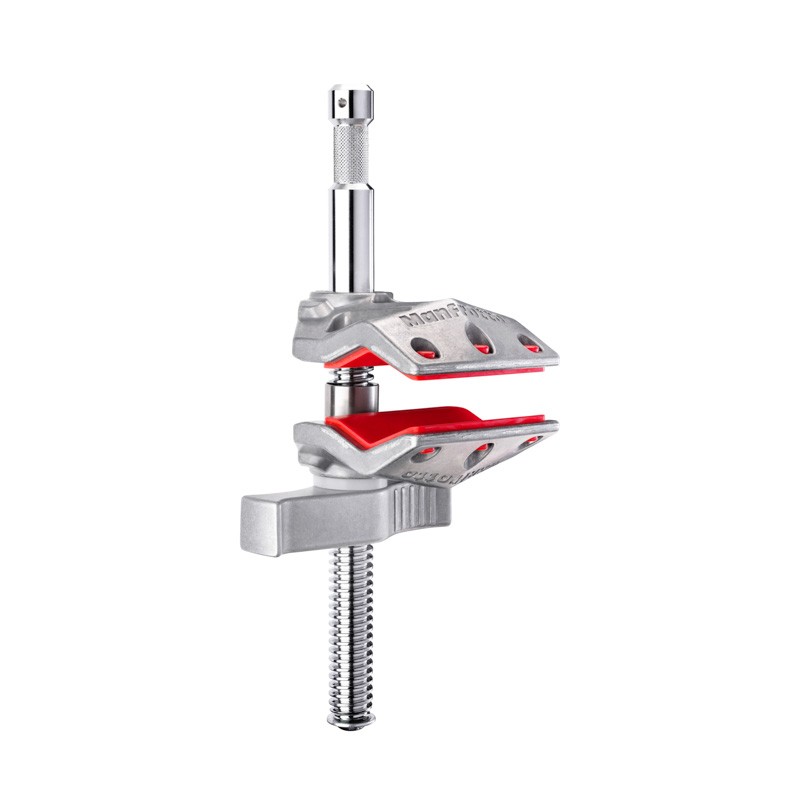

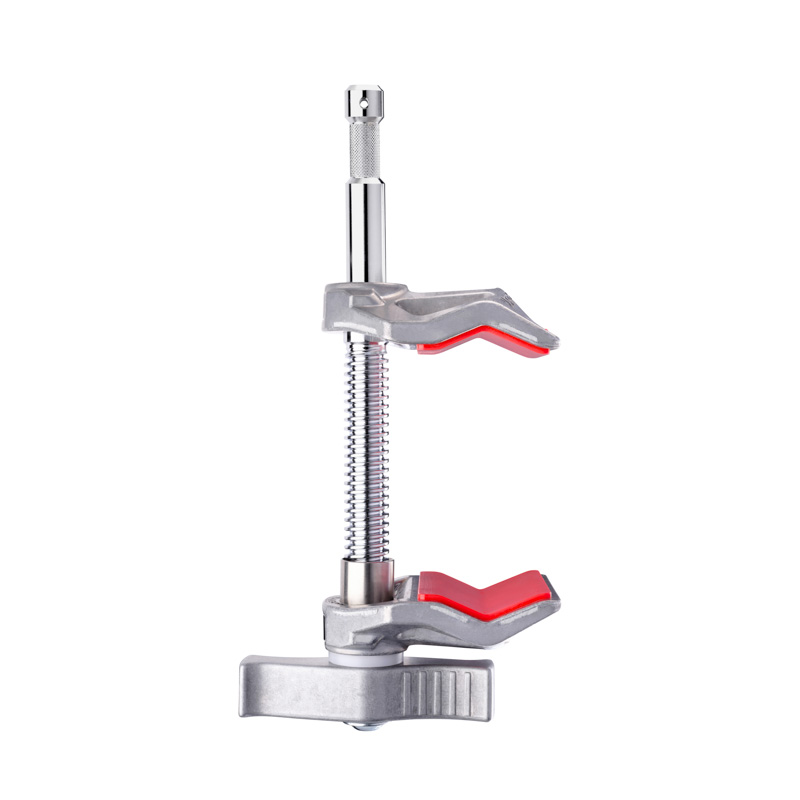

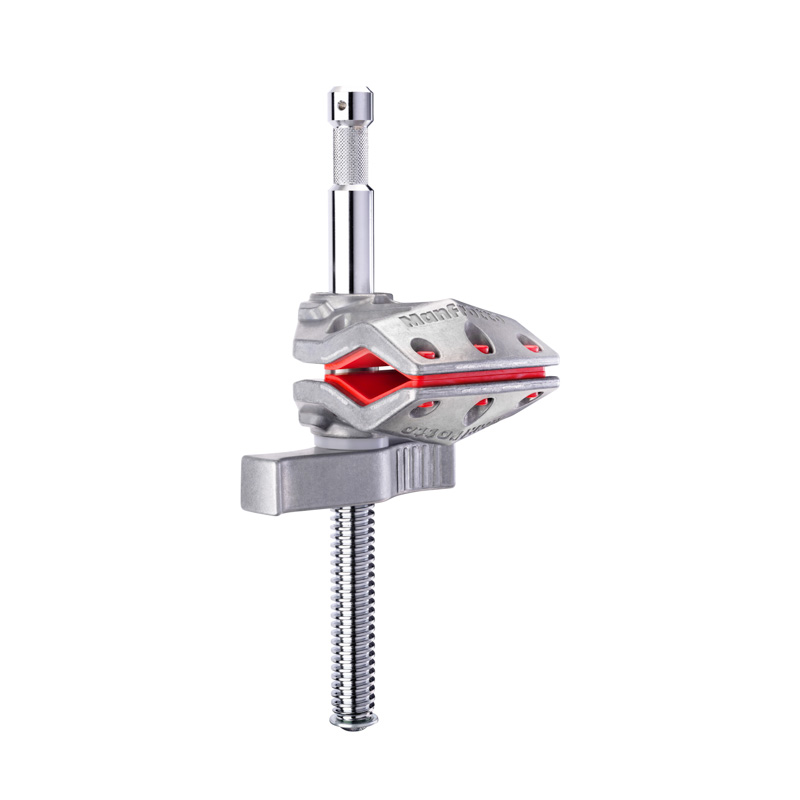

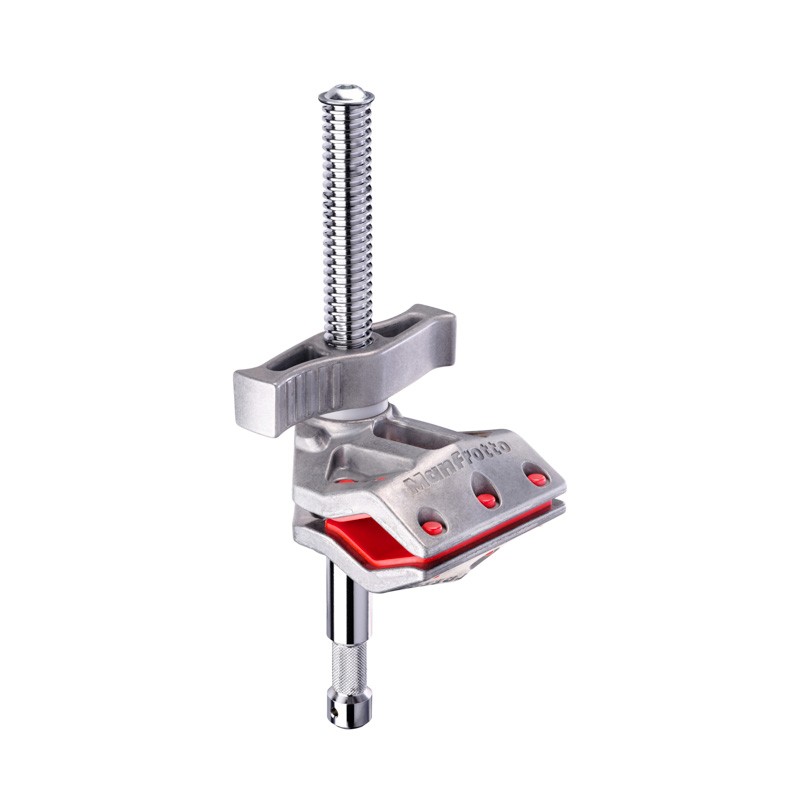

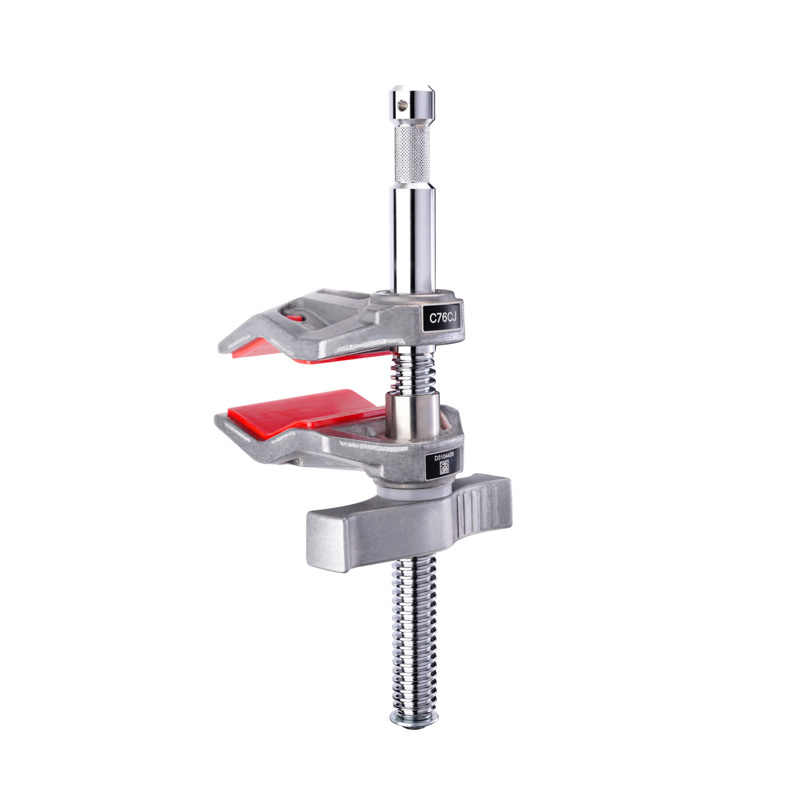

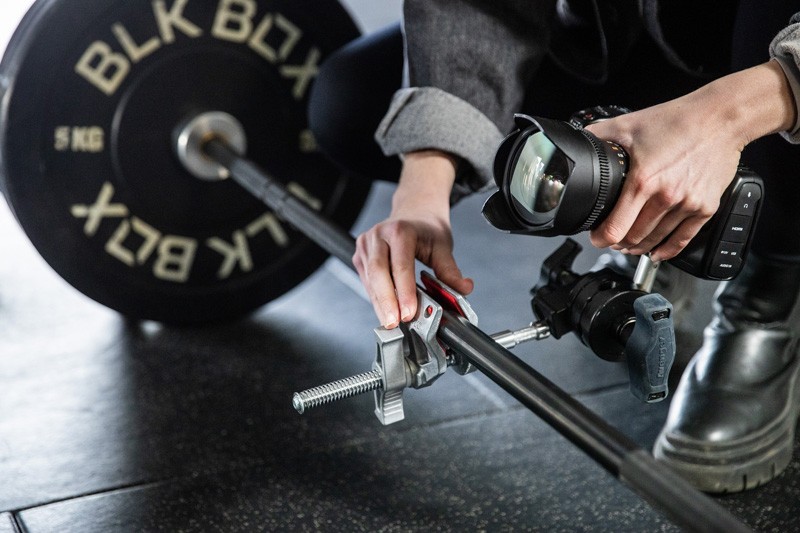

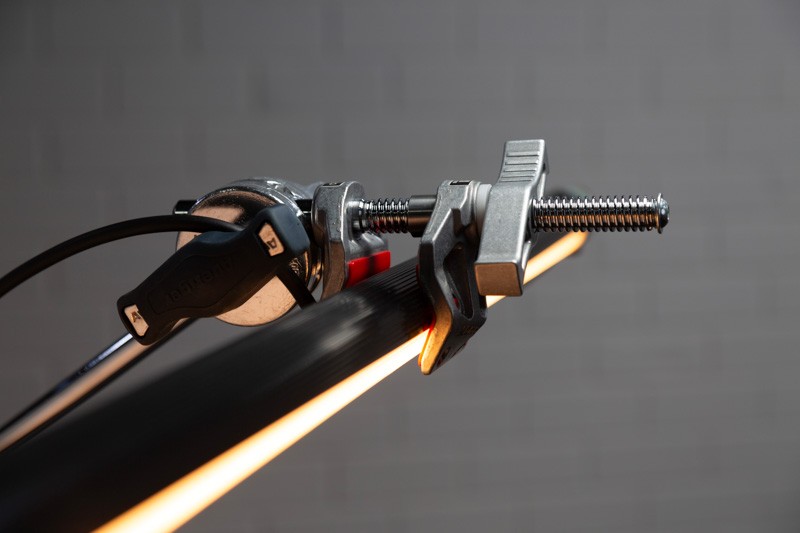

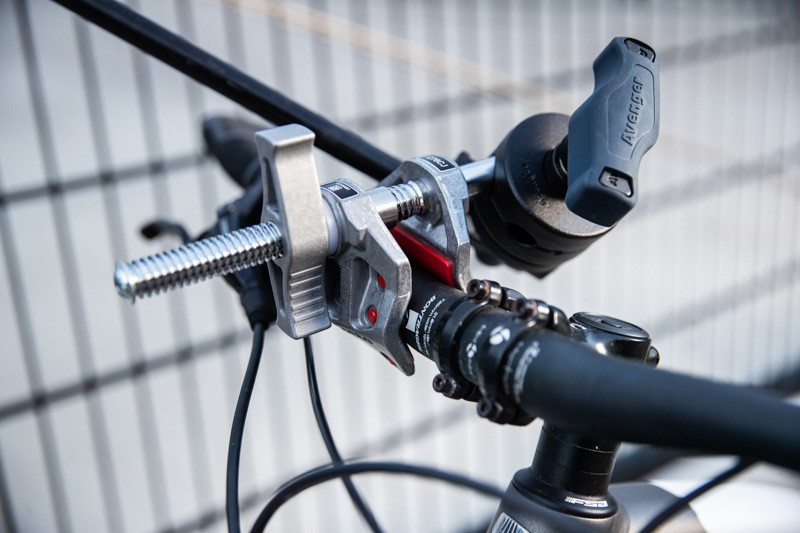

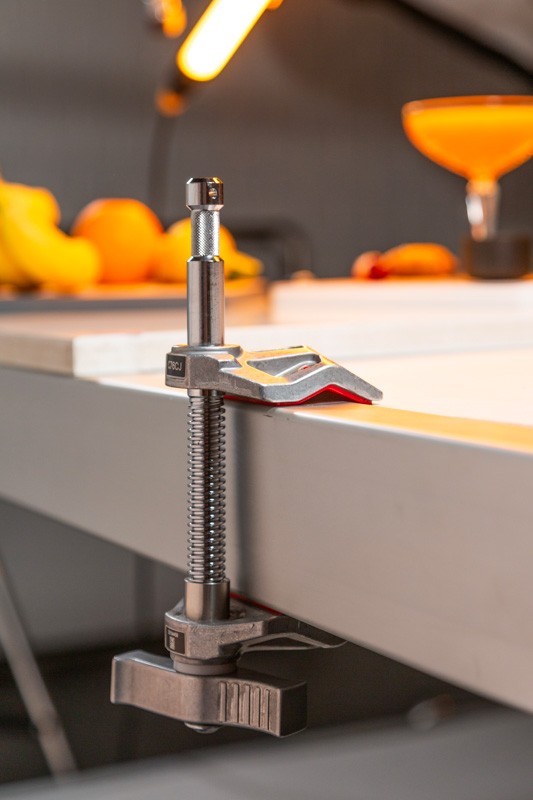

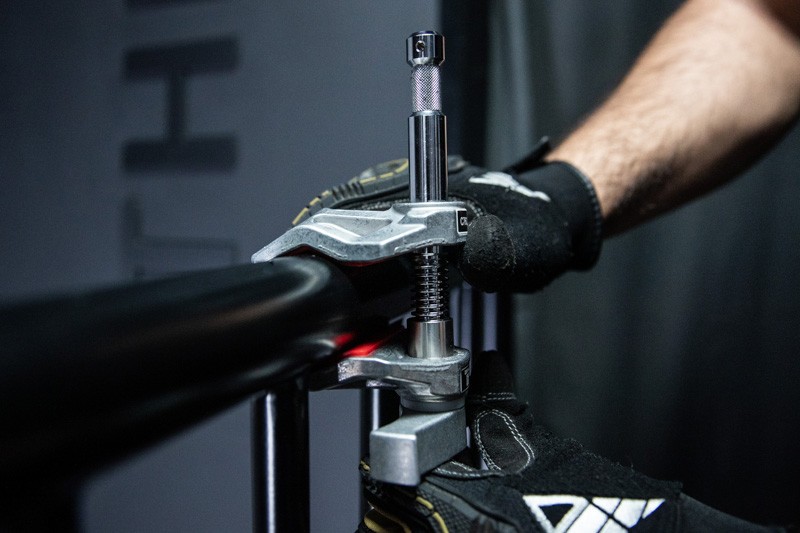

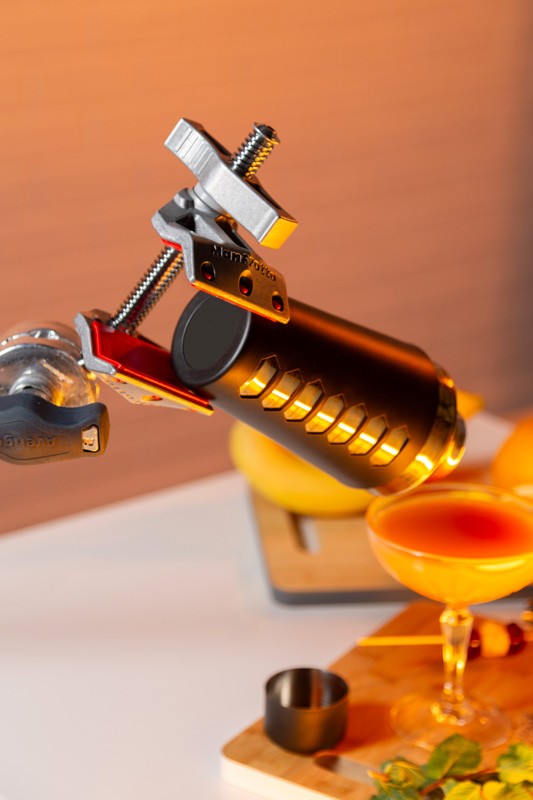

Professional centre-jaw clamp for securing heavier lighting and grip equipment to round tubes from 15.2 to 76.2 mm. The Manfrotto C76CJ supports payloads up to 80 kg and combines a fixed 16 mm (5/8″) baby pin with durable moulded M‑Grip pads and an Anti‑Jam mechanism for easier release after storage or prolonged loading.
PROFESSIONAL GRIP EQUIPMENT

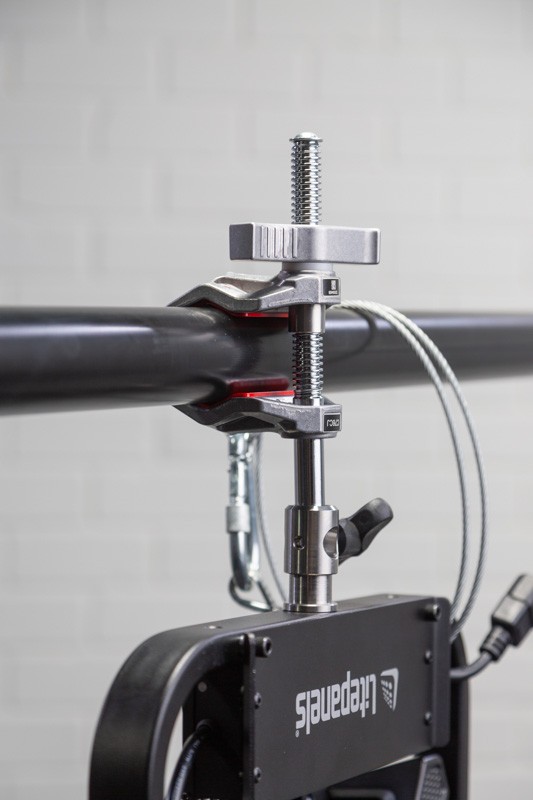

SECURE SUPPORT FOR HEAVIER LIGHTS

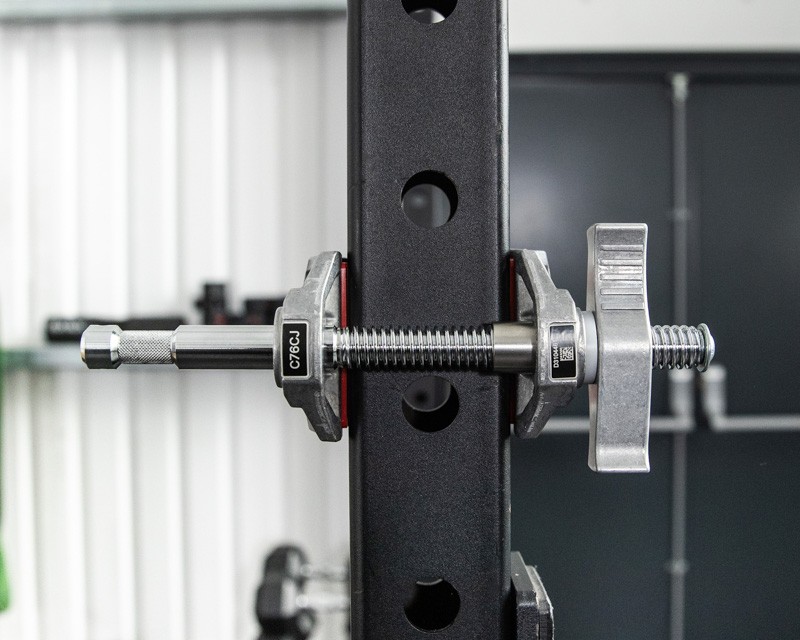

The centre-jaw layout transfers the load directly to the fixed 16 mm baby pin and provides stable mounting on suitable tubes, beams and support structures.
- Payload up to 80 kg
- Jaw range 15.2–76.2 mm
- Fixed 16 mm (5/8″) baby pin

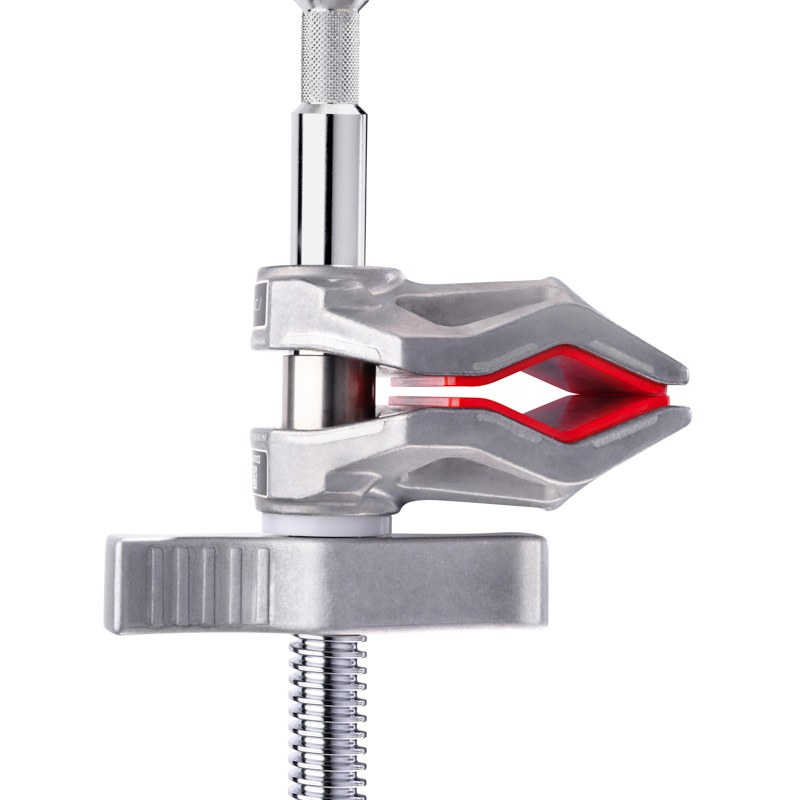

DURABLE M‑GRIP JAWS

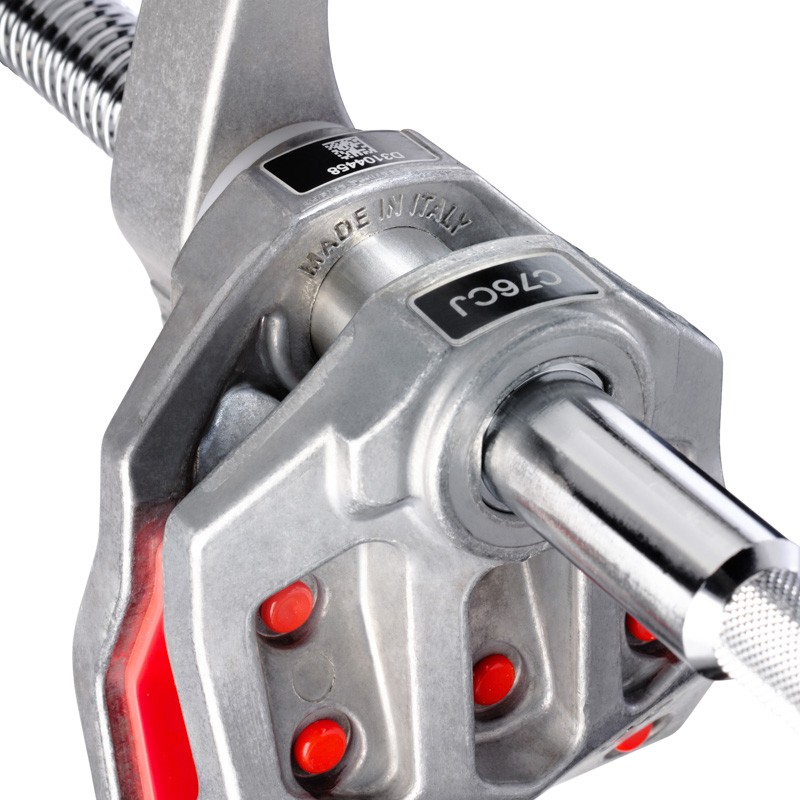

Moulded polyurethane pads are mechanically secured to the die-cast aluminium jaws. They improve grip, protect the mounting surface and do not rely on an adhesive layer.
SMOOTH RELEASE WITH ANTI‑JAM
The Anti‑Jam mechanism reduces sticking when the clamp is opened after storage or prolonged loading. A chrome-steel threaded rod and rotating die-cast aluminium handle provide controlled tightening.
Package contents
- 1 × Manfrotto C76CJ 3″ Centre Vice Jaw Clamp
Technical specifications
| Model | C76CJ |
| Payload | 80 kg |
| Round-tube clamp range | 15.2–76.2 mm |
| Attachment | 16 mm (5/8″) non-threaded bushing / fixed baby pin |
| Length | 22 cm |
| Weight | 0.6 kg |
| Colour | silver |
| Material | aluminium, chrome steel, rubber |
