Smooth moves on a lightweight carbon platform

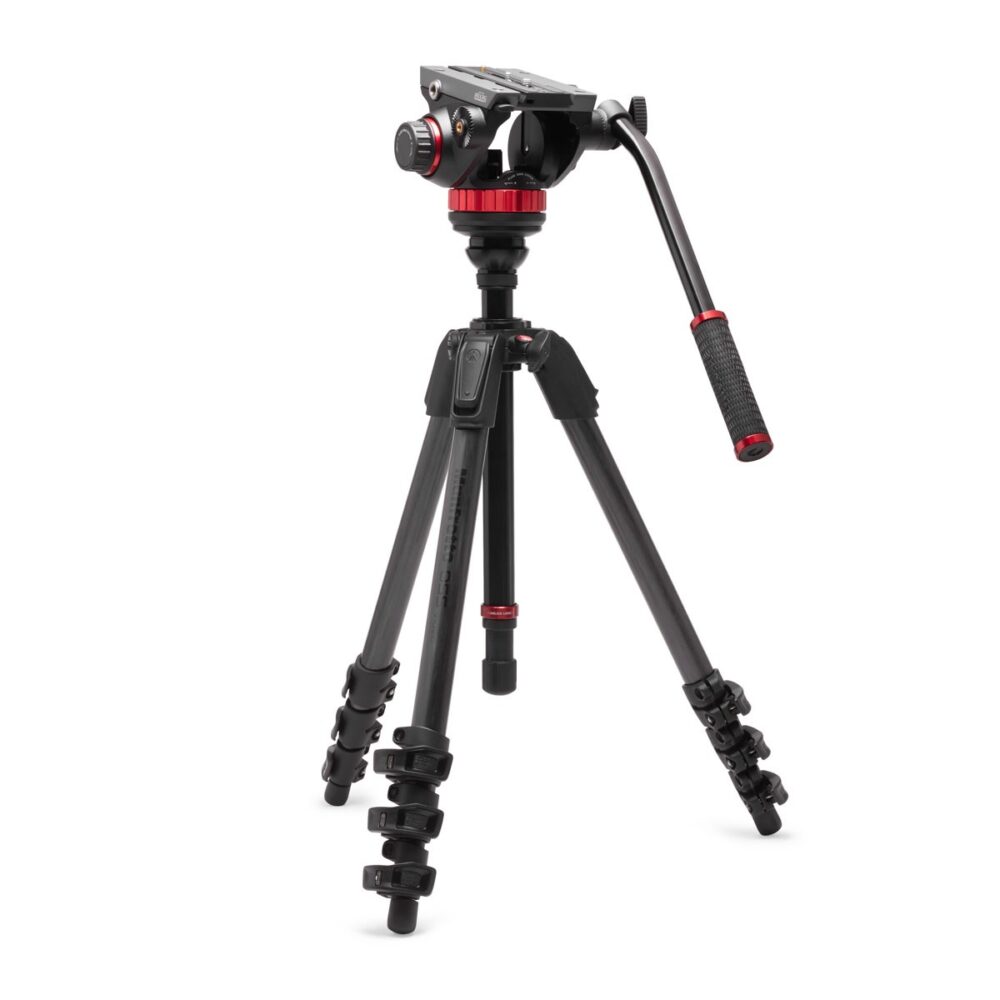

A complete video system combining the MVH502AH fluid head and a four-section 055 carbon tripod for rigs up to 10 kg.
Variable fluid drag
Continuously adjustable pan and tilt drag lets you match the head response to rig weight and shot pace.

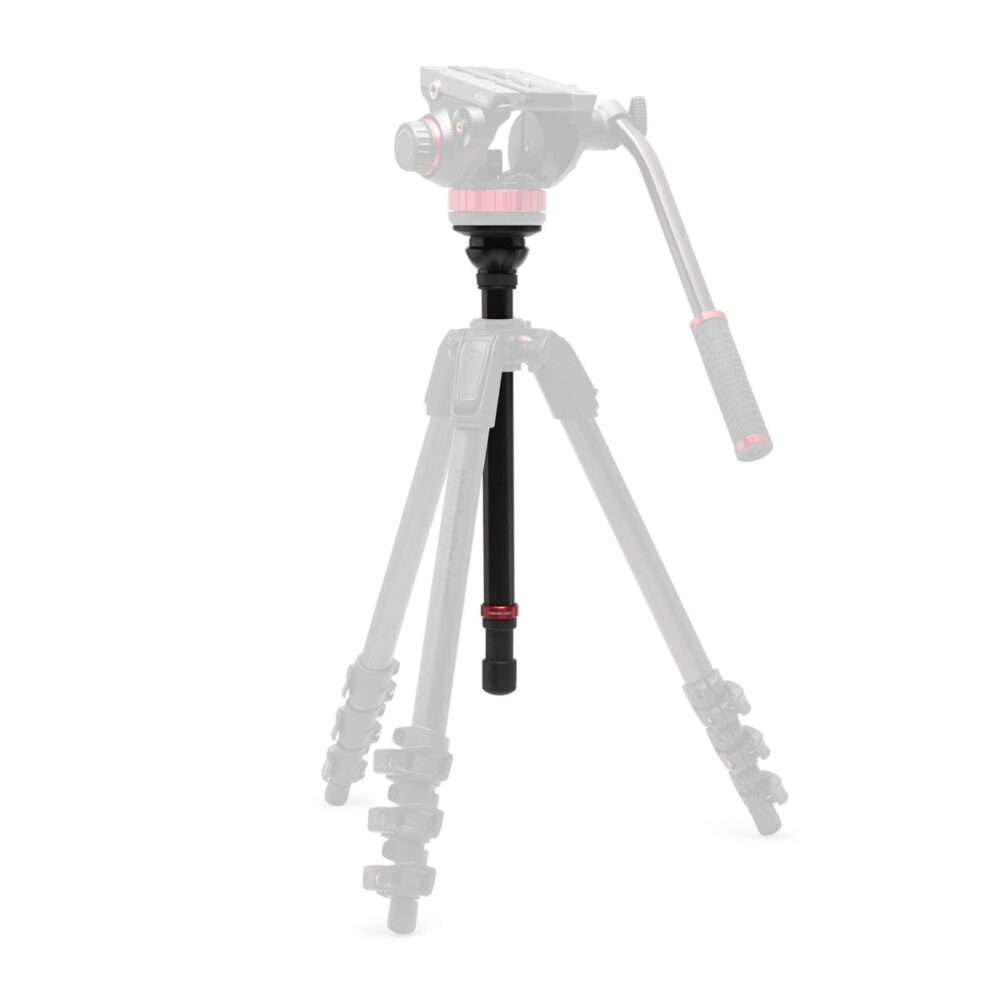

Fast levelling
The integrated levelling column speeds up horizon adjustment without laborious individual leg changes.

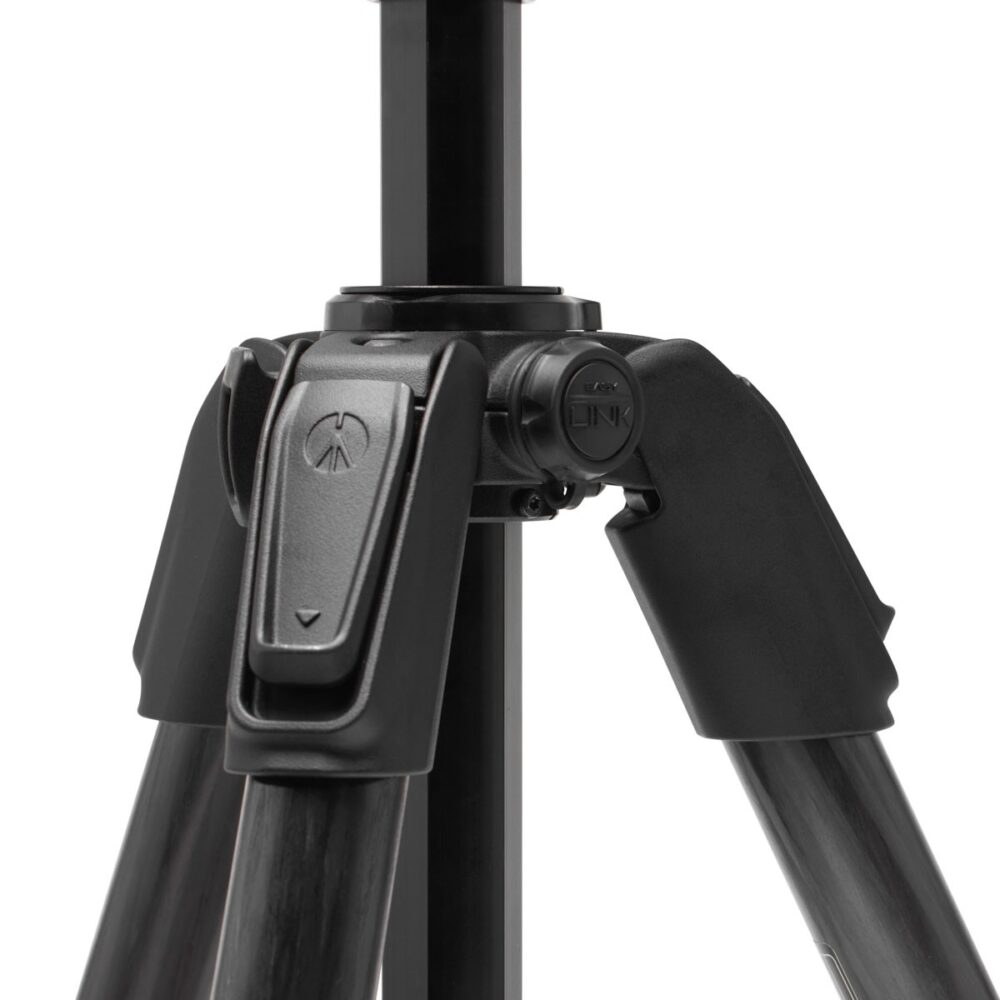

055 carbon legs
Four-section carbon legs with Quick Power Lock levers combine low weight with high rigidity.

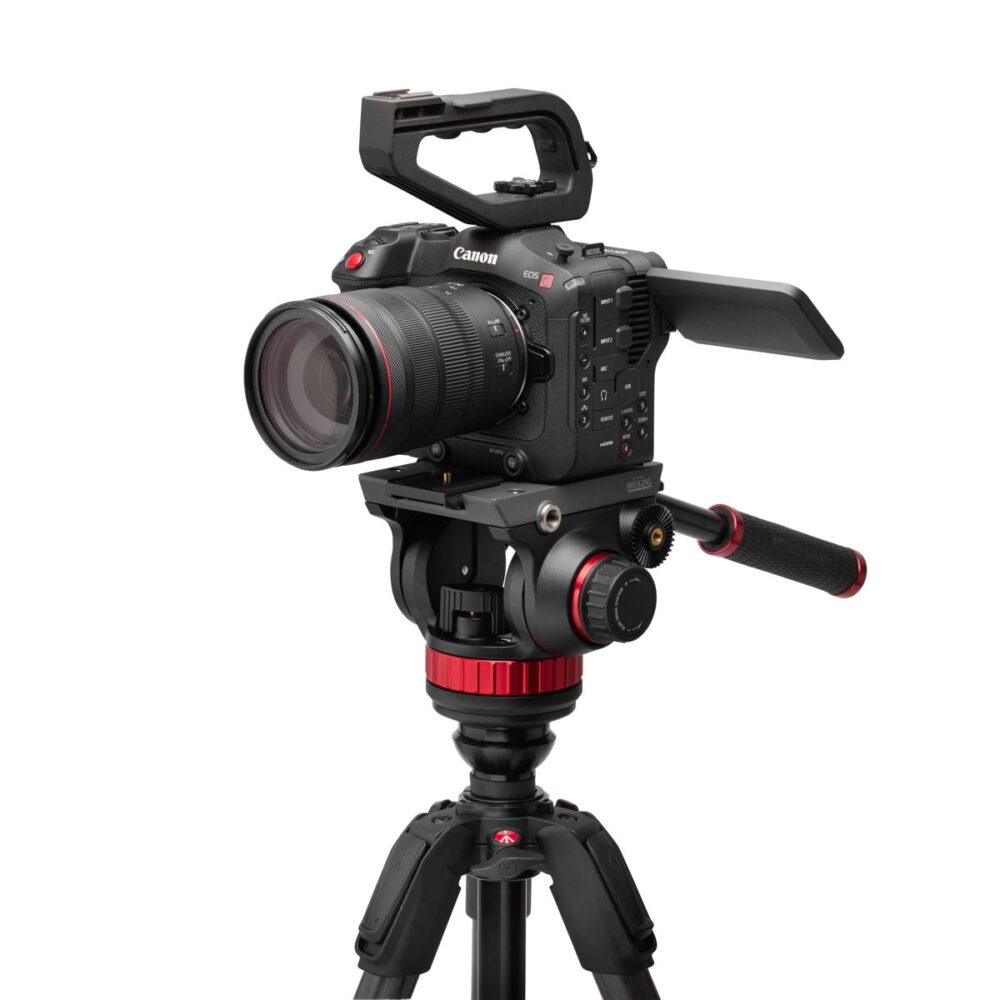

Control for video rigs up to 10 kg

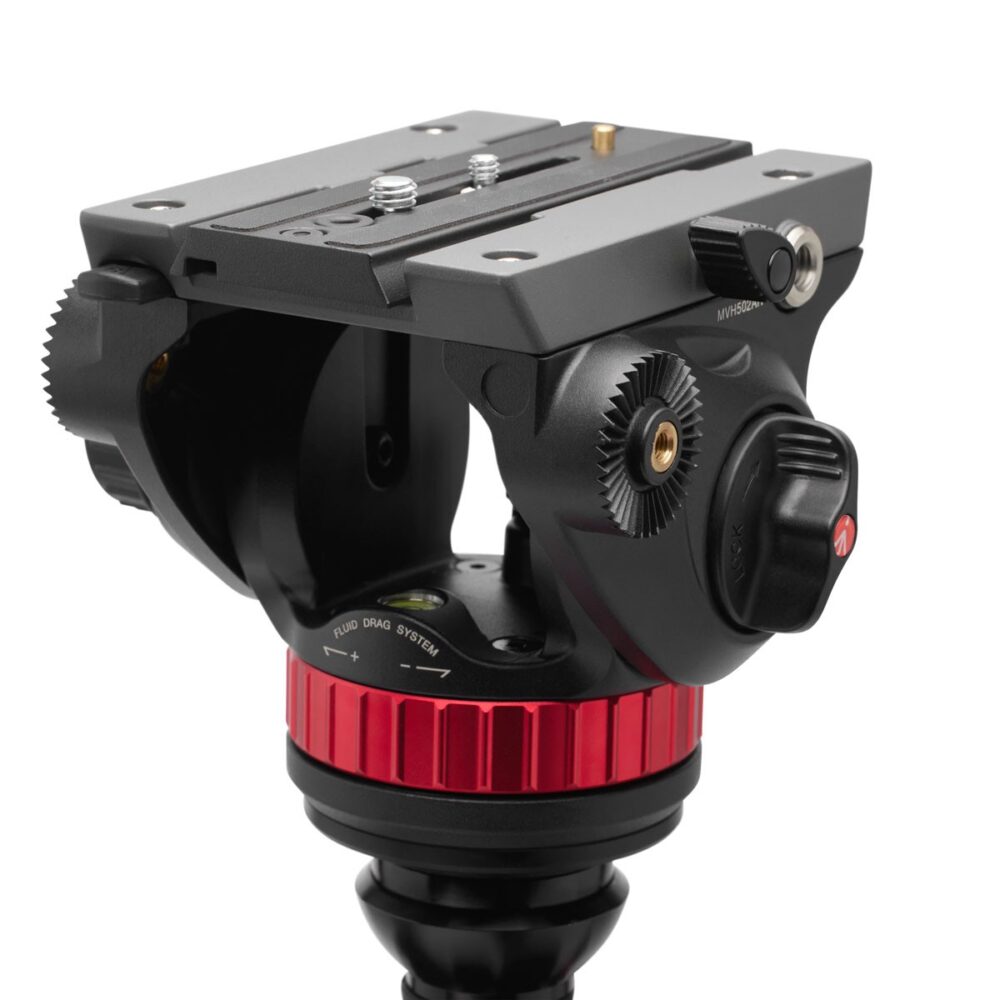

The 502 head provides fixed 4 kg counterbalance at a 55 mm centre of gravity, continuously variable fluid drag on both axes, 360° pan and −80° to +90° tilt. The long 504PLONG plate assists camera balance, while the flat base also suits sliders and other video accessories.
Stable working height from 54 to 179 cm

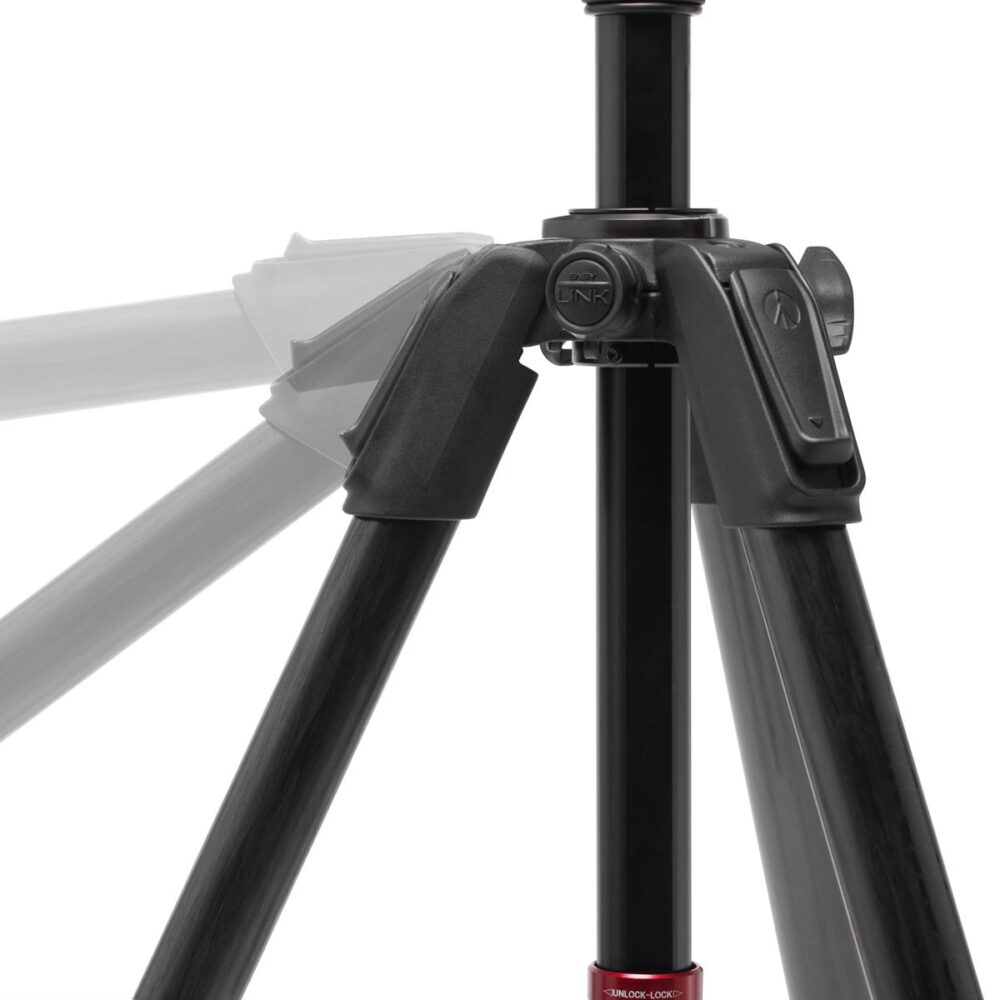

Four leg angles—25°, 46°, 66° and 88°—help on uneven ground and near floor level. One-handed QPL lever locks speed setup, while 3/8″ Easy Link points on both head and tripod accept a monitor arm or other accessory.
In the box
- MVH502AH flat-base fluid video head
- four-section 055 carbon video tripod with levelling column
- 504PLONG quick-release plate
- pan bar

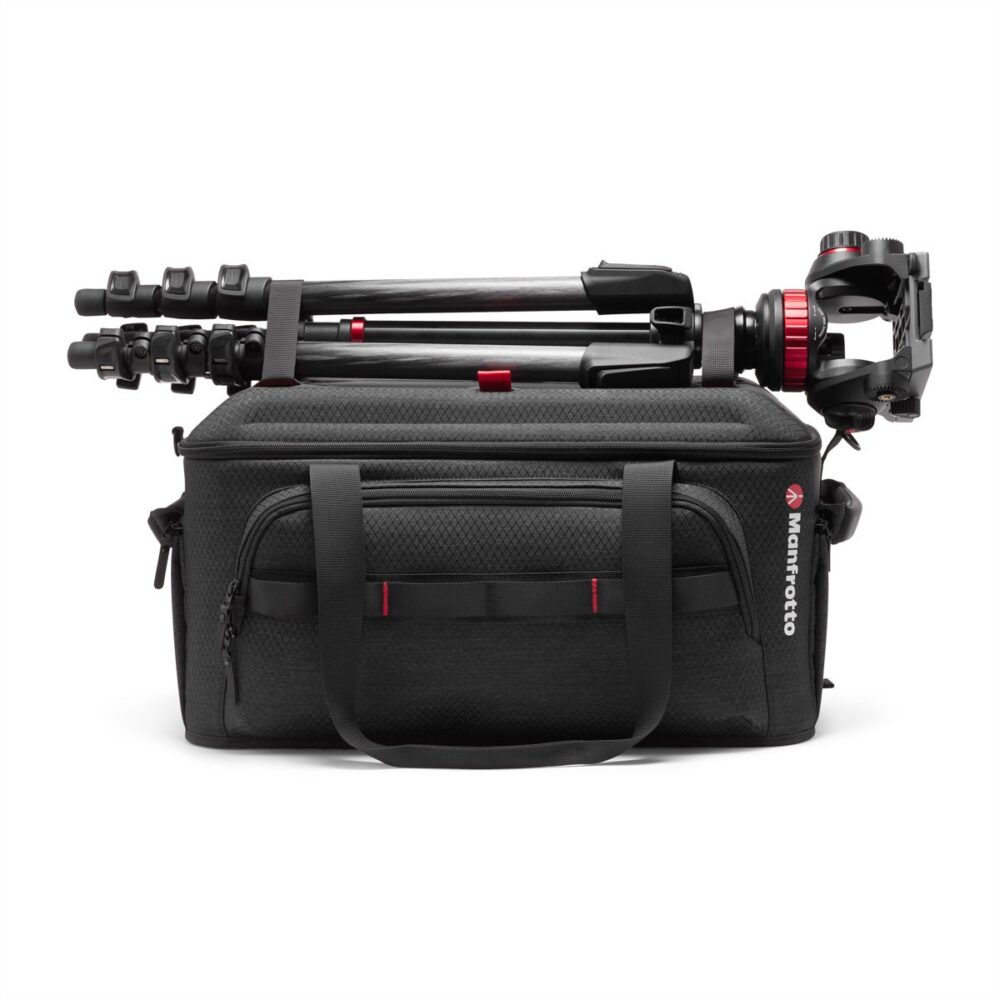

- carrying bag not included
Technical specifications
- Kit model: MVK502055CXPROV
- Safety payload: 10 kg
- Counterbalance: fixed 4 kg at 55 mm C.O.G.
- System weight: 4.2 kg
- Height: 54–179 cm
- Maximum height with column down: 157 cm
- Closed length: 70 cm
- Leg sections: 4
- Leg tube diameters: 29.2 / 24.8 / 20.4 / 16 mm
- Leg angles: 25° / 46° / 66° / 88°
- Tilt range: −80° to +90°
- Pan rotation: 360°
- Plate: 504PLONG quick release
- Materials: carbon fibre, aluminium and plastic
- Working temperature: −20 to +60 °C
- Standard: UNI/PdR 105:2021
- Designed and made in: Italy
