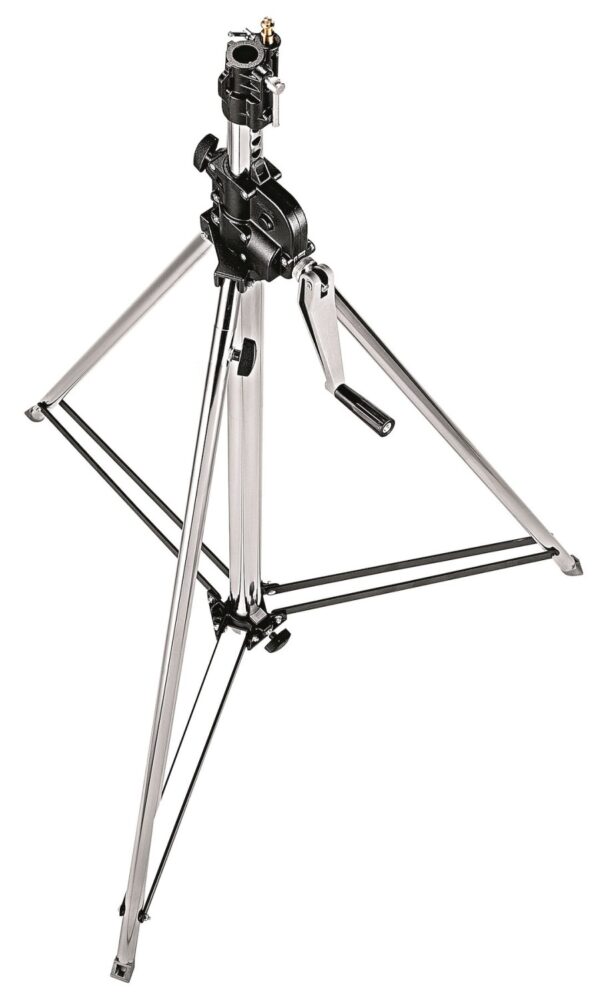

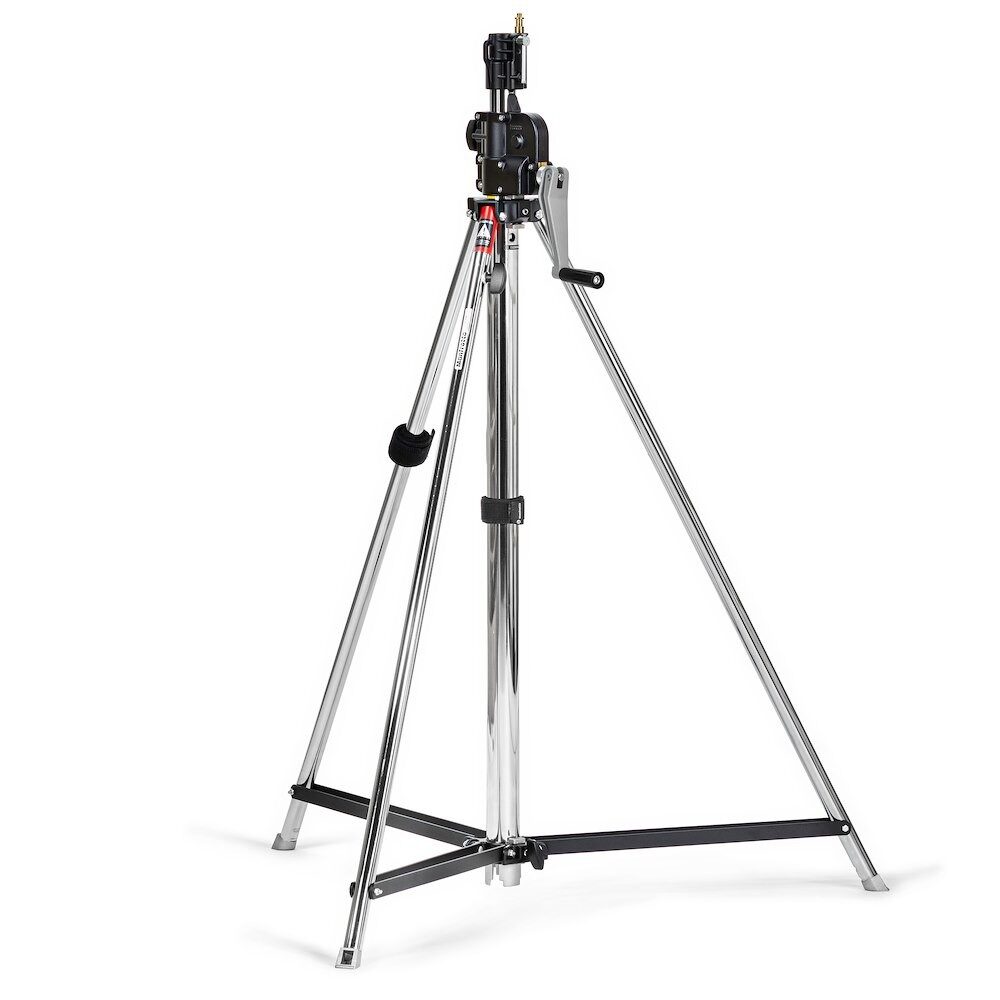

The Manfrotto 083NW is a heavy-duty, black chrome-plated steel 2-section Wind Up stand that safely raises loads up to 45 kg (30 kg at full 247 cm height) with a single hand-crank, features a built-in levelling leg, universal Junior/Baby top fittings, and accepts optional wheel sets (104/104G), making it the ultimate safe, high-capacity studio stand for large lights, overhead frames, and heavy rigs.
The Manfrotto 083NW Wind Up Stand combines extreme strength with smooth, precise operation. Its patented geared column with safety crank raises and lowers loads up to 45 kg without sudden drops, while the two-section chrome steel construction (55 mm + 45 mm diameter) extends to a working height of 247 cm. One adjustable levelling leg ensures perfect vertical alignment on uneven floors, and the universal top offers a 28 mm Junior receiver, 16 mm Baby stud, and 3/8″ thread for total compatibility.
Key Features

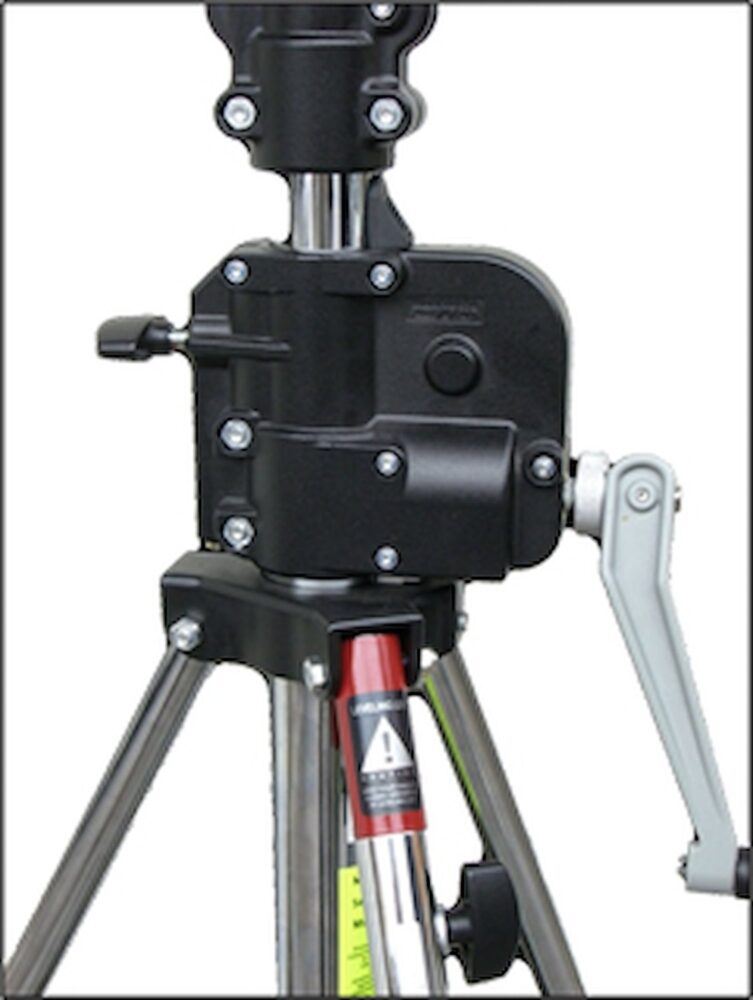

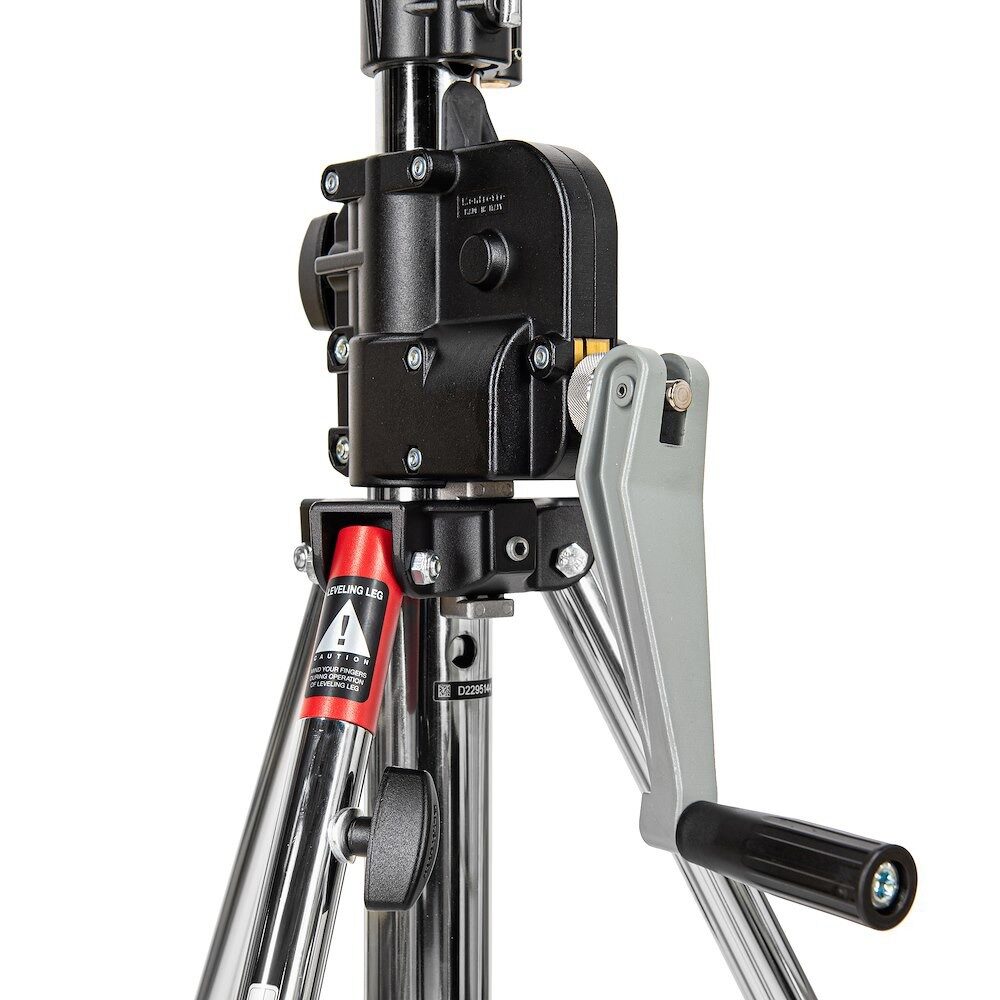

- Geared wind-up column with self-locking safety crank
- Massive 45 kg payload (30 kg at full extension)
- One levelling leg for stability on uneven surfaces
- Black chrome-plated steel construction for durability and style

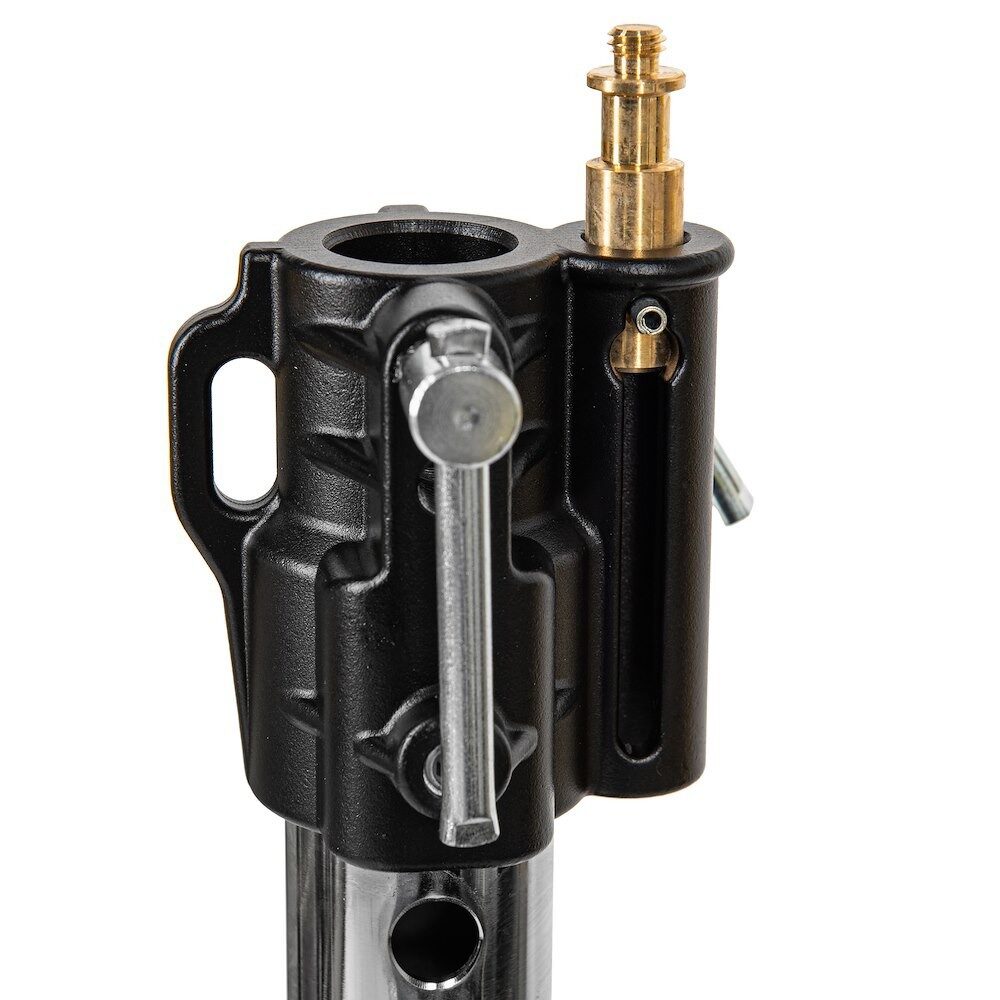

- Universal top: 28 mm Junior socket + 16 mm Baby stud + 3/8″ thread
- Optional wheel compatibility (104/104G/374-10)
- Manfrotto 2-Section Wind Up Stand with Leveling Leg (Chrome-plated, 8′)
- 5/8″ Baby Stud
- Material: Black chrome-plated steel
- Sections: 2 (1 riser)

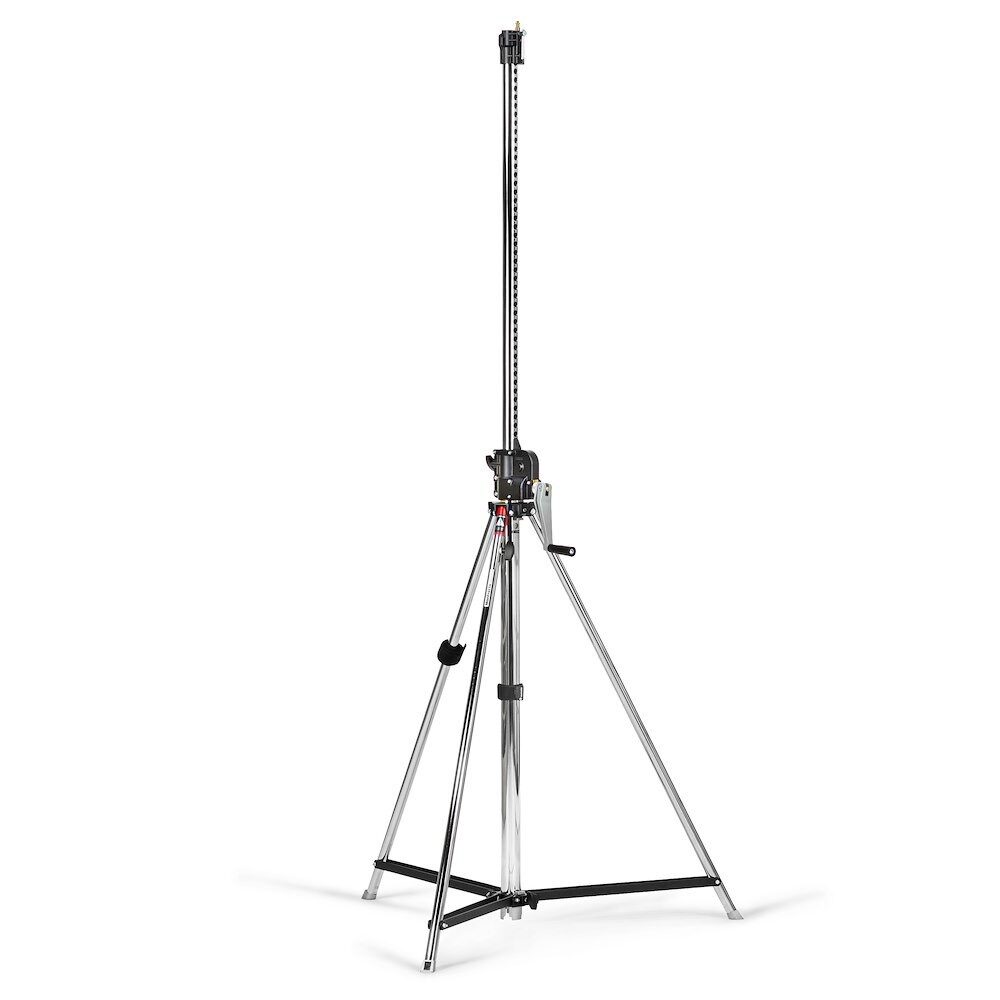

- Maximum height: 247 cm
- Minimum height: 139 cm

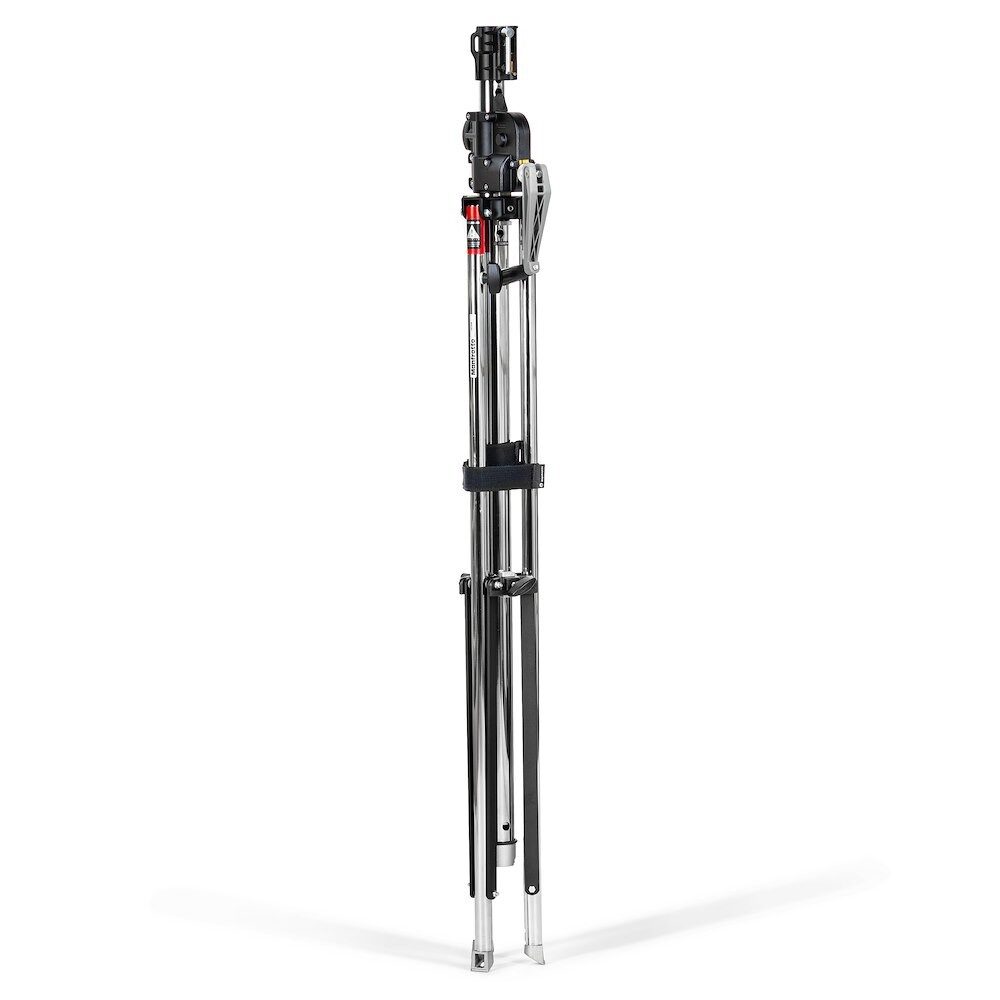

- Closed length: 153 cm
- Payload: 45 kg (30 kg at max extension)
- Weight: 16 kg
- Column diameters: 55 mm / 45 mm
- Top attachment: 28 mm socket, 16 mm stud, 3/8″ screw
