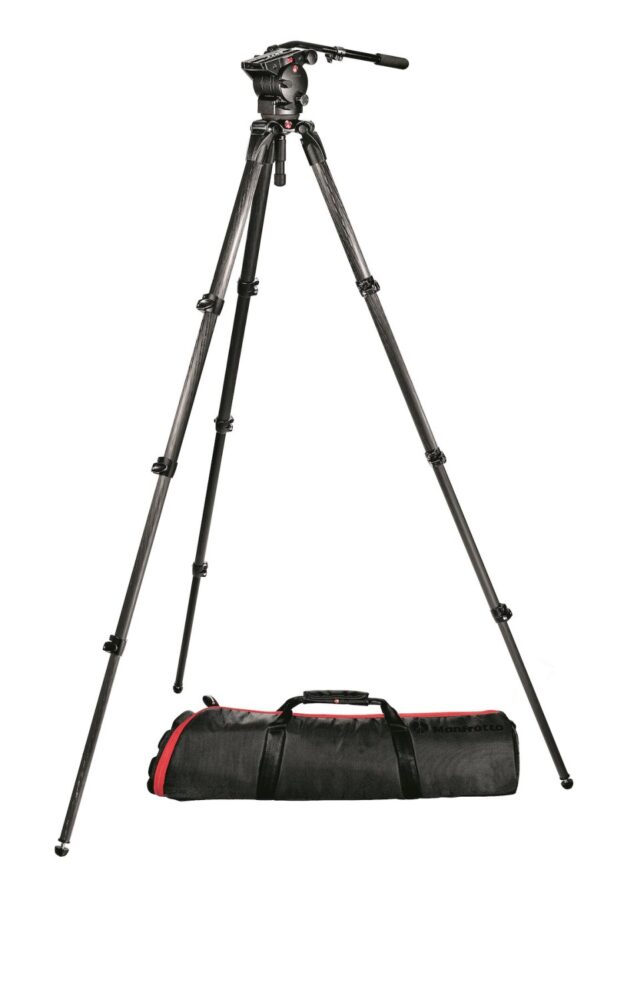

The Manfrotto 526,536K-1 Tripod System combines the professional 526-1 Fluid Video Head with the lightweight 536 Carbon Fiber Tripod and a soft carrying bag, providing superior stability, precise control and easy transport for video production.

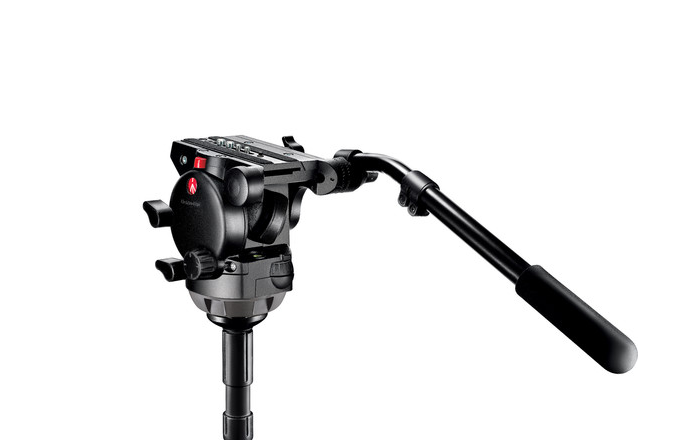

The Manfrotto 526,536K-1 Tripod System is designed for professional videographers seeking a versatile and reliable solution for camera support. At its core is the 526-1 Professional Fluid Video Head, which supports payloads up to 35 lb (16 kg) and features the 357PLV-1 sliding plate with secure two-screw mounting (1/4″-20 or 3/8″-16), a removable pan handle, and left-side controls for operator convenience. The fluid head offers three levels of pan and tilt drag plus a zero-drag setting for whip-pans and fast tilts, while the continuously adjustable counterbalance handles camera weights from 17.5 to 33 lb.

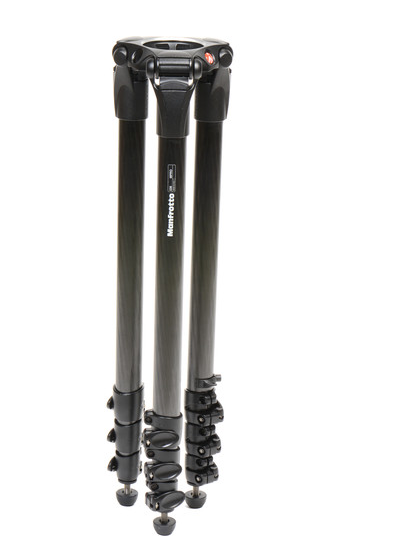

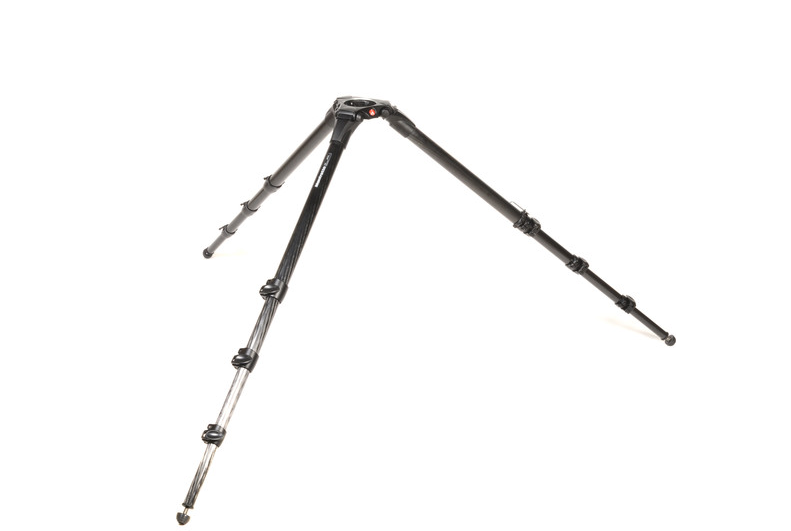

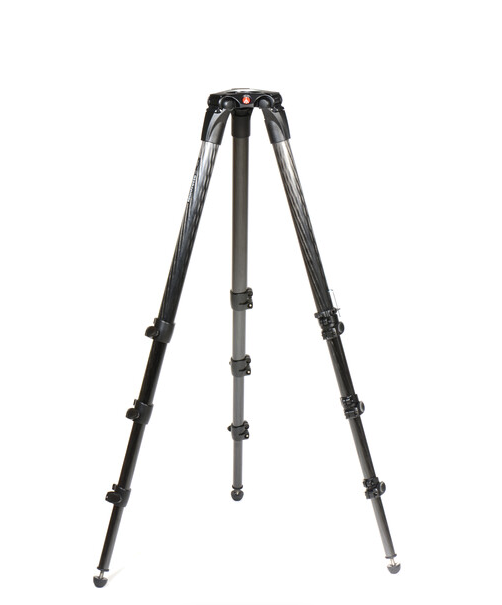

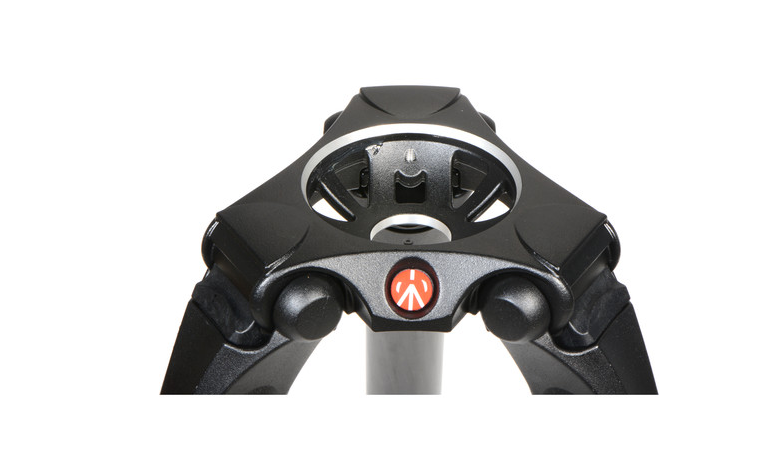

The 536 Carbon Fiber Video Tripod features four-section carbon fiber legs with magnesium die-cast fittings for maximum stability and light weight. Its 75/100mm bowl adapter allows compatibility with industry-standard fluid heads, and leg angle selectors provide precise, quick setup. The tripod also includes a bright bubble for easy leveling and supports additional accessories via a pan handle fitting. Lightweight, compact, and robust, this system is ideal for professional studio and on-location shoots.
Key Features
- 526-1 Professional Fluid Video Head supports up to 35 lb / 16 kg
- 357PLV-1 sliding plate with dual 1/4″-20 & 3/8″-16 screws for secure mounting
- Continuous counterbalance for precise camera weight adjustment
- Three-step pan and tilt drag plus zero-drag setting
- Removable pan arm and left-side controls for ergonomic operation
- 536 Carbon Fiber Tripod with four-section legs and 75/100mm bowl adapter
- Quick leg angle adjustment with angle selector
- Lightweight, stable, and compact design
- Bright bubble level for precise setup
- Soft carrying bag included for transport
- 526-1 Professional Fluid Video Head
- 536 Carbon Fiber Video Tripod
- 357PLV-1 Sliding Camera Plate
- Soft Carrying Bag
526-1 Fluid Head
- Camera Mounting: Dual 3/8″-16 & 1/4″-20 screws (sliding balance plate)
- Head Type: Fluid Head
- Base Mount: 100 mm Half Ball
- Counterbalance: Continuous (17.64–33.07 lb / 8–15 kg)
- Pan & Tilt: Drag control with three levels + zero-drag, independent pan & tilt locks
- Vertical Tilt: +75° to -70°
- Load Capacity: 35 lb / 16 kg
- Accessory Mount: 1 pan handle fitting
- Bubble Level: Yes
- 536 Carbon Fiber Tripod
- Leg Sections: 4
- Material: Carbon fiber tubes, magnesium die-cast fittings
- Bowl Adapter Ring: 75/100 mm
- Lightweight, ergonomic, and compact design
General
- System Weight: Approx. 8–10 kg (depending on configuration)
- Included: Soft carrying bag, tripod, fluid head
