Multifiber 2-core, LC/LC connectors + Schill drum

MEDIAGEAR

Multifiber 2-core, LC/LC connectors + Schill drum

€ 345.00 – € 495.00

€ 427.80 – € 613.80 (koos km)

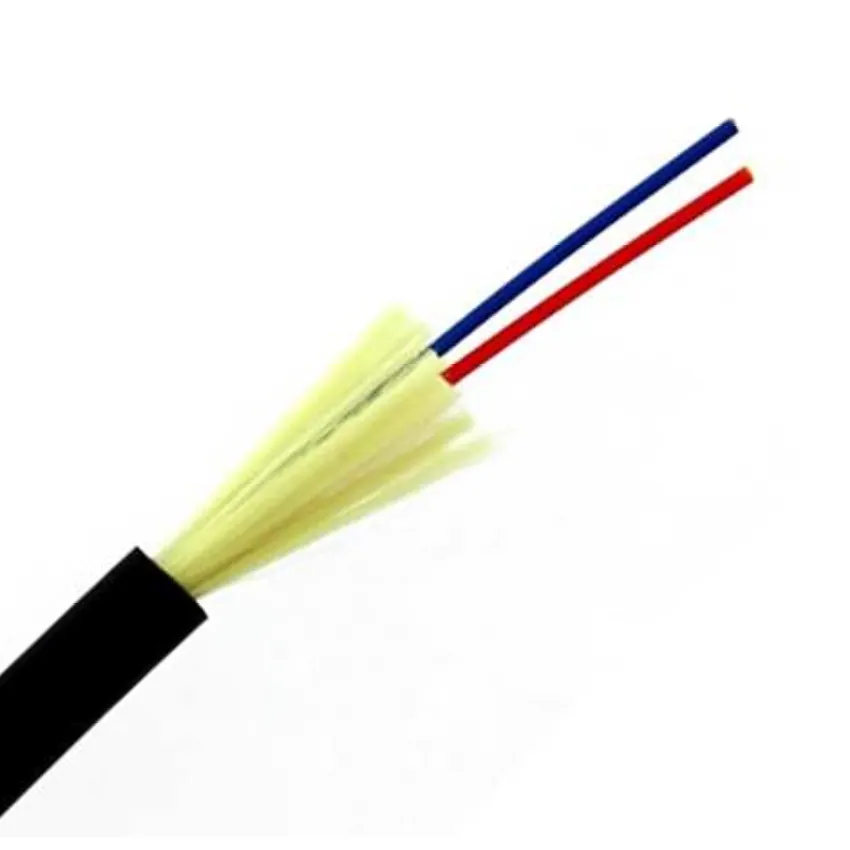

Cable consist of two 900μm coated fibers for direct termination. Fibers are protected with aramid yarns (Kevlar). Extended operational temperature range of -40 to +70°C can be used in many environments, on all continents where heat and cold are often a major concern.

• Compact design

• Low temperature range

• Excellent environmental and mechanical stability

• UV protection

Tight-buffer coated fiber, 900μm

Aramid yarn: Kevlar

Outer sheath: nominal thickness 1.3mm

Versioon

Puhasta

Meie poolt heaks kiidetud

Tasemel kvaliteet

Telli koju või astu läbi

Kirjeldus
Leidsid parema hinna?

Product Color: Black

Outer Diameter: 4.8 ±0.2mm

Temperature, Operating [°C]: -40 to +70

Temperature, Storage [°C]: -40 to +70

Temperature, Installation [°C]: -10 to +50

Fiber Count: 2

Fiber Type: SM G657.A1

Min. Bending Radius (Dynamic): 10 x Outer Diameter

Min. Bending Radius (Static): 5 x Outer Diameter

Tensile Strength Element: Kevlar

Tensile Strength (Long Term): 300N

Tensile Strength (Short Term): 450N

Crush Resistance (Long Term): 1000N / 10cm mandrel

Crush Resistance (Short Term): 3000N / 10cm mandrel

Flame Test Method IEC 60332-1, IEC 60332-3-24

Water Blocking: IEC 60794-1-2
