Create a Powerful, Precise and Versatile Production Experience

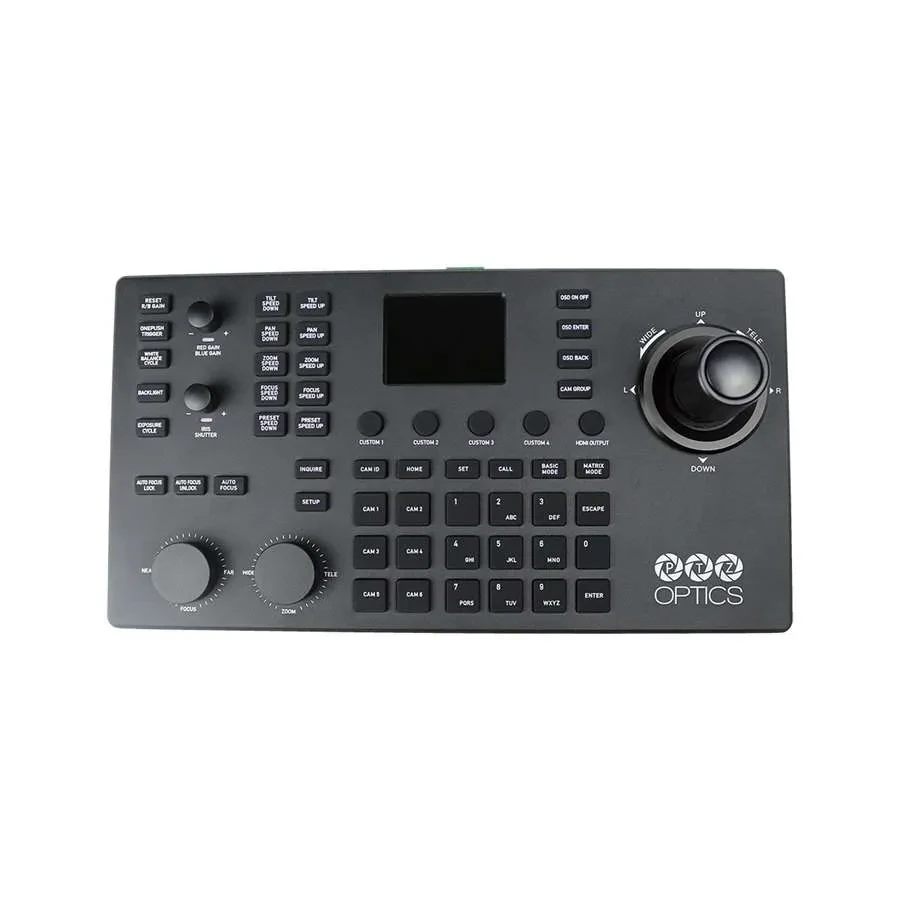

Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users. The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups.
SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.

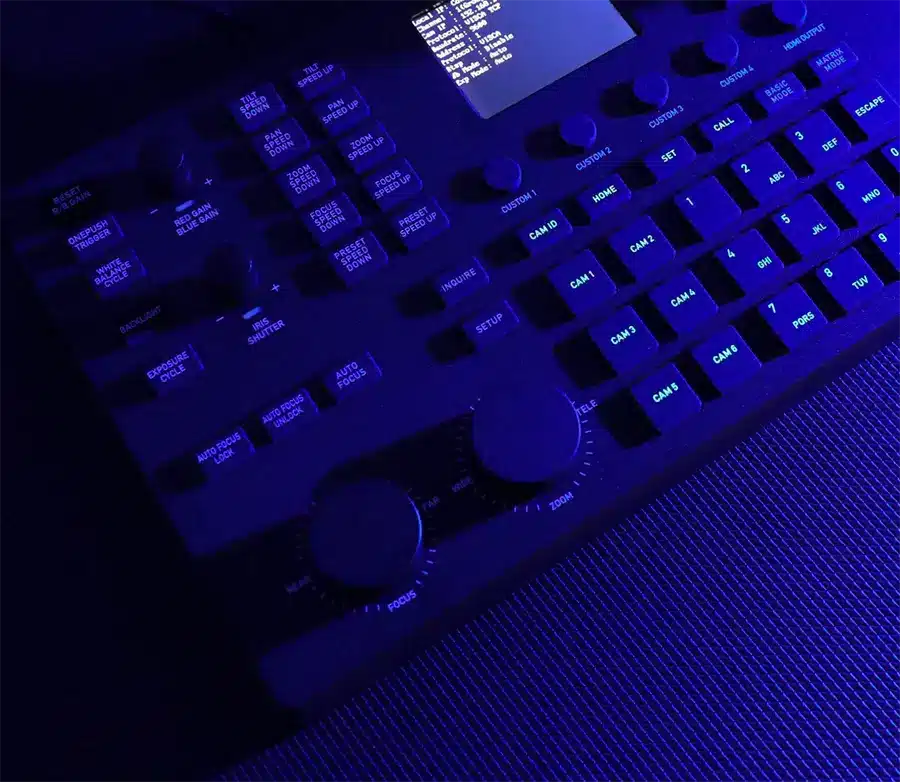

Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly-tuning, with no OSD adjustments required

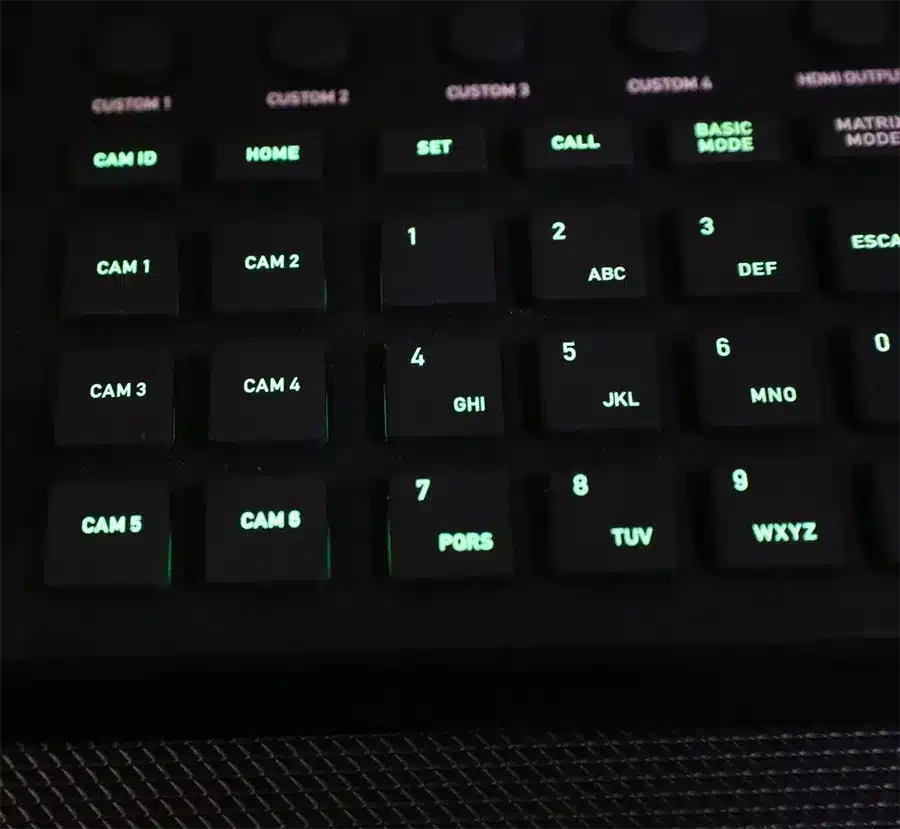

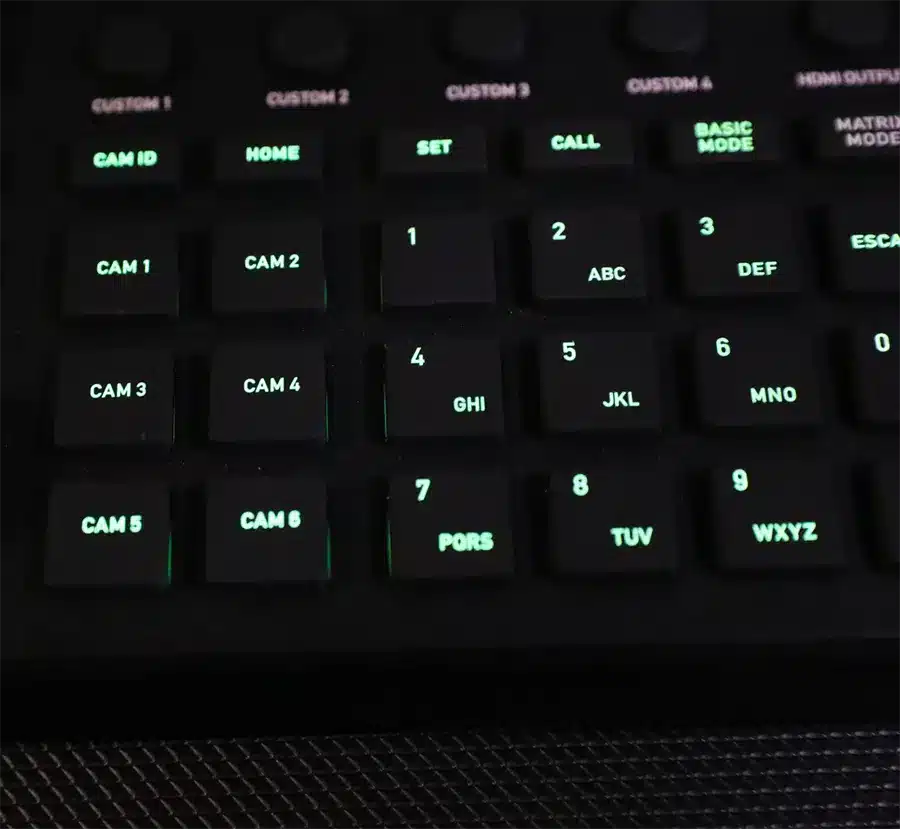

Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring
Custom Control Across a Variety of Cameras and Devices

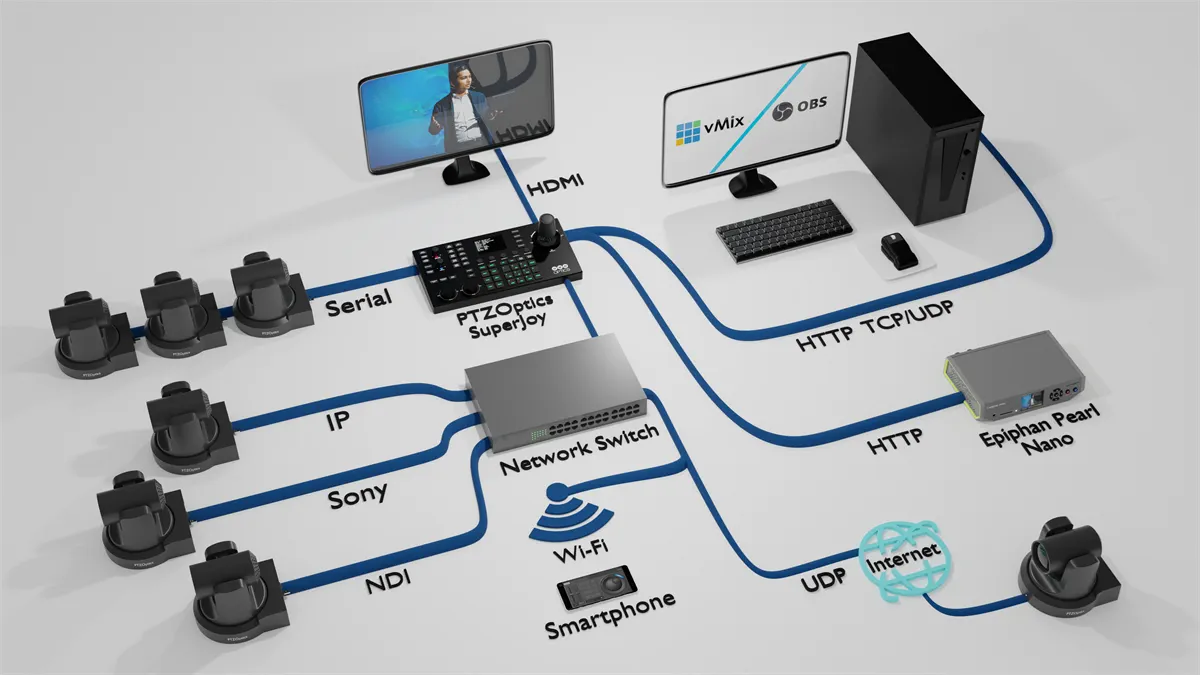

The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.
Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek
If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to five unique camera groups with up to eight cameras each
Max Cameras 28 cameras total (4 groups of 7 channels)
Recommended Max Distance RS-232 / RS-422: 15m, RS-485: 1200m, Ethernet: 100m
Baud rate 1200 ~ 19200 bps
Physical Specifications
Working Temp -10° C ~ +50° C
Working Humidity 10% ~ 90% (non-condensation)
Weight 1.70 kg
Dimensions (mm.) 370 W x 180 D x 101 H
