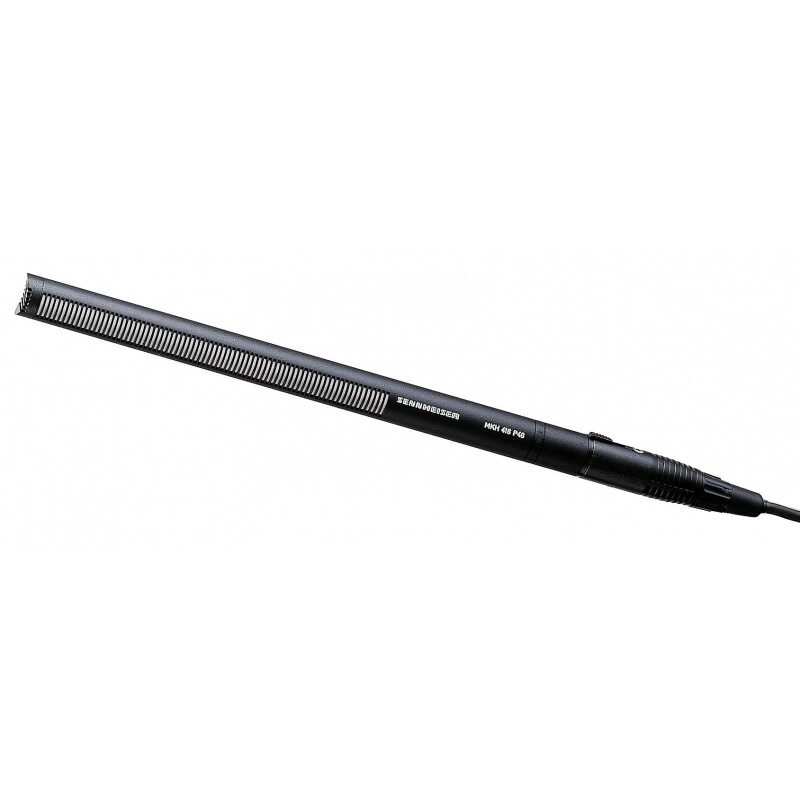

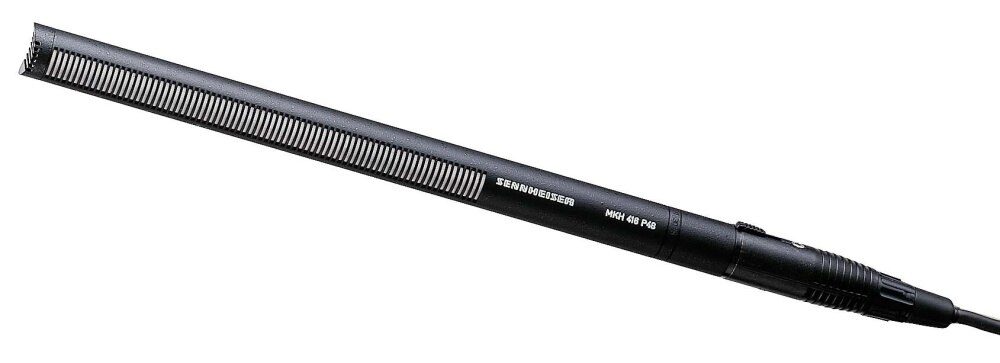

The MKH 416 is a super-cardioid microphone of the “semi-dot” type. It has excellent directionality in a compact size, excellent intelligibility and resistance to feedback. The MKH 416 is a great microphone for film, radio or TV, especially when used outdoors.
Features
- Improved directivity
- Very low self-noise
- Symmetrical output
- High sensitivity
- Robust, suitable for harsh climatic conditions
- Matte black all-metal body
Package contents
- microphone MKH 416-P48U3
- wind protector MZW 415
- clip MZQ 100
- Dimensions
Ø 19 x 250 mm - Frequency response (Microphone)
40 – 20000 Hz - Transducer principle (Microphone)
RF condenser microphone - Pick-up pattern
super-cardioid/lobar - Sensitivity in free field, no load (1kHz)
25 mV/Pa +- 1 dB - Nominal impedance
25 Ω - Min. terminating impedance
800 Ω - Equivalent noise level
13 dB - Equivalent noise level weighted as per CCIR
24 dB - Maximum sound pressure level (passive)
130 dB - Current consumption
2 mA - Voltage
48 +- 4 V Phantom
