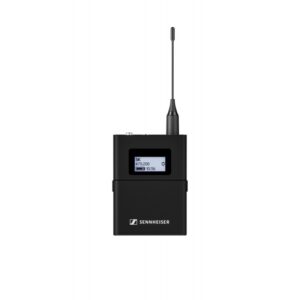

The ew-DX pocket transmitter is equipped with a MUTE switch for short-term microphone muting. On the transmitter with an e-ink display, you can set the bass filter frequency (high-pass) and basic sensitivity settings (trim); all other parameters are set on the receiver or from a mobile phone or tablet in the Smart Assist app. Compatible with ew-D, ew-DX, and ew-DP receivers.
-
The ew-DX pocket transmitter is equipped with a MUTE switch for short-term microphone muting. On the transmitter with an e-ink display, you can set the bass filter frequency (high-pass) and basic sensitivity settings (trim); all other parameters are set on the receiver or from a mobile phone or tablet in the Smart Assist app. Compatible with ew-D, ew-DX, and ew-DP receivers.
Comes in a version with a 3.5 ew jack or Lemo 3-P connector.
Features
- digital modulation to reduce noise, interference, and static discharges
- UHF band for reliable transmission
- automatic setup option in the Smart Assist app (Android/iOS mobile/tablet)
- remote management option in Wireless Systems Manager and Control Cockpit (PC/Mac)
- remote adjustment of transmitter sensitivity (gain)
- 3520 tunable frequencies for interference-free reception
- 88 MHz bandwidth (9 possible variants)
- up to 148 channels in one band (293 in LD mode)
- 134 dB dynamic range
- 12 hours of operation with BA 70 rechargeable batteries (8 hours with AA batteries)
- easily accessible MUTE switch
- bluetooth® Low Energy control
- Wide range of accessories allows the system to be adapted to any requirements
Package contents
- 1 SK ew-DX transmitter
- 2 AA batteries, 1.5 V
- Instruction manual
- Battery life
- 12 (8) hours
- Frequency range
- 20 – 20,000 Hz
- HF frequency range
- 470 – 550, 520 – 607.8, 614.2 – 693.8, 823.2 – 831.8/863.2 – 864.8, 1785.2 – 1799.8 MHz (bands Q – Y)
- Total harmonic distortion (THD)
- < -60 dB/1 kHz -3 dBfs
- Weight
- 120 g (without batteries)
- Connectors
- 3.5 EW jack with lock nut or Lemo 3-P
- Power
- 2 x 1.5 V AA / BA 70
- Number of transmission frequencies
- 3520
- RF band width
- 88 MHz
- HF transmission power
- 10 mW + 10 W BLE
- Delay
- 1.9 ms
- Modulation
- SePAC
- Dimensions
- 63 x 85 x 20 mm (without antenna)
- Microphones by type
- ew Digital
