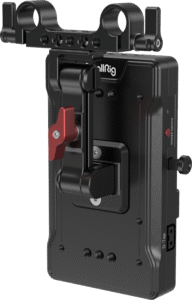

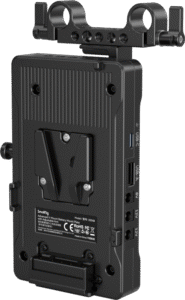

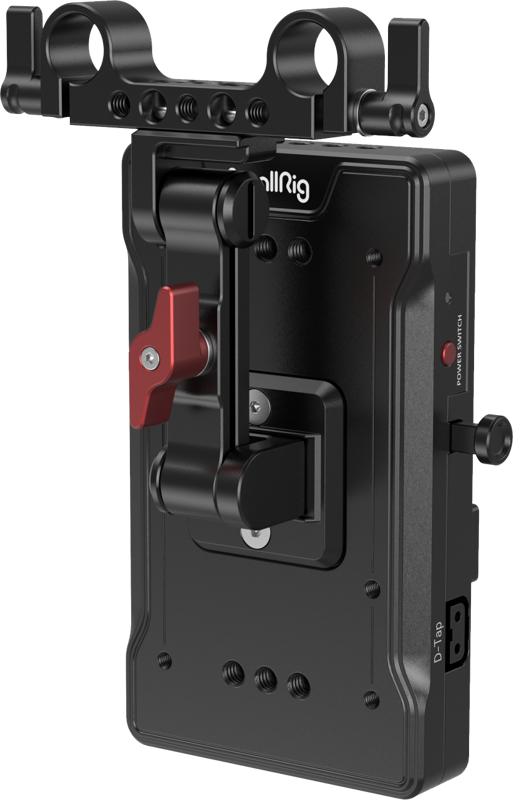

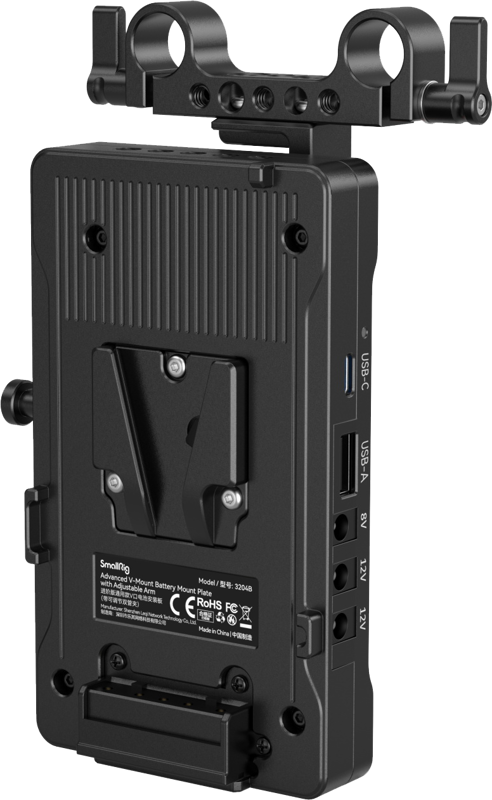

SmallRig 3204 Advanced V-Mount Battery Mount Plate with Adjustable Arm

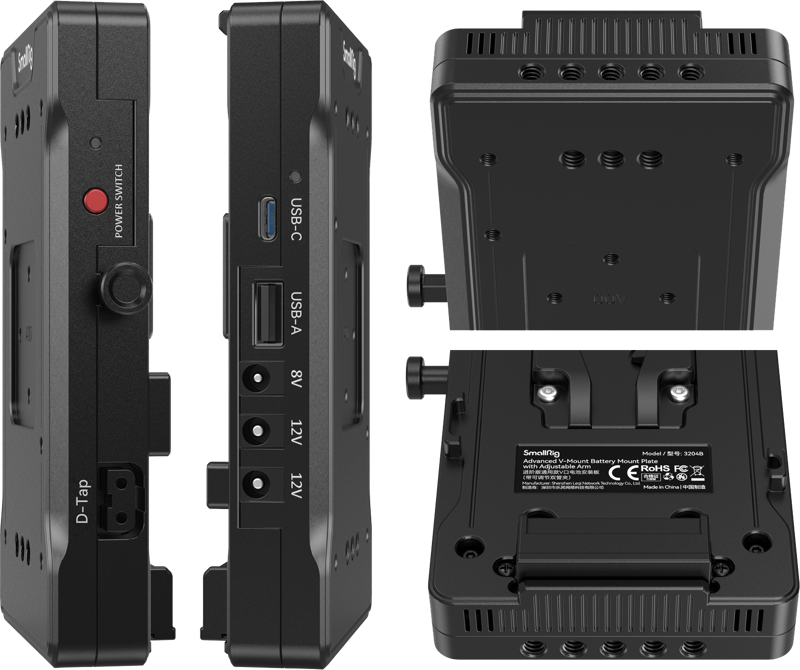

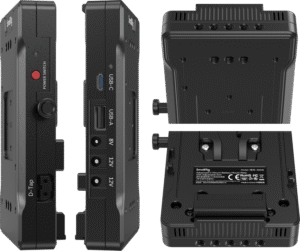

It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging
a D-Tap input/output (14.8V) port
and three DC output ports (8V x 1 / 12V x 2).
The power indicator light and charging/discharging indicator light indicate working status and fast/slow charging mode
the power on / off button can simultaneously control multiple ports.
Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.
Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED
Functions Description:
- Charging / Discharging: USB-C charging
- Indicator Light: orange light—slow charging/discharging, ice blue light—fast charging/discharging
- Power Indicator Light:
- Light on—powered on
- light off—powered off
- light flashing—working temperature exceeds 65℃
- Power on / off Button:
- Power on – tap the button
- Power off – long press the button for 2 seconds
- D-Tap, USB-A, and DC output are unavailable after powering off
- D-Tap input and USB-C input/output available after powering off
Compatibility:
- V-Mount Battery
Packaging includes:
- Advanced V-Mount Battery Adapter Plate
- Dual Rod Clamp with Adjustable Arm
- 2x Hex Spanner
- 2x Screw
- User Manual
