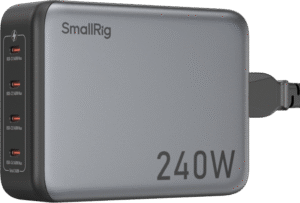

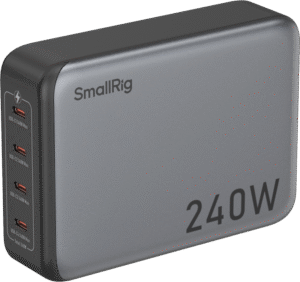

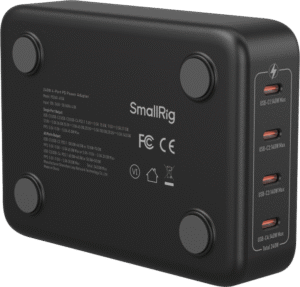

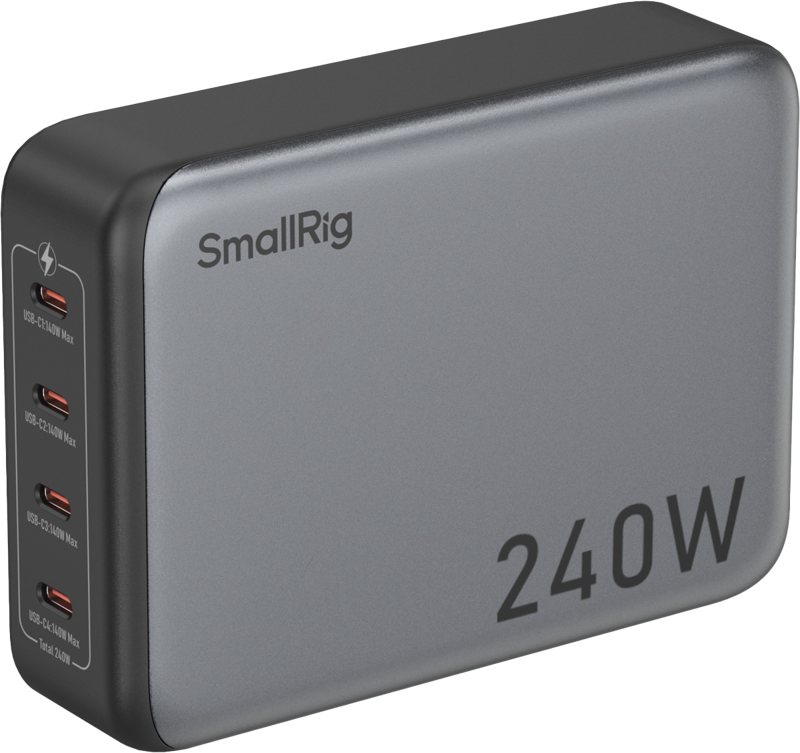

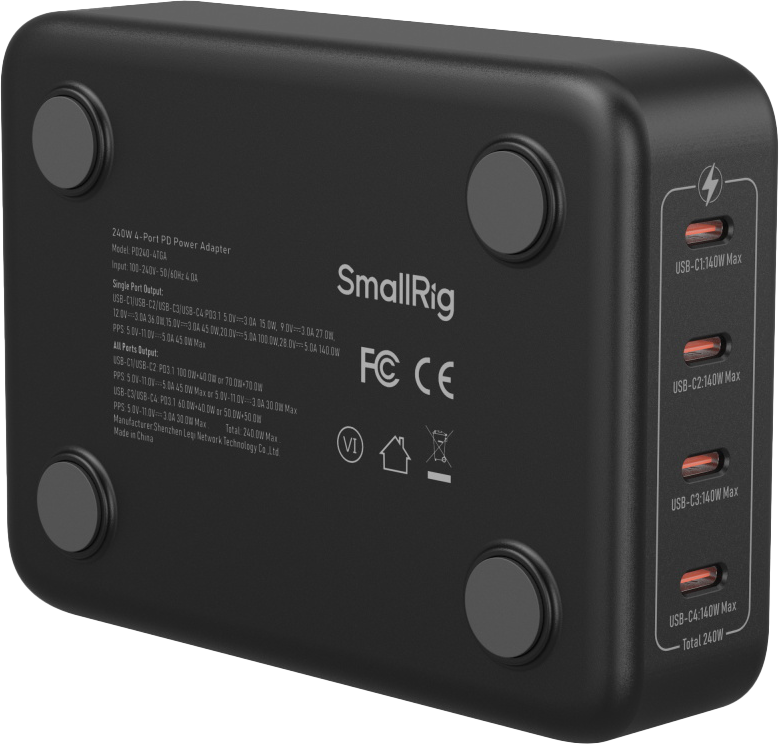

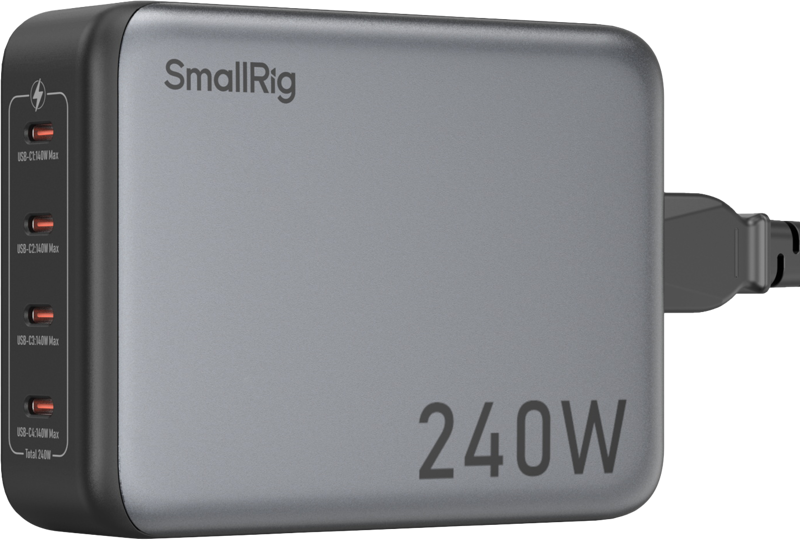

SmallRig 4752 240W 4-Port PD Power Adapter
All ports support fast charging, with each port supporting up to 140W (Max) output through PD3.1, providing strong support for high-power devices and significantly enhancing charging efficiency.
Each output port is equipped with short-circuit and overcurrent protection to ensure safe usage.
Additionally, the compact size of the charger makes convenient for travel and daily use.
Compatibility:
- V mount batteries, NP-F batteries, cameras with direct charging batteries, smartphones, tablets, and laptops.
Certification:
- CE & RoHS
Package includes:
- 1x 240W Charger
- 1x AC Power Cable (EU Standard)

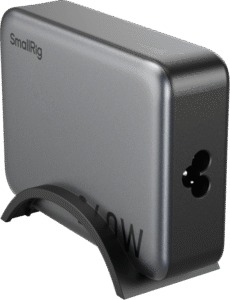

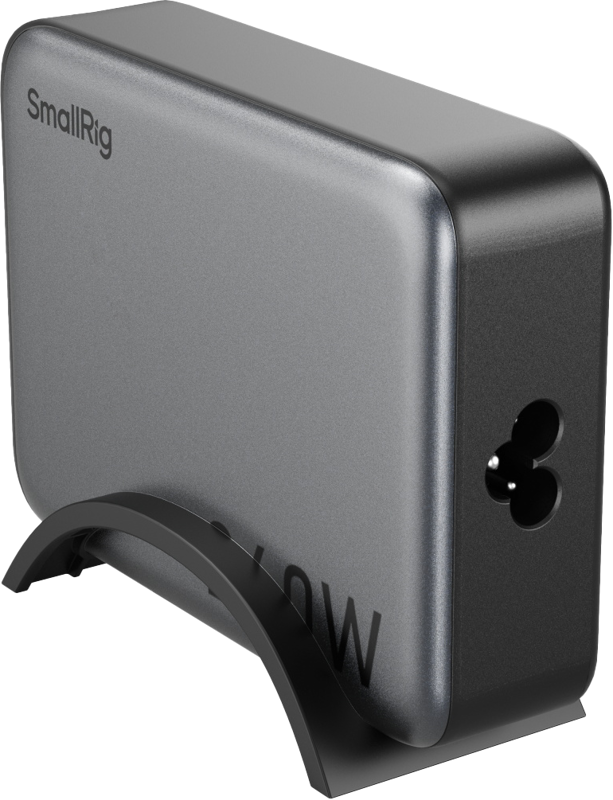

- 1x Adapter Bracket
- 1x User Manual
Technical info:
Total Output Power: 240W
Power Input: 100-240VAC 50 / 60Hz 4.0A
Power Output:
Single-Port Mode:

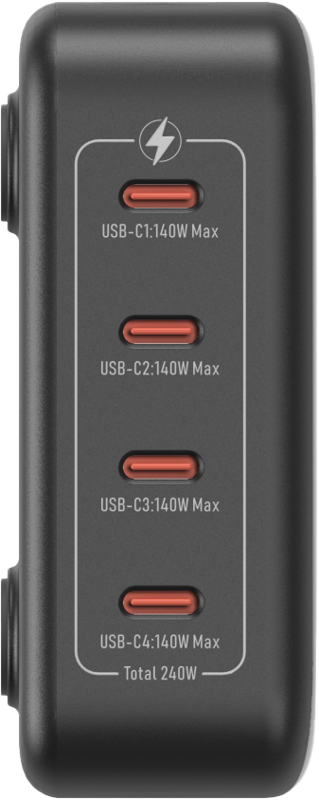

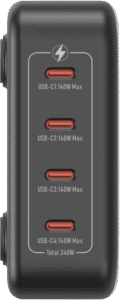

- USB-C1 / C2 / C3 / C4:
5V3A 9V3A 5V5A 20V5A 28V5A
Total: 140W MAX
Dual-Port Mode:
- C1 + C2 / C3 + C4:
100W + 40W / 40W + 100W / 70W + 70W
Total: 140W MAX - C1 + C3 / C1 + C4 / C2 + C3 / C2 + C4:
140W + 100W
Total: 240W Max
Triple-Port Mode:
- USB-C1 + C2 + C3 / C1 + C2 + C4:
70W + 70W + 100W / 100W + 40W + 100W / 40W + 100W + 100W
Total: 240W Max - C2 + C3 + C4 / C1 + C3 + C4：
140W + 60W + 40W / 140W + 40W + 60W / 140W + 50W + 50W
Total: 240W MAX
Quad-Port Mode:
- USB-C1 + C2 + C3 + C4:
100W + 40W + 60W + 40W / 100W + 40W + 40W + 60W / 100W + 40W + 50W + 50W / 70W + 70W + 50W + 50W / 70W + 70W + 60W + 40W / 70W + 70W + 40W + 60W / 40W + 100W + 40W + 60W / 40W + 100W + 60W + 40W / 40W + 100W + 50W + 50W
Total: 240W Max
