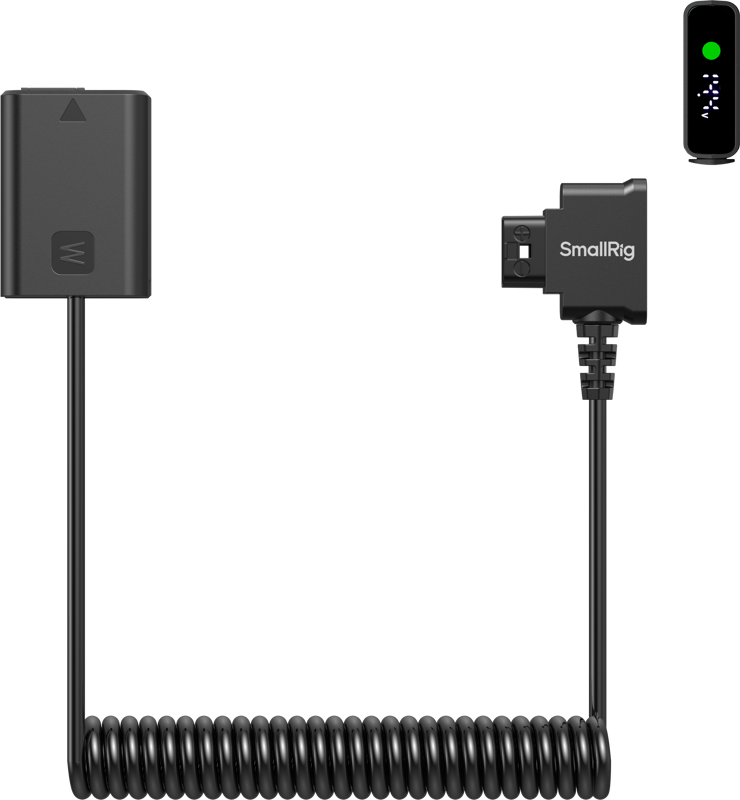

SmallRig 6538 Dummy Battery Power Cable for D-Tap for Sony NP-FW50
A built-in smart display screen shows input voltage and power status in real time.
When the voltage is above 13.0V, the green indicator stays on to show sufficient power. When the voltage drops below 13.0V, the red indicator provides a low-power warning.
If the D-Tap connector is inserted in reverse, no voltage will be displayed, and reverse-connection protection will be triggered. Reconnect the cable in the correct direction to restore normal operation.
Featuring an upgraded chip, it delivers seamless camera compatibility without warning messages.
The dummy battery is molded to the dimensions of the original battery for smooth installation and removal.
It also includes multiple safety protections, including overvoltage, overheat, overcharge, and short-circuit protection, and features a flame-retardant ABS housing for safe, reliable long-term use.
Certifications: FCC, CE, RoHS, ISED, RCM, Quality Inspection Report, and Structural Analysis Report
Technical Data:
- Max Output Voltage: 8.4V
- Min Output Voltage: 7.8V
- Input Voltage: 9.0V to 17.0V
- Input Current: 2.0A
- Output Current: 2.0A (Continuous)
- Output Protection Current: 4.5A to 5.5A
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -20°C to 60°C
- Battery Housing Material: ABS
- Input Specification: D-Tap male connector with a coiled cable extendable from 80.0cm to 100.0cm
Display Status:
- Solid green light with voltage displayed: Input voltage is above 13.0V, and the power level is sufficient.
- Solid or flashing red light with voltage displayed: Input voltage is below 13.0V, and the power level is low.
- Solid red light with no voltage displayed: The D-Tap input is connected in reverse, triggering reverse-connection protection. Reconnect it in the correct direction for normal use.
Compatibility:
- Compatible with Sony ZV-E10, α6500, α7, α7R, α7R II, α7S, NEX-7, NEX-6, NEX-5 series, NEX-3 series, and DSC-RX10 series
Packaging includes:
- D-Tap to NP-FW50 Dummy Battery Power Cable
- User Manual
