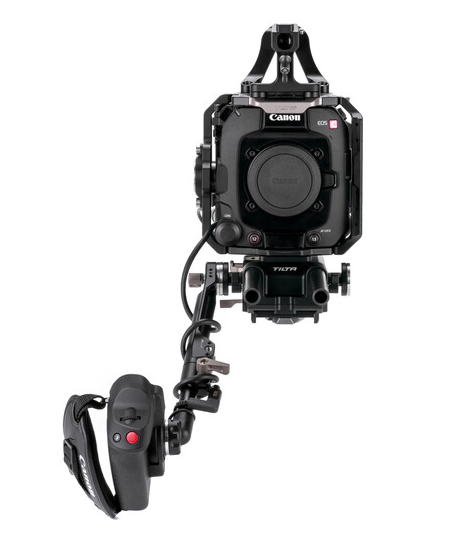

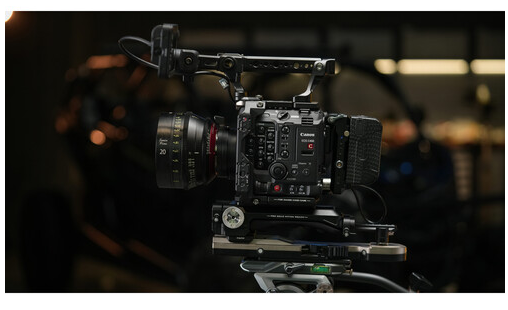

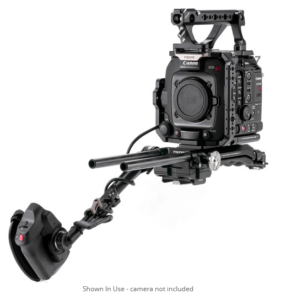

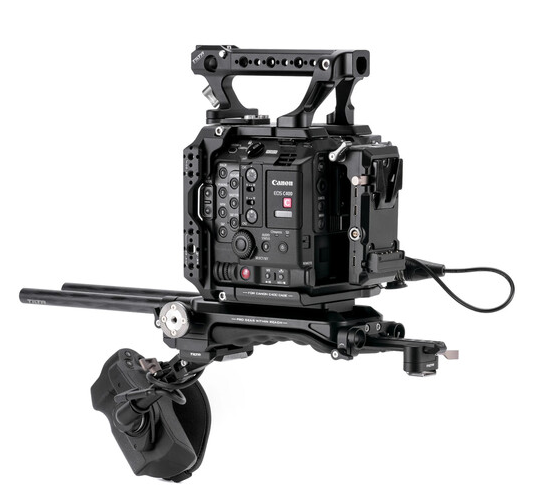

The Tilta ES-T22-C-V Pro Kit is the complete modular cage system for the Canon EOS C400, providing full protective armor with left/right side plates, top plate B, multifunctional back plate, V-Mount battery plate, Manfrotto quick-release baseplate, quick-release shoulder pad with dual ARRI rosettes and 15 mm LWS rod clamps, top handle, right-side extension arm with 19.6″ USB-C control cable, two 7.8″ carbon-fiber rods and EVF rod locking screw – delivering professional handheld, shoulder or tripod configurations in durable aluminum construction.
Tilta’s Pro Kit transforms the Canon C400 into a fully rigged cinema workhorse while maintaining its compact advantages. The lightweight aluminum cage consists of modular plates that offer extensive anti-twist 1/4″-20 & 3/8″-16 threads, NATO rail, ARRI rosettes and 15 mm LWS support. The included V-Mount battery plate powers the camera and accessories, the quick-release shoulder pad baseplate enables fast handheld-to-tripod transitions (Manfrotto top, VCT-U14 bottom) and the top handle adds extra mounting points. A right-side extension arm with 50 cm USB-C cable relocates the C400’s control grip for shoulder comfort, while two carbon-fiber rods support matte boxes or follow focus. Perfect for documentary and narrative crews who need speed, balance and expandability.
Key Features
- Modular full cage with top plate B, side arms, back plate
- V-Mount battery plate with integrated power cable
- Manfrotto QR bottom plate + quick-release shoulder pad baseplate (VCT-U14 compatible)
- Dual ARRI rosettes + front/rear 15 mm LWS rod clamps
- Top handle with multiple threads & cold shoe
- Right-side extension arm + 19.6″ USB-C control cable
- Two 7.8″ carbon-fiber 15 mm rods
- EVF rod locking screw for perfect fit
- NATO rail + extensive anti-twist threads
- Full access to all C400 ports, buttons, & EVF
- Tilta Modular Camera Cage for Canon C400 (top plate B, left/right sides, back plate)
- V-Mount Battery Plate with integrated cable
- Manfrotto Quick Release Bottom Plate
- Quick Release Shoulder Pad Baseplate (with VCT-U14 adapter)
- Top Handle
- Right-Side Extension Arm
- USB-C Male to Female Extension Cable (19.6″ / 50 cm)
- 2 × 7.8″ Carbon Fiber 15 mm Rods
- EVF Rod Locking Screw
- All necessary screws & Allen keys
- Compatibility: Canon EOS C400
- Materials: CNC aluminum alloy, stainless steel, carbon fiber (rods), silicone (shoulder pad)
- Battery Plate: V-Mount with direct DC cable
- Baseplate: Manfrotto QR top + VCT-U14 bottom
- Rods: 2× 7.8″ (200 mm) carbon fiber 15 mm LWS
- Rosettes: 2× ARRI standard (M6)
- Rail: 1× NATO
