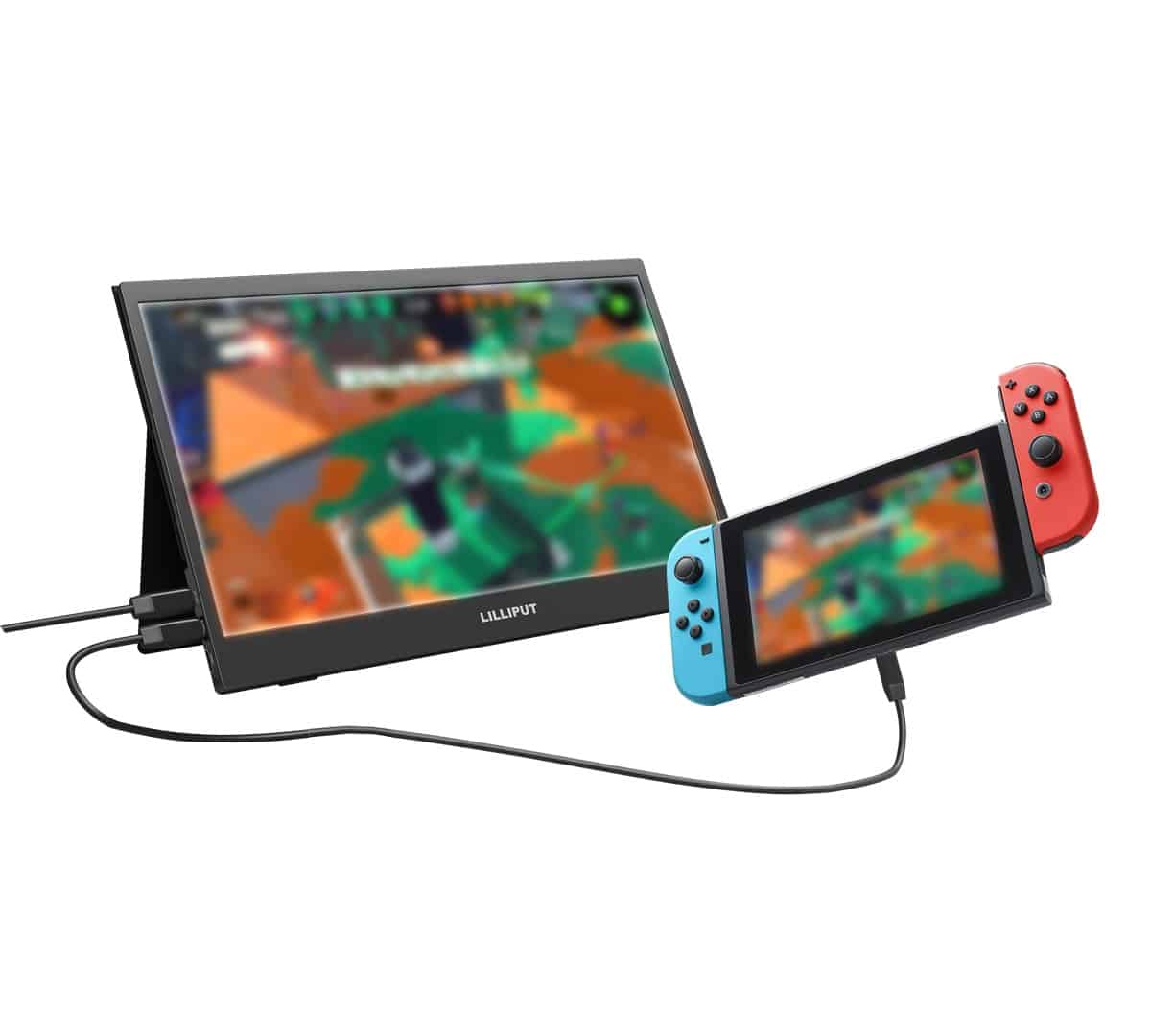

The UMTC-1400 Is a quick deploy monitor useful in any number of usage situations. It has the dual ability to work with HDMI inputs and also with USB-C inputs from mobile devices. This gives it the clout of being usable in a wide variety of situations – from in vehicle, to office – even for use as a second display screen for Mainstream videogames consoles such as PS4, Nintendo Switch and Xbox One.
Connection Options

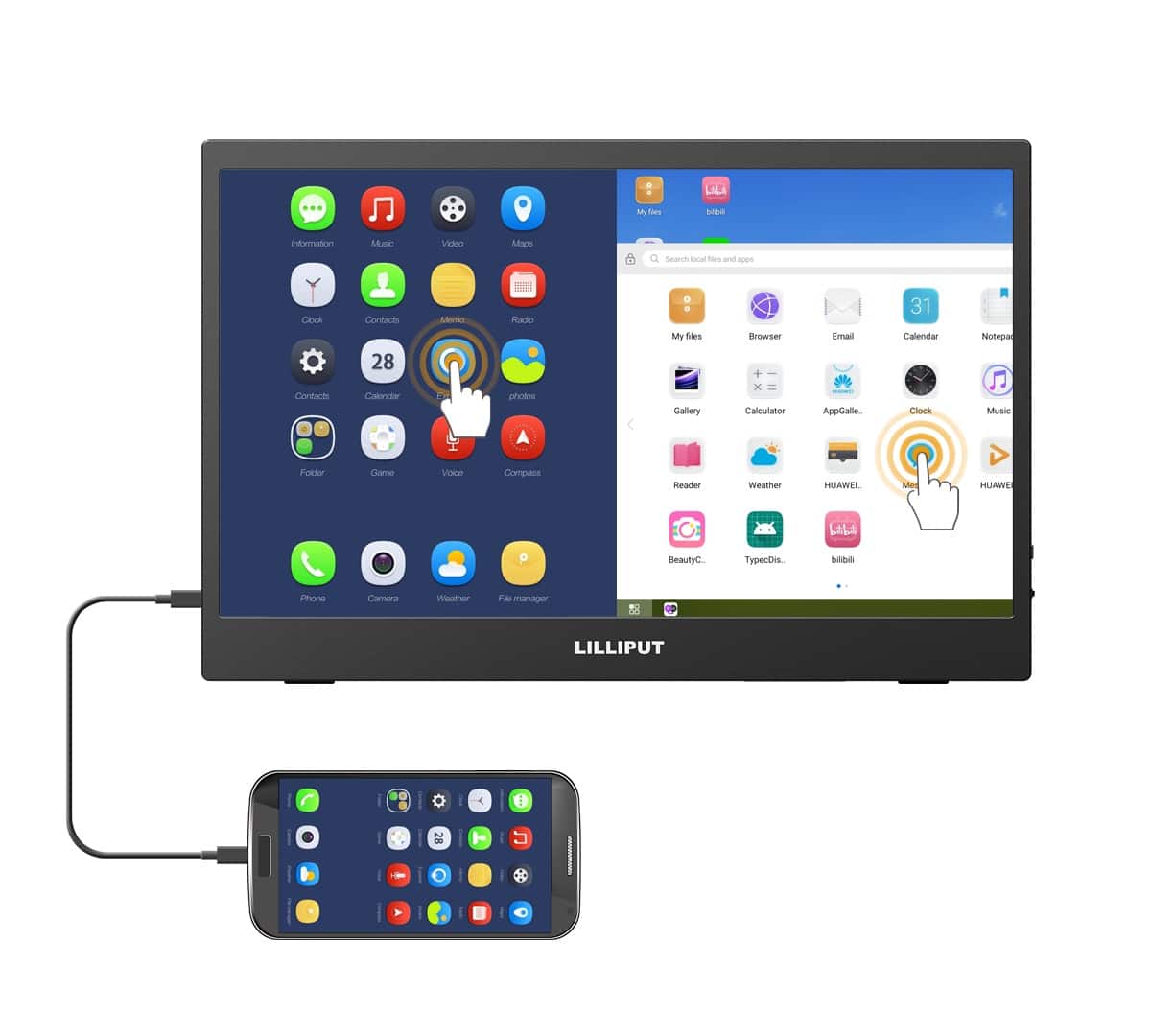

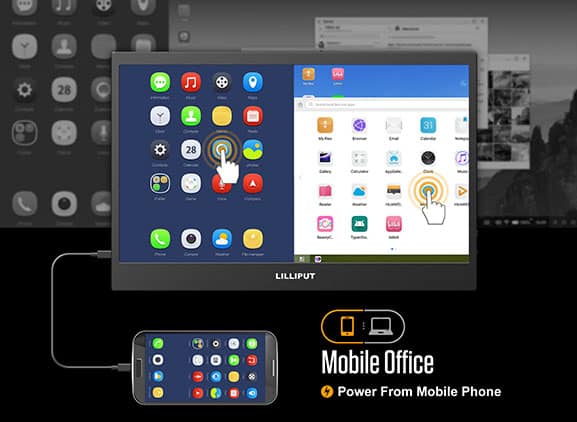

The UMTC-1400 has a unique connection option set. You can either run this monitor like a standard monitor – by attaching it to a mains power cable and connecting in an HDMI cable for the video feed or – if your device supports it – you can connect the monitor to a USB-C port and it will draw both power and video from this source set. Compatible sources include:

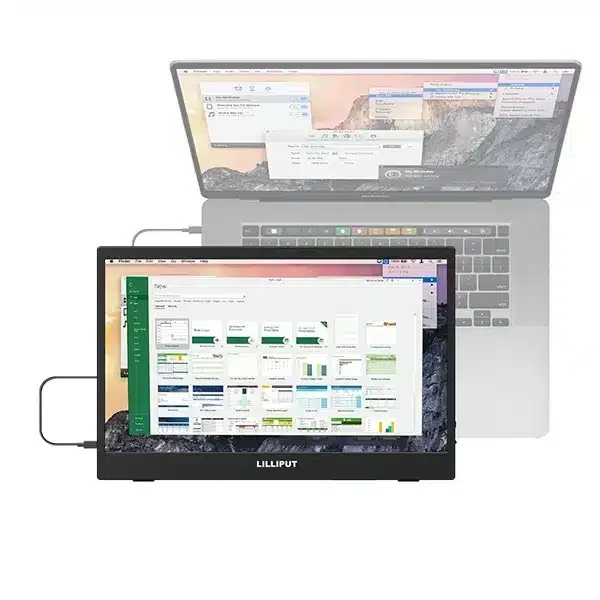

Apple MacBook, Macbook Air, iPad Pro (NB! The APPLE operating systems do not support touch function.)
Samsung S8, S8+, S9, S9+, Note 8, Note 9, S10
Dell G3, G5, G7, XPS13, XPS15

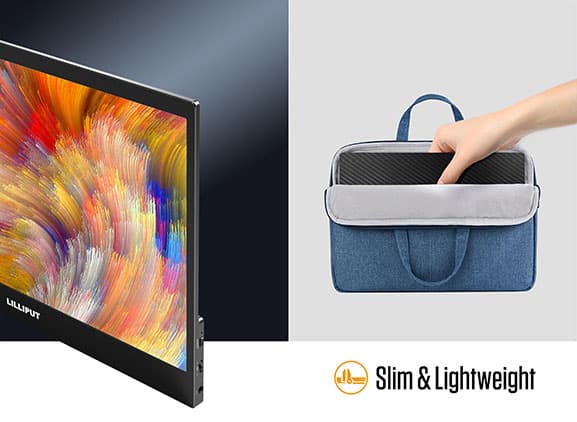

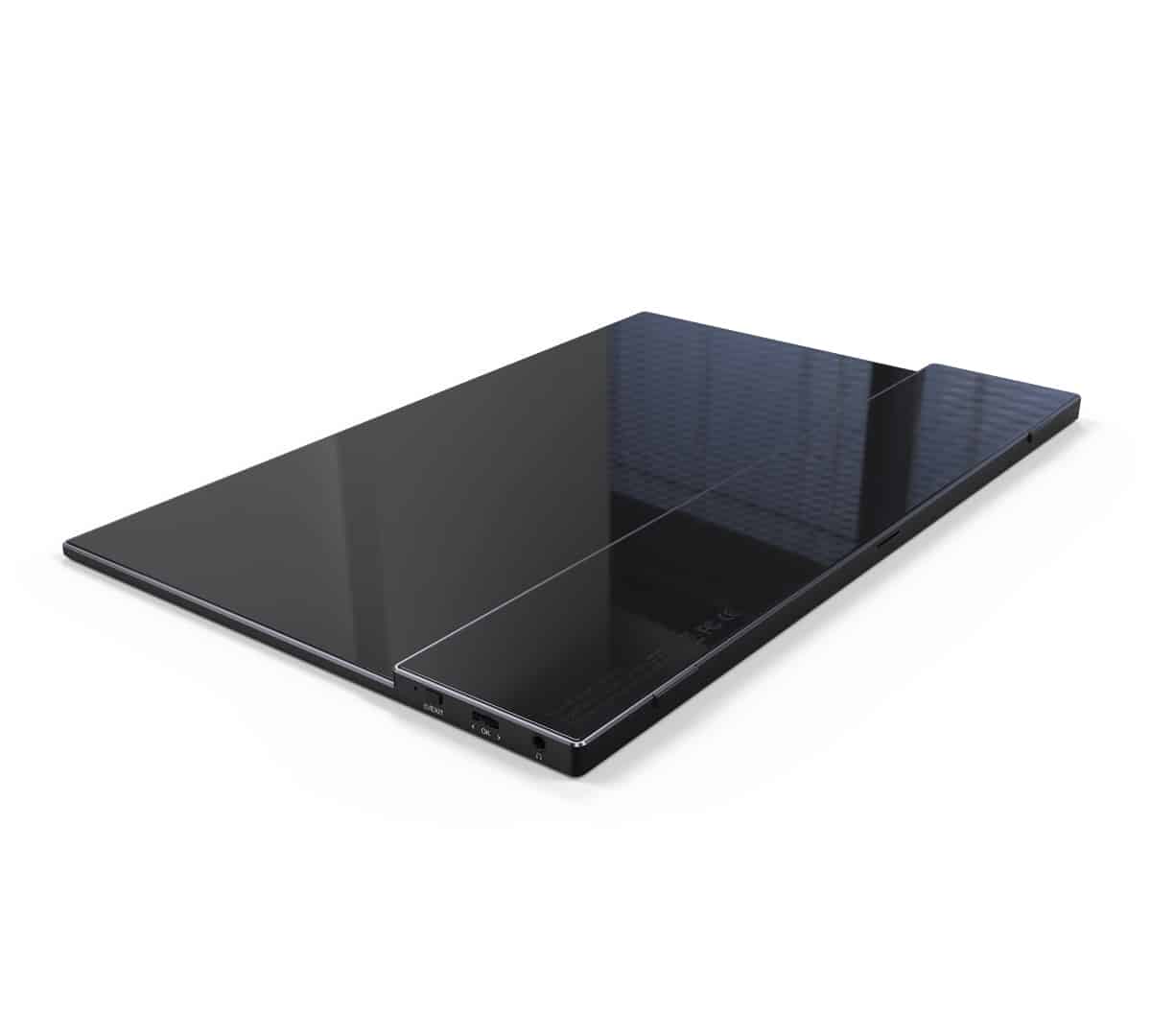

Slim Design
The sleek, slimline design of the unit is a testament to the improved manufacturing and materials processes that Lilliput use in the fabrication of their monitor systems. We use Mirror Glass and Brushed Aluminium to create a stylish, covetable look while at the same time creating a much more firm and rigid framework for the system.

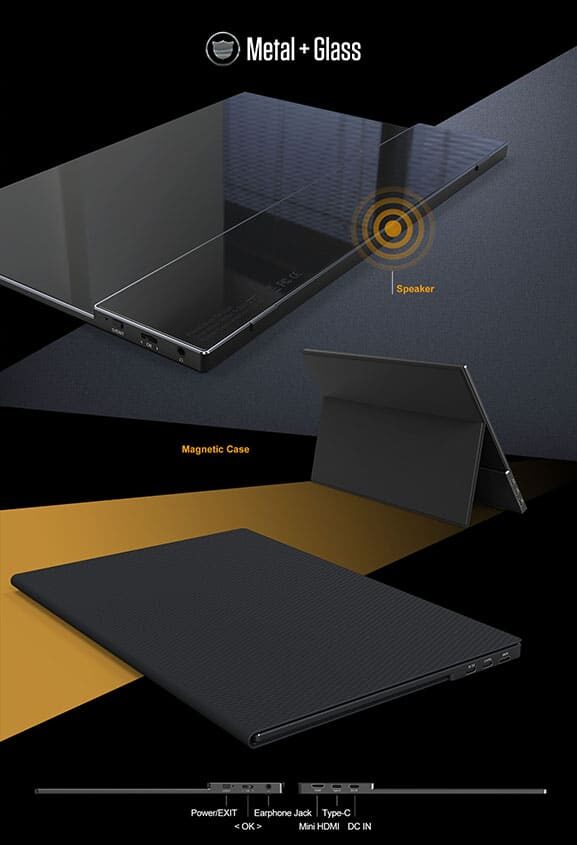

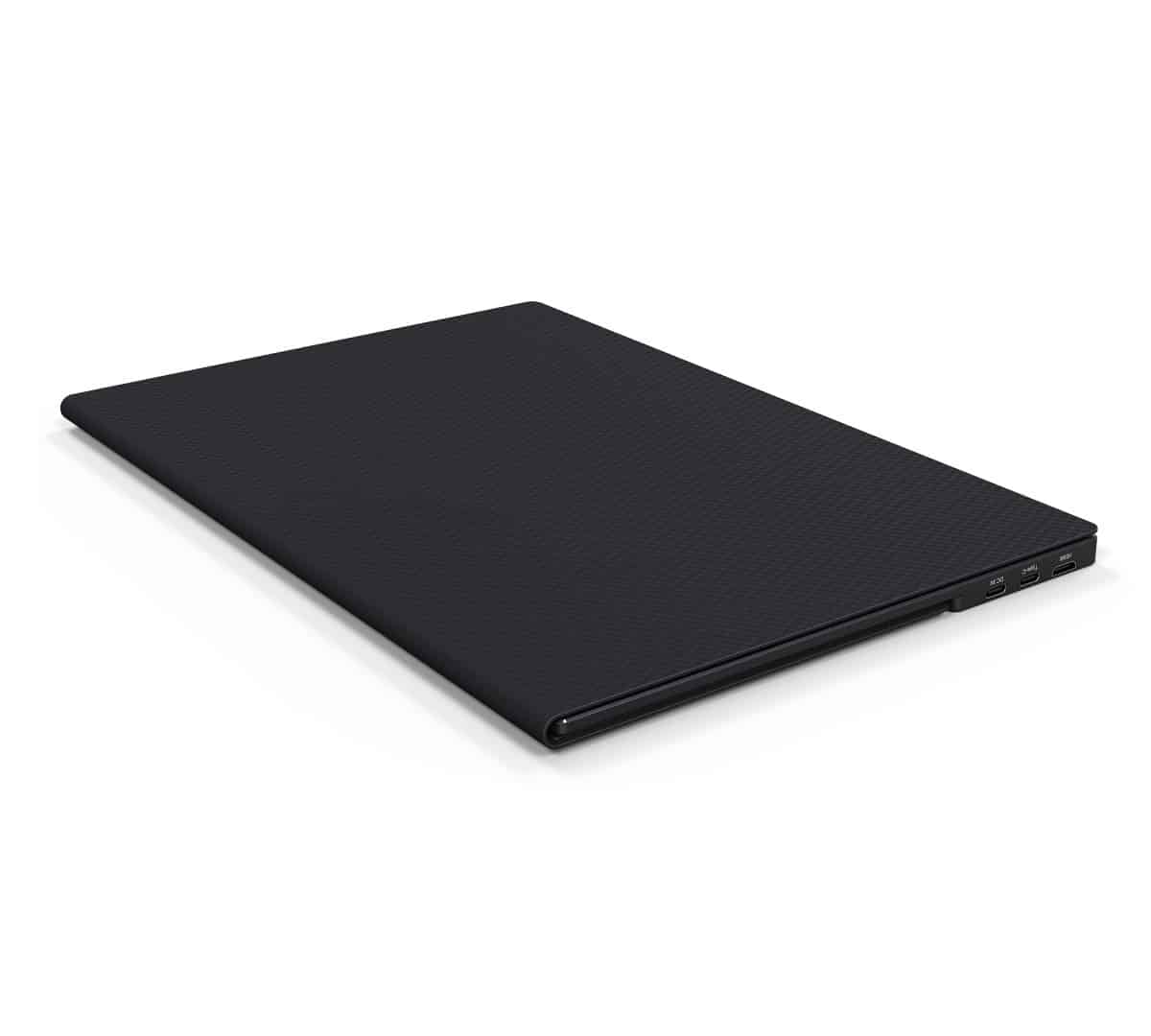

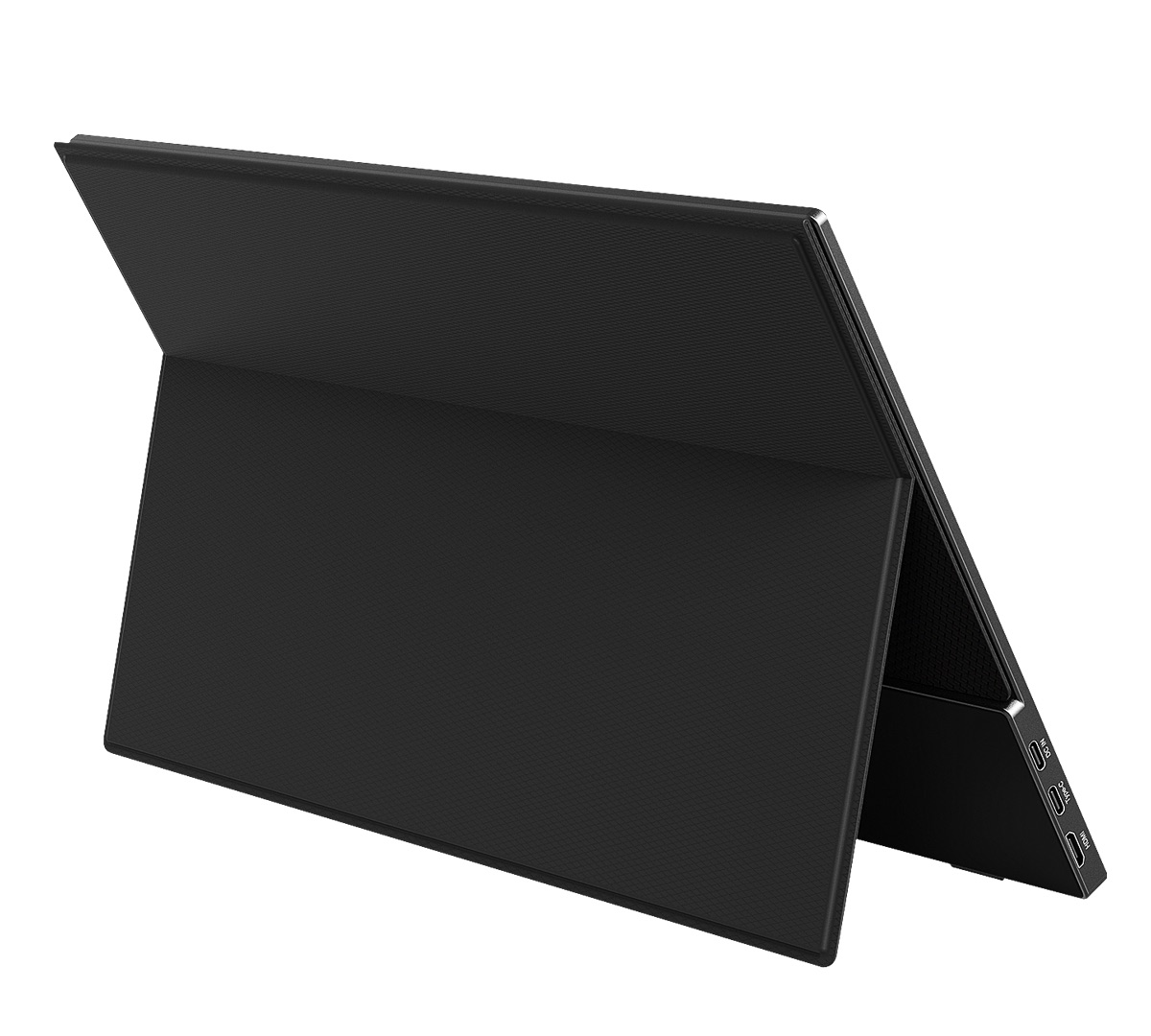

Magnetic Case

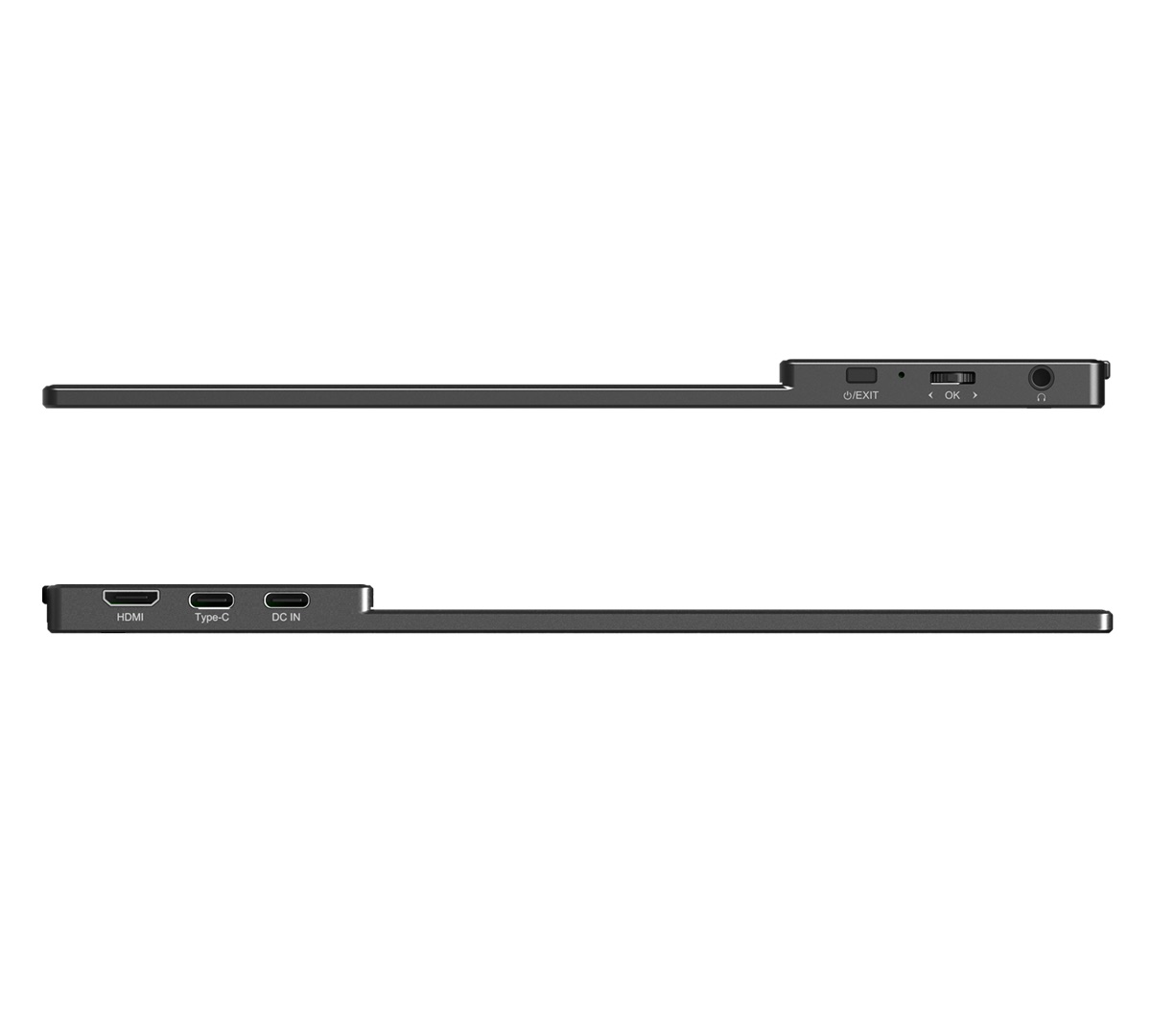

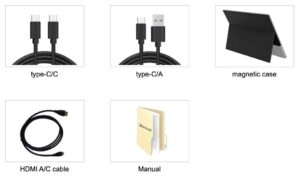

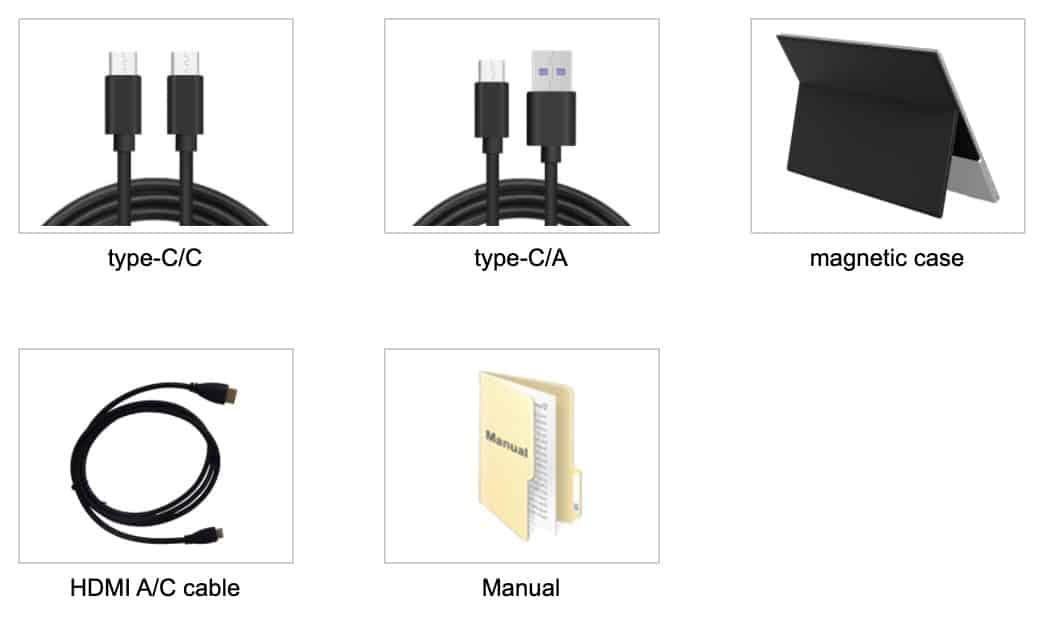

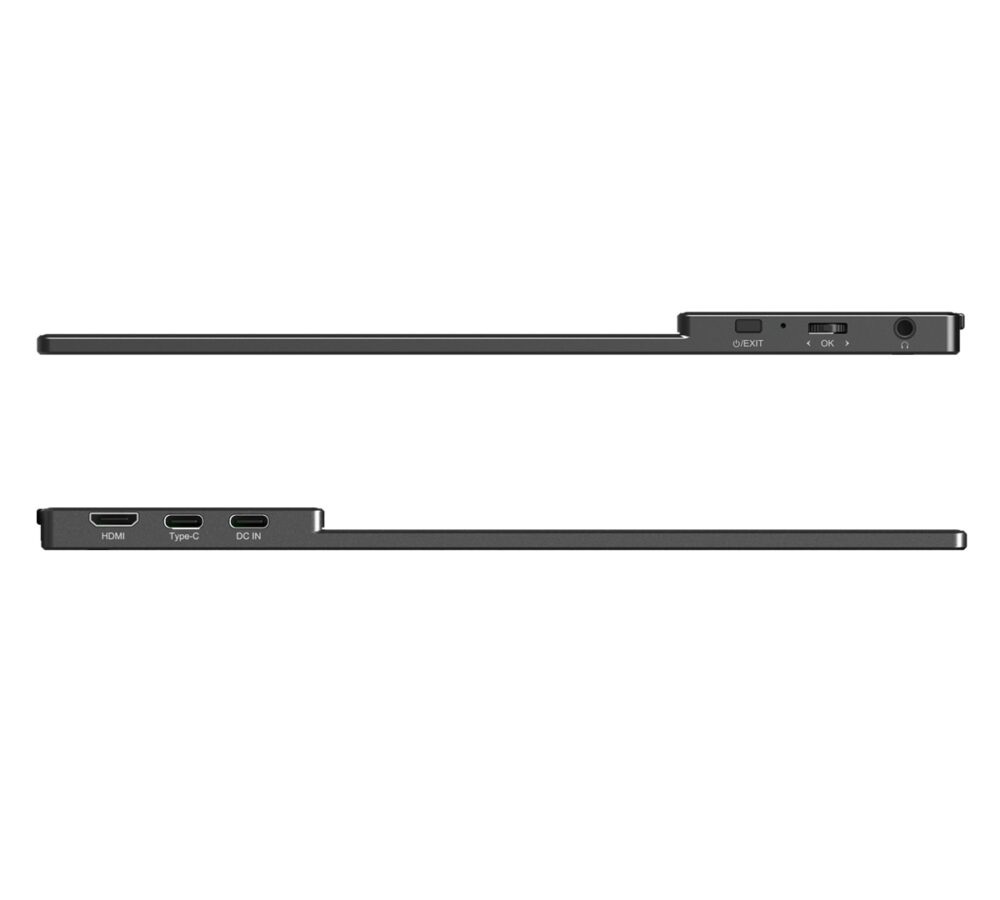

As you can see, the UMTC-1400 comes supplied with a foldable magnetic case, allowing for easy and safe storage in a bag or briefcase pouch. Looking at the sides of the unit, you can see how tidily composed and packed together the connection points and jacks are – making this the most stylish and portable monitor in Lilliput’s modern lineup.
Specs:
Display
Aspect Ratio: 16:9
Brightness: 250 cdm²
Contrast Ratio: 800:1
Display Screen: 14″
Resolution: 1920 x 1080
Viewing Angle: 170° / 170° (H/V)
Input
Input Signal: 2x USB Type C (1x For Power Only) / MiniHDMI x1
Size
Dimensions: 325mm x 213mm x 10mm
Weight: 620g (970g with case)
Audio In/Out
Earphone jack: 1
Built-in speakers: 1
Power
Input Voltage: DC 5-20V
Power Consumption: <= 6W (USB-C Device Supply) / <= 8W (Power Adapter)
Environment
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
