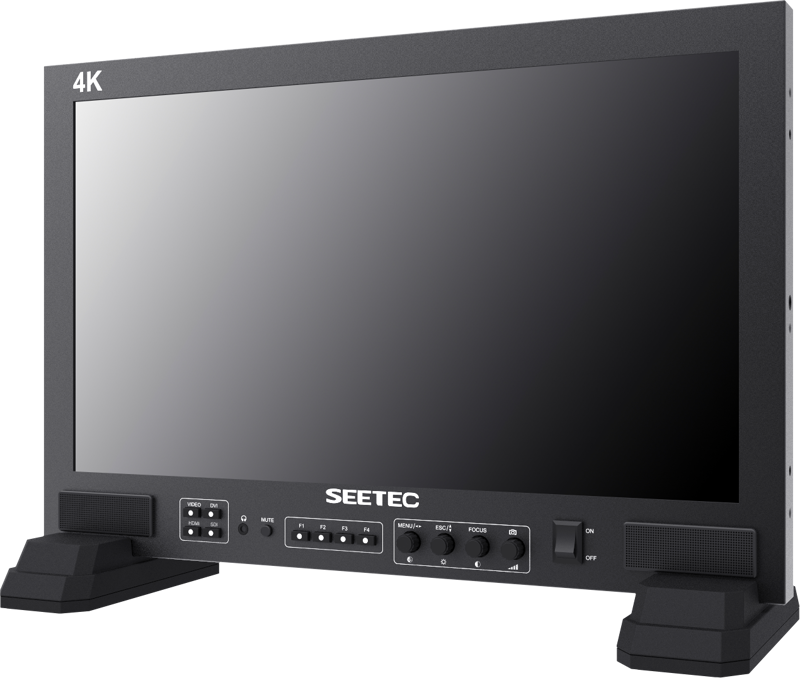

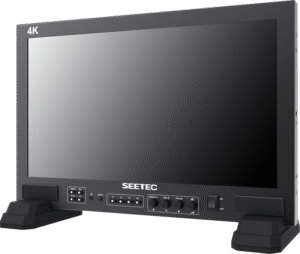

Features:
- Wide view angle screen, Full HD 1920×1080, bright, colorful display
- HDMI, 3G-SDI, Video, Audio(L/R), RS485, DVI inputs and HDMI, 3G-SDI, Video, RS485 loop-through outputs
- UMD and Text-Tally Display (TSL 3.1/4.0 Protocol)
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- Check Field (Red, Green, Blue, Mono)
- Camera Mode
- Pixel to Pixel
- Center Marker
- Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (Horizontal, Vertical, Hor&Ver)
- Image Freeze
- Zoom All
- U/D & L/R Zoom

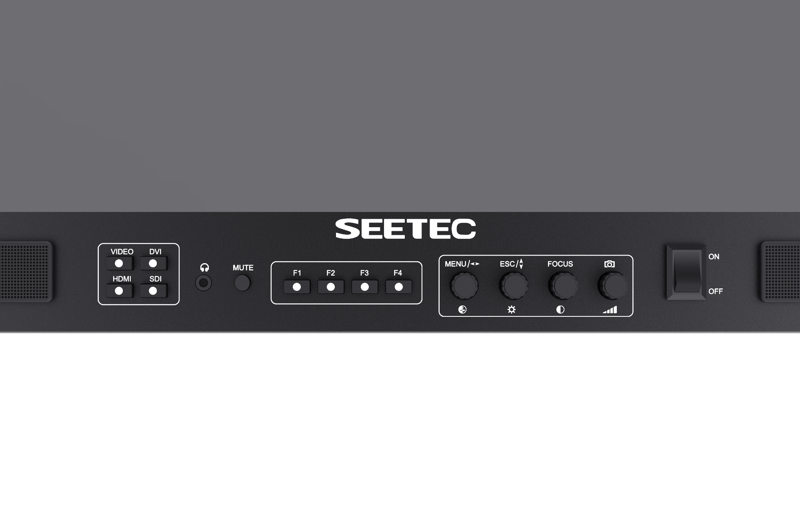

- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in LED tally indicators (Red, Green, Yellow) optional
- Power using included 12-volt supply or use standard 4-pin XLR
Specifications:
- Screen Size: 17.3″
- Color Depth: 16.7M
- Resolution: 1920×1080 pixels
- Dot pitch: 0.1989(H)×0.1989(V) mm
- Aspect Ratio: 16:9
- Brightness: 300cd/m²
- Contrast Ratio: 700:1
- Backlight: LED
- Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

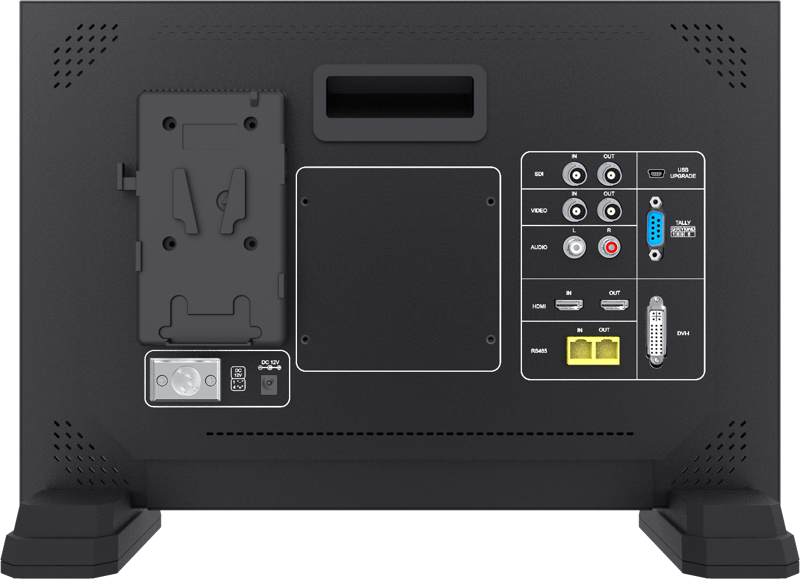

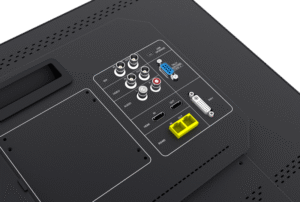

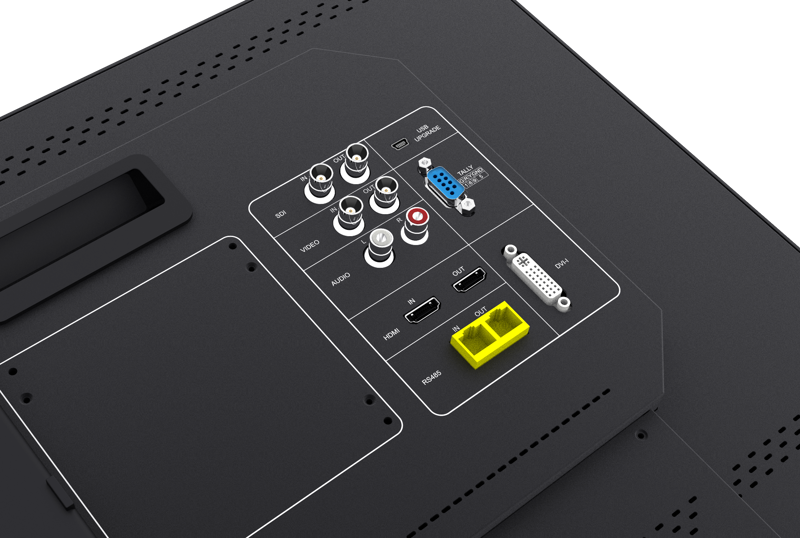

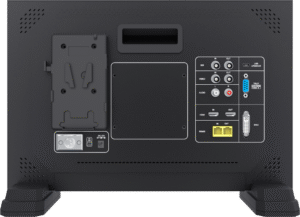

Input:
- 1 X BNC: 3G-SDI
- 1 X HDMI: HDMI
- 1 X Video: Video
- 2 X RCA: Audio(L/R)
- 1 X DVI-I: DVI-I
- 1 X RS485: RS485
Output:
- 1 X BNC: 3G-SDI
- 1 X HDMI: HDMI
- 1 X Video: Video
- 1 X RS485: RS485
