Features:

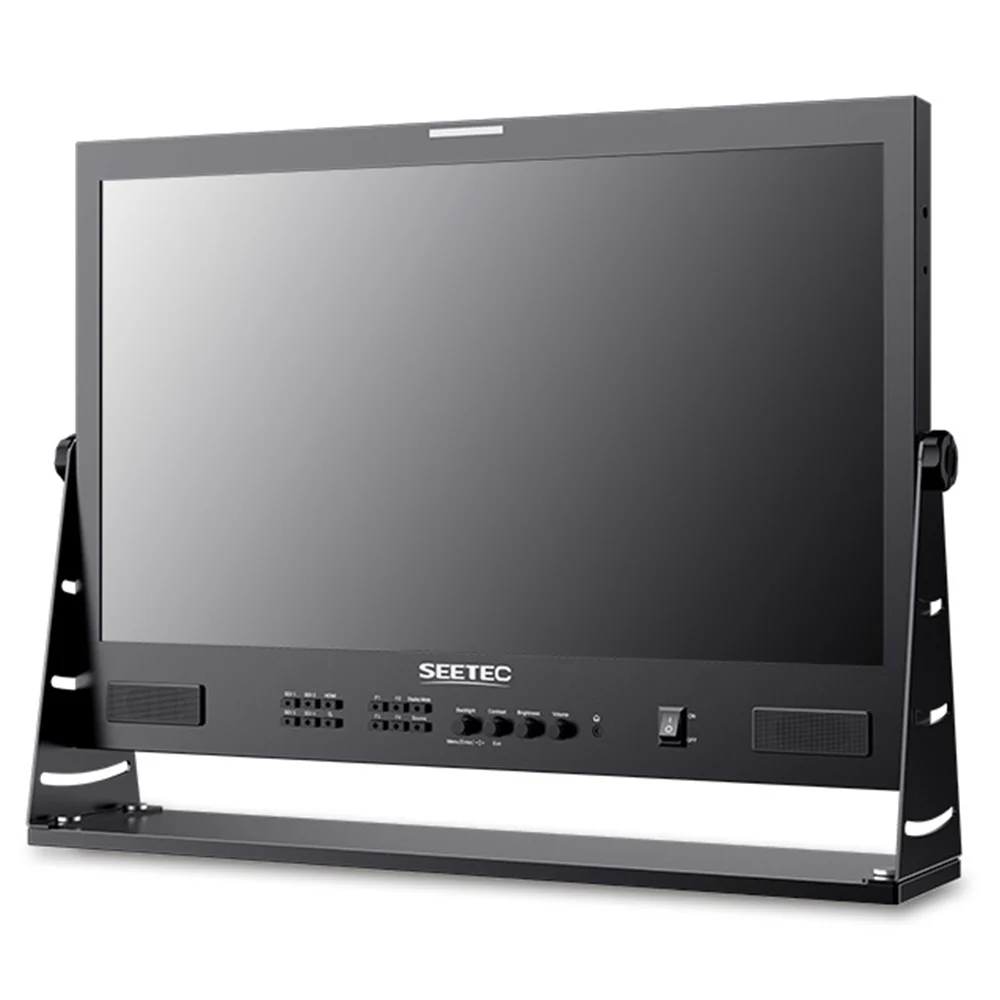

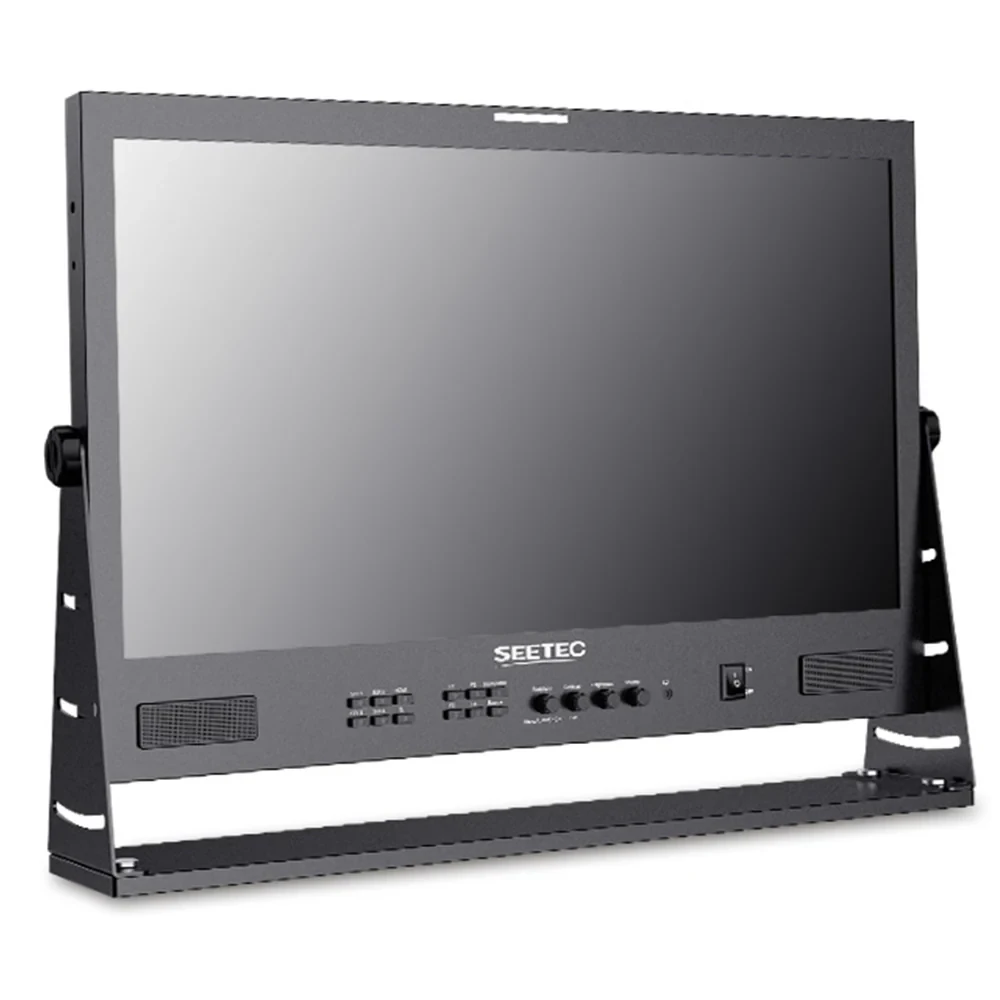

- 21.5-inch 1920×1080 full HD large screen
- Rugged aluminium housing, durable

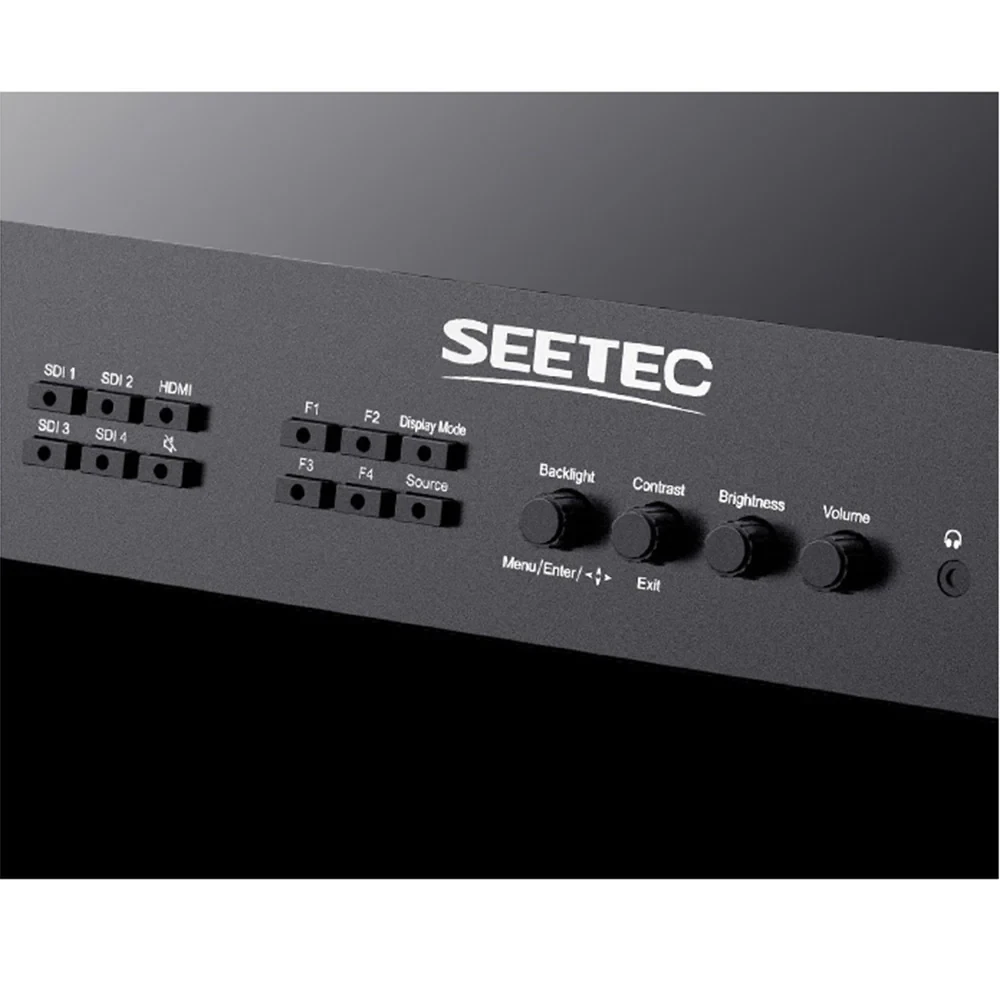

- Flexible and intuitive button operation, easy to use)

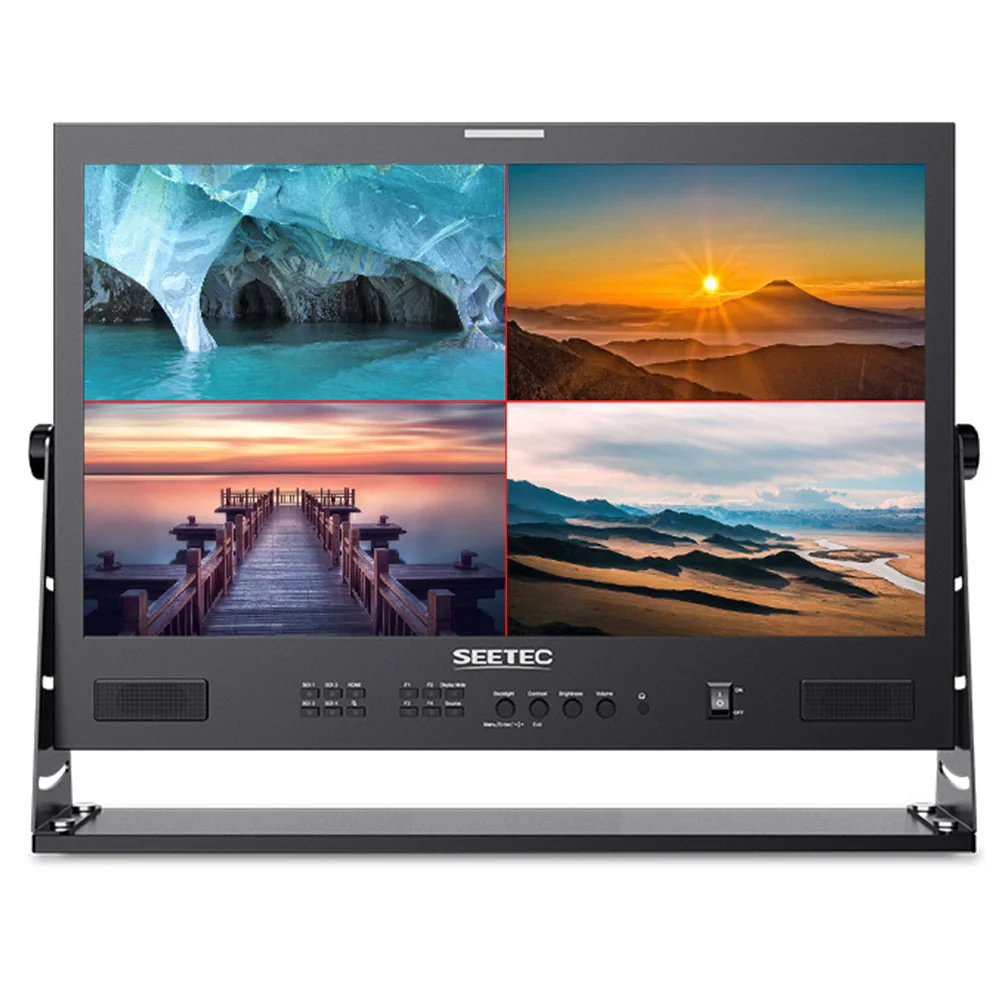

- Mulitple display modes (single, PIP, quad)
- Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)
- With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

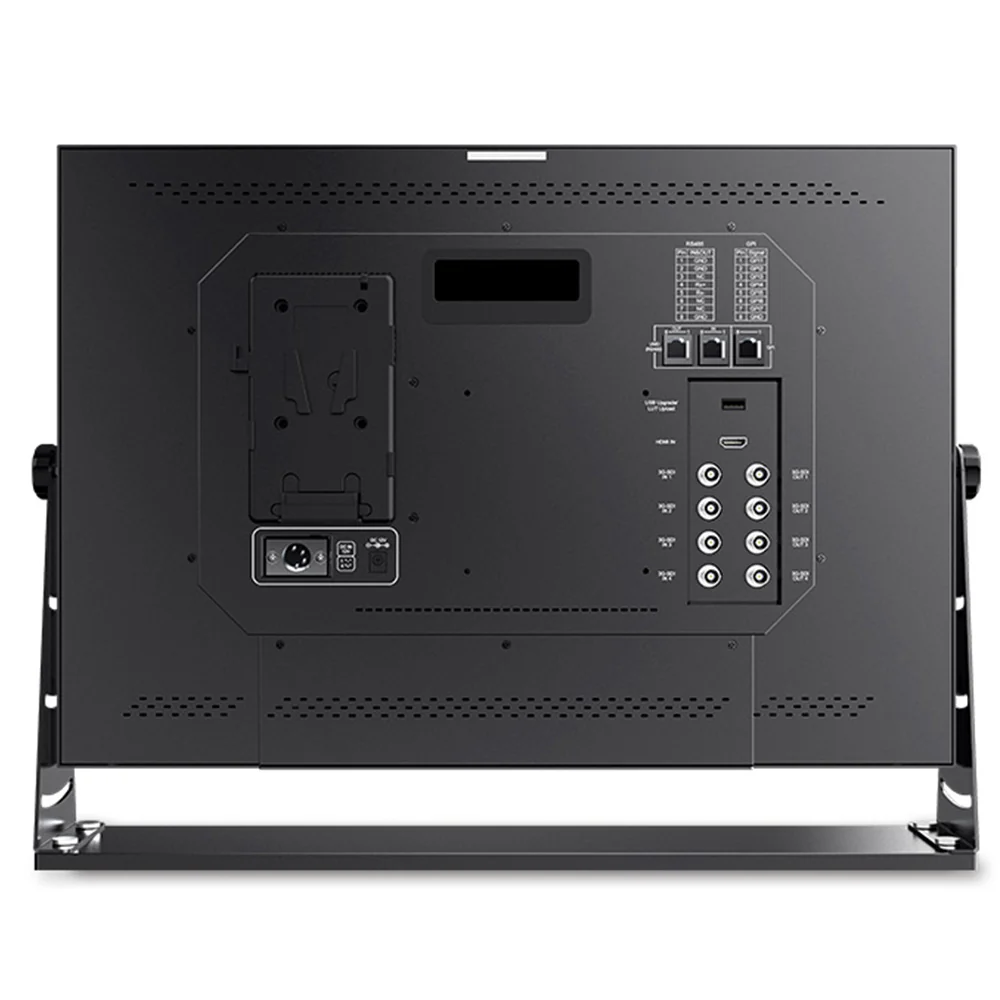

- Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
- Stereo Earphone output
- VESA standard mounting points support for bracket or hang wall installation
Functions:
- Focus Assist (Yellow, Red, Green, Blue, White) five colors optional highlight over parts of the image in focus)
- Zebra (70IRE, 80IRE, 90IRE,user)
- Monochrome (gray, red, green, blue)
- False Color
- Timecode
- Nine Grid
- Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
- Center Marker
- Marker Mat(16:9, 16:10, 4:3, 1.85:1, 2.35:1)
- All Waves (can be adjusted left or right)
- Parade(OFF, RGB Parade, Y, YUV Parade)
- Vector
- Histogram
- RGB Histogram
- Audio Meter
- HDR
- 3D-LUT
- Scan Mode (Under Scan, Over Scan)
- Video Aspect (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
- Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
- Zoom (4X, 9X, 16X)
- Freeze
- Pixel to Pixel
- Colortemp (6500K, 9300K, user)
- Display Mode(full screen, PIP, quad)
Specifications:
- Screen Size 21.5″ IPS
- Color Depth 16.7M
- Resolution 1920×1080 pixels
- Pixel pitch 0.08265(H) x 0.24975(V) mm
- Aspect Ratio 16:9
- Brightness 250cd/m²
- Contrast Ratio 1000:1
- Backlight LED
- Viewing Angle 89°/89°(L/R) 89°/89°(U/D)

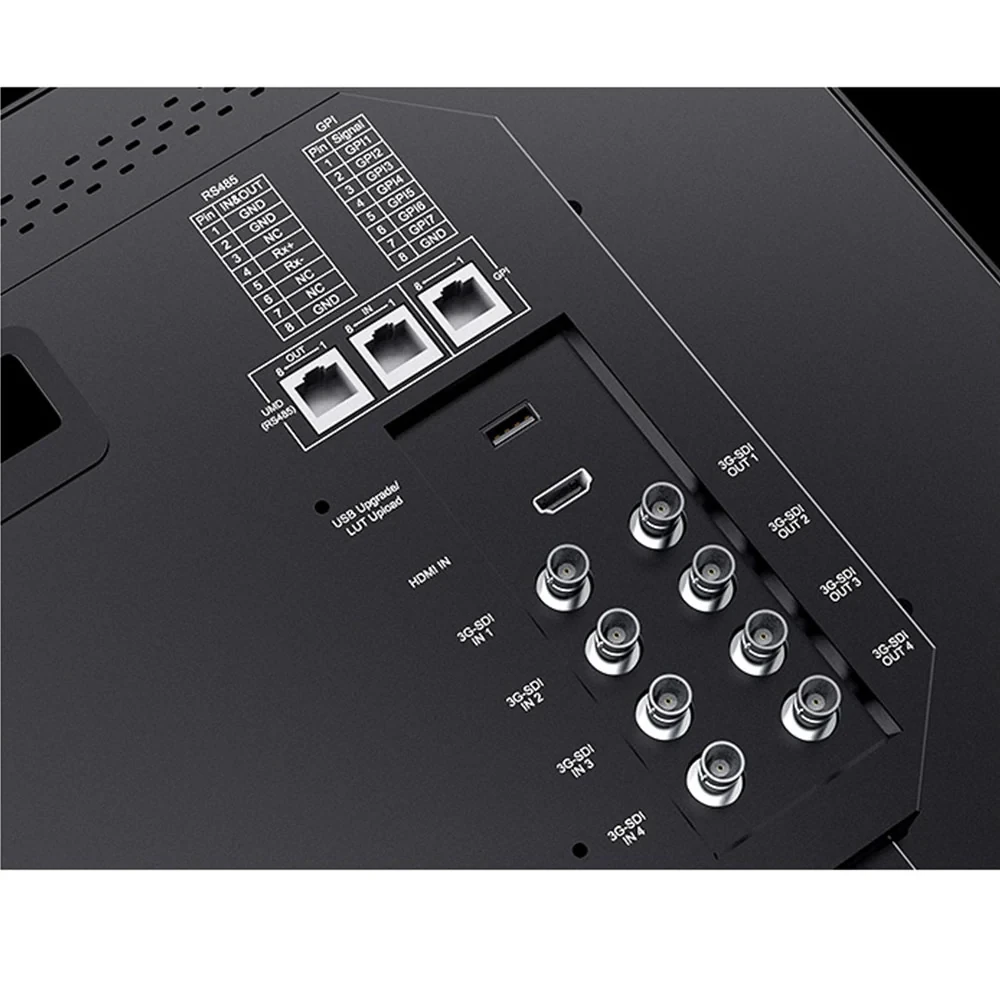

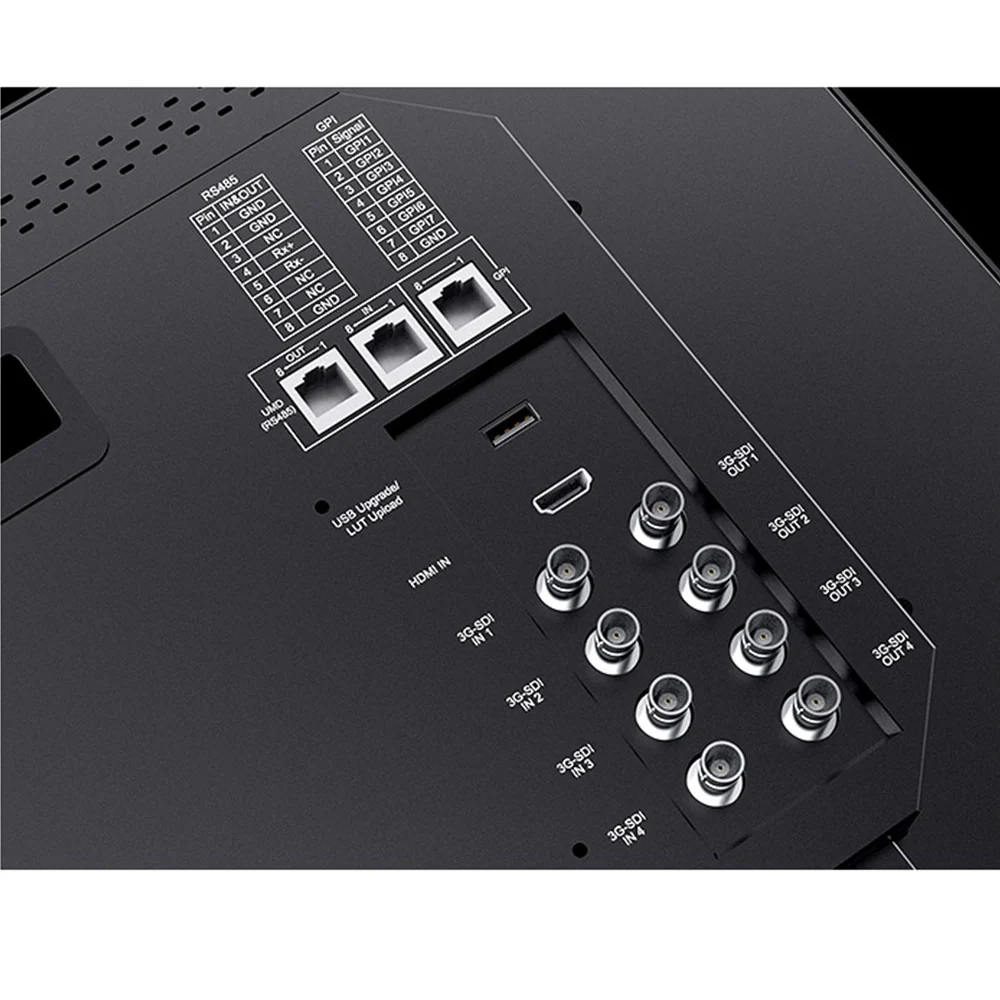

Input:
- 4 X 3G-SDI 3G-SDI (support 2K)
- 1 X HDMI HDMI (support 1080P)
- 1 X RS485 RS485
- 1 X GPI GPI
- 1 X USB USB (upgrade and LUT import)
Output:
- 4 X 3G-SDI 3G-SDI (support 2K)
- 1 X RS485 RS485
