Features:
- 23.8-inch 3840X2160 ultra HD large screen
- Rugged aluminium housing, durable

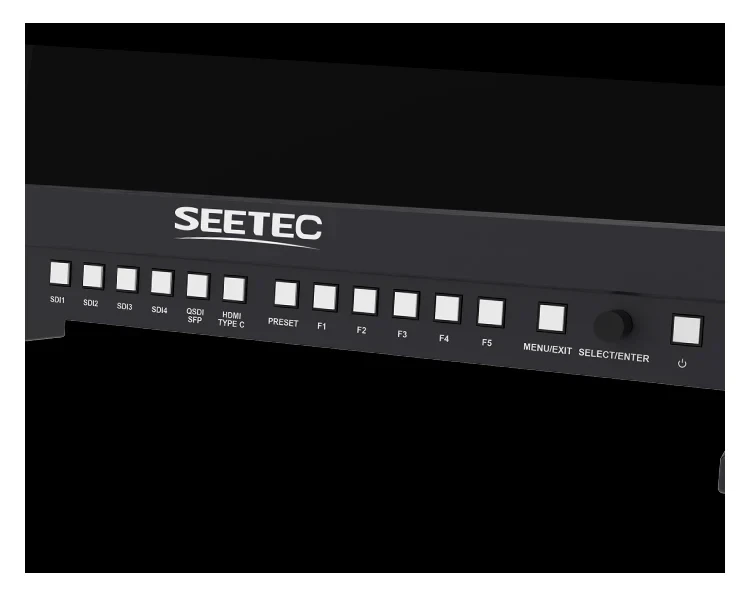

- Flexible and intuitive button operation, easy to use)
- Supports wide color gamut for broadcast TV and film standards, meet the different needs of photographers for color gamut.
- Mulitple display modes (Quade, Quadview triple side , Quadview triple bottom, PBP, PAP)
- SDR and HDR Image Comparison Function
- With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

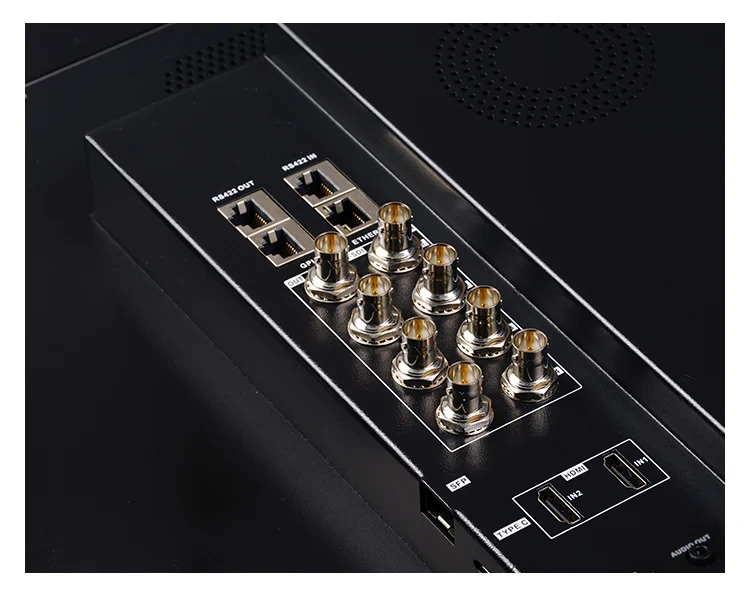

- Multiple interfaces, meet different needs (4*12G-SDI inputs and outputs, 2*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
- Three Tally color (Red, Yellow, Green)
- Stereo Earphone output, speaker
- VESA standard mounting points support for hang wall installation
Specifications:
- Screen Size 23.8″ IPS
- Color Depth 10Bit(1.07B)
- Resolution 3840×2160 pixels
- Pixel pitch 0.1369(W) x 0.1369(V) mm
- Aspect Ratio 16:9/4:3
- Brightness 540cd/m²
- Contrast Ratio 1200:1
- Backlight LED
- Viewing Angle 89°/89°(L/R) 89°/89°(U/D)
Input:
- 4 X 12G-SDI 12G-SDI (support 8K input)
- 2 X HDMI 2.0 HDMI (support 4K)
- 1 X RS422 RS422
- 1 X GPI GPI
- 1 X USB USB (upgrade and LUT import)
- 1 X LAN Ethernet
- 1 X Type-C Tpye-C (compatible with Lightning 3)
- 1 X SFP SFP Module (optional)
Output:
- 4 X 12G-SDI 12G-SDI (support 4K)
- 1 X RS422 RS422
