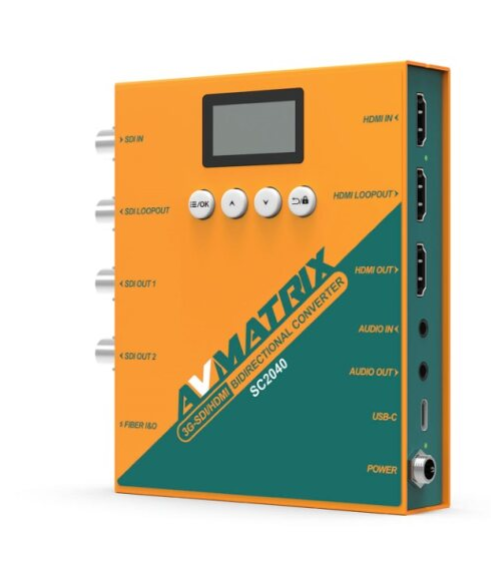

The AVMatrix 3G-SDI/ HDMI Bidirectional Scaling Converter With Transceiver SFP Module is a compact all-in-one professional AV solution designed for broadcast, live production, and event workflows. It supports bidirectional 3G-SDI and HDMI conversion, up/down scaling, frame rate conversion, optional fiber transmission up to 20km, audio embedding/de-embedding, and built-in professional test pattern generation, delivering reliable multi-signal processing in a versatile and easy-to-operate device.
The AVMatrix 3G-SDI/ HDMI Bidirectional Scaling Converter With Transceiver SFP Module is a powerful multi-function signal processing solution engineered for professional broadcast, live event, studio, and AV integration environments. Combining bidirectional 3G-SDI and HDMI conversion with advanced scaling and frame rate conversion capabilities, this compact device ensures seamless compatibility between multiple video formats and production systems.
Designed to simplify complex workflows, the converter integrates signal conversion, splitter functionality, fiber extension, and test pattern generation into one reliable unit. With support for optional bidirectional SFP fiber transmission up to 20km, it is ideal for long-distance signal distribution in demanding production setups. The built-in 23-pattern professional test generator and audio tone generator make system testing and troubleshooting fast and efficient.
Additional professional features include analog audio embedding and de-embedding through 3.5mm audio connections, flexible image orientation controls including horizontal and vertical flip modes, and intuitive operation through the front panel or USB software control. Dual power options via DC input and USB-C provide installation flexibility for both fixed and mobile production environments.
Key Features
- Bidirectional 3G-SDI and HDMI conversion
- Multiple conversion operation modes
- Up/down scaling and frame rate conversion
- Optional bidirectional SFP fiber transmission up to 20km
- Audio embedding and de-embedding via 3.5mm analog audio
- Built-in professional test pattern and audio tone generator
- 23 professional test patterns included
- Flexible image orientation control (H Flip, V Flip, H&V Flip)
- Front panel operation with USB software control
- Compact and reliable design for professional AV workflows
- Dual power supply support (DC and USB-C)
- All-in-one functionality: converter, splitter, fiber extender, and pattern generator
- AVMatrix 3G-SDI/ HDMI Bidirectional Scaling Converter With Transceiver SFP Module
- Power adapter
- User manual
Video Input
-
HDMI ×1
-
3G-SDI/Fiber ×1 (select 1 of 2)
Video Output
-
HDMI Loop ×1
-
HDMI ×1
-
SDI Loop ×1
-
SDI ×2
-
Fiber ×1
USB
-
USB Type-C ×1 (upgrade, power & control)
Resolution Support
-
Up to 1080p60
-
Supported formats: 1080p, 1080i, 720p, 576p, 480p, NTSC, PAL
Audio
-
Audio Input: 3.5mm Audio ×1
-
Audio Output: 3.5mm Audio ×1
SFP Module
-
Optional 3G Video SFP (MSA Type)
Power
-
DC 12V ×1
-
USB-C 5V ×1
-
Wide voltage range: DC 9–24V
-
Power consumption: 7W
