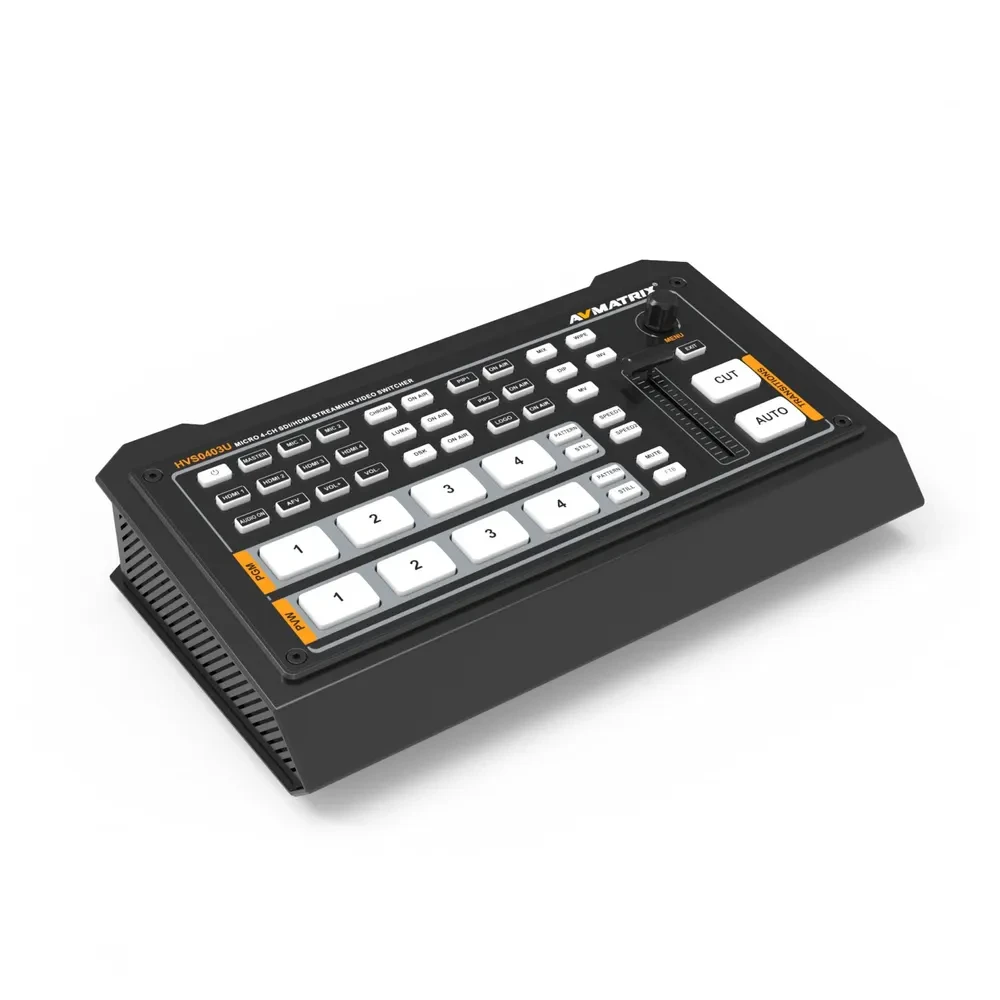

AVMATRIX HVS0403U 4-ch HDMI SDI Multi-format Streaming Video Switcher

Features:

• 2×HDMI & 2×3G-SDI inputs, support auto-detected
• 2×HDMI PGM outputs,1×HDMI multiview output, 1×USB type-C output
• All outputs are configurable and assignable
• USB for capturing and streaming on PC or Android phone
• Clearly visible multiview & status page
• Upstream key: Luma key, Chroma key, 2×PIP/ POP
• Downstream key and LOGO overlay
• T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
• Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/ line In; audio delay available
• Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
• LAN port for PC software remote control
• FTB/ MUTE/ STILL/ GPIO for tally

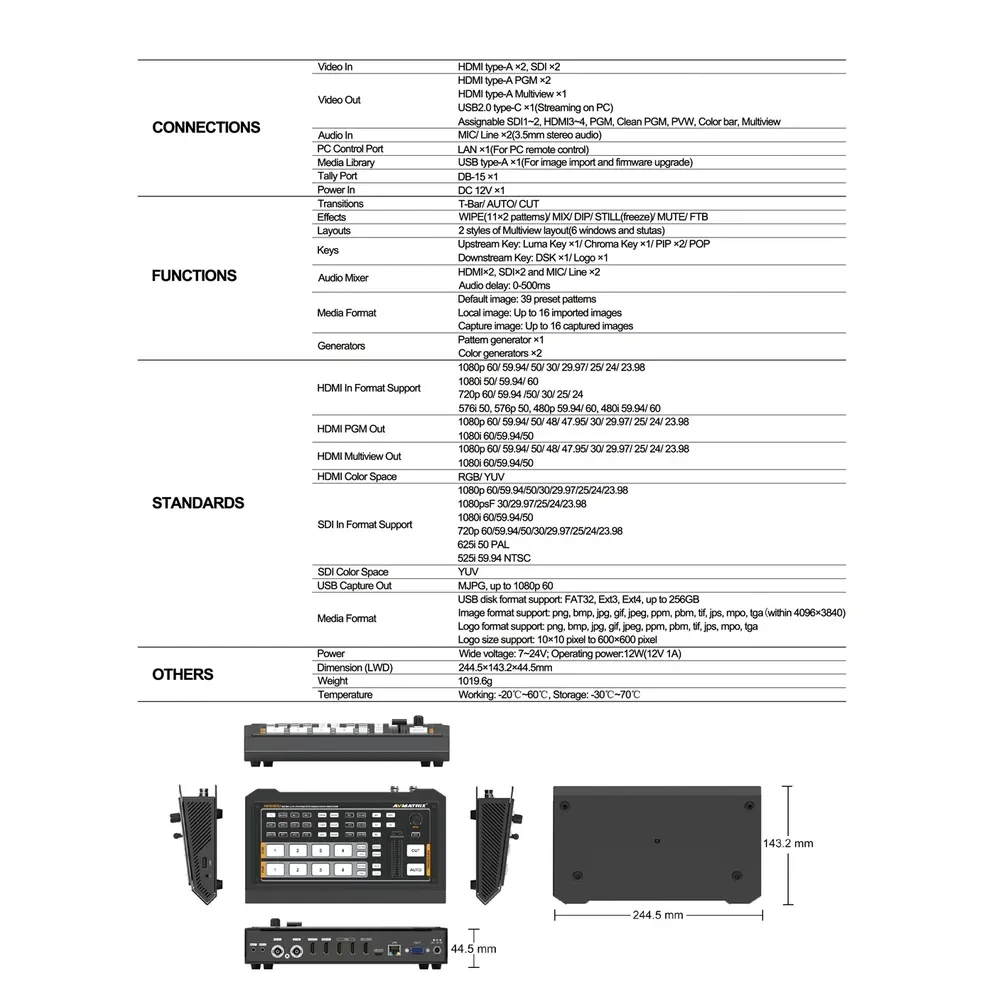

Full specification sheet
