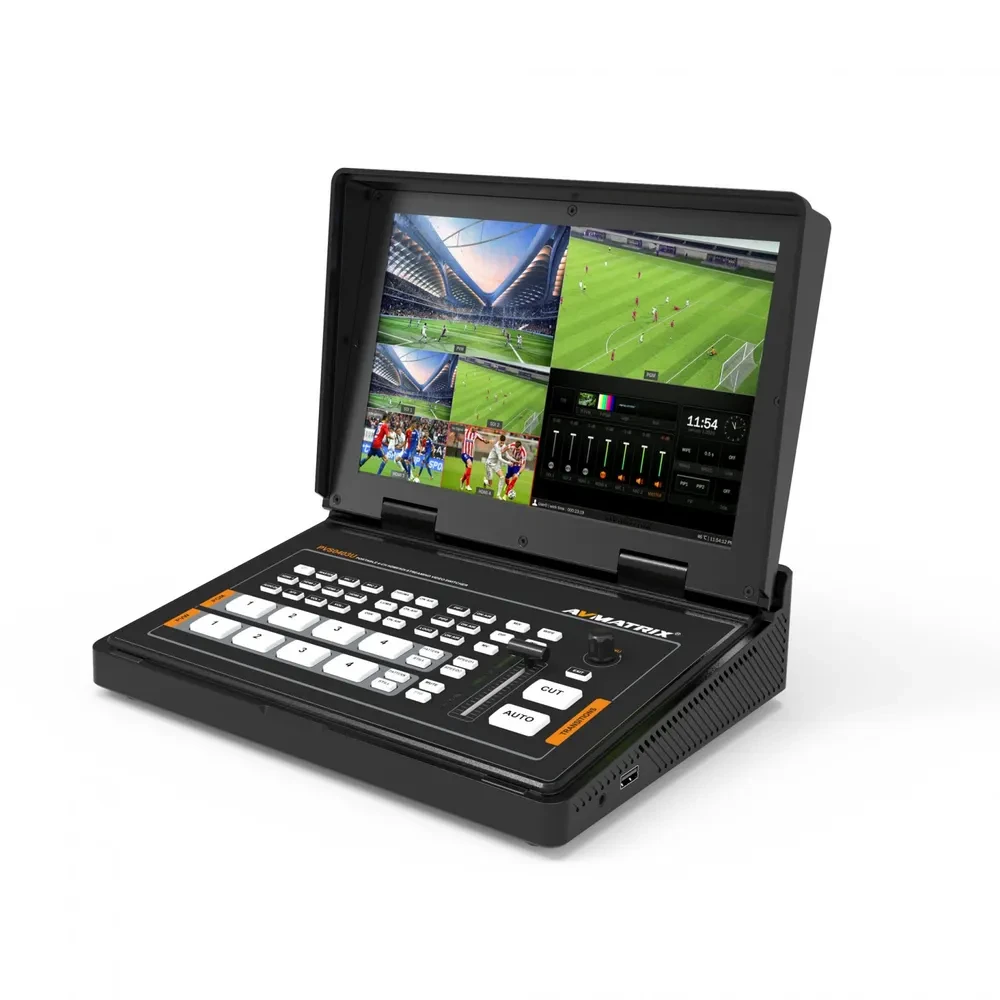

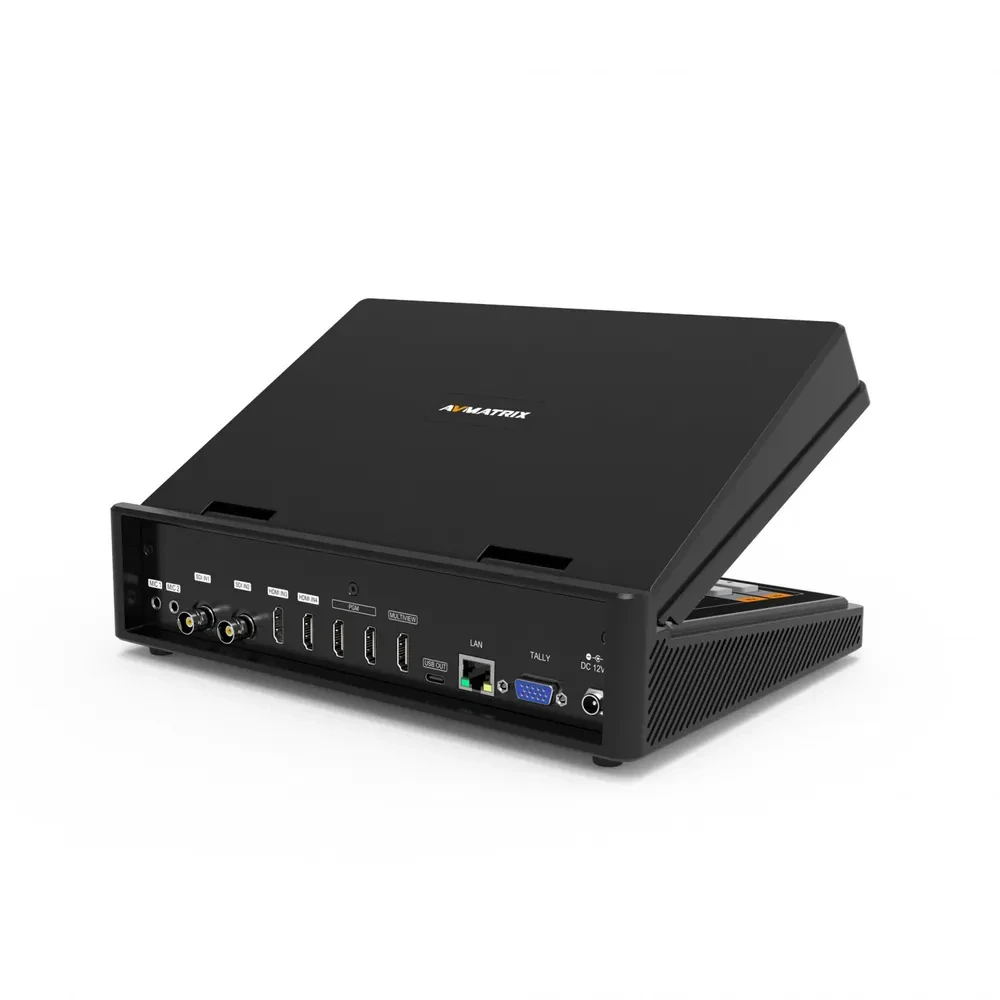

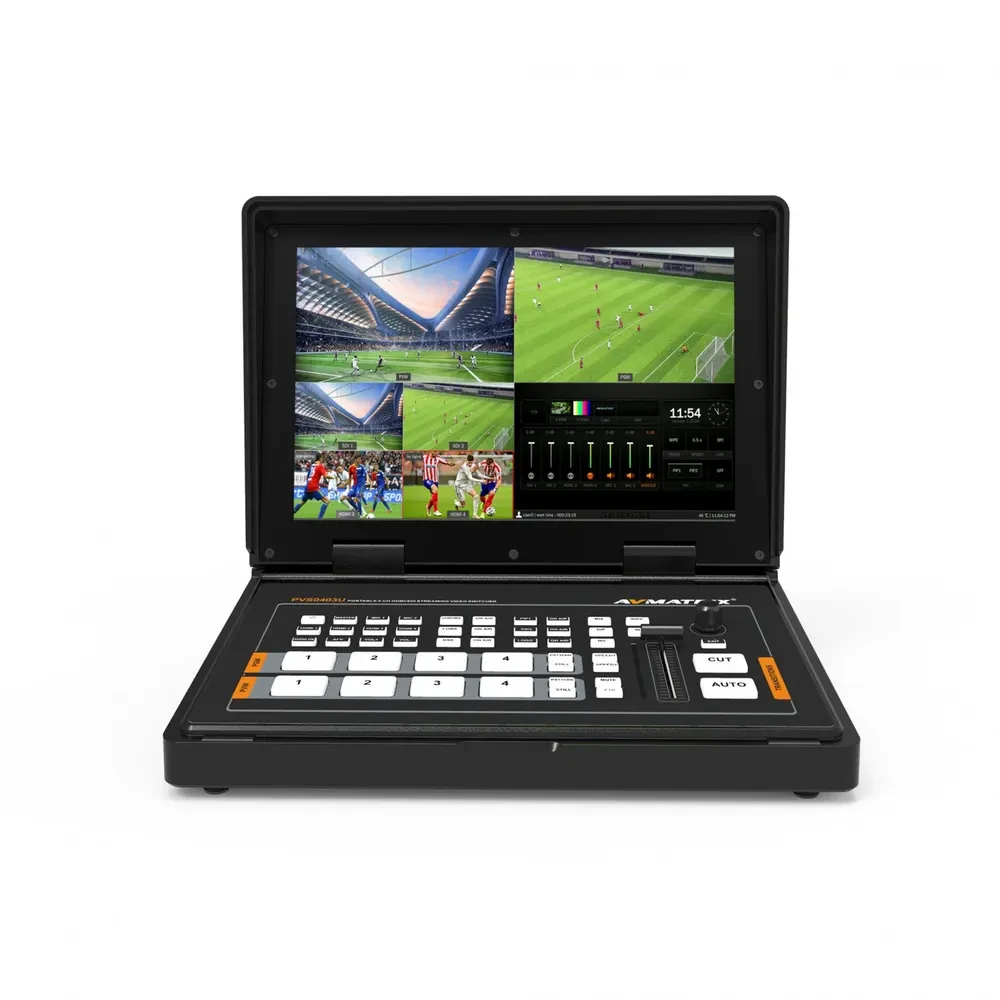

AVMATRIX PVS0403U Portable 4-ch HDMI SDI Multi-format Streaming Video Switcher

Features:

• 10.1 inch FHD IPS LCD monitor
• 2×HDMI & 2×3G-SDI inputs, support auto-detected
• 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
• All outputs are configurable and assignable
• USB for capturing and streaming on PC
• Upstream key: Luma key, Chroma key, PIP×2/ POP
• Downstream key and LOGO overlay
• T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
• Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/line In; audio delay available
• Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
• LAN port for PC software remote control
• FTB/ MUTE/ STILL/ GPIO for tally
