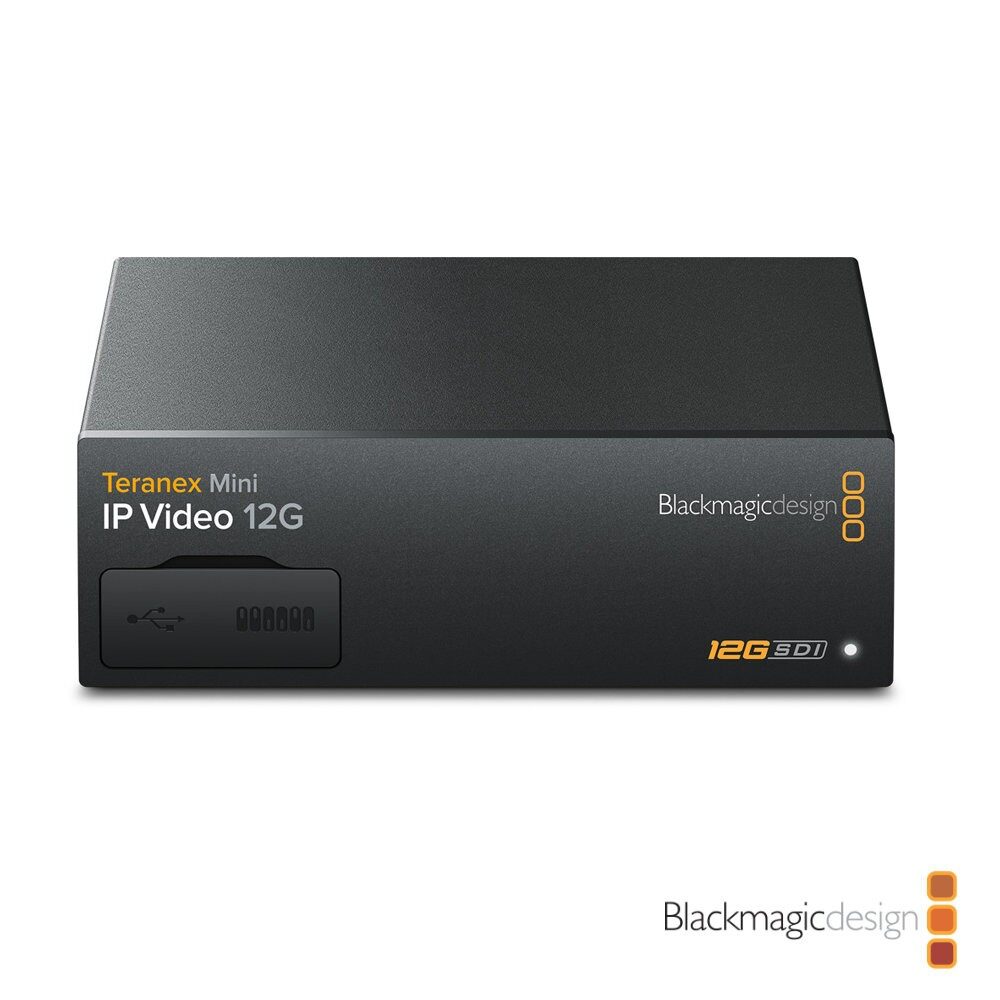

BLACKMAGIC DESIGN Teranex Mini IP Video 12G

Now you can convert video to IP and route it over your existing ethernet network, or you can convert IP video back to SDI. Teranex Mini IP Video 12G uses standard Blackmagic Videohub software and hardware control panels to configure and switch IP video over ethernet as easily as SDI signals! It onverts SDI video into TICO encoded data which can be delivered over your network via Ethernet. A second unit connected to the network decodes the data and converts it back to SDI so you can plug the video into other SDI equipment. You get 12G-SDI and the low latency broadcast quality TICO codec so you can route HD over the built in gigabit ethernet connection or Ultra HD over 10G ethernet with an optional 10G SFP! The Gigabit Ethernet interface supports 3G-SDI up to 1080p60 using TICO encoding/decoding. An optional 10G Ethernet optical fiber SFP module can add support for Ultra HD up to 2160p60 using TICO encoding/decoding.
