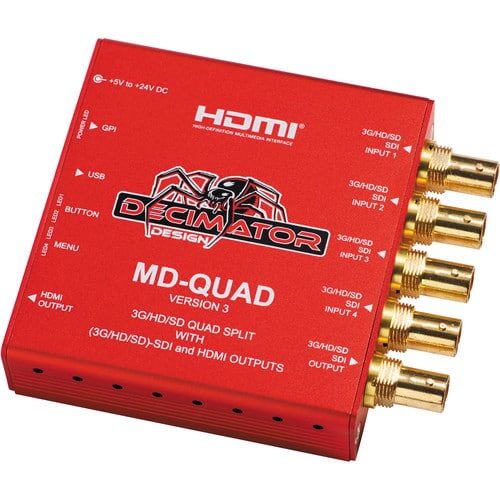

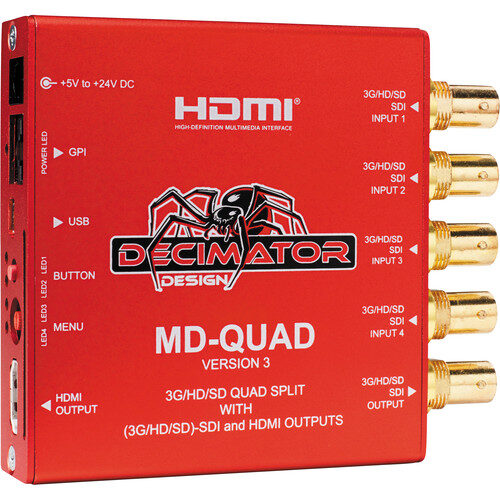

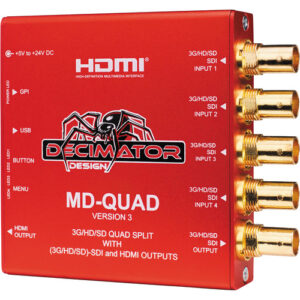

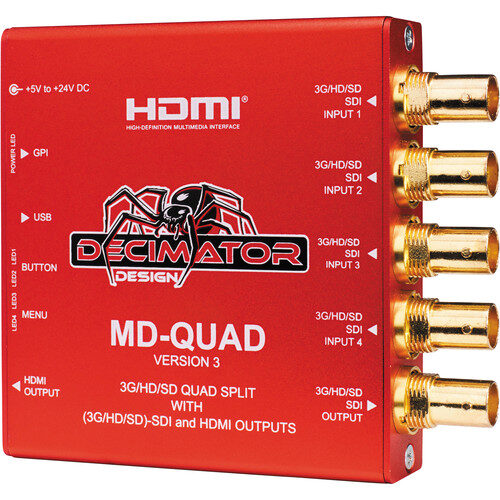

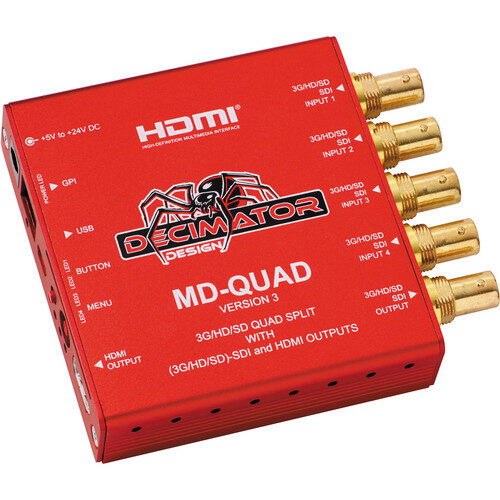

DECIMATOR MD-QUAD v3 SDI quad split multi-viewer

1 to 4 Channel Multi-Viewer / Quad-Split with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts

Features:

• Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
• Professional 3G/HD/SD Test Pattern Generator featuring:
  – 26 Selectable Output Formats
  – 54 Test Patterns including Luma and Chroma Zone-plates
• Audio Tone Generator
• Horizontal and/or Vertical image flipping per window
• Low-cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Tallies can be applied to either Tally Boxes (Default) or Border
• Tally boxes allow for up to 4 Tallies per window (Green, Red, Blue and Yellow)
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto-detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
• An extensive selection of user-controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push-button can then be used for status and control
• USB port for control and updates
• Locking DC Power Socket
• 5 GPI on standard RJ-45 connector for Tallies and Remote Switching
• RS422/485 is also included on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol

The following is included with the unit:

• Power Supply, HDMI Cable, USB Cable and Mounting Bracket
