MAGEWELL Eco Capture SDI 4K Plus M.2 – 11560

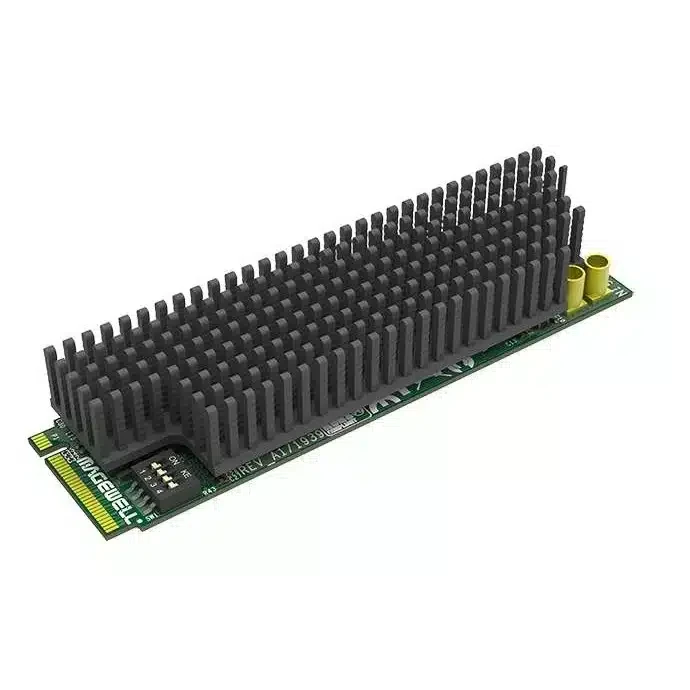

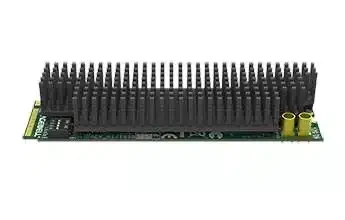

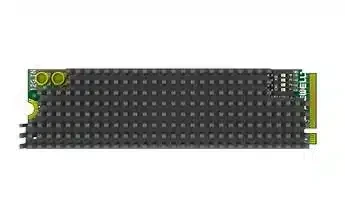

The Magewell Eco Capture SDI 4K Plus M.2 is a single-channel 4K SDI capture card with connection for a M.2 slot. This Eco card supports video capture for SD/HD/3G/6G/12G SDI signals up to 4096×2160 pixels per channel input with embedded audio, and high-frame rate capture up to 144fps. In addition, this card supports Loop-through SD/HD/3G/6G/12G SDI + embedded audio. These cards (22x80mm) are designed for small and portable systems that do not have space for full-size PCIe slots.

The Magewell Eco Capture M.2 cards offer high-performance and powerful video capture solutions with low power consumption. The Magewell SDK enables developers to customize the Magewell APIs for lower-latency capture and synchronize channels across multi-channel or even multiple capture cards.

• Single channel 4K capture card
• Captures SD/HD/3G/6G/12G SDI + embedded audio
• Loop-through SD/HD/3G/6G/12G SDI + embedded audio

Full specification sheet
